Product Description

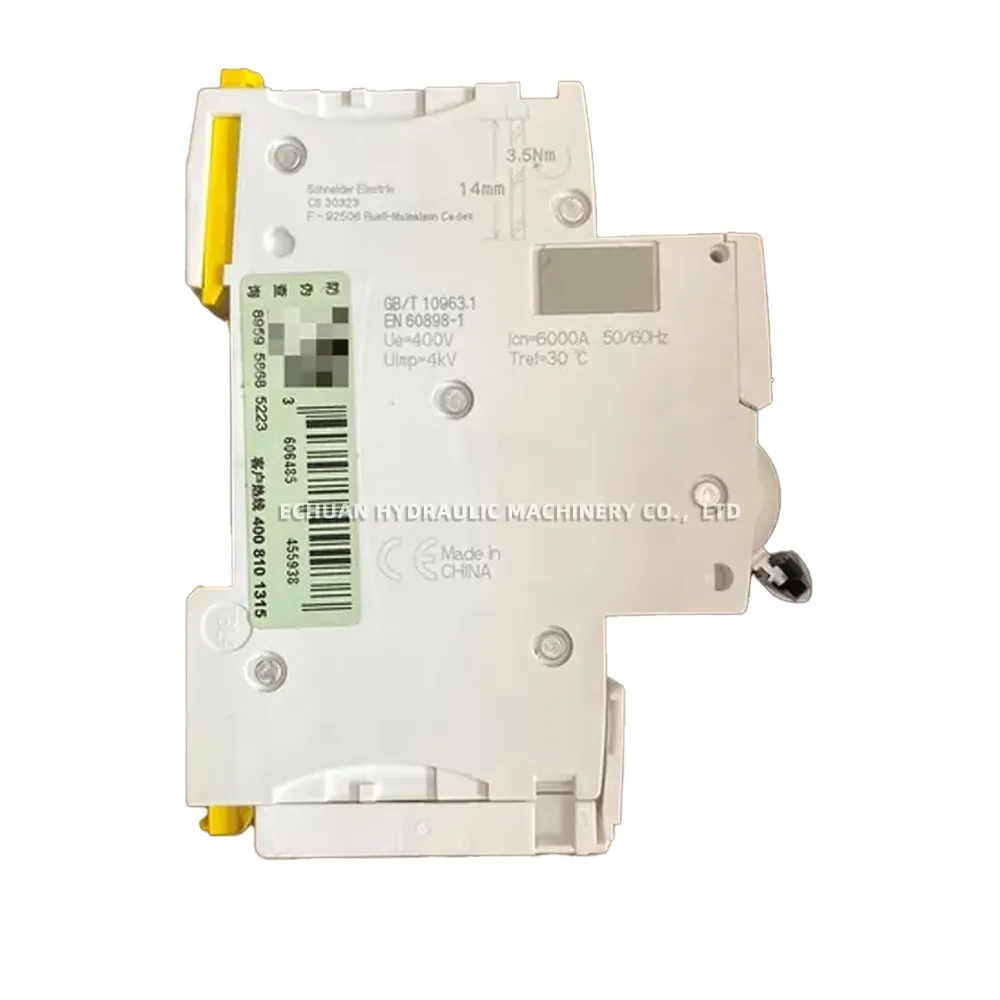

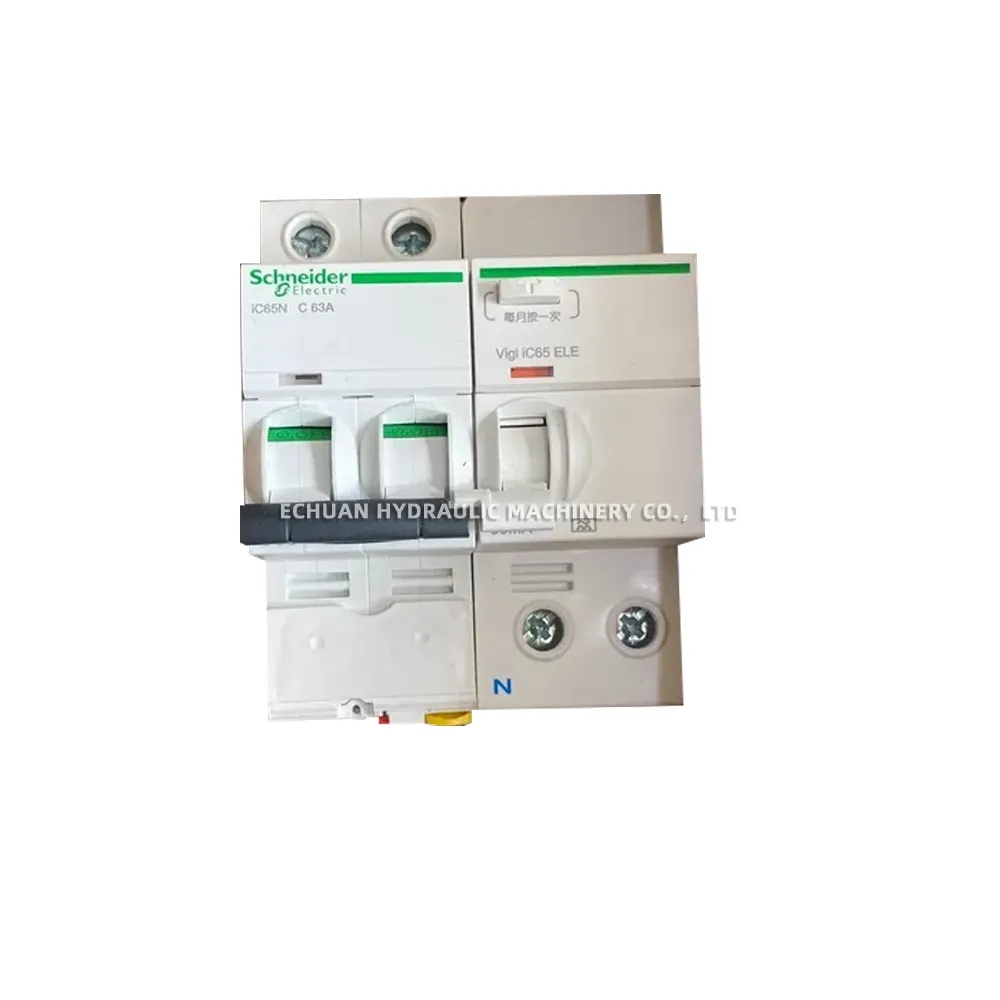

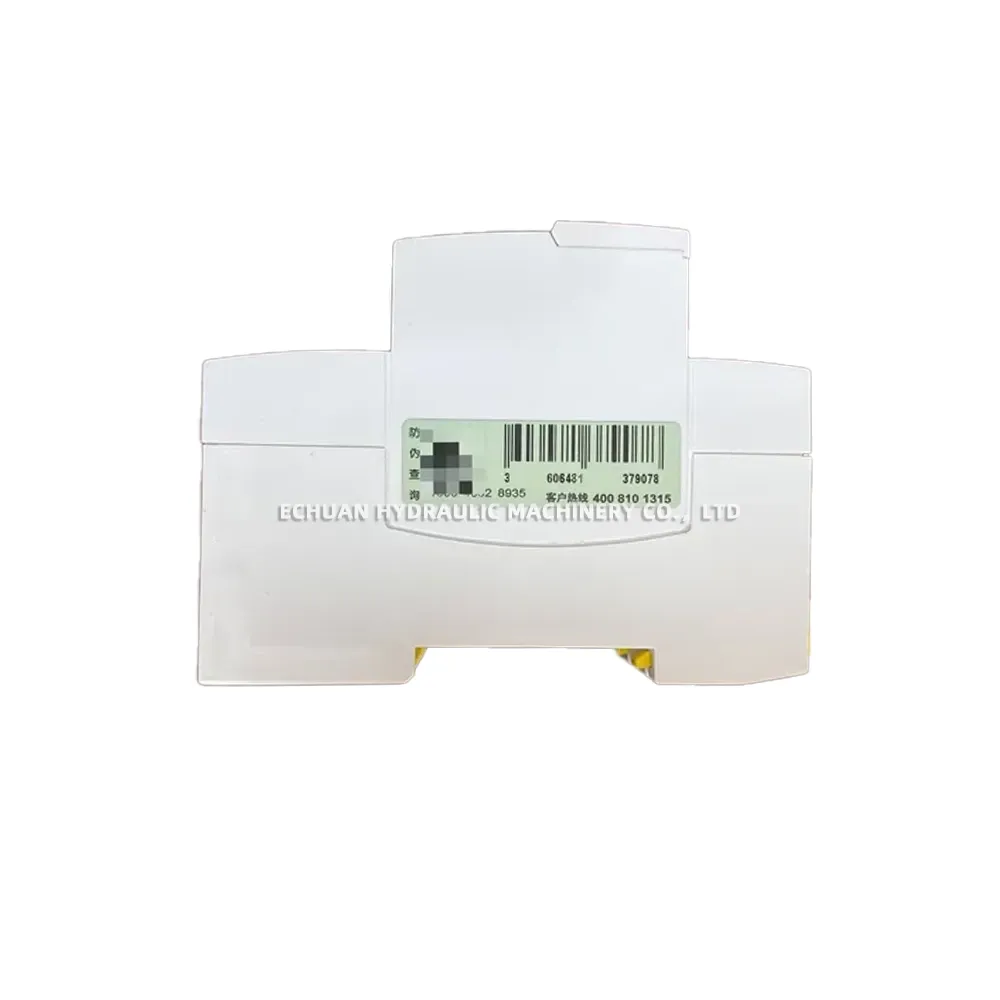

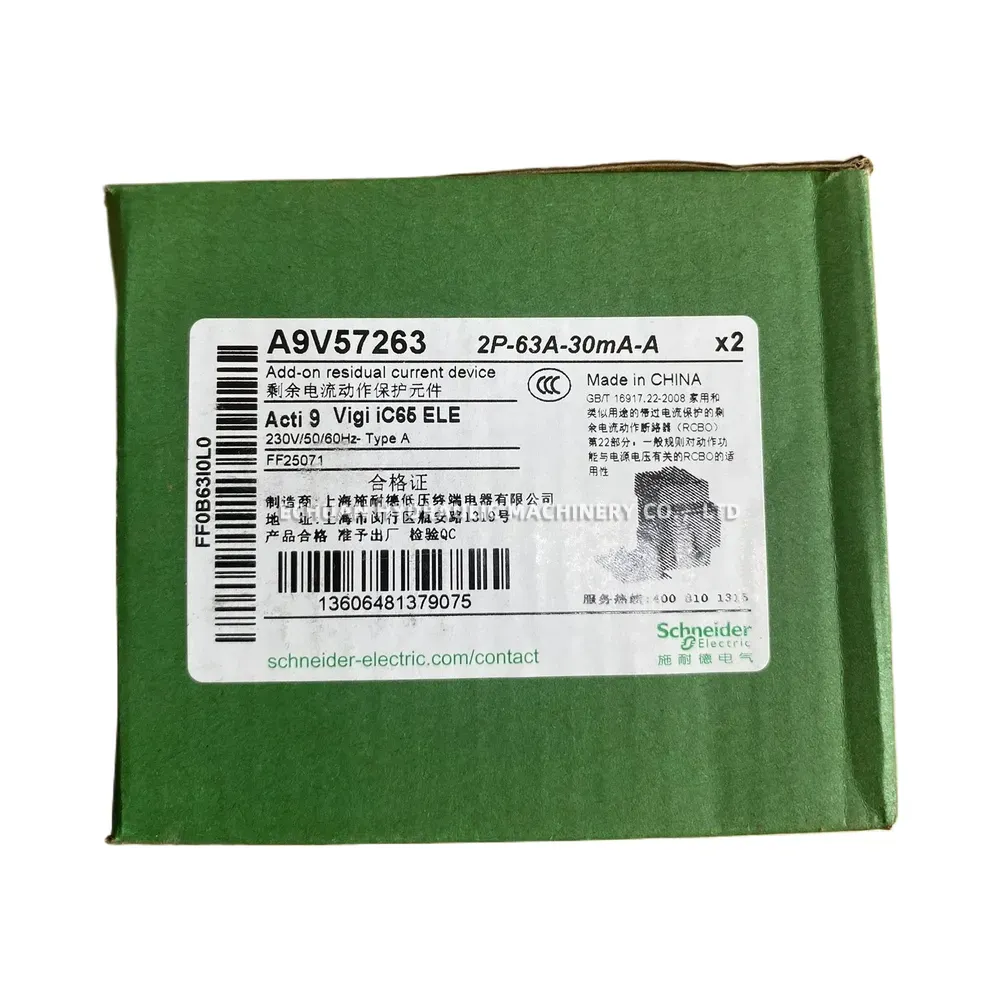

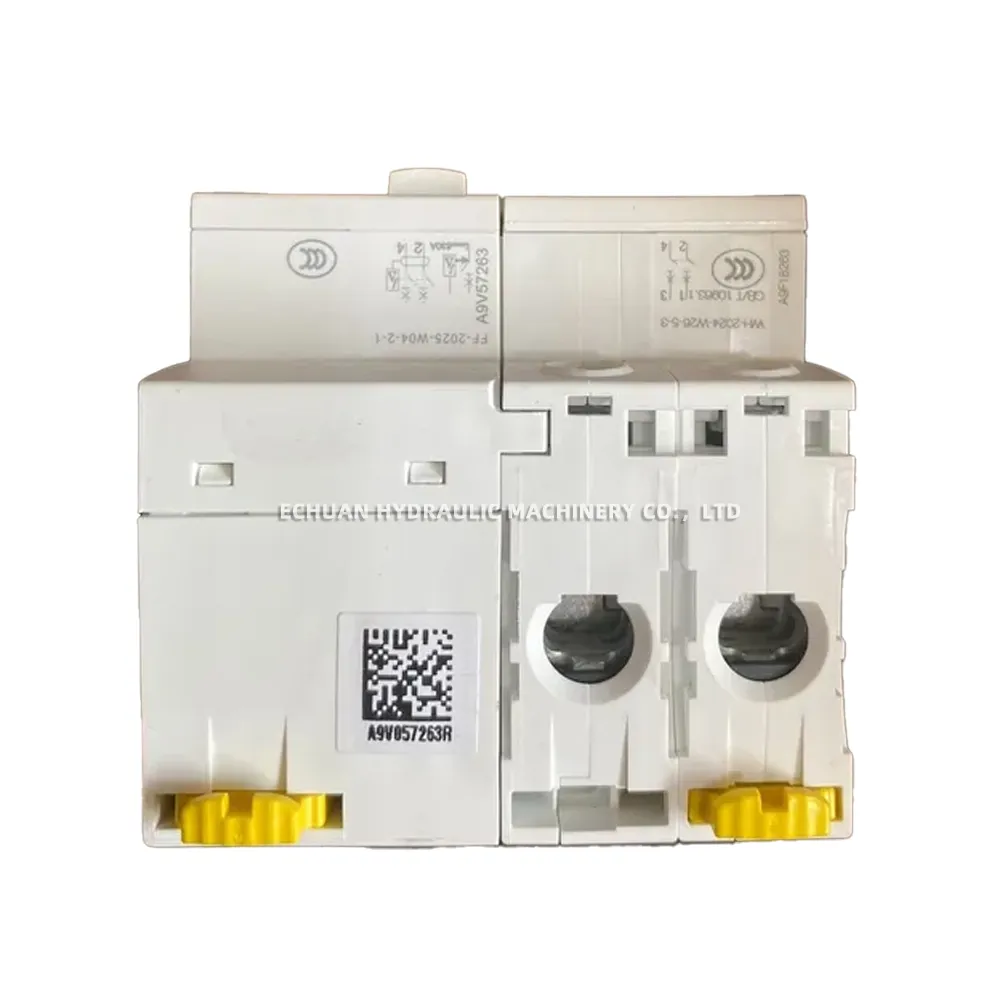

Schneider A9V57263

The Schneider Electric A9V57263 is a Vigi iC60 add-on residual current device (RCD) designed to provide comprehensive protection for electrical circuits. As part of the reliable Acti 9 range, this 2-pole device is engineered to protect against earth leakage faults, which can cause electric shock or fire hazards. It easily clips onto iC60 miniature circuit breakers (MCBs) to create a residual current circuit breaker with overcurrent protection (RCBO). With a rated current of 63A and a sensitivity of 30mA, it is ideal for protecting personnel and equipment in both commercial and residential installations, ensuring compliance with safety standards.

Technical Specifications:

  • Range: Acti 9

  • Product or component type: Add-on residual current device

  • Poles description: 2P

  • Rated current [In]: 63 A

  • Network type: AC

  • Earth-leakage sensitivity: 30 mA

  • Earth-leakage protection class: Type AC

  • Rated operational voltage [Ue]: 230/240 V AC 50/60 Hz

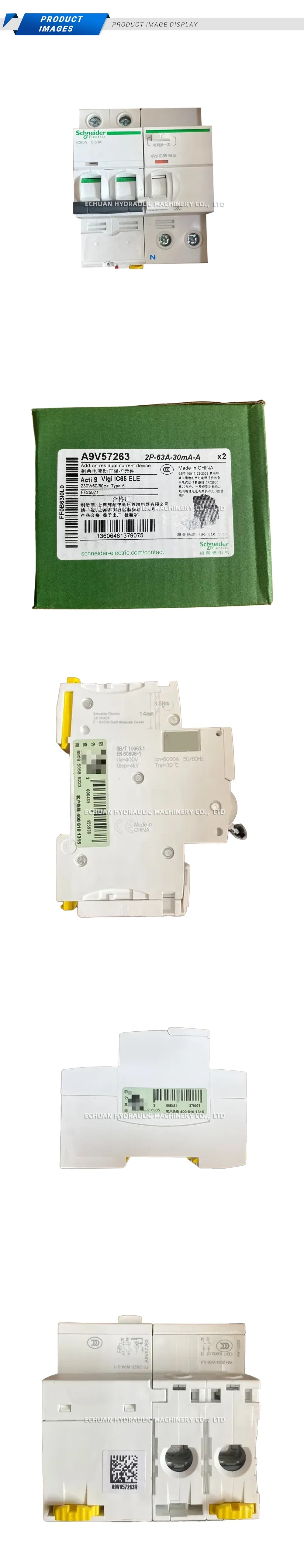

Schneider A9V57263 Description

Schneider A9V57263

Order the Schneider Electric A9V57263, a Vigi iC60 2-pole, 63A, 30mA Type AC add-on residual current device (RCD) for reliable earth leakage protection in Acti 9 systems.

BrandSchneider
ModelA9V57263
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/schneider-a9v57263
