Product Description

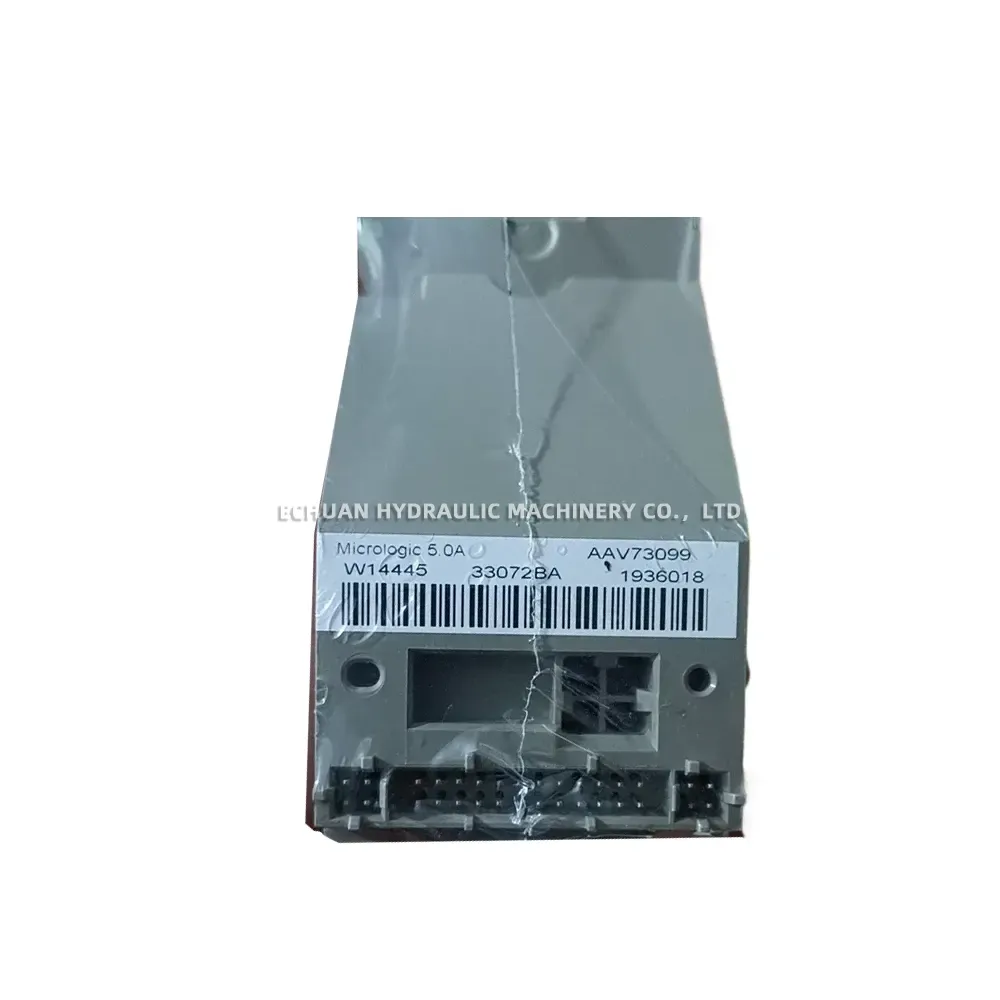

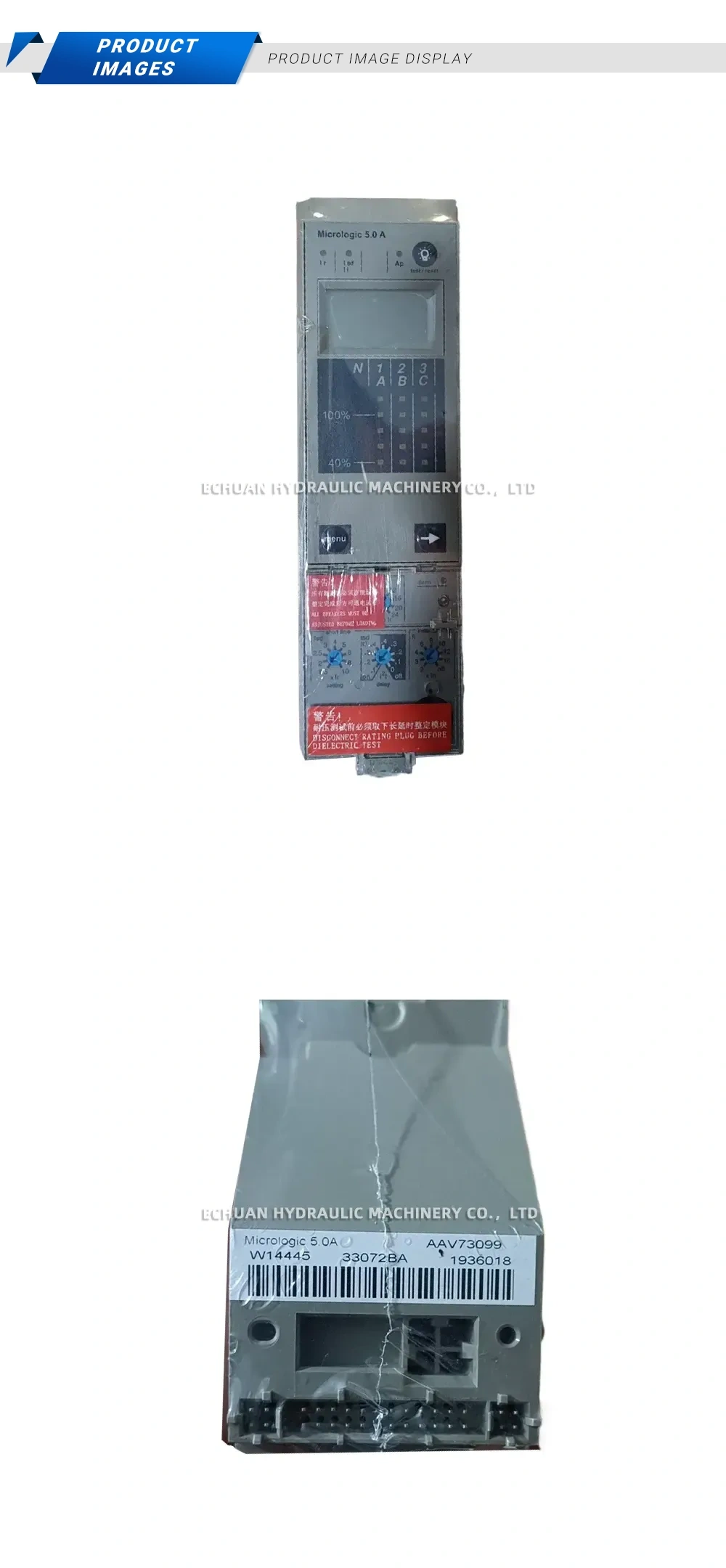

Schneider Electric Micrologic 5.0 A Electronic Trip Unit

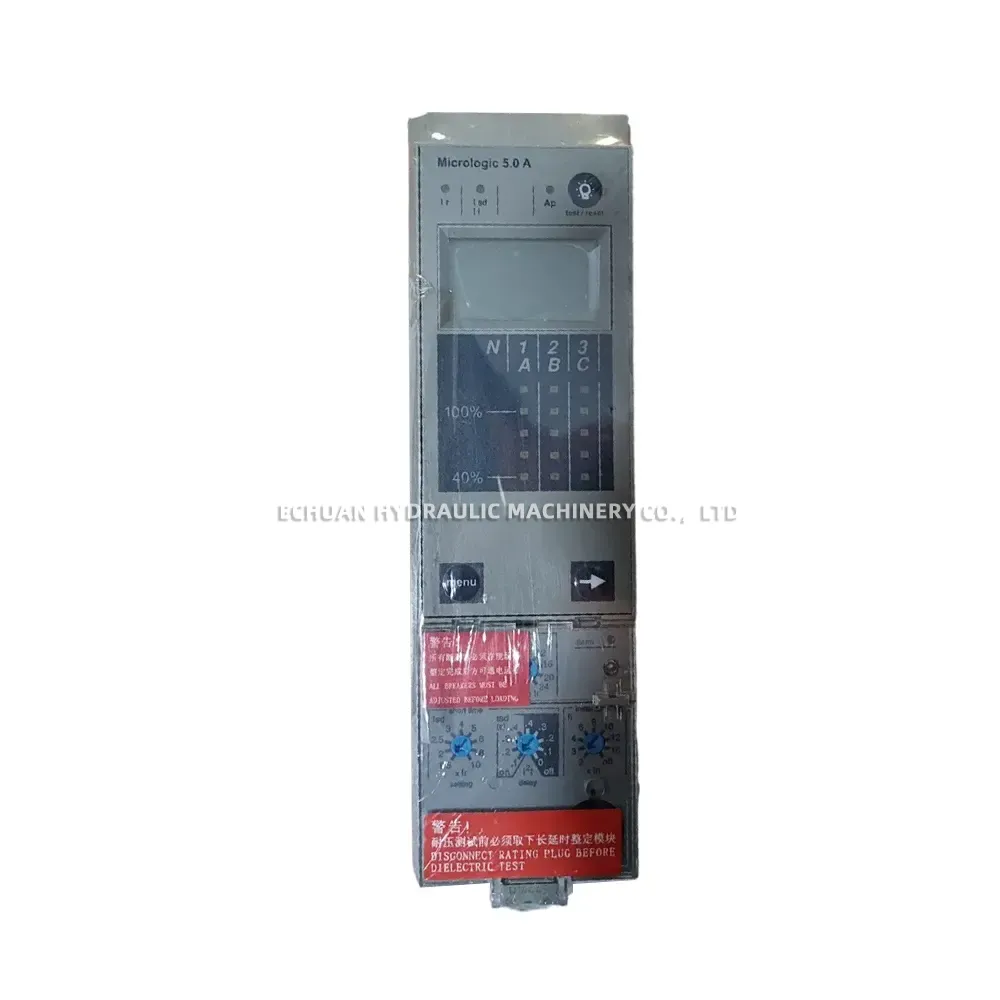

The Schneider Electric Micrologic 5.0 A is an advanced electronic trip unit designed for low-voltage circuit breakers, delivering precise protection and intelligent monitoring for electrical distribution systems. This sophisticated control unit features a clear LCD screen and an intuitive menu interface, allowing users to easily configure and monitor system status. It is equipped with rotary dials for accurate setting of essential protection parameters, including long-time (Ir), short-time (Isd), and instantaneous (Ii/Ig) thresholds. To ensure comprehensive system visibility, the unit includes dedicated LED indicators for phases (A, B, C) and Neutral, as well as a real-time load bar graph displaying current usage from 40% to 100%. With its integrated test/reset functionality and secure rating plug connection, the Micrologic 5.0 A provides reliable, high-performance protection for demanding industrial and commercial applications.
Technical Specifications:
- Brand: Schneider Electric
- Model: Micrologic 5.0 A
- Product Type: Electronic Trip Unit
- Protection Settings: LSI (Long-time Ir, Short-time Isd, Instantaneous Ii/Ig)
- Display: LCD display screen with integrated menu interface
- Indicators: LED indicators for Phases (A, B, C) and Neutral (N)
- Load Monitoring: Built-in load bar graph (40% to 100%)
Schneider Electric Micrologic 5.0 A Electronic Trip Unit
Optimize your power distribution with the Schneider Electric Micrologic 5.0 A Electronic Trip Unit. Designed for low-voltage circuit breakers, this intelligent module features customizable LSI protection settings, an LCD display, and real-time load monitoring to ensure maximum electrical safety and system reliability.
