Product Description
Schneider Electric TCSESM083F23F1 ConneXium Extended Switch 8TX
The Schneider Electric TCSESM083F23F1 is a highly reliable ConneXium extended managed industrial Ethernet switch engineered for robust network performance in demanding automation environments. Part of the Modicon family, this switch is equipped with 8 Fast Ethernet TX copper ports and provides native support for the EtherNet/IP protocol, ensuring seamless integration into modern industrial control systems. It is designed to maximize network uptime through dual redundant power inputs (24 to 48 VDC) and features fault relay outputs (R1/R2) for immediate diagnostic and alarm feedback. Advanced local management and configuration capabilities are easily accessible via the integrated USB interface and V.24 console port. Built to withstand extreme industrial conditions, the TCSESM083F23F1 is strictly certified for use in Class I, Division 2 hazardous locations and operates reliably in ambient temperatures ranging from -5°C to +60°C.
Technical Specifications:
- Brand & Model: Schneider Electric / Modicon TCSESM083F23F1

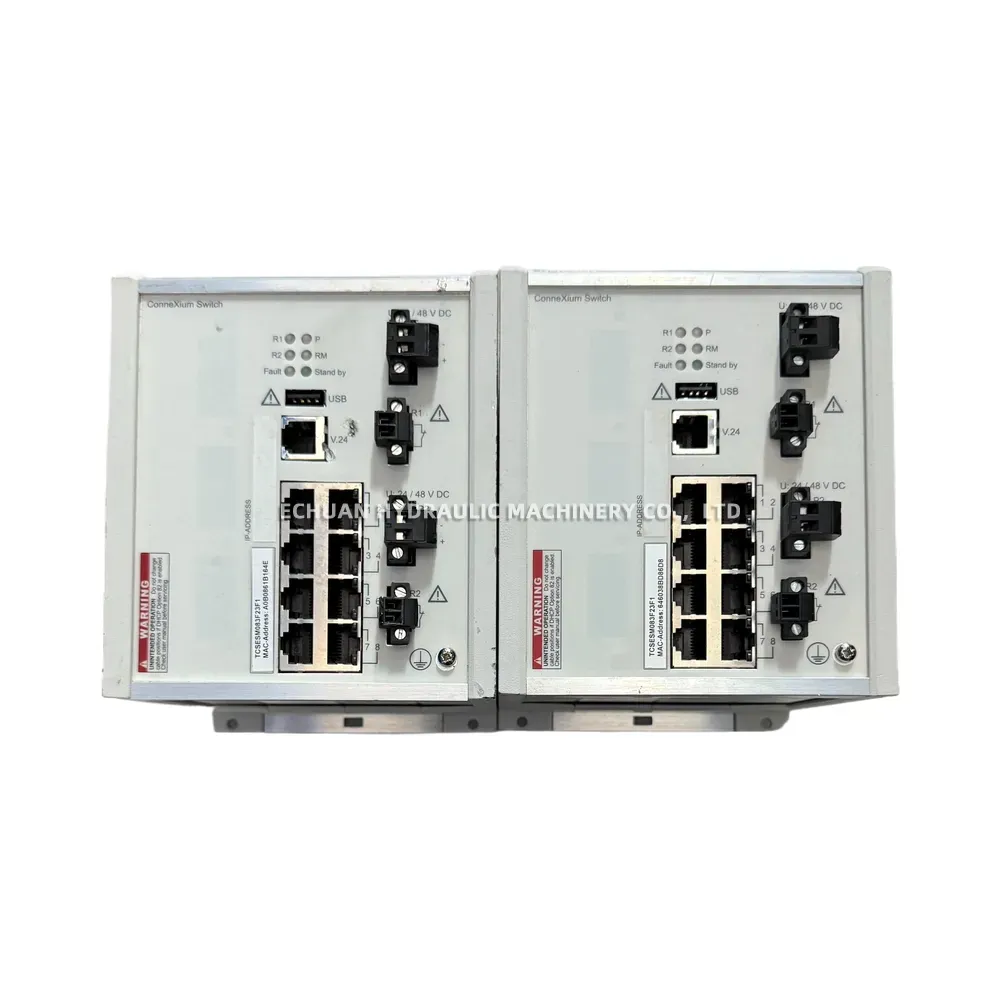

- Port Configuration: 8 x 10/100BASE-TX (Copper) Ethernet Ports
- Industrial Protocol: EtherNet/IP Supported

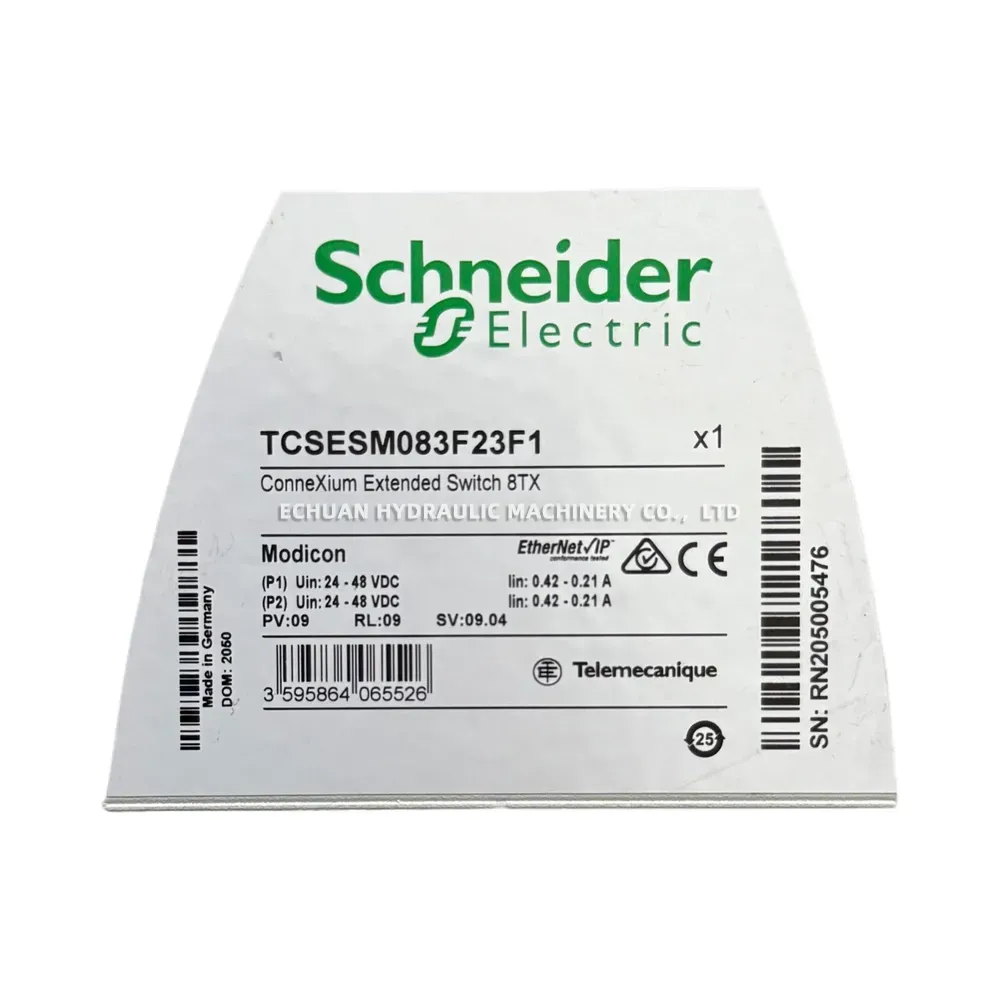

- Power Supply: Dual Redundant Input (P1/P2) 24 – 48 VDC; Input Current: 0.42 – 0.21 A
- Local Interfaces: USB port, V.24 console port, and fault relay outputs (R1/R2)
- Operating Temperature: -5°C to +60°C (Maximum surrounding air temperature: 60°C)

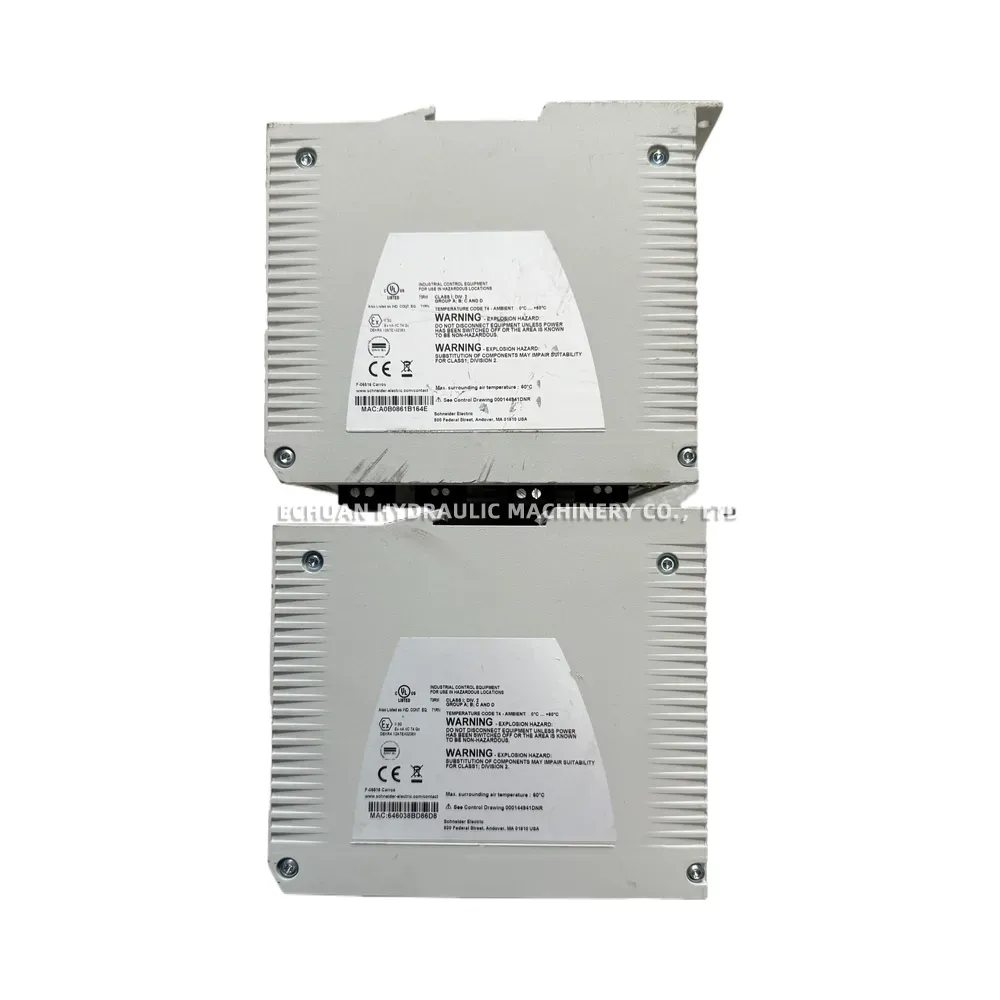

- Certifications: Class I, Division 2 & 3 (Hazardous Locations), Temperature Code T4
Schneider Electric TCSESM083F23F1 ConneXium Extended Switch 8TX
Optimize your industrial network with the Schneider Electric TCSESM083F23F1 ConneXium Extended Managed Switch. Featuring 8 TX Ethernet ports, EtherNet/IP integration, dual redundant power, and Class I Div 2 hazardous location certification, this rugged Modicon switch delivers secure and reliable high-speed connectivity for mission-critical automation systems.
| Brand | Schneider Electric |
|---|---|
| Model | TCSESM083F23F1 |
| Part No. | 1024101598364 |
| Category | Electrical |
