Product Description

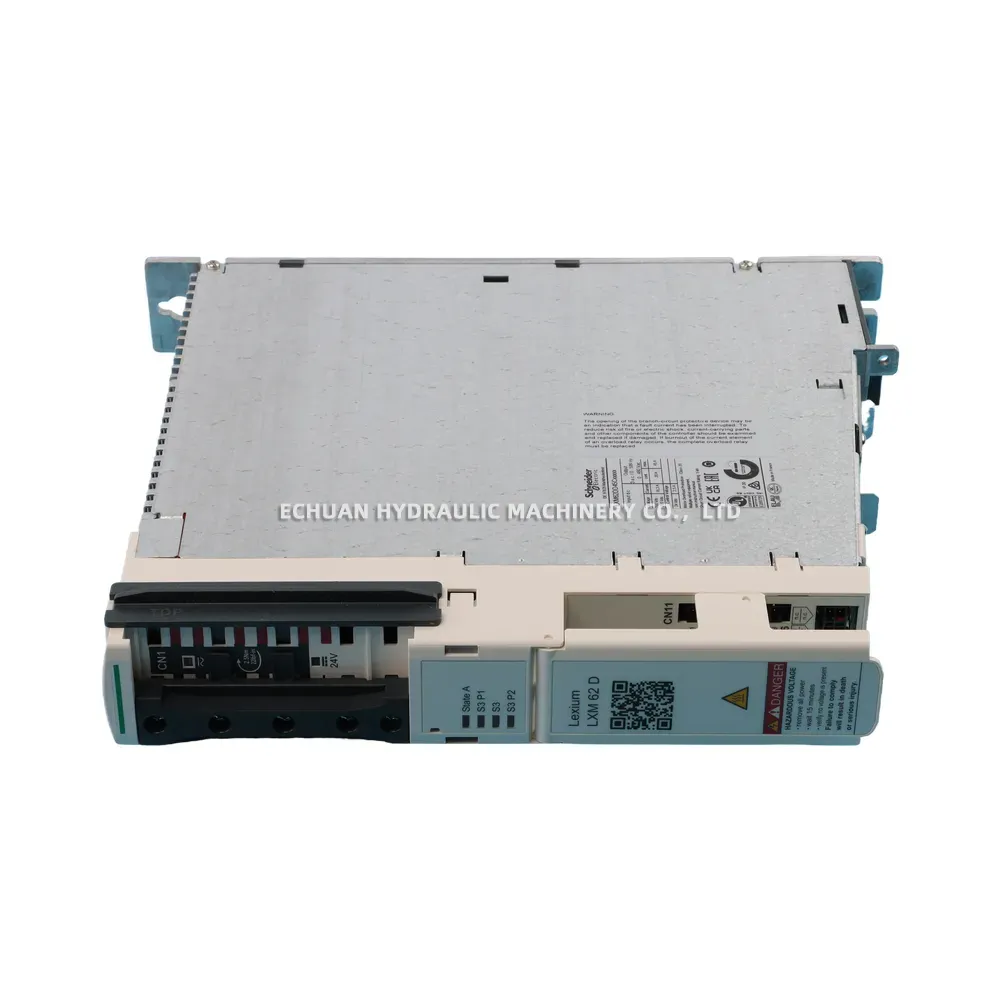

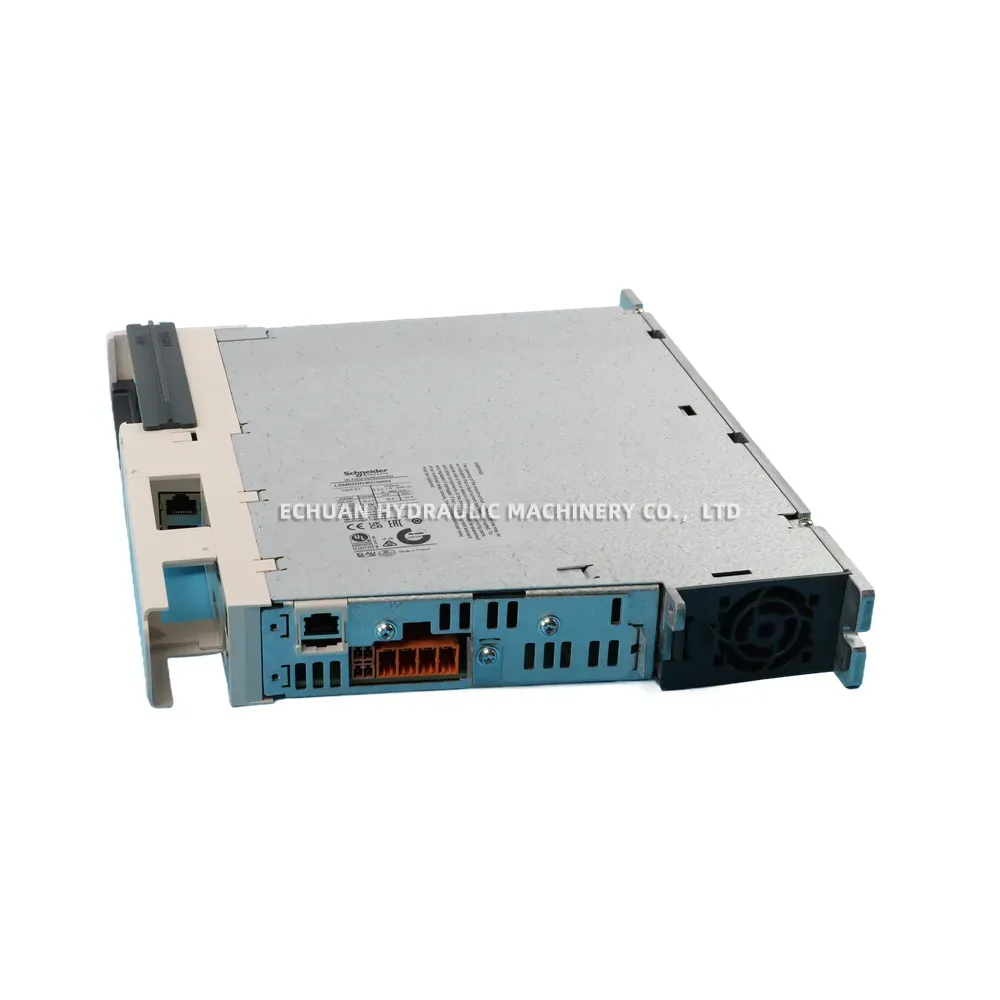

Schneider LXM62DD45C21000
The Schneider Electric LXM62DD45C21000 is a high-performance double servo drive from the Lexium 62 series, designed for multi-axis motion control applications. This innovative drive integrates two independent servo controllers into a single, compact housing, significantly reducing cabinet space and simplifying wiring. It is part of the PacDrive 3 automation solution, offering seamless integration with Lexium 62 connection modules and servo motors. Featuring a Sercos III communication interface, it ensures real-time, high-speed data exchange for precise synchronization and dynamic performance. The integrated Safe Torque Off (STO) safety function enhances machine safety according to SIL 3 standards. Ideal for packaging, material handling, and general machine control, the LXM62DD45C21000 provides a powerful and efficient solution for complex automation tasks.
Technical Specifications:
- Product Range: Lexium 62
- Product Type: Double Drive
- Rated Supply Voltage: 230…480 V AC (3-phase)
- Continuous Output Current: 2 x 15 A
- Peak Output Current: 2 x 45 A for 5 s
- Continuous Power: 8 kW at 400 V
- Communication Interface: Sercos III
- Safety Function: STO (Safe Torque Off) SIL 3
Schneider LXM62DD45C21000
Discover the Schneider Electric LXM62DD45C21000, a compact Lexium 62 double servo drive with a 45A peak current. Featuring a Sercos III interface and integrated STO safety, it’s the ideal solution for high-performance, multi-axis motion control systems.
