Product Description

Schneider XAPM1201

The Schneider Electric XAPM1201 is a robust, die-cast empty control station from the Harmony XAP series, designed for industrial applications. Constructed from a durable zinc alloy and finished in a distinct blue color, this enclosure provides a secure housing for a single 22mm control or signaling unit. It features one cut-out and is engineered for flush mounting. With an impressive IP65, IP69, and IP69K rating, it offers excellent protection against dust, water jets, and high-pressure, high-temperature cleaning, making it suitable for harsh environments. The station includes two cable entry points to facilitate easy and secure wiring.

Technical Specifications:

  • Product Range: Harmony XAP

  • Product Type: Die-cast empty control station

  • Material: Zinc alloy

  • Number of Cut-outs: 1 cut-out for Ø 22 mm units

  • IP Degree of Protection: IP65, IP69, IP69K

  • Cable Entry: 1 hole with blanking plug for cable gland (clamping capacity 16 mm), 1 hole without blanking plug for cable gland (clamping capacity 16 mm)

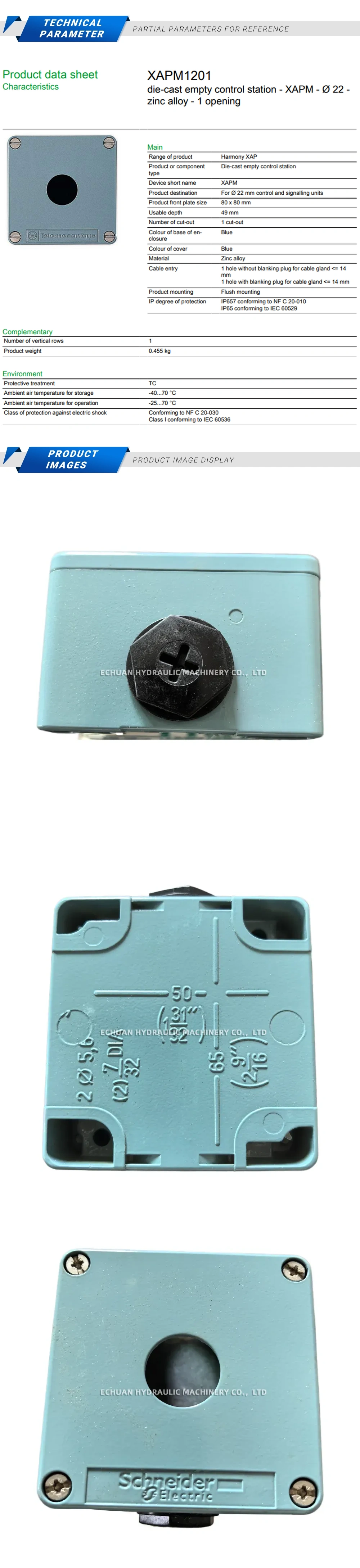

Schneider XAPM1201 Description

Schneider XAPM1201

Shop the Schneider XAPM1201, a durable blue die-cast zinc alloy empty control station with 1 cut-out for 22mm units. IP65/IP69/IP69K rated for harsh industrial environments.
