Product Description

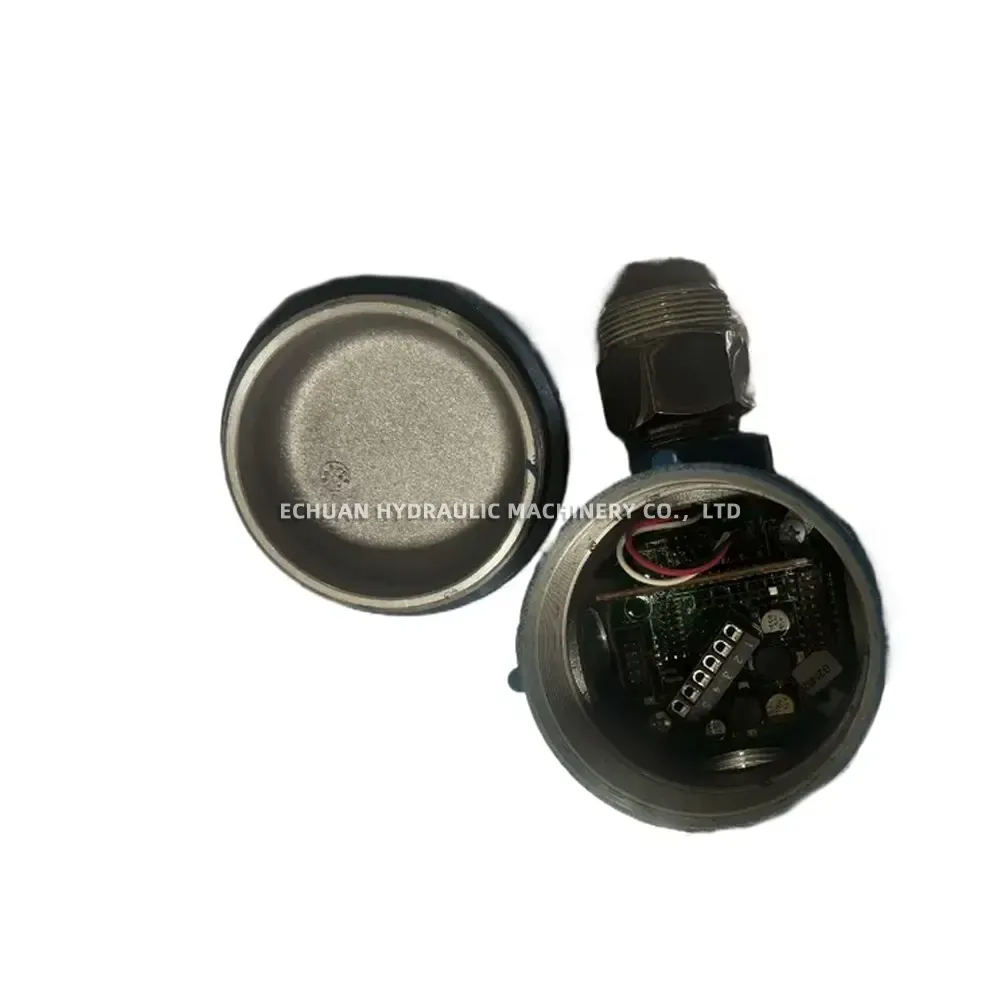

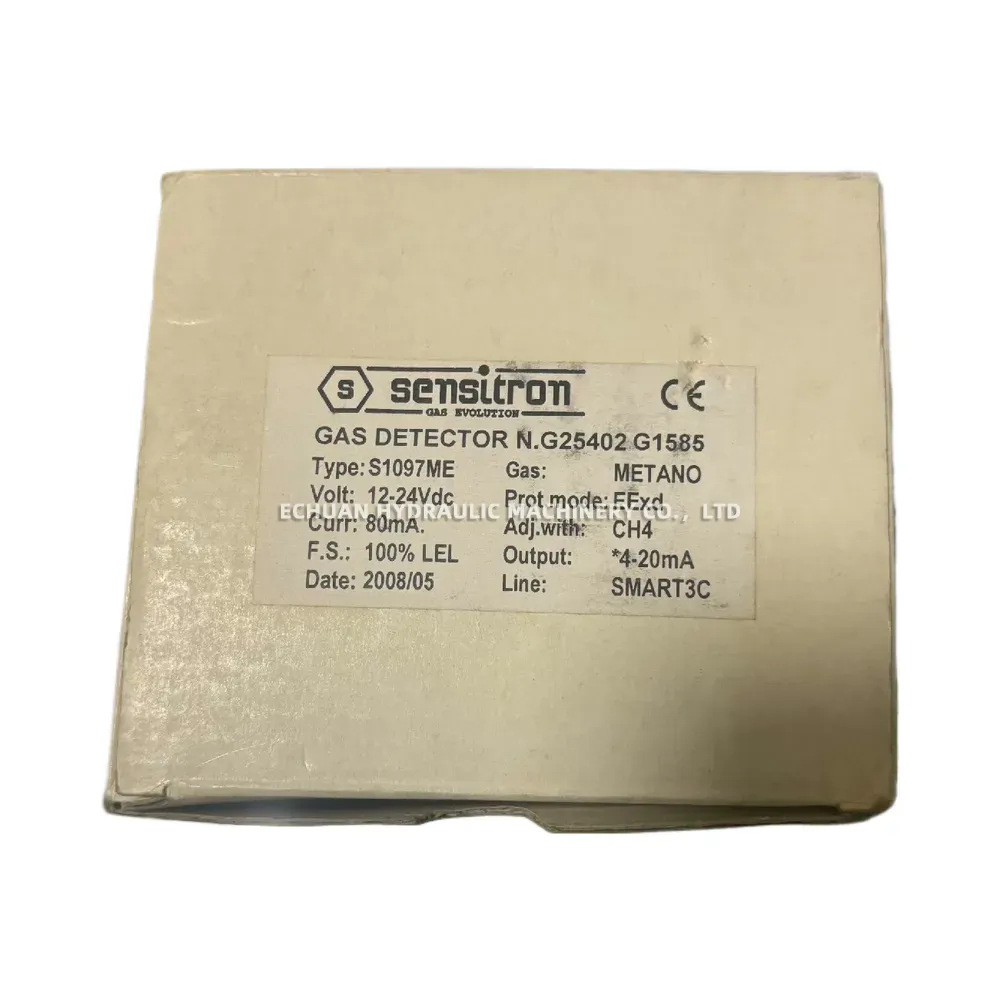

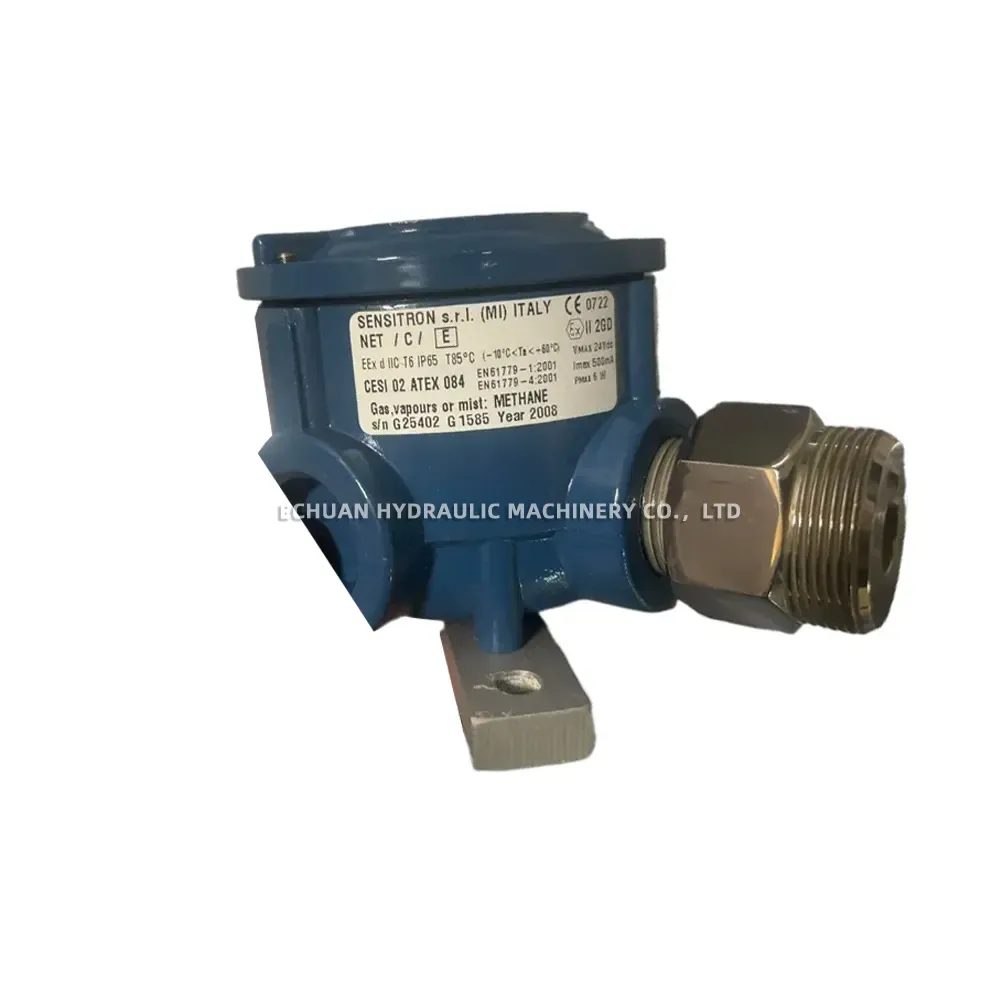

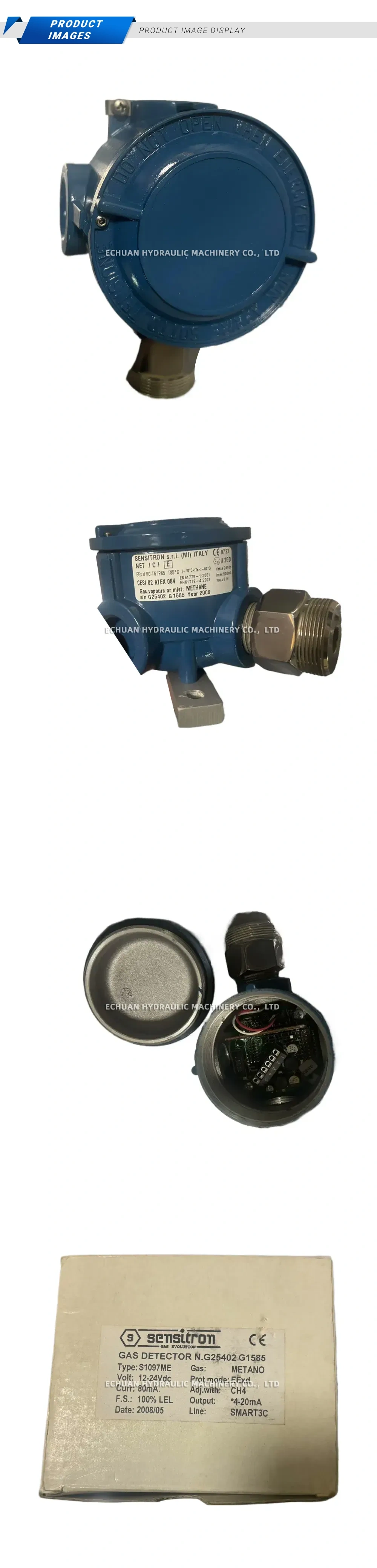

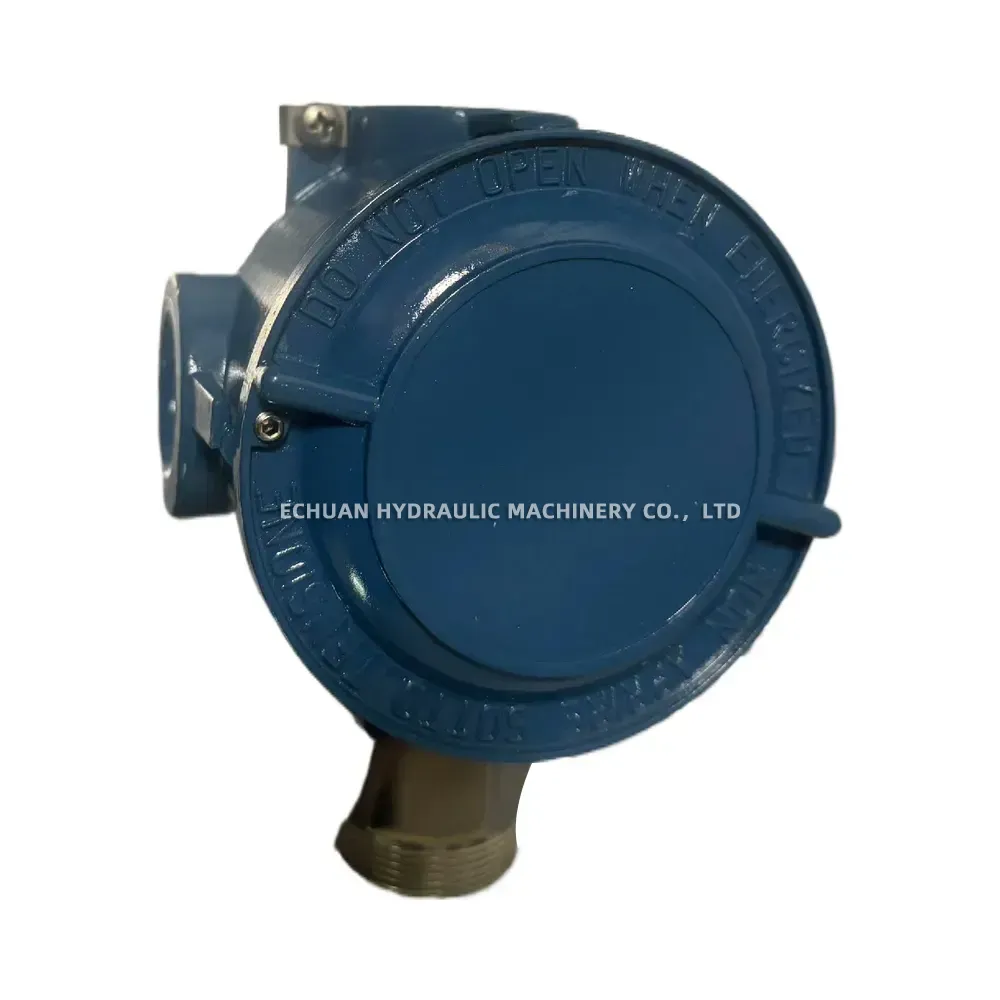

Sensitron S1097ME Methane Gas Detector
The Sensitron S1097ME is a high-reliability industrial gas detector engineered for the detection of explosive levels of Methane (CH4). Designed for safety-critical applications, it is housed in a robust, explosion-proof enclosure (EEx d IIC T6) and is ATEX certified for use in hazardous areas. This detector provides a standard 4-20mA analog output signal, ensuring seamless integration with existing safety and control systems. Its wide operating voltage and support for the SMART3C communication line offer enhanced flexibility for industrial monitoring and control networks. Built to withstand harsh conditions, the S1097ME is a dependable solution for ensuring workplace safety in environments where flammable gases are a concern.
Technical Specifications:
- Target Gas: Methane (CH4)
- Measurement Range: 0-100% LEL (Lower Explosive Limit)
- Output Signal: 4-20mA Analog
- Power Supply: 12-24 Vdc
- Housing Protection: EEx d IIC T6 (Explosion-proof)
- IP Rating: IP65
- Operating Temperature: -10°C to +55°C
- Certification: ATEX (CESI 02 ATEX 084)
- Communication: SMART3C line support

Sensitron S1097ME Gas Detector
Discover the Sensitron S1097ME, a robust ATEX-certified explosive gas detector for Methane (CH4). Features a 0-100% LEL range and a standard 4-20mA output for reliable industrial safety monitoring.
