Product Description

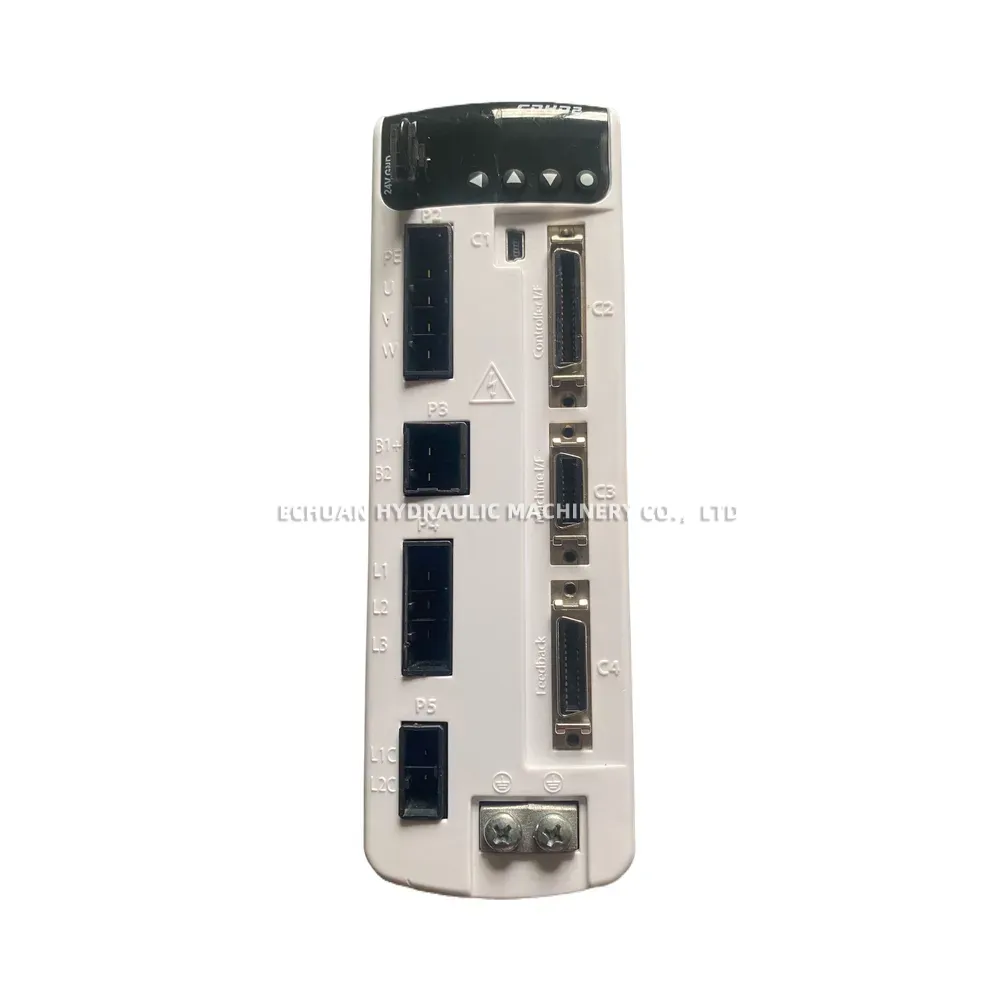

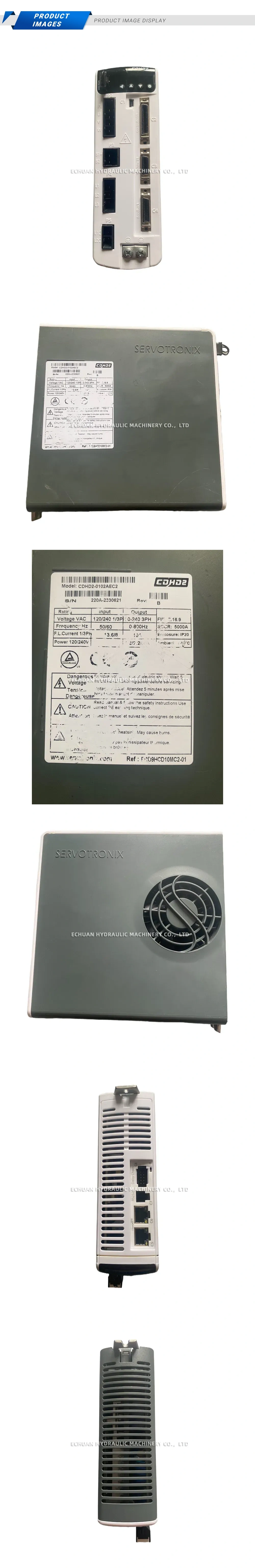

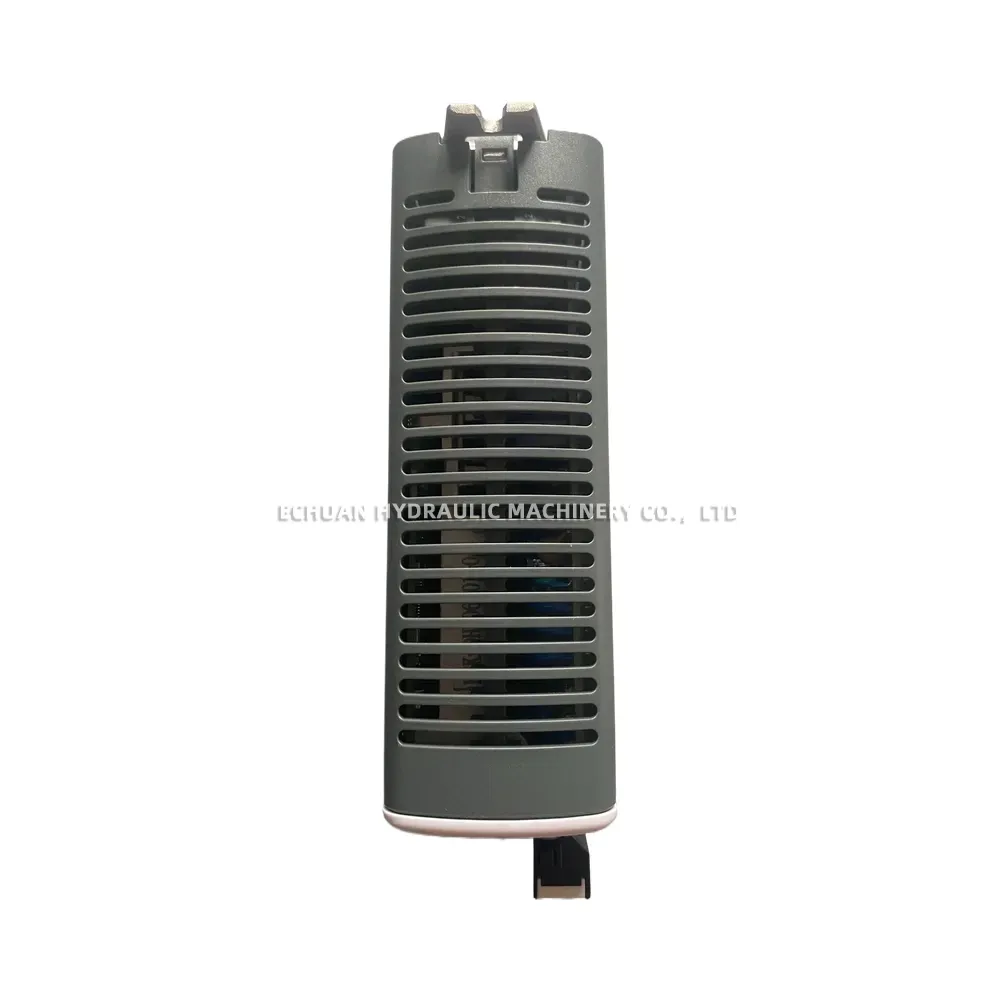

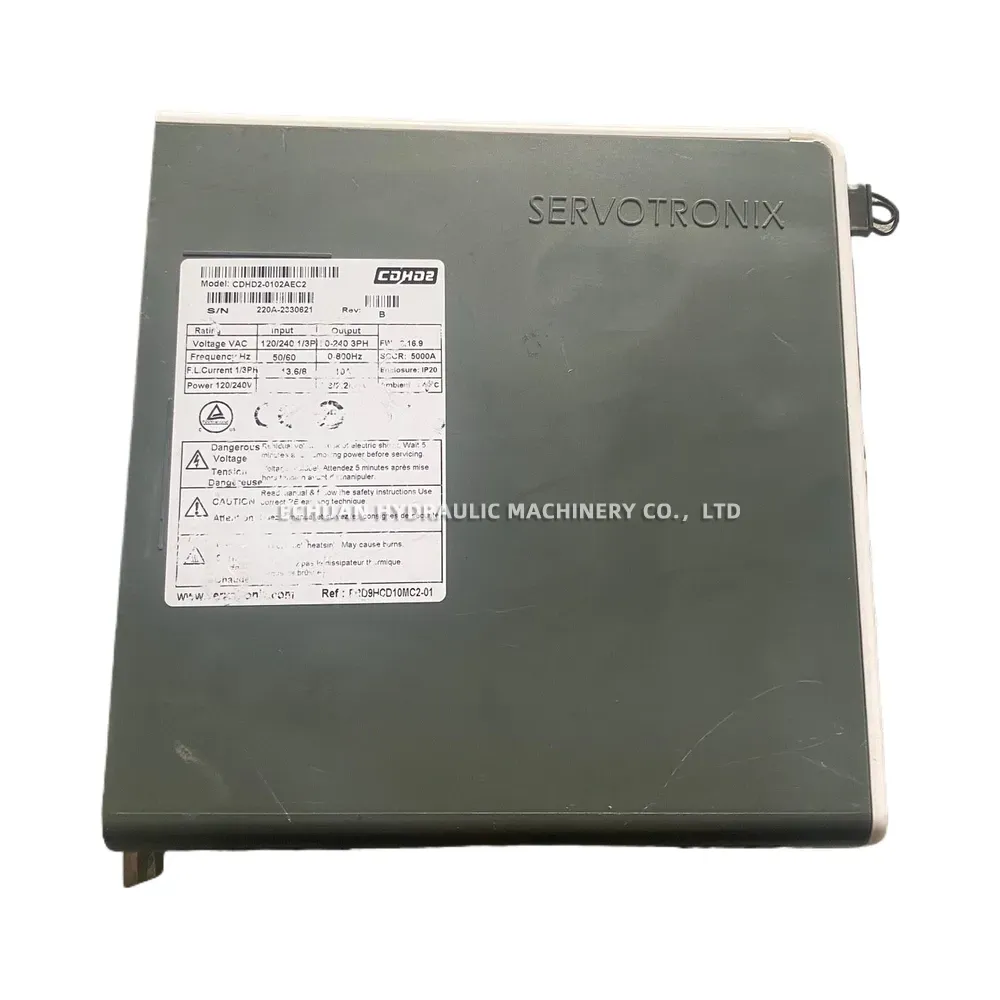

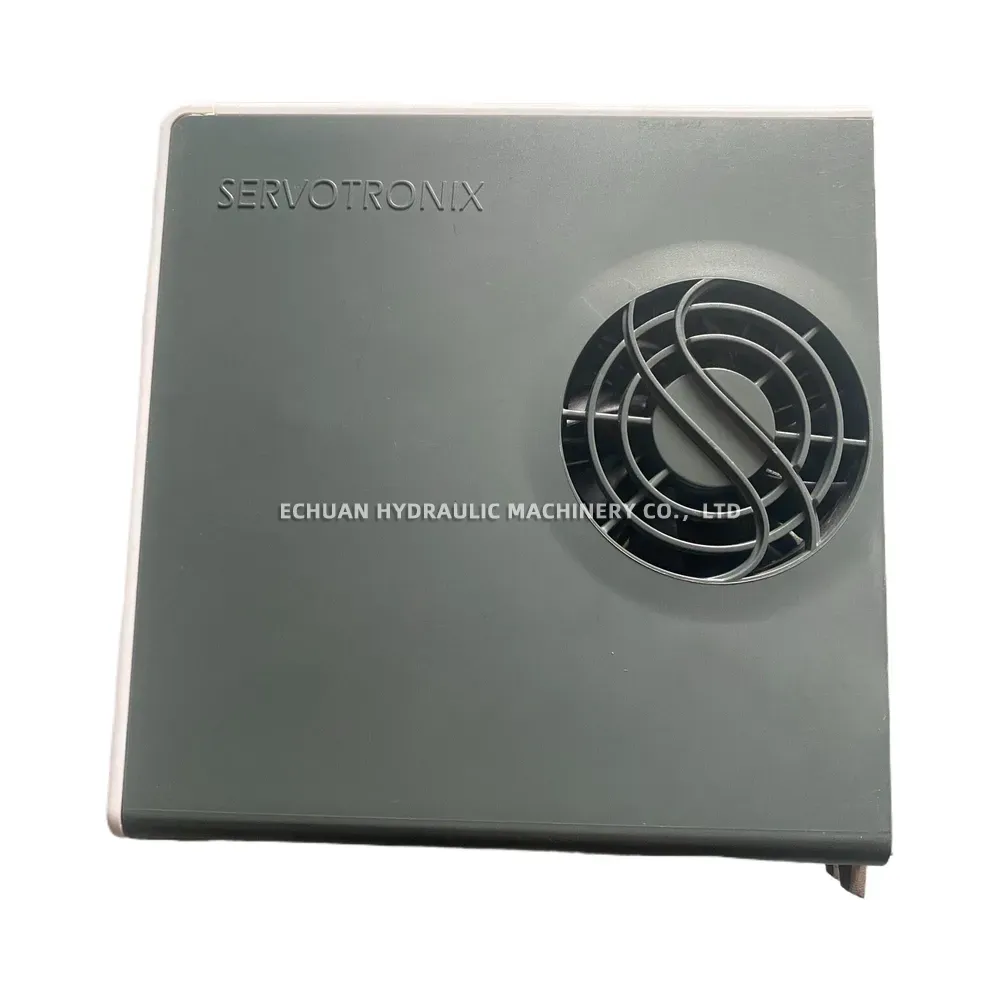

SERVOTRONIX CDHD2-0102AEC2 Servo Drive
The SERVOTRONIX CDHD2-0102AEC2 is a high-performance, second-generation servo drive engineered for advanced motion control applications. This versatile drive supports 120/240 VAC single or three-phase input and delivers a robust 10A continuous output current, providing reliable power up to 3kW. Designed for seamless integration into modern industrial automation systems, it features built-in EtherCAT, RS232, and Daisy Chain communication interfaces. With an IP20 enclosure rating, an ambient operating temperature of 40°C, and a Short Circuit Current Rating (SCCR) of 5000A, the CDHD2-0102AEC2 ensures safe, efficient, and precise operation in demanding manufacturing environments.

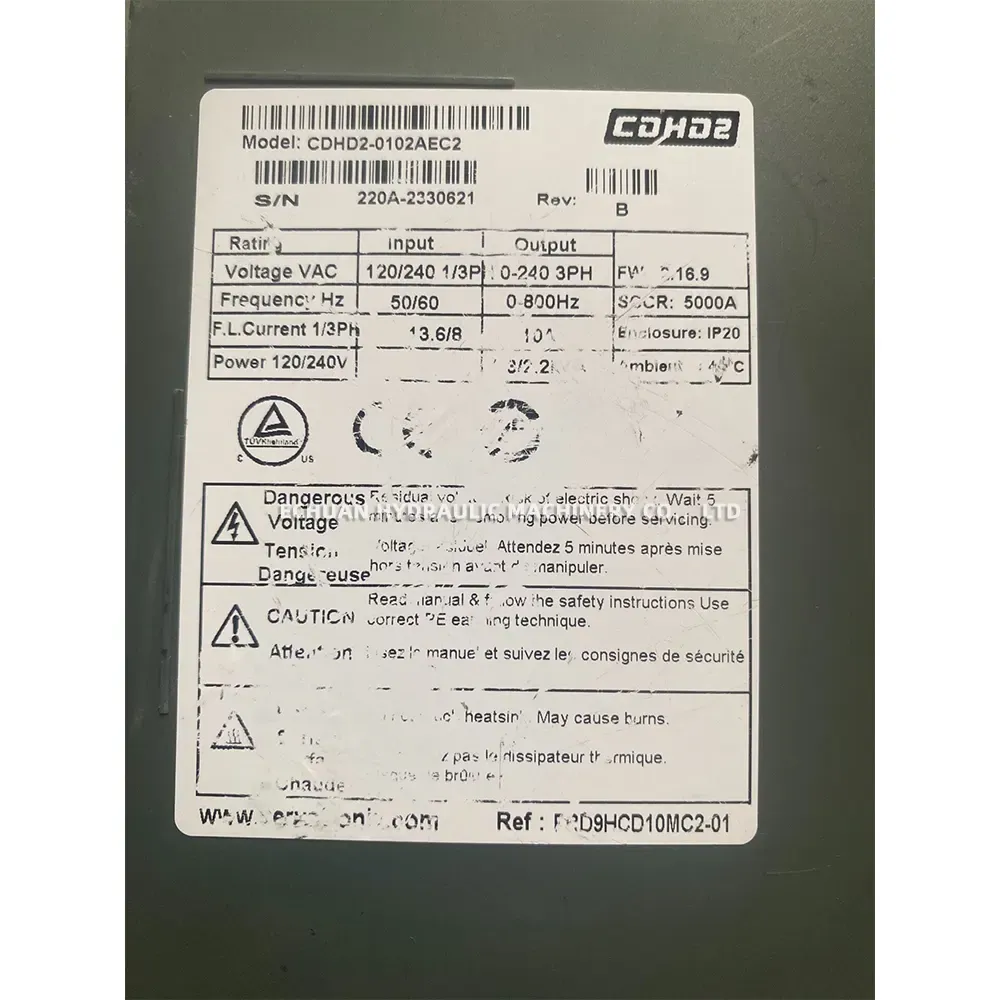

Technical Specifications:
- Brand: SERVOTRONIX
- Model: CDHD2-0102AEC2
- Input Voltage: 120/240 VAC 1/3PH, 50/60Hz
- Input Current: 13.6A (1-Phase) / 8A (3-Phase)
- Output Voltage: 0-240V 3PH, 0-800Hz
- Output Current / Power: 10A (3/2.2kW)

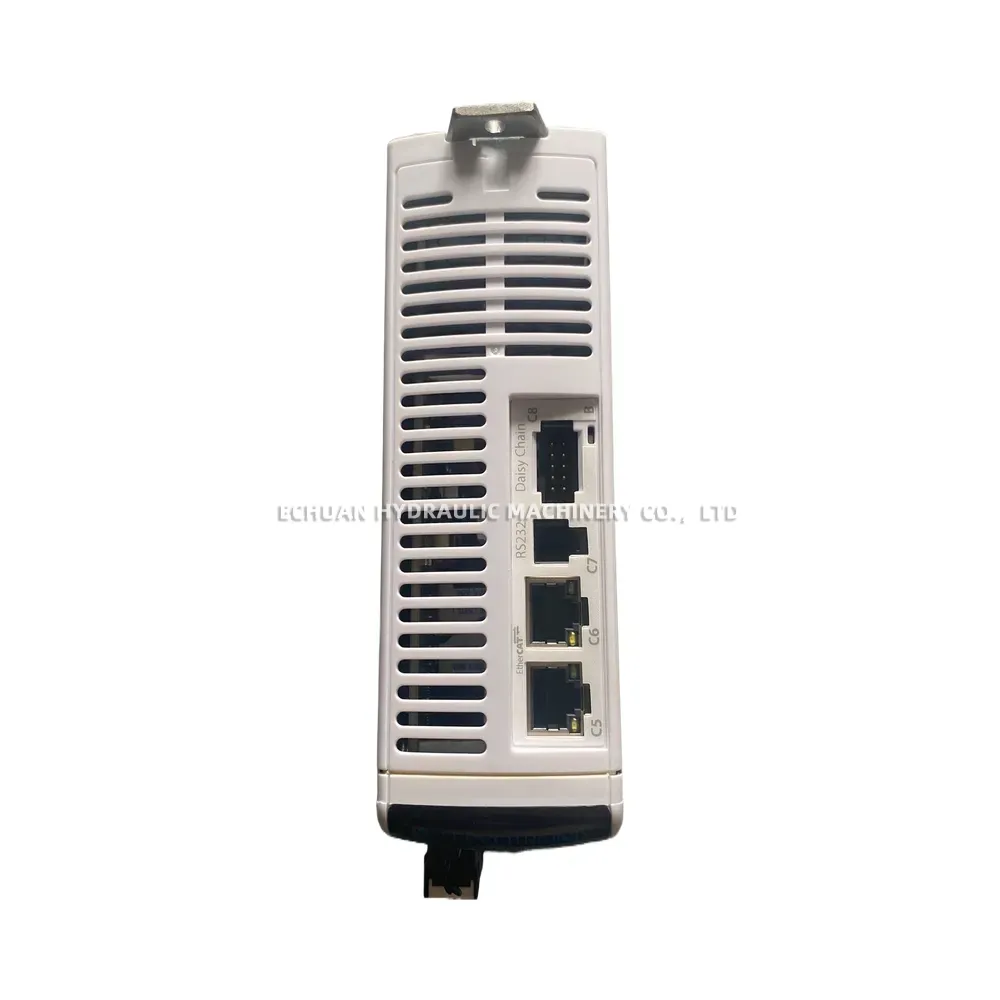

- Communication Interfaces: EtherCAT, RS232, Daisy Chain
- Enclosure Rating: IP20
- SCCR (Short Circuit Current Rating): 5000A
- Ambient Operating Temperature: 40°C
- Firmware Version: 2.16.9
- Reference Number: F-D9HCD10MC2-01
SERVOTRONIX CDHD2-0102AEC2 Servo Drive
Optimize your industrial automation with the SERVOTRONIX CDHD2-0102AEC2 high-performance servo drive. Featuring 120/240V input, 10A output (up to 3kW), and built-in EtherCAT communication, this IP20-rated drive delivers precise and reliable motion control for demanding applications.
| Brand | Servotronix |
|---|---|
| Model | CDHD2-0102AEC2 |
| Part No. | 983404745213 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/servotronix-cdhd2-0102aec2-servo-drive |
