Product Description

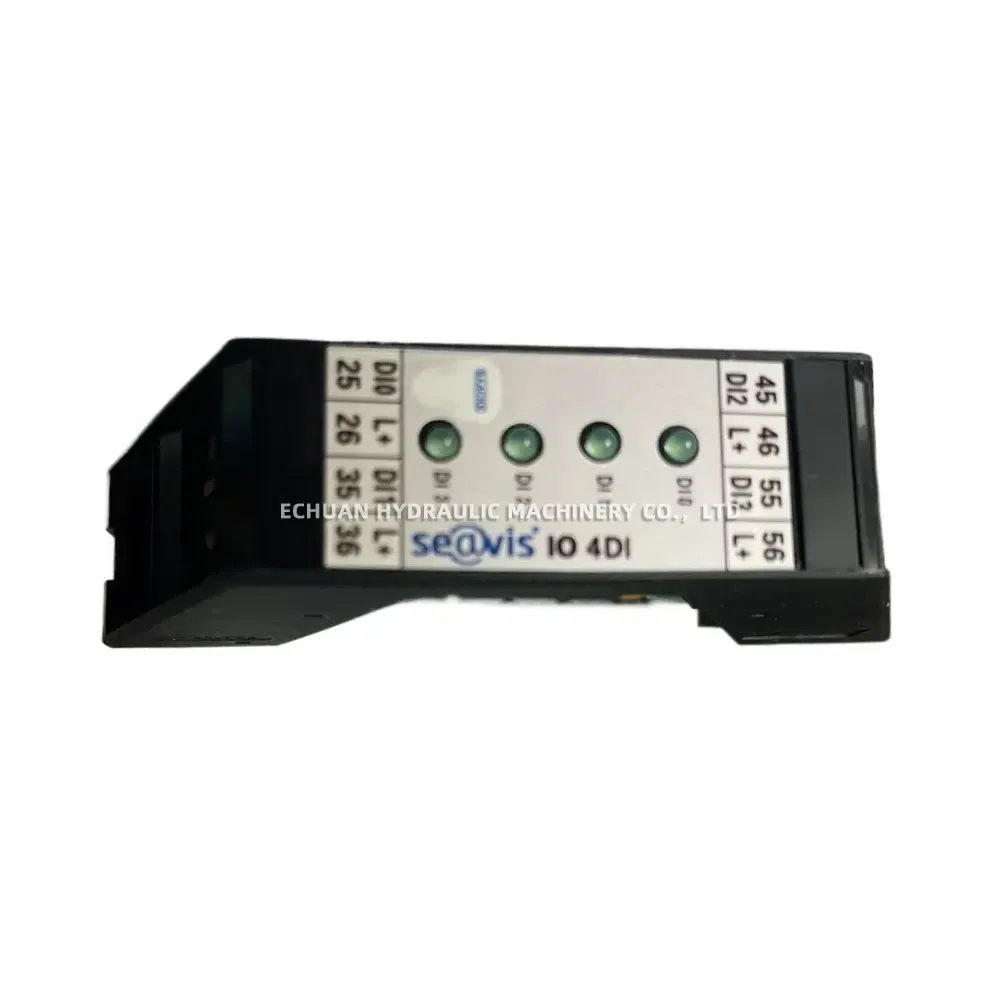

se@vis IO 4DI Digital Input Module

The se@vis IO 4DI is a compact and reliable digital input module designed for expanding industrial and building automation systems. It provides four digital inputs for monitoring signals from switches, sensors, or other potential-free contacts. Each input channel is equipped with a dedicated status LED, allowing for quick and easy visual diagnostics of the input state directly on the device. Housed in a standard DIN rail-mountable enclosure, the IO 4DI module ensures seamless integration into existing control cabinets. Its screw-type terminals provide secure and straightforward wiring, making it an ideal solution for robust data acquisition in any se@vis control environment.

Technical Specifications:

  • Model: IO 4DI

  • Article Number: 000781

  • Number of Inputs: 4 Digital Inputs (DI)

  • Operating Voltage (Bus): 24 V DC (SELV)

  • Input Current: Approx. 2 mA per input

  • Indicators: 4 yellow status LEDs (one per channel)

  • Mounting: DIN rail (TS35)

  • Dimensions (W x H x D): 17.5 x 90 x 63 mm

  • Protection Class: IP20

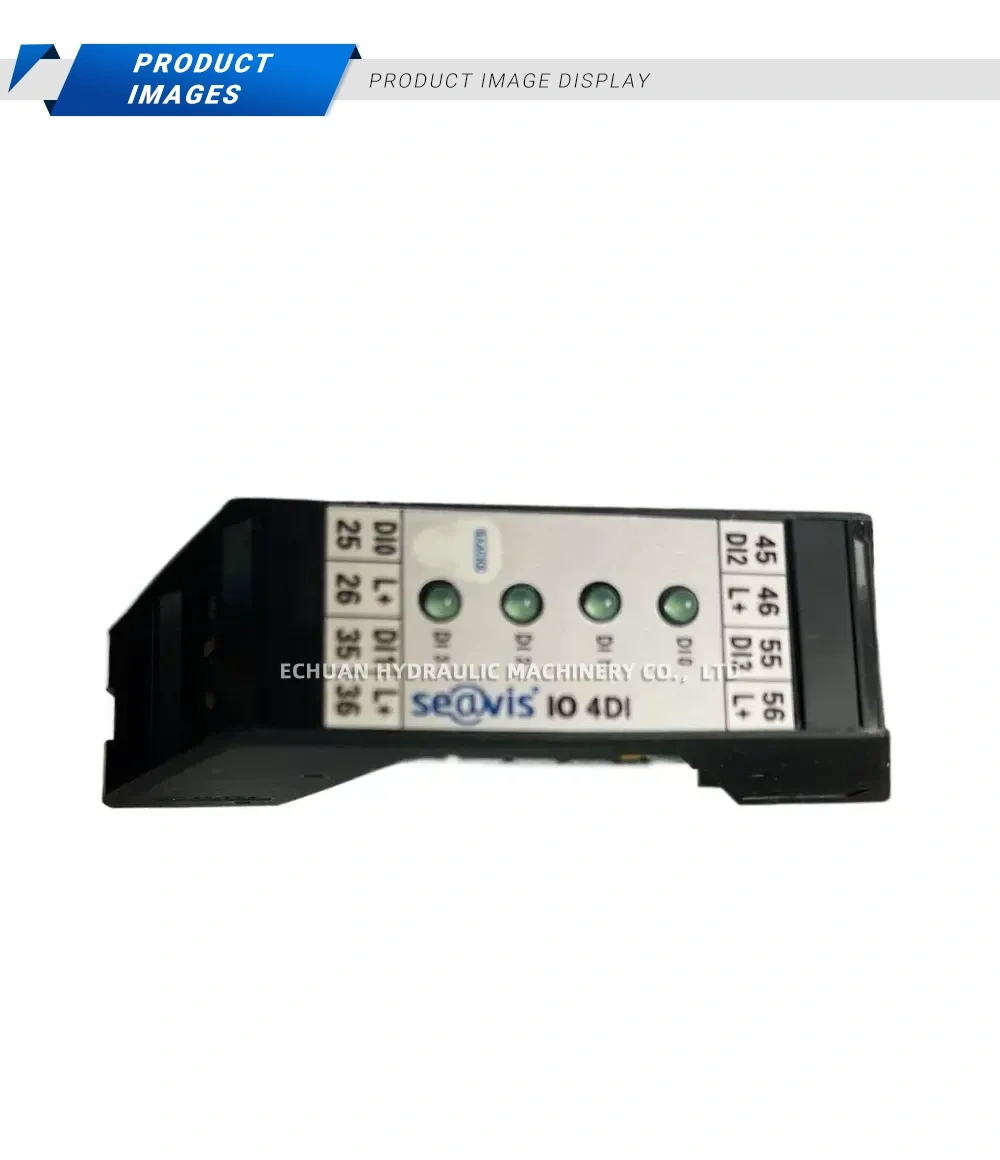

se@vis IO 4DI Digital Input Module Description

se@vis IO 4DI Digital Input Module

Expand your automation system with the se@vis IO 4DI Digital Input Module. This compact DIN rail module features 4 digital inputs with status LEDs for monitoring sensors and switches.
