Product Description

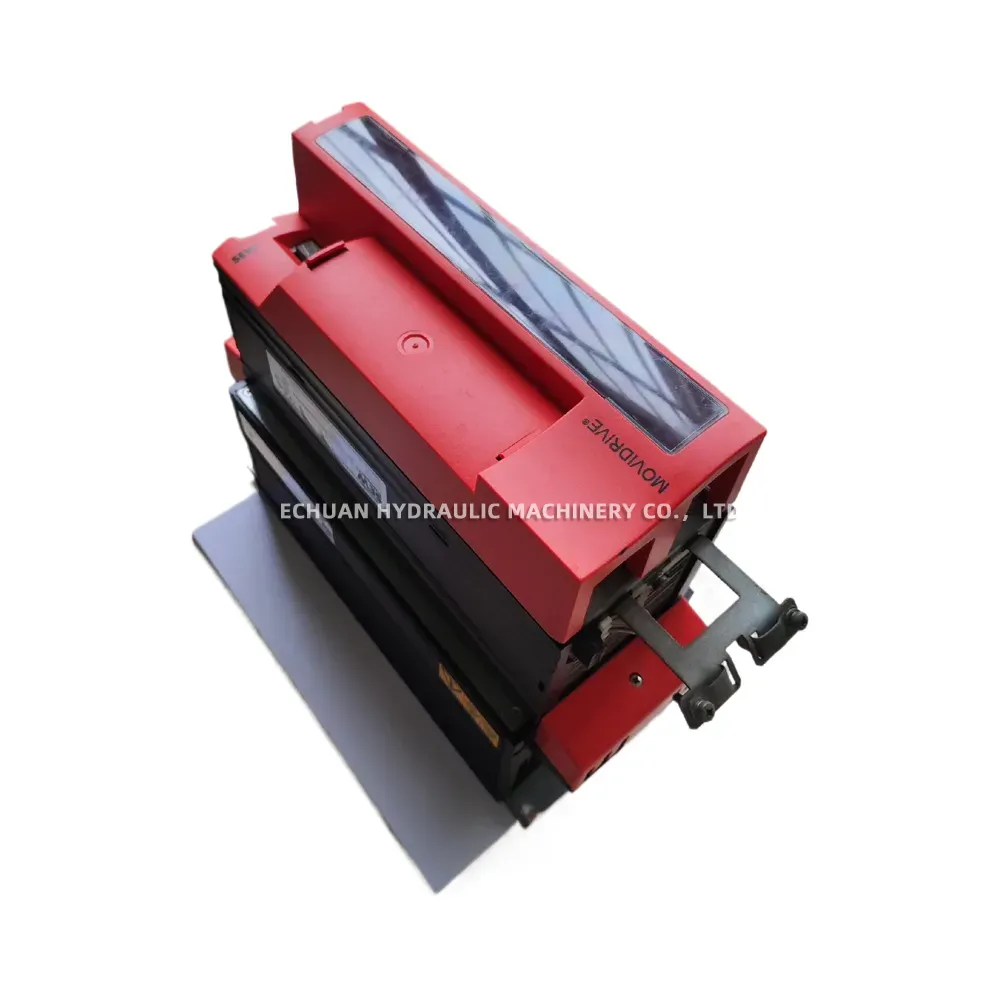

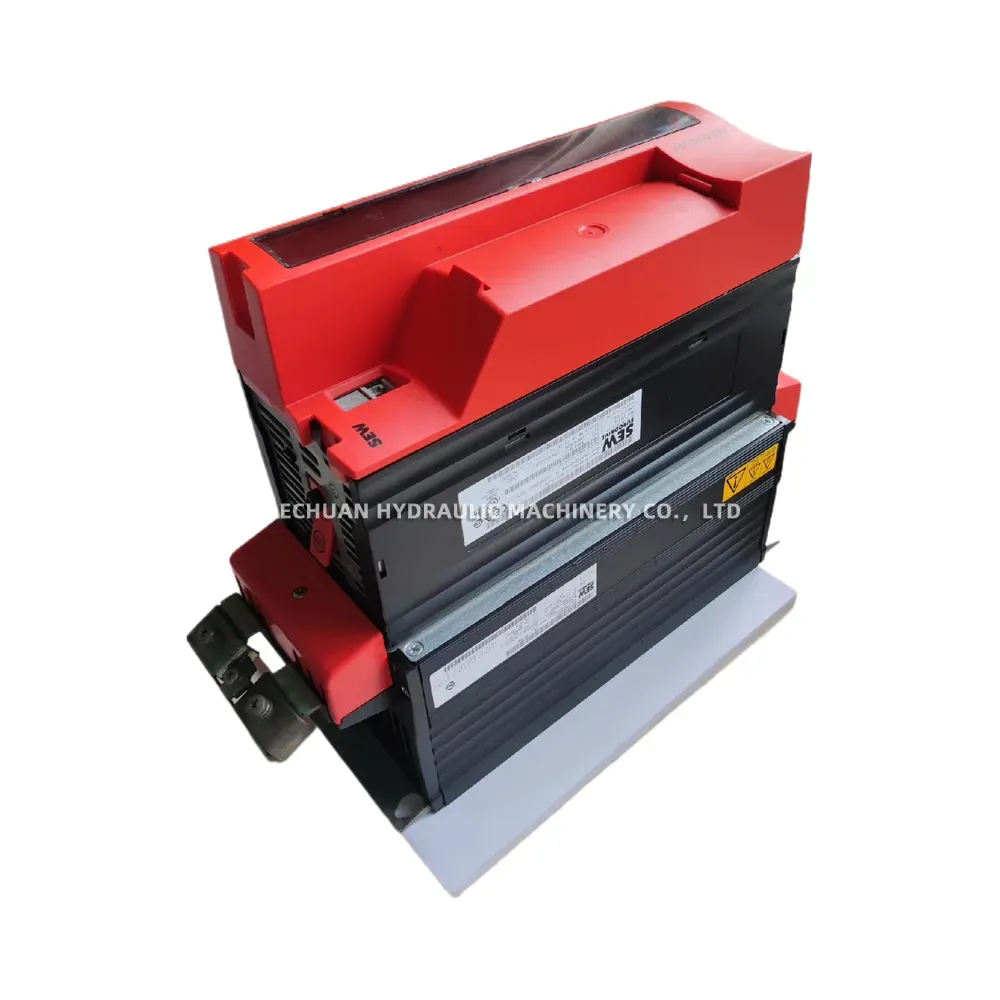

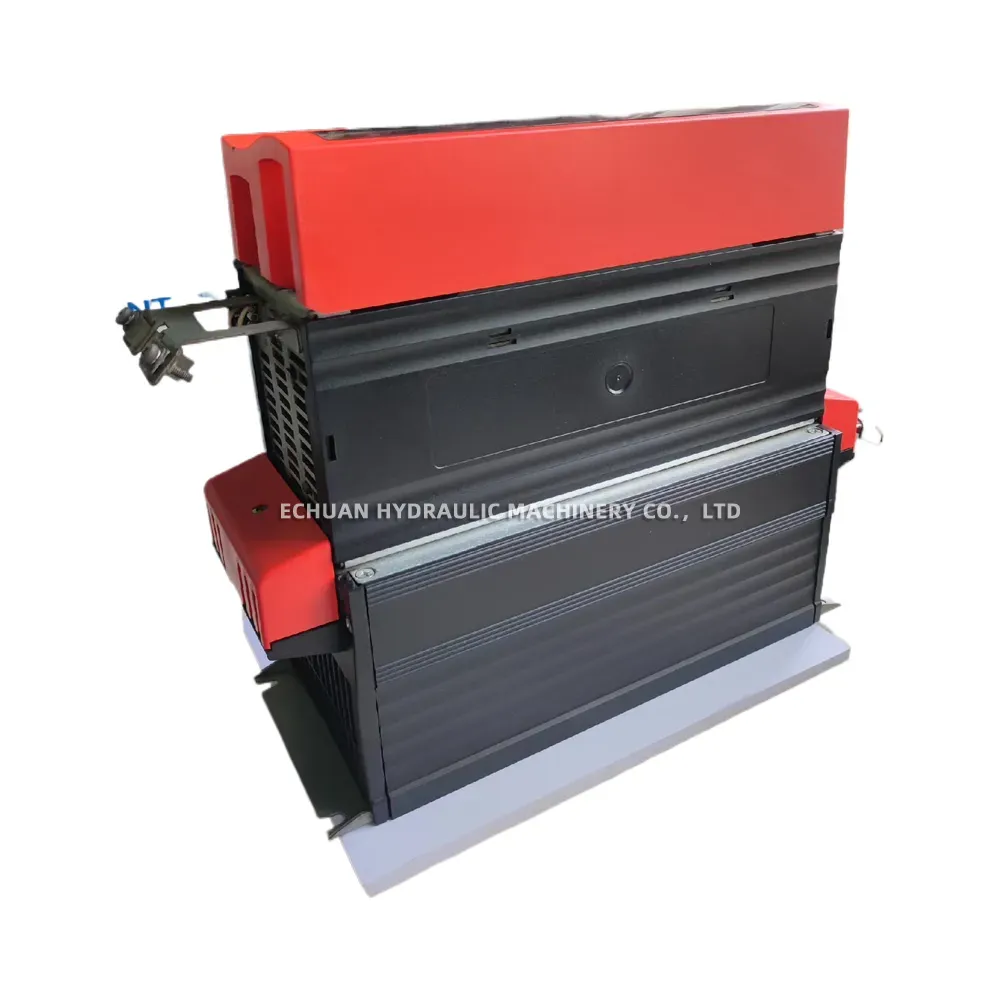

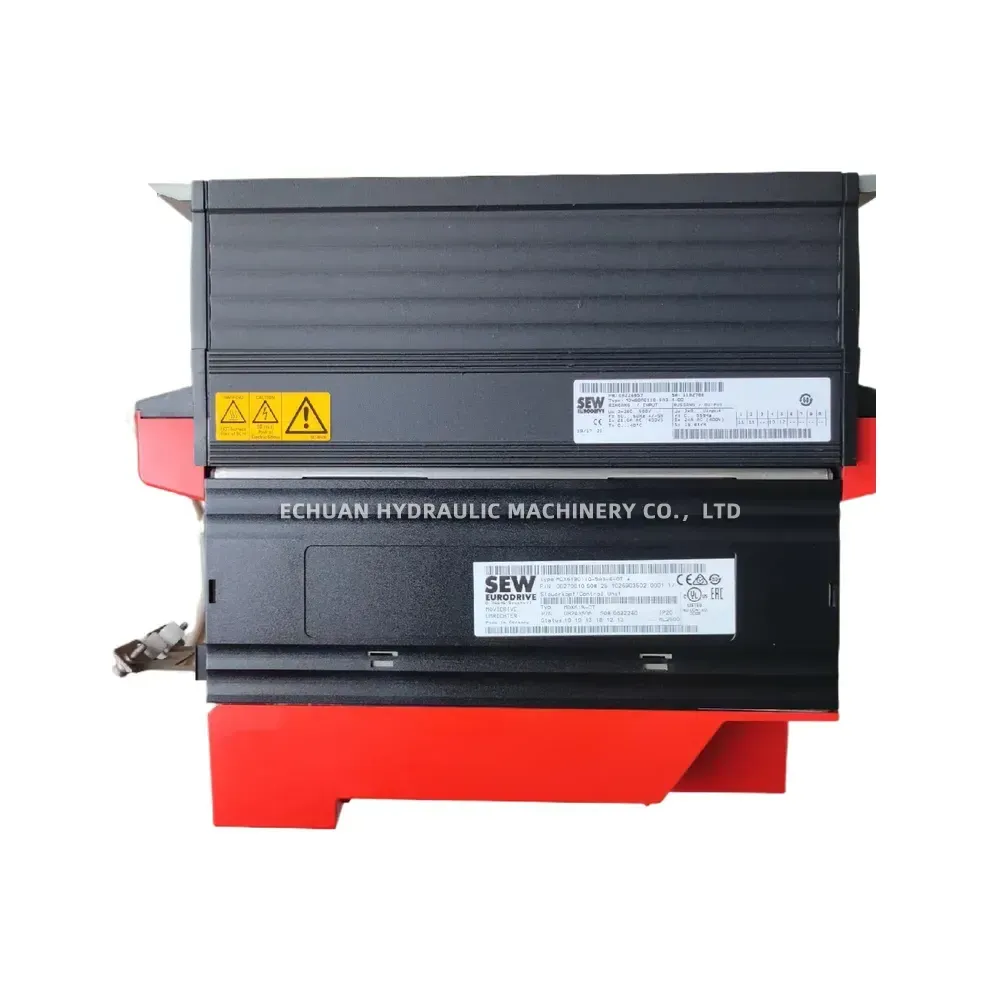

SEW MDX61B0110-5A3-4-0T / MDX60A0110-5A3-4-00 Servo Drive / Frequency Inverter (MOVIDRIVE)

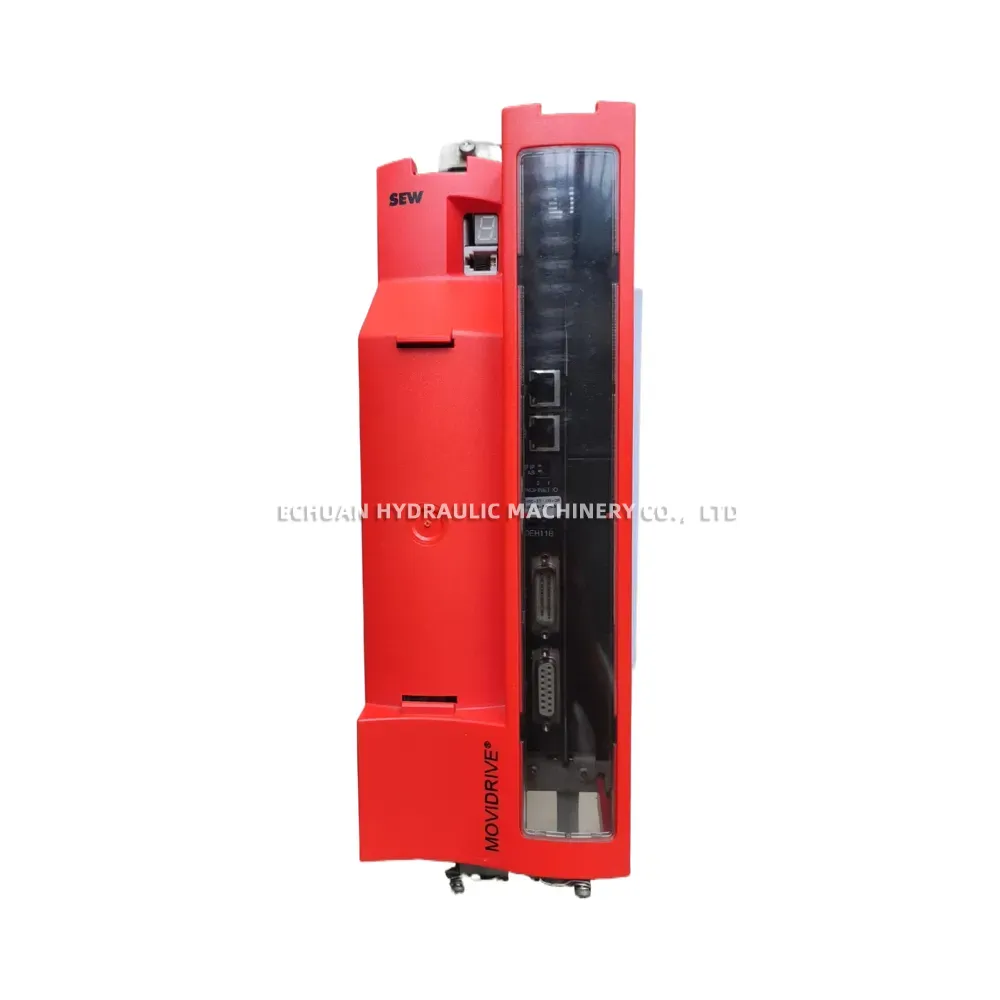

The SEW-EURODRIVE MOVIDRIVE MDX61B0110-5A3-4-0T / MDX60A0110-5A3-4-00 is a high-performance servo drive and frequency inverter combination engineered for demanding industrial motion control applications. Delivering a robust 11 kW of motor power, this unit ensures precise speed, torque, and positioning control. It features a versatile input range of 3×380 to 500V and an output capacity of 16.8 kVA. Designed for maximum reliability and ease of integration, the drive is equipped with a digital display, RJ45 communication ports, and D-Sub signal connectors. Additionally, it features an integrated heatsink for optimal cooling and heavy-duty terminal connection bars to ensure secure wiring in operating environments up to 40°C.

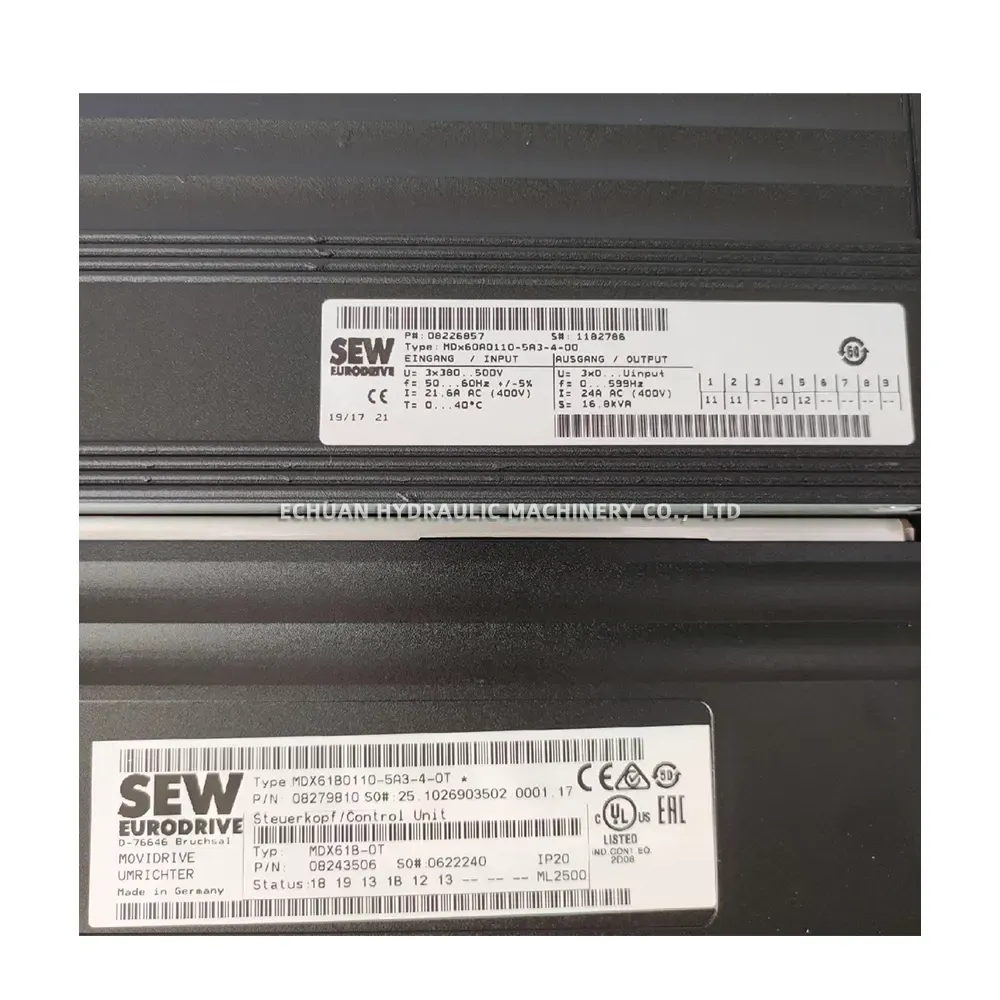

Technical Specifications:
- Brand: SEW-EURODRIVE
- Model Number: MDX61B0110-5A3-4-0T / MDX60A0110-5A3-4-00
- Part Number (PN): 08226857
- Motor Power: 11 kW
- Input Voltage (U): 3 x 380…500V AC
- Input Frequency (f): 50…60Hz +/-5%
- Input Current (I): 21.6A AC (at 400V)
- Output Voltage (U): 3 x 0…Uinput
- Output Frequency (f): 0…599Hz
- Output Current (I): 24A AC (at 400V)
- Apparent Output Power (S): 16.8 kVA
- Operating Temperature (T): 0…40°C
- Hardware Features: Digital display, RJ45 ports, D-Sub connectors, integrated heatsink, terminal connection bars
- Certifications: CE
SEW MDX61B0110-5A3-4-0T / MDX60A0110-5A3-4-00 Servo Drive / Frequency Inverter (MOVIDRIVE)
Upgrade your industrial automation with the SEW-EURODRIVE MDX61B0110-5A3-4-0T / MDX60A0110-5A3-4-00 MOVIDRIVE Servo Drive. This 11 kW, 3-phase 380-500V frequency inverter delivers 16.8 kVA of reliable power, precise motion control, and advanced connectivity for heavy-duty applications.
| Brand | SEW |
|---|---|
| Model | MDX61B0110-5A3-4-0T / MDX60A0110-5A3-4-00 |
| Part No. | 842826495859 |
| Category | Electrical |
