Product Description
SHINKO DCL-33A-A/M1 Digital Indicating Controller
The SHINKO DCL-33A-A/M1 is a high-performance, compact digital indicating controller designed for precise process and temperature regulation. Featuring a clear, dual 4-digit display for both Process Value (PV) and Set Value (SV), this controller is easy to operate and monitor. It utilizes an advanced PID control algorithm with auto-tuning (AT) functionality, ensuring stable and efficient control for a wide range of applications. Its 1/16 DIN (48x48mm) size makes it ideal for installations where panel space is limited. The DCL-33A-A/M1 is a reliable and cost-effective solution for industries requiring accurate temperature management, such as packaging, food processing, and plastics manufacturing.

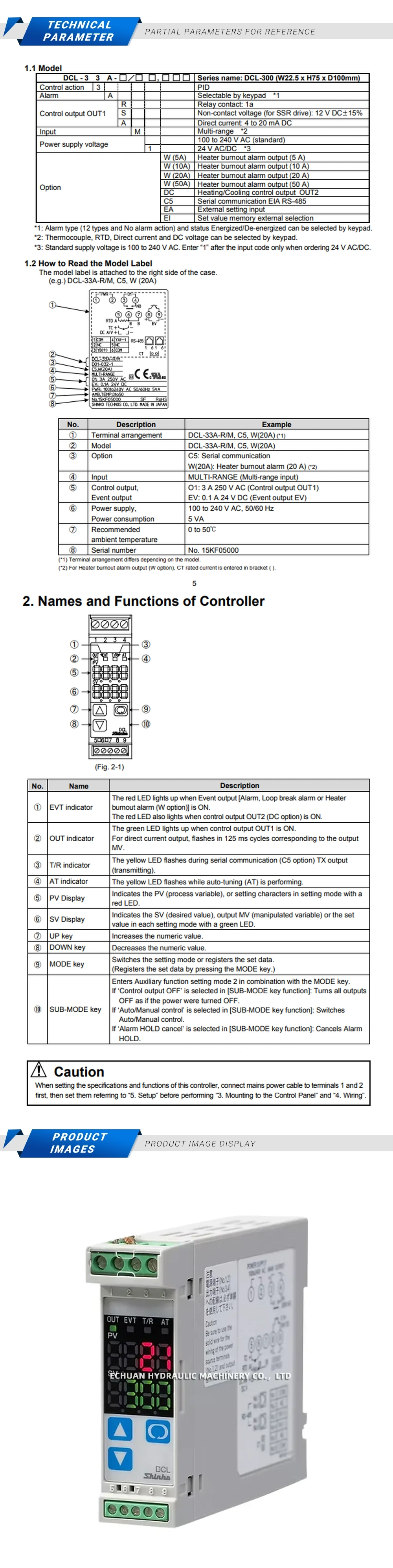

Technical Specifications:
- Model: DCL-33A-A/M1
- Input Type: Multi-input (Thermocouple K, J, etc., and RTD Pt100)
- Control Output: Relay contact (1a) 250V AC 3A (resistive load)
- Alarm Output: 1 point, Relay contact
- Control Method: PID control with auto-tuning (AT) or ON/OFF control
- Power Supply: 100 to 240 V AC, 50/60 Hz
- Dimensions: 48 x 48 x 100 mm (W x H x D)
SHINKO DCL-33A-A/M1
Order the SHINKO DCL-33A-A/M1, a compact 1/16 DIN digital temperature controller. Features PID control, relay output, and a dual display for precise and reliable process regulation.
