Product Description

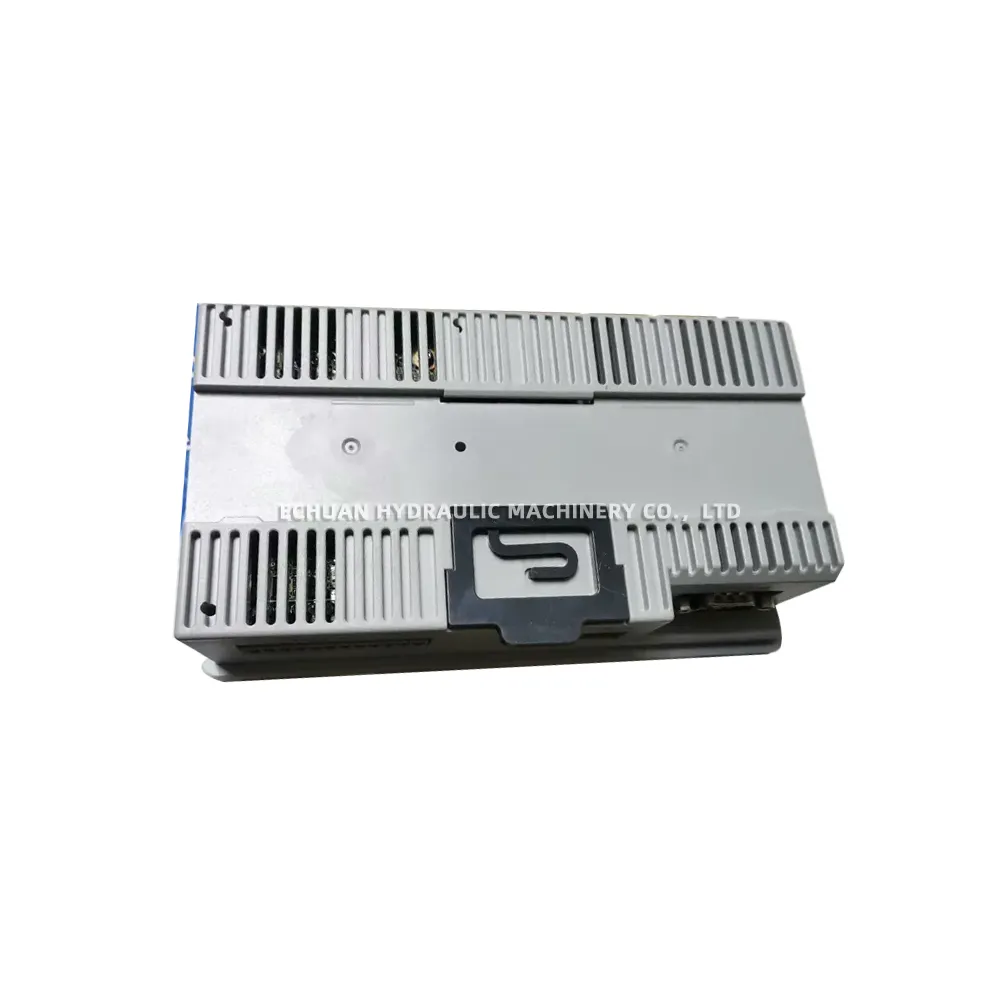

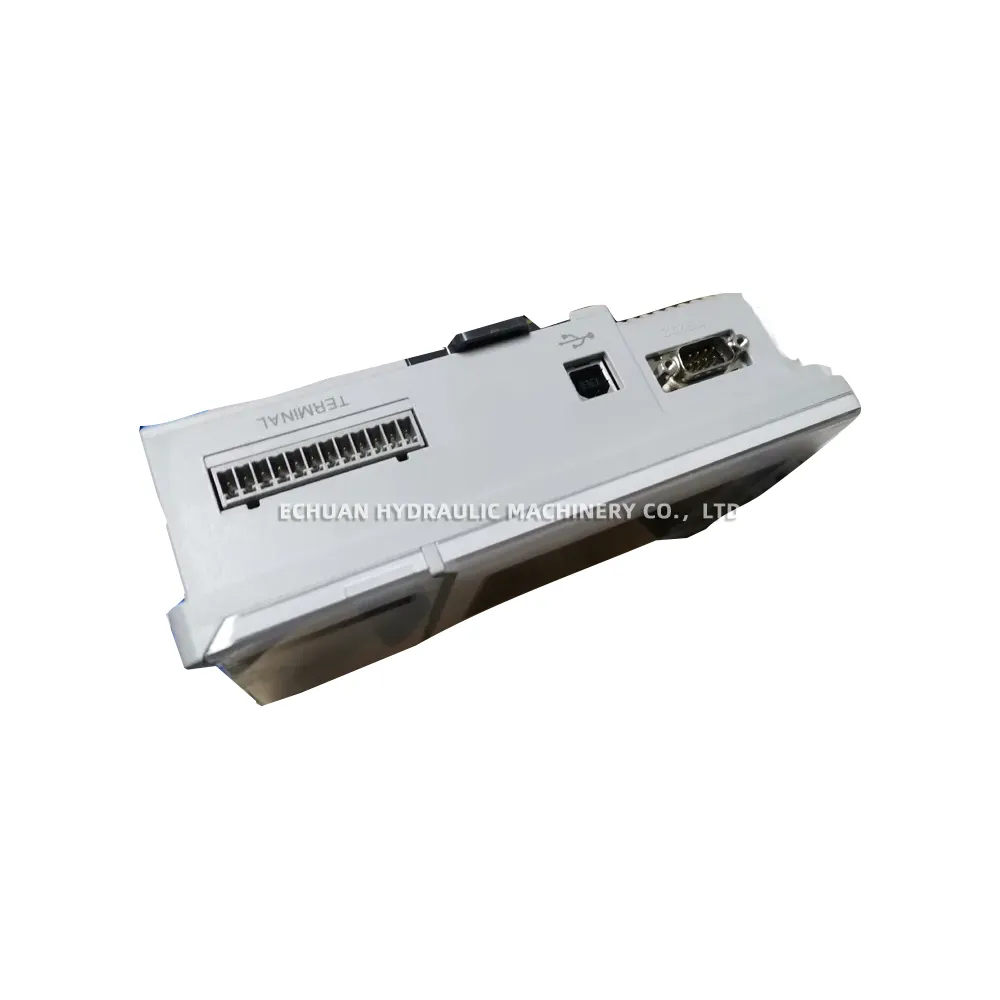

Sick AOD5-N1

The Sick AOD5-N1 is a robust optical head designed for reliable, non-contact data transmission over long distances. As a key component of the ISD400 optical data transmission system family, it utilizes infrared LED technology to ensure stable communication in various industrial environments. Ideal for applications requiring wireless data exchange where physical connections are impractical or prone to wear, such as on cranes, automated guided vehicles (AGVs), and in storage and retrieval systems. The AOD5-N1 offers a significant transmission range and is built to withstand demanding industrial conditions, ensuring continuous operation and data integrity.

Technical Specifications:

Product Family: ISD400
Component: Optical head, long range
Light Source: LED, Infrared (approx. 870 nm)
Maximum Sensing/Transmission Distance: 0.2 m … 200 m
Angle of Reception: ± 2°
Angle of Divergence: ± 2°
Connection Type (to controller): Cable with M12 male connector, 8-pin
Enclosure Rating: IP65
Ambient Operating Temperature: -25 °C to +55 °C
Housing Material: Aluminum die-cast
Weight: Approx. 600 g
Typical Light Spot Diameter (at distance): Approx. 5 m (at 100 m)
Note: The AOD5-N1 operates as an optical head in conjunction with a Sick ISD400 series controller unit (e.g., ISD400 Pro). System performance (like data rate) depends on the controller used.
