Product Description

SICK CS81-P3612

The SICK CS81-P3612 is a high-performance color sensor designed for demanding industrial automation tasks. It excels at detecting and differentiating colors with exceptional speed and reliability. Featuring a high switching frequency of 8 kHz, it is perfectly suited for fast-moving processes, such as sorting, quality control, and print mark detection. The sensor can store up to four different colors, which can be taught-in via a simple control cable. Housed in a rugged zinc die-cast metal casing with an IP67 protection rating, the CS81-P3612 ensures dependable operation even in harsh industrial environments.

Technical Specifications:

  • Sensing distance: 60 mm

  • Light source: RGB LED

  • Switching output: PNP

  • Switching frequency: 8 kHz

  • Connection type: Male connector M12, 4-pin

  • Supply voltage: 10 V DC … 30 V DC

  • Enclosure rating: IP67

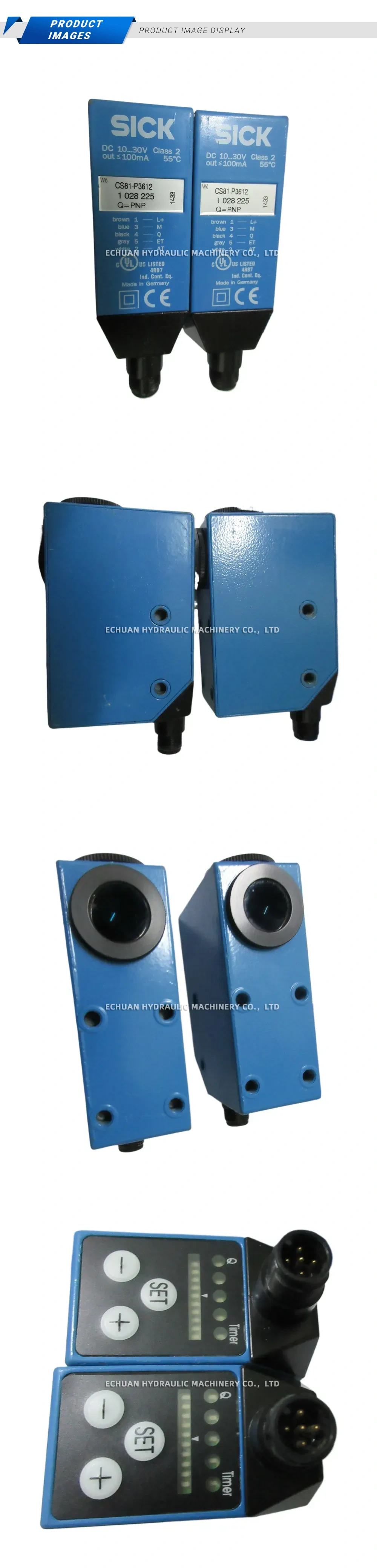

SICK CS81-P3612 Description

SICK CS81-P3612

Discover the SICK CS81-P3612 color sensor, featuring a 60mm sensing distance, high-speed 8 kHz switching frequency, and a robust IP67-rated metal housing. Ideal for reliable color detection in industrial automation with 4-color memory and a PNP output.
