Product Description
SICK DS50-P1112 Laser Distance Sensor
The SICK DS50-P1112 (Part Number: 1047402) is a high-performance laser distance sensor engineered for precision measurement and reliable object detection in demanding industrial environments. Manufactured in Germany, this robust sensor utilizes Class 2 laser technology with a 658nm wavelength, ensuring high accuracy with a 5ns pulse length and a maximum output of 180mW. Designed to withstand harsh conditions, the DS50-P1112 features a Type 1 enclosure and operates flawlessly in extreme temperatures ranging from -30°C to 65°C. With an operating voltage of 10V to 30V DC and low power consumption (max 1.8W), it provides an energy-efficient solution for your automation and positioning tasks. Standardized 5-wire connectivity ensures seamless integration into existing control systems.
Technical Specifications:
- Brand: SICK
- Model: DS50-P1112 (Part No. 1047402)
- Operating Voltage: DC 10V … 30V
- Output Current (Q out): ≤ 100mA
- Power Consumption: Max. 1.8W
- Operating Temperature: -30°C … 65°C
- Laser Class: Class 2 (EN/IEC 60825-1:2014)
- Laser Specifications: Wavelength 658nm, Max Output ≤ 180mW, Pulse Length 5ns
- Enclosure Type: Type 1

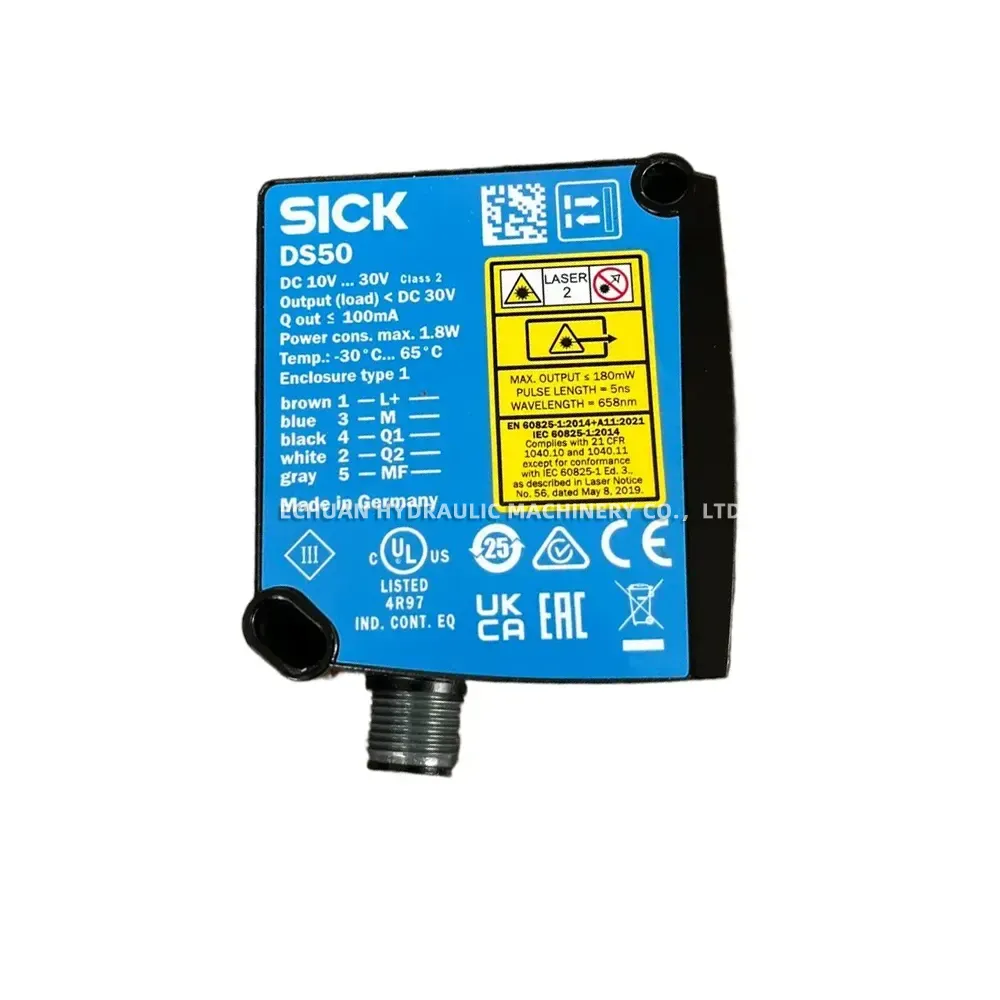

- Wiring Configuration: Brown 1 (L+), Blue 3 (M), Black 4 (Q1), White 2 (Q2), Gray 5 (MF)
- Country of Origin: Made in Germany
SICK DS50-P1112 Laser Distance Sensor
Shop the SICK DS50-P1112 (1047402) Laser Distance Sensor. This German-engineered, Class 2 laser sensor offers high-precision distance measurement, 10-30V DC operation, and a rugged design capable of withstanding temperatures from -30°C to 65°C. Ideal for industrial automation and precise object detection.
