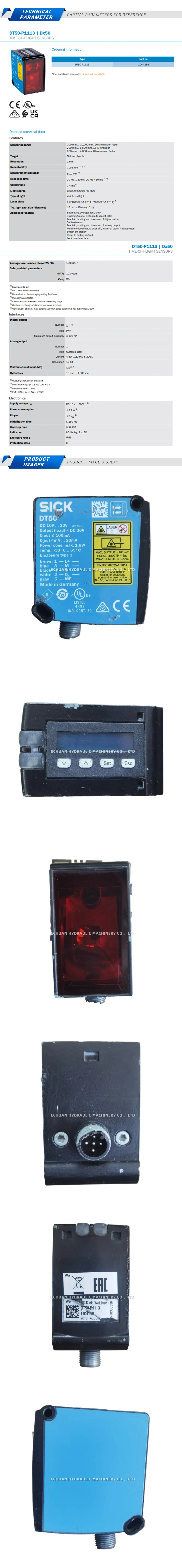

SICK DT50-F1113 1044369
The SICK DT50-F1113 is a high-performance mid-range distance sensor designed for reliable and precise measurement in a wide range of industrial applications. Utilizing advanced HDDM+ (High Definition Distance Measurement Plus) technology, this sensor delivers stable and accurate results, even in challenging conditions with ambient light or object color variations. Its robust IP65-rated housing ensures durability in harsh environments. The DT50-F1113 is easy to configure via its intuitive display and offers both analog and switching outputs, making it a versatile solution for tasks such as positioning, level control, and collision avoidance.
Technical Specifications:
- Measuring range: 200 mm … 10,000 mm, on 90% remission
- Supply voltage (Vs): DC 10 V … 30 V
- Output type: 1 x PNP/NPN (switching), 1 x 4 mA … 20 mA / 0 V … 10 V (analog)
- Enclosure rating: IP65
- Light source: Laser, red (Class 2)
- Connection type: Male connector, M12, 5-pin
