Product Description

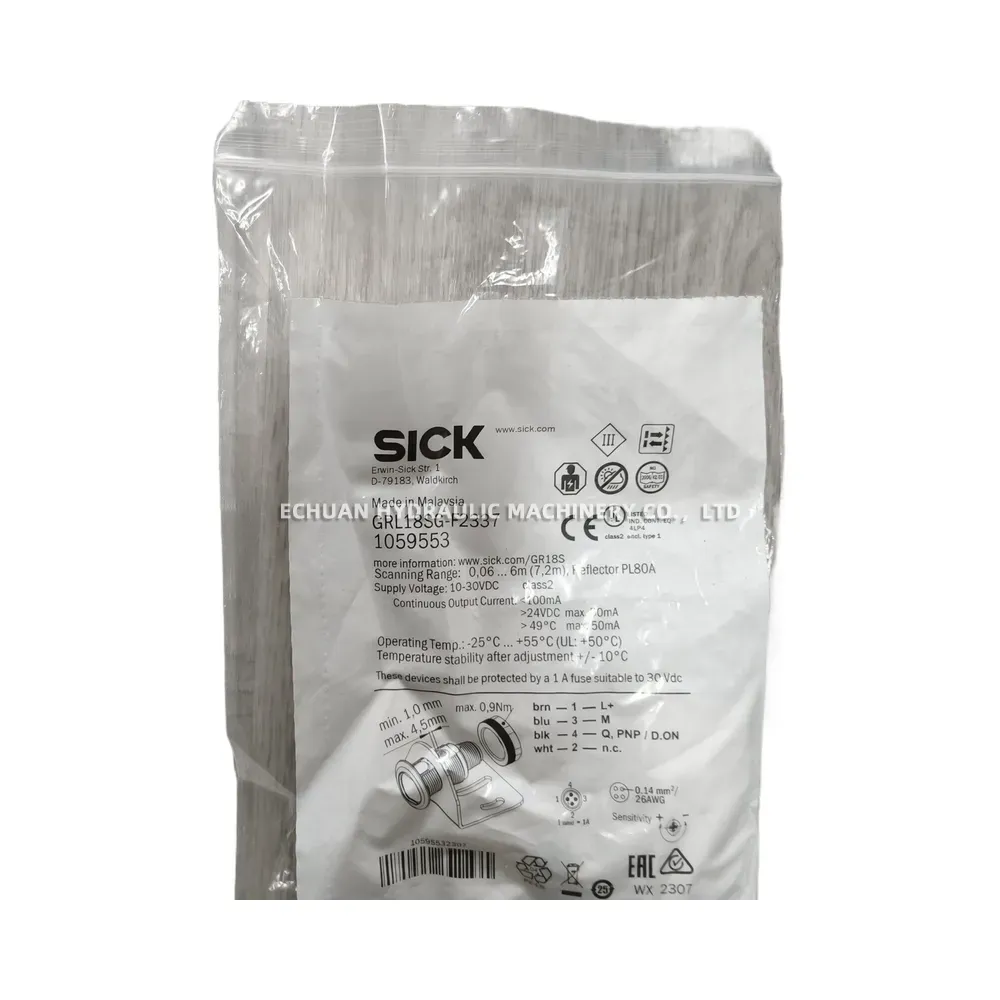

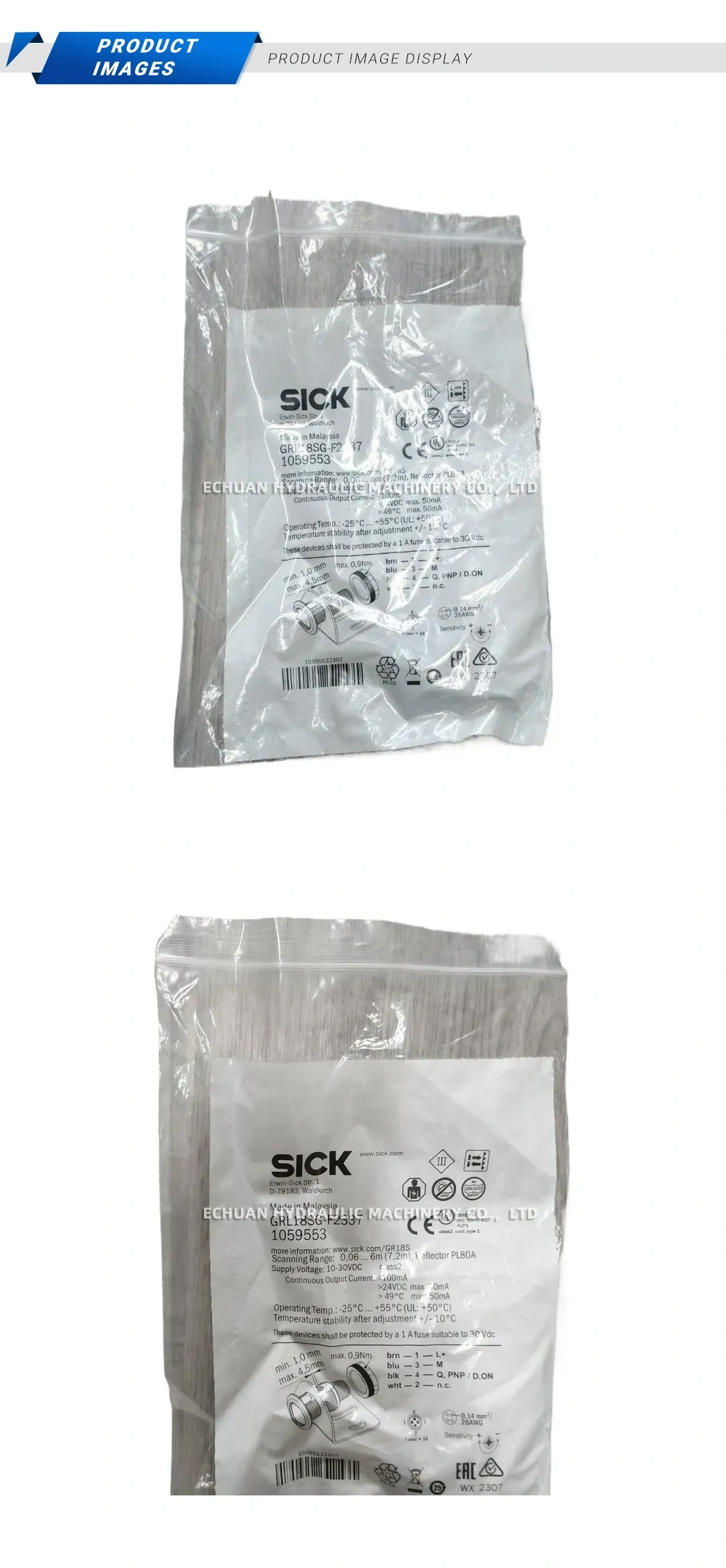

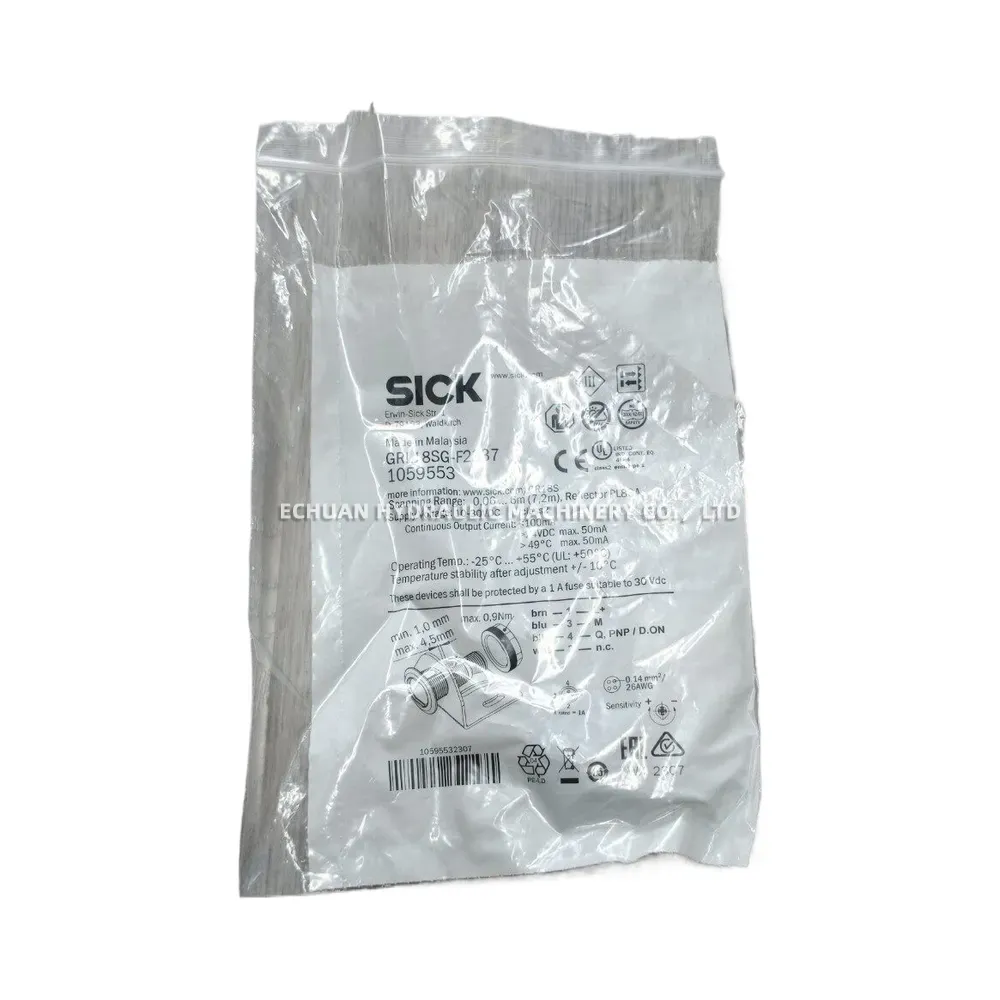

SICK GRL18SG-F2337 Photoelectric Sensor
The SICK GRL18SG-F2337 (Part Number: 1059553) is a highly reliable retro-reflective photoelectric sensor from the GR18S product family. Designed for robust industrial automation applications, it offers a versatile scanning range of 0.06 to 6 meters, which is extendable up to 7.2 meters when paired with a PL80A reflector. Featuring a PNP Dark-On (D.ON) output and adjustable sensitivity, this sensor ensures precise object detection across a wide operating temperature range of -25°C to +55°C. Its compact cylindrical design, combined with excellent temperature stability, makes it an ideal choice for packaging, material handling, and general factory automation systems.
Technical Specifications:
- Brand: SICK
- Model: GRL18SG-F2337 (Part No: 1059553)
- Sensor Type: Retro-reflective photoelectric sensor
- Scanning Range: 0.06 … 6 m (7.2 m max with Reflector PL80A)
- Supply Voltage: 10 – 30 V DC (Class 2)
- Output Configuration: PNP / D.ON (Dark On)
- Continuous Output Current: < 100 mA (> 24VDC max 50mA; > 49°C max 50mA)
- Operating Temperature: -25°C … +55°C (UL: +50°C)
- Adjustability: Sensitivity potentiometer (+ / -)
- Connection Pinout: brn(1)-L+, blu(3)-M, blk(4)-Q, wht(2)-n.c. (0.14 mm² / 26AWG)
SICK GRL18SG-F2337 Photoelectric Sensor
Shop the SICK GRL18SG-F2337 (1059553) Retro-Reflective Photoelectric Sensor. Features a 6m scanning range, PNP Dark-On output, and 10-30V DC supply. Ideal for reliable object detection in demanding industrial automation environments.
