Product Description

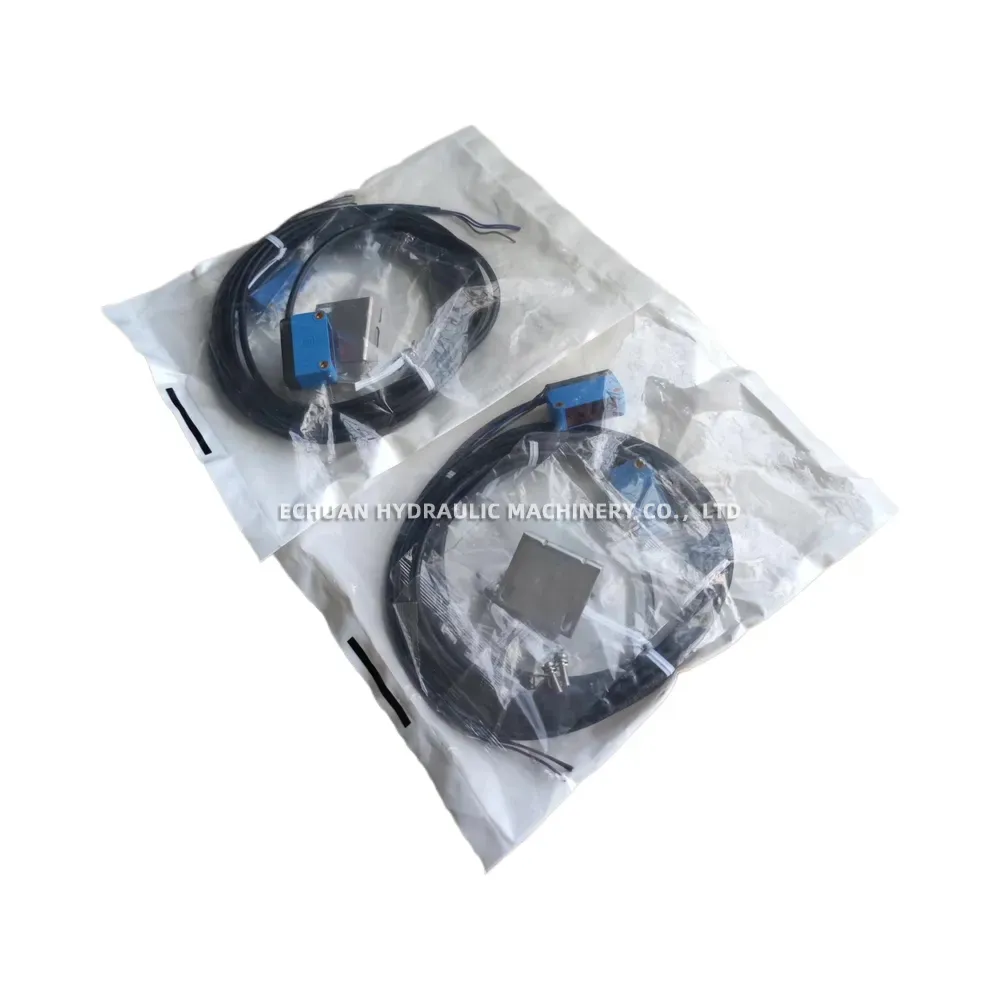

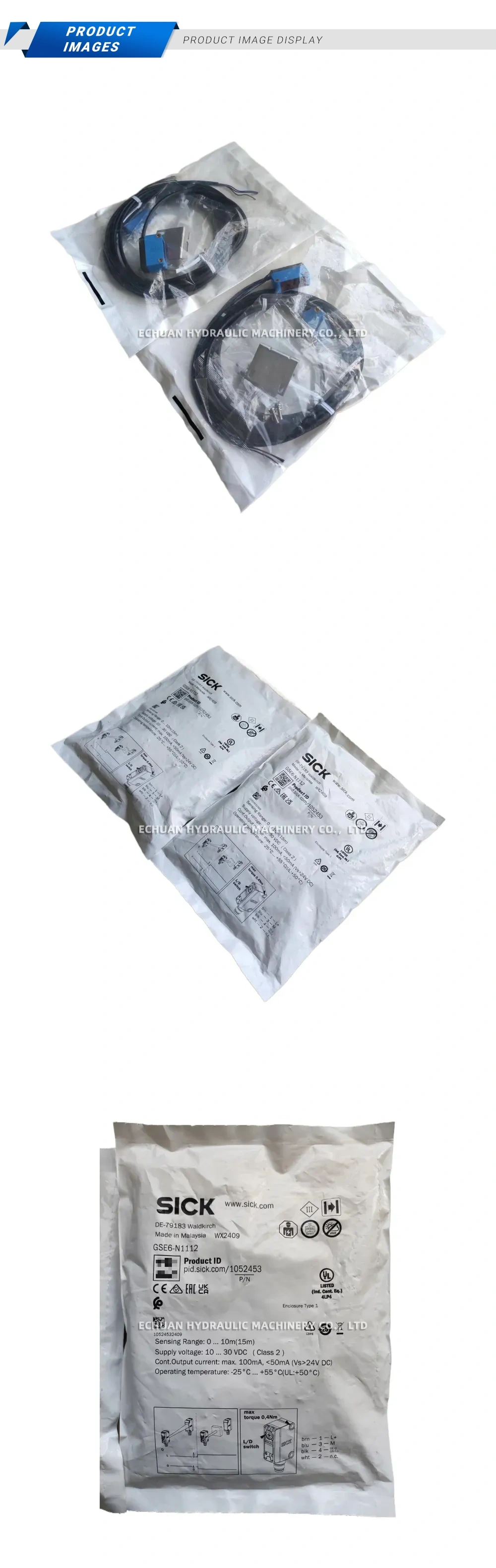

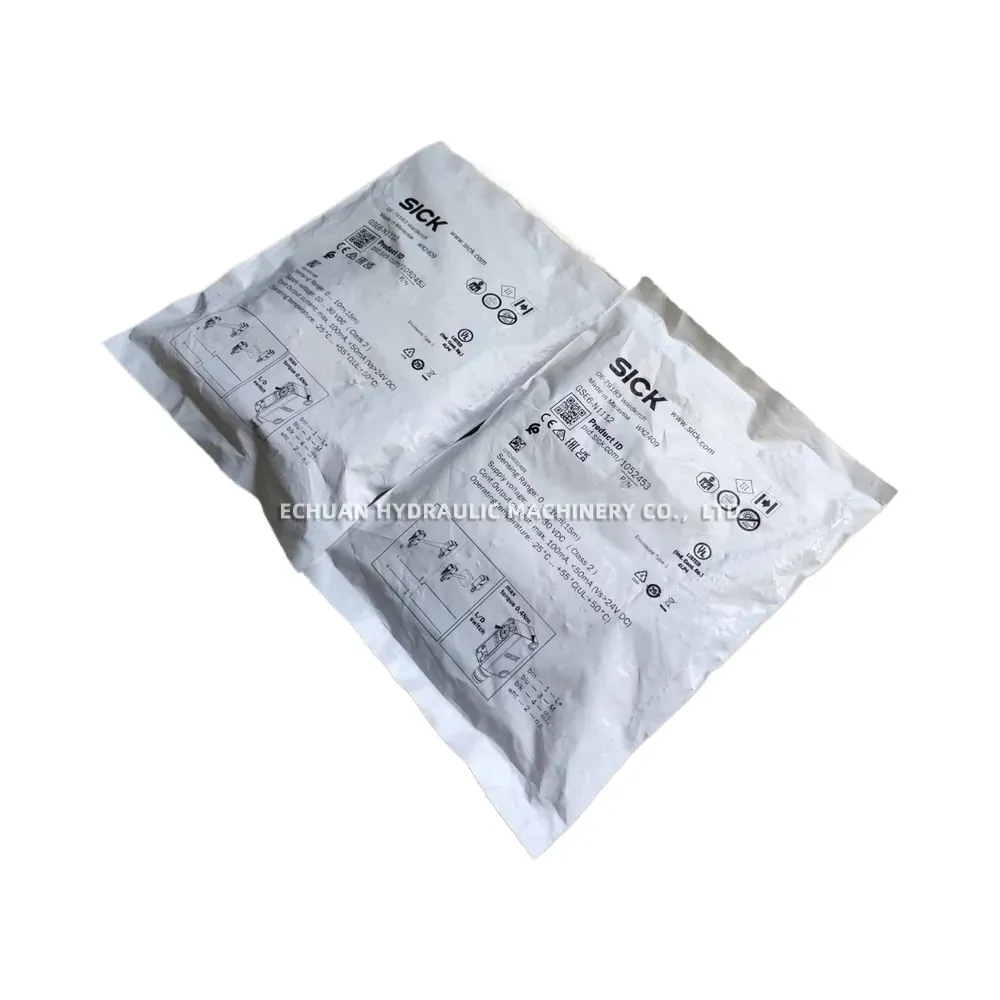

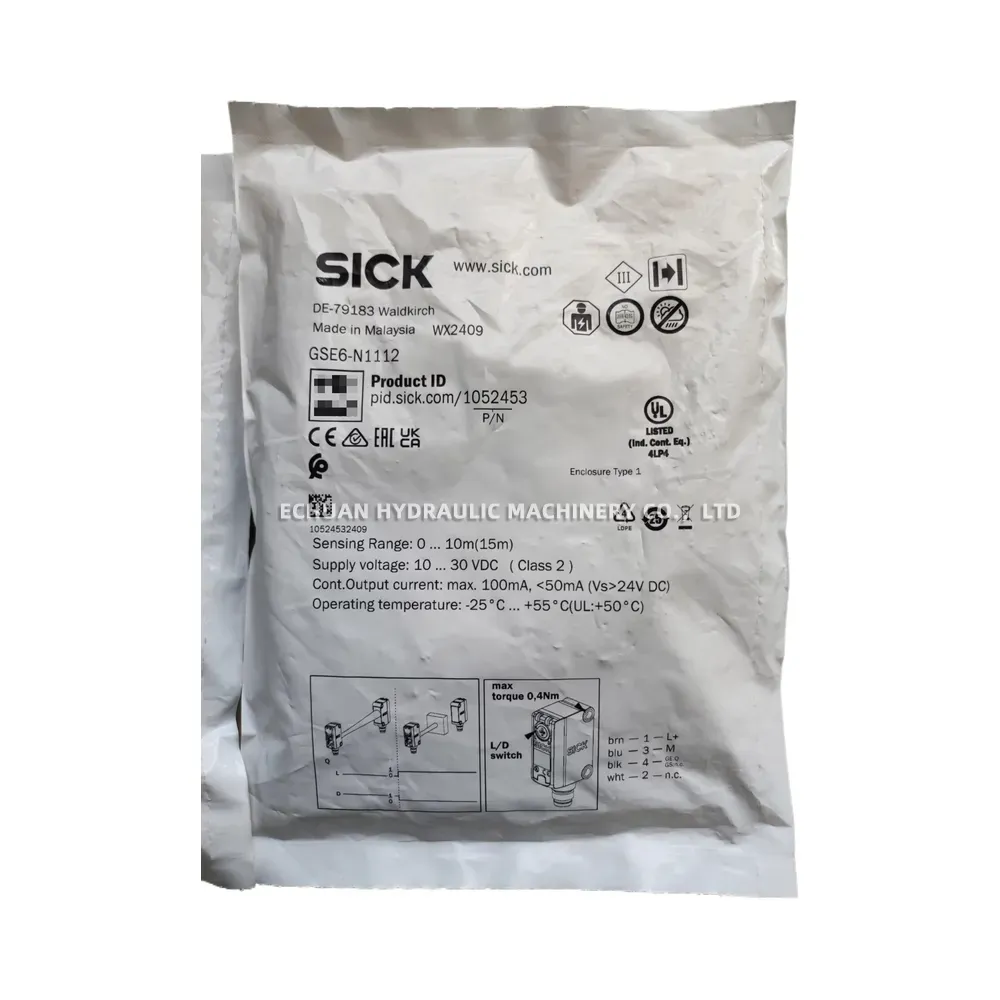

SICK GSE6-N1112 Through-Beam Photoelectric Sensor
The SICK GSE6-N1112 is a high-performance through-beam photoelectric sensor engineered for reliable object detection in demanding industrial automation environments. Part of the compact G6 product family, this complete set includes both sender and receiver units, delivering a highly accurate sensing range of up to 15 meters. It operates on a 10 to 30 VDC supply voltage and features an NPN switching output equipped with a selectable Light/Dark (L/D) switch for versatile integration into various control systems. Built for durability, it boasts an Enclosure Type 1 rating and withstands operating temperatures from -25°C to +55°C. With a standard 4-wire cable connection and international safety certifications including CE, UL, EAC, and UKCA, the GSE6-N1112 is an ideal solution for logistics, packaging, and automated manufacturing lines.
Technical Specifications:
- Brand: SICK
- Model: GSE6-N1112
- Product ID / P/N: 1052453
- Sensor Type: Through-beam photoelectric sensor (Sender and Receiver)
- Sensing Range: 0 … 10 m (Maximum 15 m)
- Supply Voltage: 10 … 30 VDC (Class 2)
- Switching Output: NPN with Light/Dark (L/D) selector switch
- Continuous Output Current: Max. 100 mA, <50 mA (Vs > 24V DC)
- Operating Temperature: -25°C … +55°C (UL: +50°C)
- Connection Type: 4-wire cable
- Wire Assignment: Brown (brn) – 1 – L+, Blue (blu) – 3 – M, Black (blk) – 4 – Q, White (wht) – 2 – n.c.
- Max Mounting Torque: 0.4 Nm
- Enclosure Rating: Type 1
- Certifications: CE, EAC, UKCA, UL Listed (Ind. Cont. Eq. 4LP4)
SICK GSE6-N1112 Through-Beam Photoelectric Sensor
Optimize your automation systems with the SICK GSE6-N1112 (P/N 1052453) Through-Beam Photoelectric Sensor. Featuring a 15m maximum sensing range, NPN output with L/D switching, 10-30 VDC supply, and a pre-wired 4-core cable, this compact sensor delivers precise and reliable object detection for industrial applications.
