Product Description

Sick VL18-4P3212 6013549

The Sick VL18-4P3212 is a high-performance photoelectric retro-reflective sensor designed for reliable object detection in industrial automation applications. Encased in a rugged, cylindrical M18 nickel-plated brass housing, this sensor offers excellent durability and an IP67 protection rating, making it suitable for harsh environments. It features a dual-lens system and visible red light for a precise and long sensing range of up to 5 meters. With a standard 4-pin M12 connector and a PNP switching output with light/dark switching capabilities, the VL18-4P3212 provides flexible and straightforward integration into control systems.

Technical Specifications:

  • Sensor principle: Photoelectric retro-reflective sensor, Dual lens

  • Sensing range max.: 0.05 m … 5 m (with reflector PL80A)

  • Switching output: PNP, Light/dark switching

  • Connection type: Male connector M12, 4-pin

  • Supply voltage: 10 V DC … 30 V DC

  • Housing: Cylindrical, M18, Nickel-plated brass

  • Enclosure rating: IP67

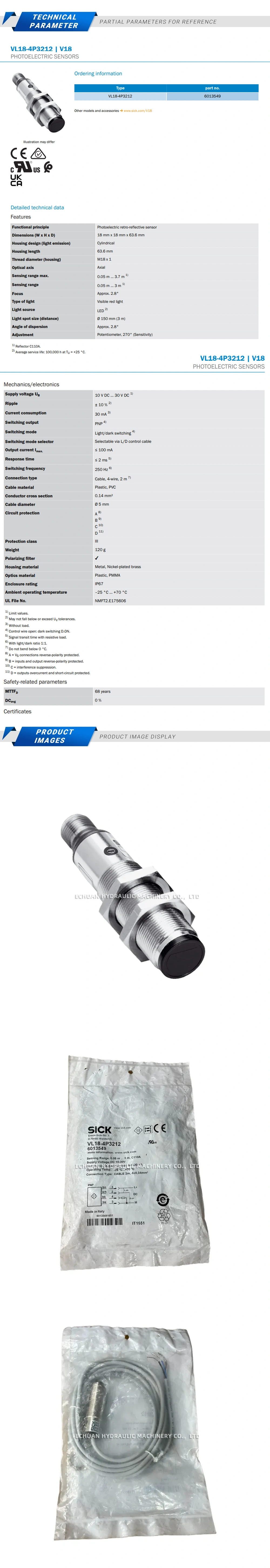

Sick VL18-4P3212 6013549 Description

Sick VL18-4P3212 6013549

Discover the Sick VL18-4P3212 (6013549), a robust M18 retro-reflective photoelectric sensor. It features a 5m sensing range, PNP output, and a durable IP67-rated metal housing, ideal for industrial object detection.

BrandSICK
ModelVL18-4P3212 6013549
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/sick-vl18-4p3212-6013549
