SICK WFM30-40P321 Fork Sensor
The SICK WFM30-40P321 (Part Number: 6037819) is a high-performance fork sensor engineered for precise edge detection, web guiding, and object positioning in automated industrial environments. Manufactured in France, this WFM series sensor features a rugged housing compatible with Type 1, 4, 4X, and 13 enclosures, ensuring durability in demanding applications. It operates reliably on a 10 to 30 VDC Class 2 power supply and delivers a fast, accurate PNP switching output. Equipped with a standard M12 connector interface, it allows for quick plug-and-play installation. Fully CE marked and cULus listed for Industrial Control Equipment, the WFM30-40P321 guarantees exceptional safety and operational stability across an ambient temperature range of -10°C to +60°C.
Technical Specifications:
- Brand: SICK
- Model: WFM30-40P321
- Part Number: 6037819
- Sensor Type: Fork Sensor / Edge Detection Sensor
- Operating Voltage: 10…30 VDC (Class 2 Circuit Only)
- Output Type: PNP Switching Output (I out < 0.1 A)

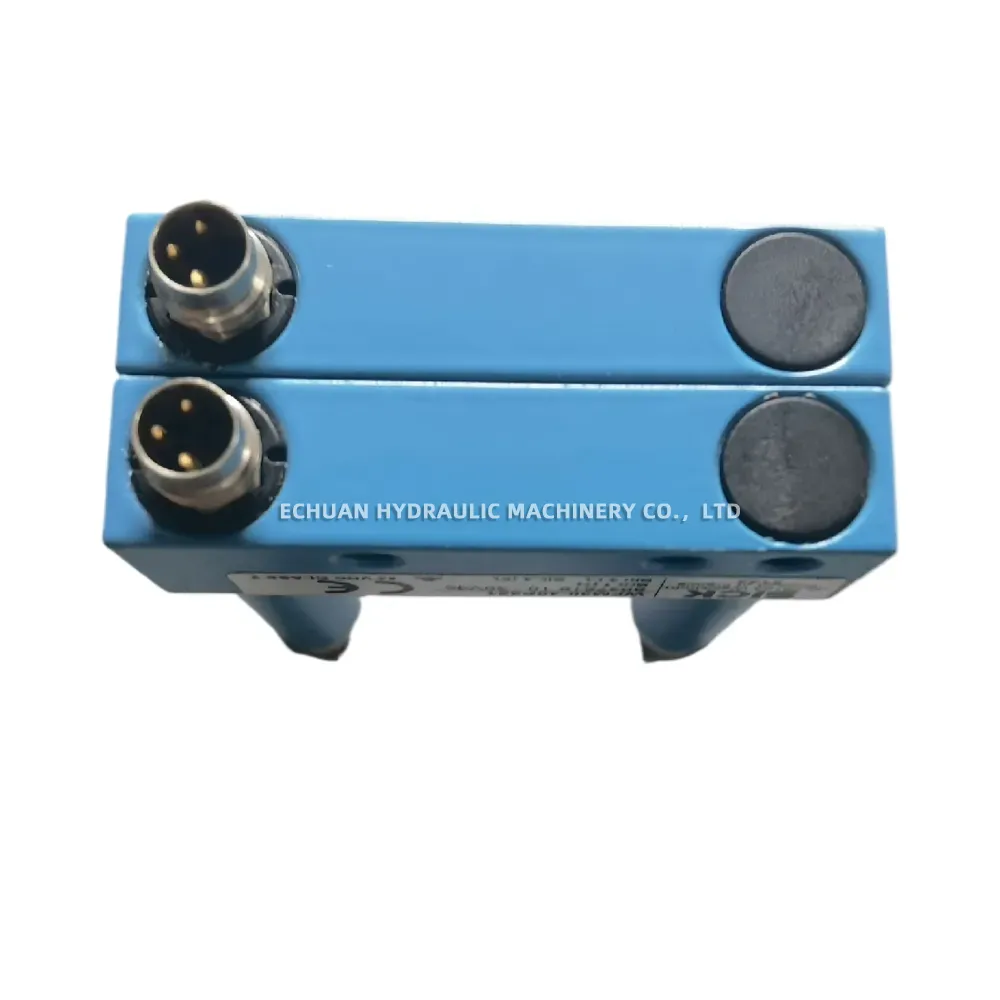

- Connection/Pinout: M12 Interface (Pin 1: Brown +, Pin 3: Blue -, Pin 4: Black P)
- Ambient Operating Temperature: -10°C to +60°C
- Enclosure Rating: Type 1, 4, 4X and/or 13

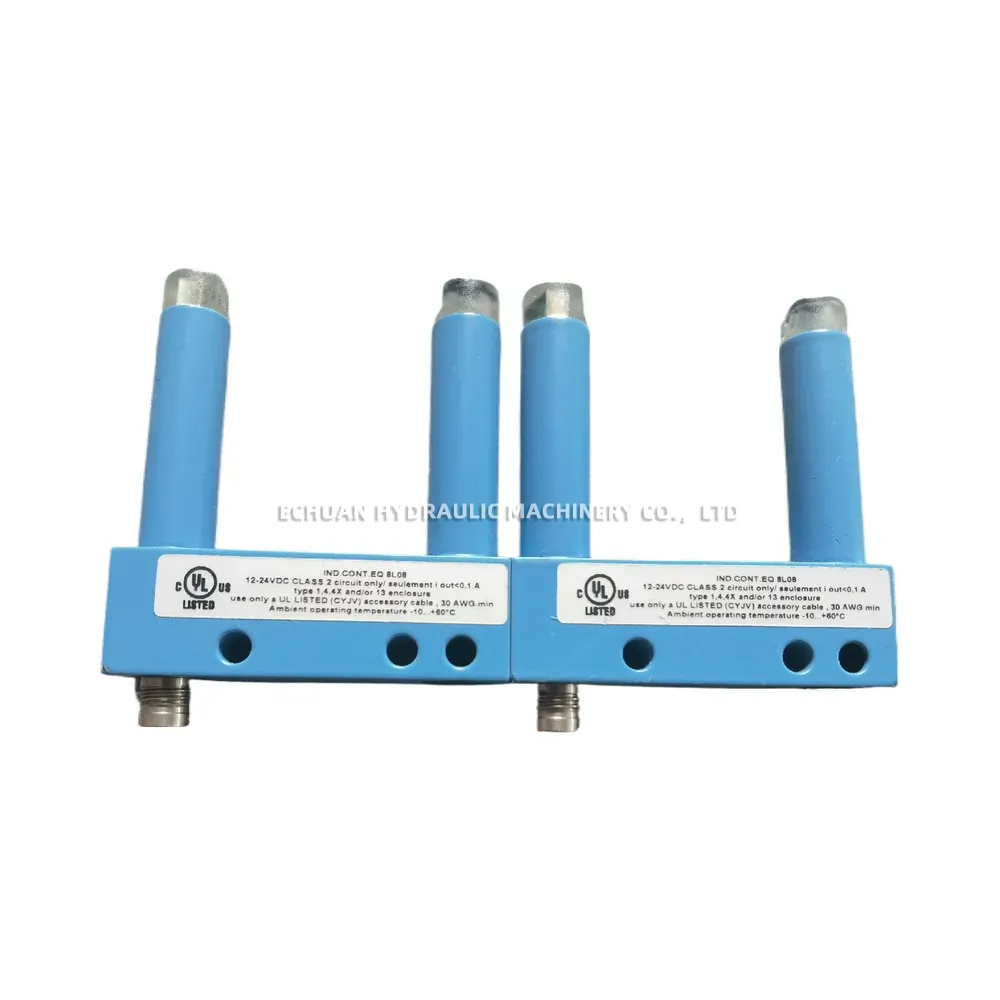

- Certifications: CE, cULus LISTED (IND.CONT.EQ. 8L08)
- Country of Origin: France
