Product Description

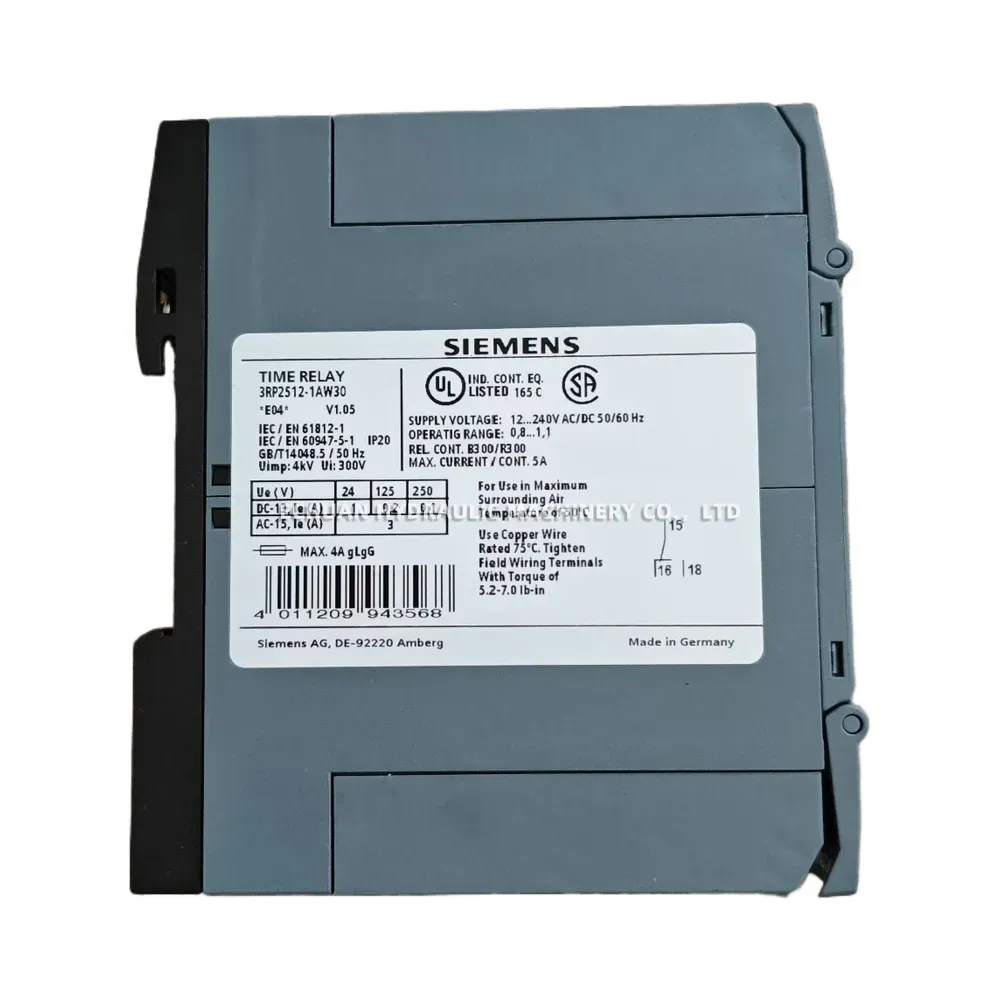

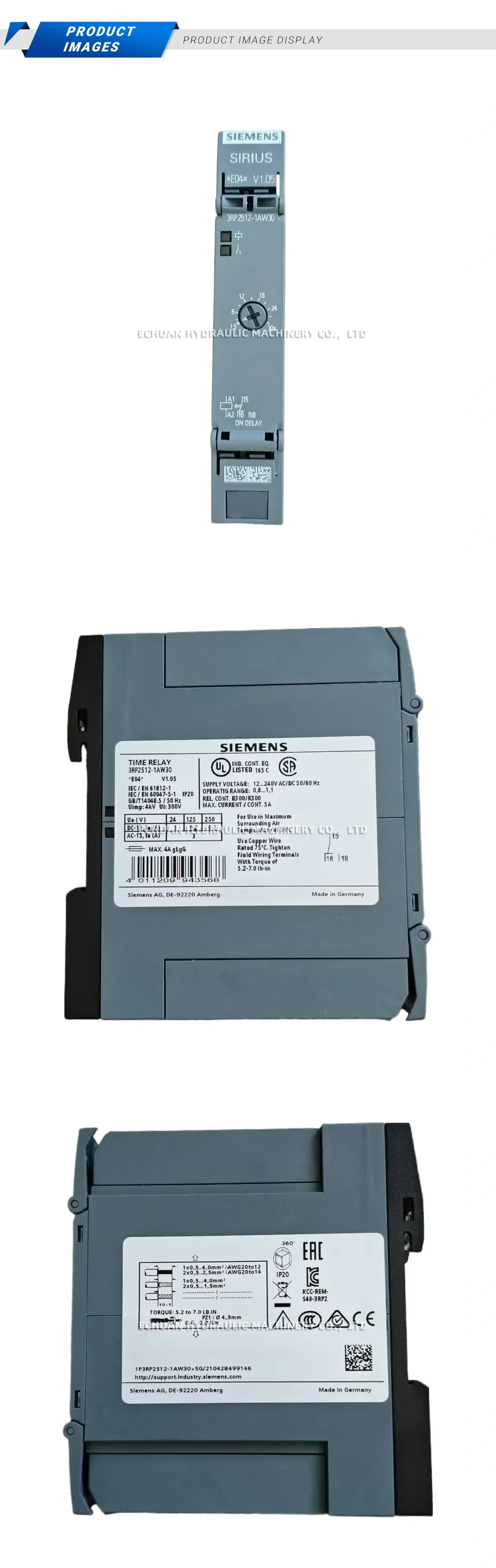

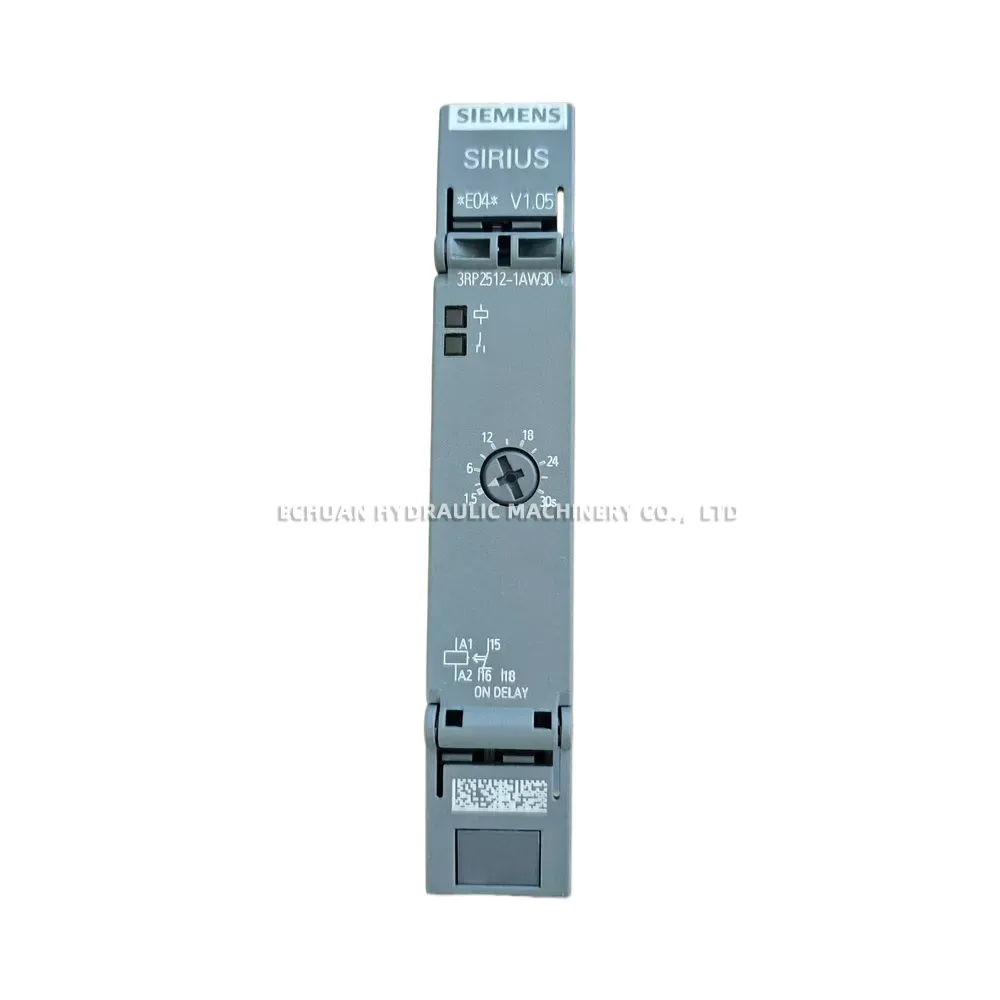

SIEMENS 3RP2512-1AW30 Time Relay
The Siemens 3RP2512-1AW30 is a highly reliable electronic time relay from the renowned SIRIUS product family, designed specifically for ON DELAY timing functions. Engineered for industrial control systems, this versatile relay offers a wide supply voltage range of 12 to 240V AC/DC, making it adaptable to various global applications. It features a precise time setting range of 1.5 to 30 seconds and comes equipped with one changeover contact. Housed in a compact, IP20-rated enclosure, it ensures safe and efficient operation in control cabinets. Compliant with stringent international standards including IEC/EN 61812-1, IEC/EN 60947-5-1, and UL/CSA, the 3RP2512-1AW30 delivers robust performance and seamless integration for automated manufacturing and processing environments.
Technical Specifications:
- Brand: SIEMENS
- Model: 3RP2512-1AW30
- Product Family: SIRIUS
- Timing Function: ON DELAY
- Supply Voltage: 12…240V AC/DC (50/60 Hz)
- Operating Range: 0.8…1.1
- Time Setting Range: 1.5…30 seconds
- Contact Configuration: 1 Changeover (CO) Contact
- Max. Continuous Current: 5A
- Rated Insulation Voltage (Ui): 300V
- Rated Impulse Voltage (Uimp): 4kV
- Degree of Protection: IP20

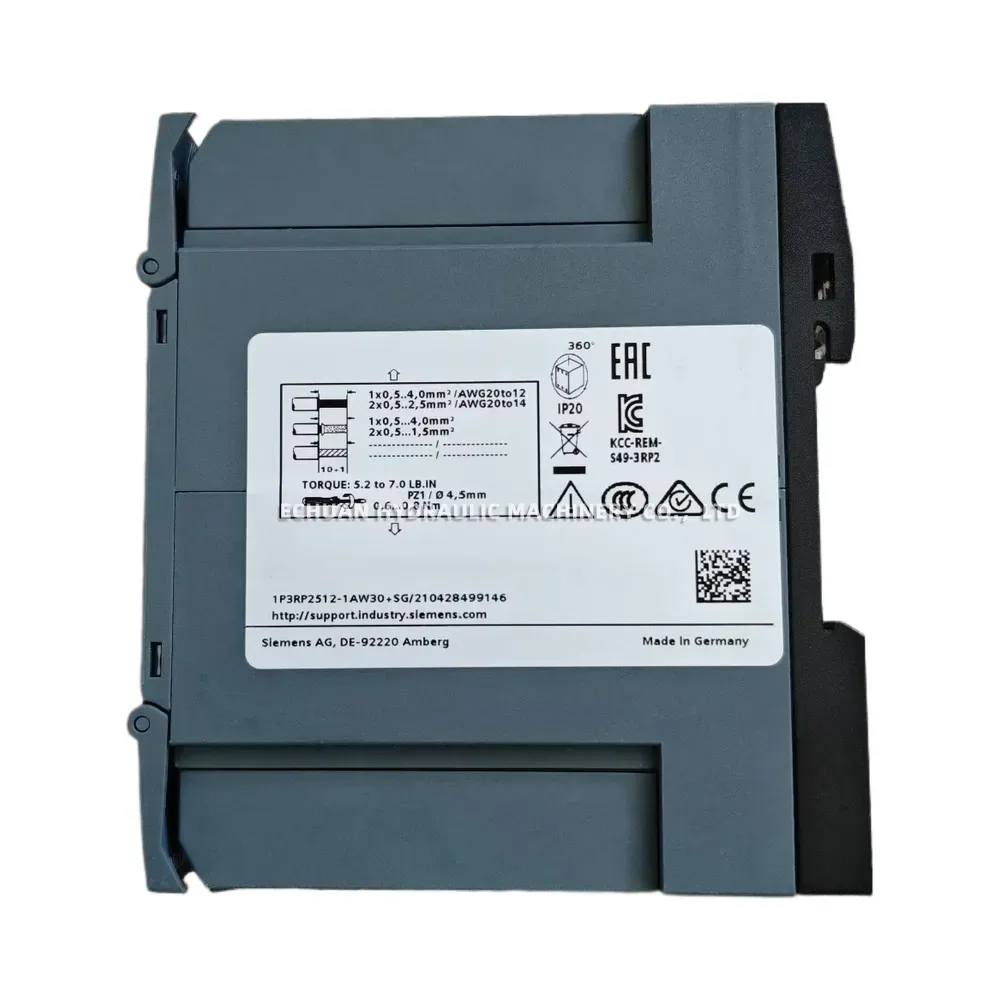

- Terminal Connection: Screw terminals (Tightening torque 0.6…0.8 Nm / 5.2…7.0 lb-in)
- Compliance & Standards: IEC/EN 61812-1, IEC/EN 60947-5-1, GB/T14048.5, UL, CSA, EAC
- Country of Origin: Germany
SIEMENS 3RP2512-1AW30 Time Relay
Shop the Siemens 3RP2512-1AW30 SIRIUS electronic time relay. Featuring an ON DELAY function, wide 12-240V AC/DC supply voltage, 1.5-30s adjustable timing range, and 1 changeover contact. Engineered in Germany for premium industrial automation and control cabinet reliability.
