Product Description

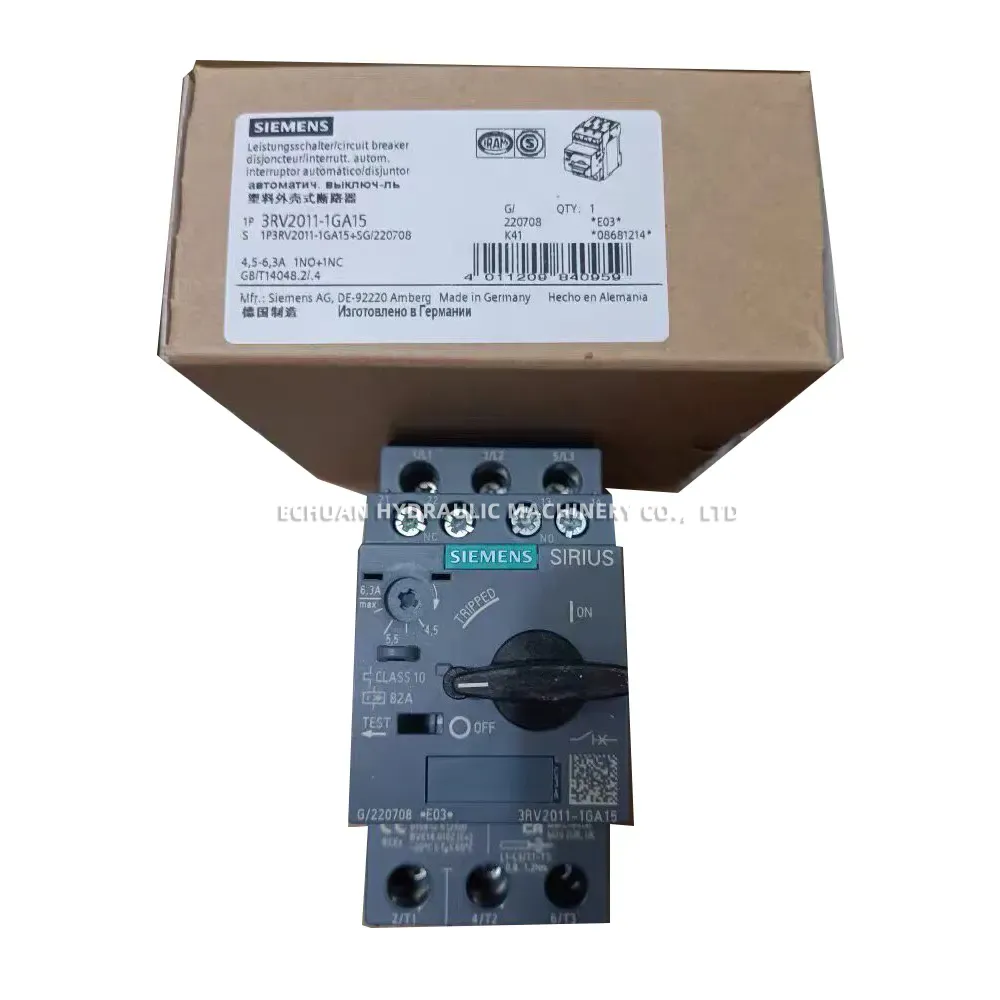

Siemens 3RV2011-1GA15 Motor Protection Circuit Breaker

The Siemens 3RV2011-1GA15 is a highly reliable motor protection circuit breaker from the industry-leading SIRIUS series, engineered to deliver exceptional safety and performance for electrical motors. It features an adjustable thermal overload release with a current setting range of 4.5 to 6.3 A, ensuring precise protection tailored to your specific industrial application. Operating at a Trip Class 10 rating, this compact yet robust device provides rapid response to overload and short-circuit events. It comes pre-equipped with integrated 1 NO (Normally Open) and 1 NC (Normally Closed) auxiliary contacts, streamlining integration into your control and signaling systems. Manufactured in Germany and fully compliant with GB/T14048.2/4 standards, the breaker includes a straightforward ON/OFF rotary switch and a built-in TEST button for easy maintenance and dependable everyday operation.

Technical Specifications:

  • Brand: Siemens

  • Product Series: SIRIUS

  • Model Number: 3RV2011-1GA15

  • Current Setting Range: 4.5 A … 6.3 A

  • Auxiliary Contacts: 1 NO + 1 NC

  • Trip Class: Class 10

  • Short-Circuit Release: 82 A

  • Standards Compliance: GB/T14048.2/4

  • Country of Origin: Made in Germany

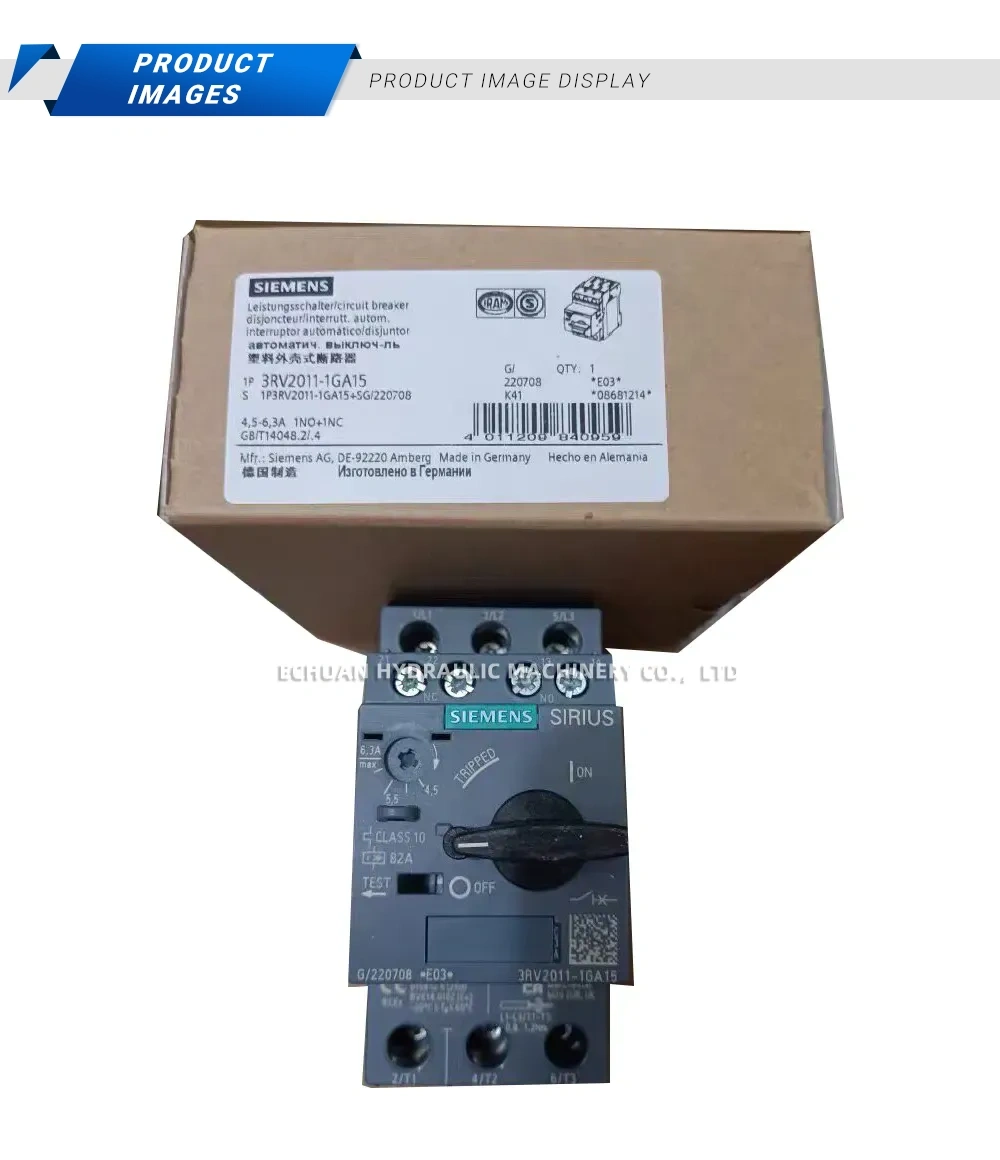

Siemens 3RV2011-1GA15 Motor Protection Circuit Breaker Description

Siemens 3RV2011-1GA15 Motor Protection Circuit Breaker

Shop the genuine Siemens 3RV2011-1GA15 SIRIUS motor protection circuit breaker. Featuring a 4.5-6.3A adjustable current range, built-in 1NO+1NC auxiliary contacts, and Class 10 trip rating for reliable, heavy-duty industrial motor safety.

BrandSIEMENS
Model3RV2011-1GA15
Part No.965081444133
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/siemens-3rv2011-1ga15-motor-protection-circuit-breaker
