Product Description
Siemens 3RW4024-1BB04
The Siemens 3RW4024-1BB04 is a SIRIUS soft starter designed for the smooth starting and stopping of three-phase asynchronous motors. Part of the S0 size range, it effectively reduces current peaks and torque surges during motor startup, which helps to minimize mechanical stress on the connected machinery and reduce strain on the power supply network. Its compact design saves valuable cabinet space, while the integrated bypass contact system enhances energy efficiency by minimizing power loss during continuous operation. This two-phase controlled soft starter is ideal for standard applications such as pumps, fans, and conveyors, offering a reliable and cost-effective solution for motor control.

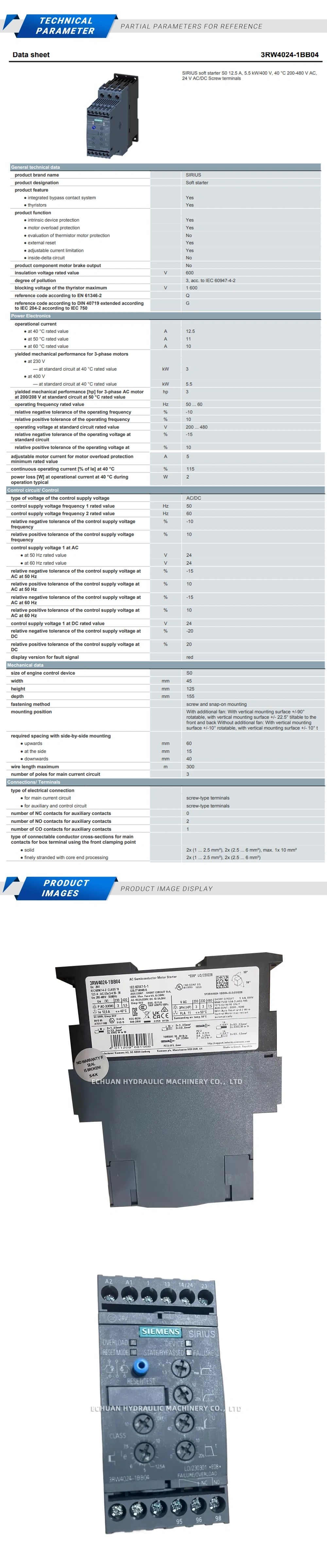

Technical Specifications:
- Model: SIRIUS Soft Starter 3RW40
- Rated Operational Current: 12.5 A at 40 °C
- Motor Power Rating: 5.5 kW at 400 V
- Operating Voltage: 200…480 V AC
- Control Supply Voltage: 24 V AC/DC
- Connection Type: Screw terminals

Siemens 3RW4024-1BB04
Siemens 3RW4024-1BB04 SIRIUS Soft Starter, 12.5A, 5.5kW at 400V, 200-480V AC. A compact and efficient solution for smooth motor starting, featuring an integrated bypass system.
