Siemens 6ES5460-4UA13 Analog Input Module

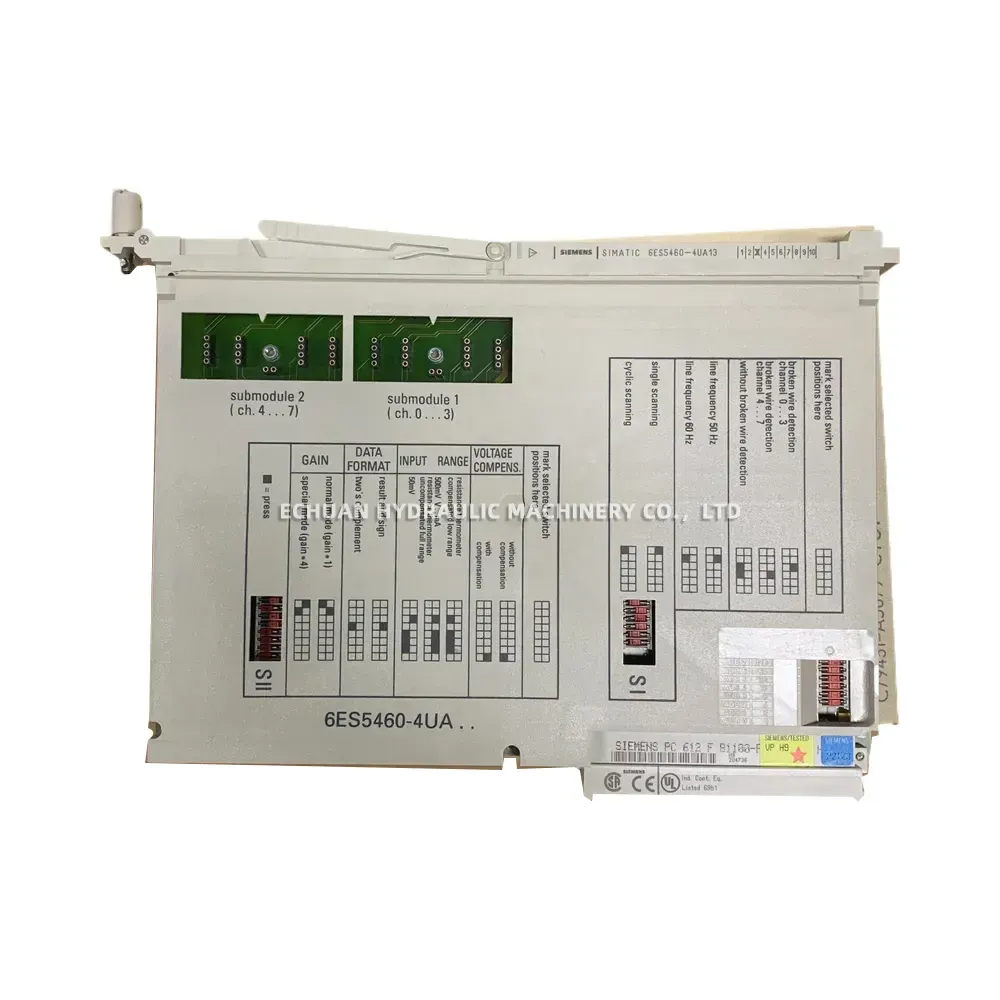

The Siemens 6ES5460-4UA13 is a highly reliable 8-channel analog input module designed for the proven SIMATIC S5 automation system. Engineered for precision and versatility, this module is divided into two submodules (Channels 0-3 and Channels 4-7) to facilitate flexible configurations tailored to your specific industrial control needs. It supports a comprehensive array of input signal ranges, including resistance thermometers (compensated and low range), 50mV, 500mV, and standard V/mA signals.

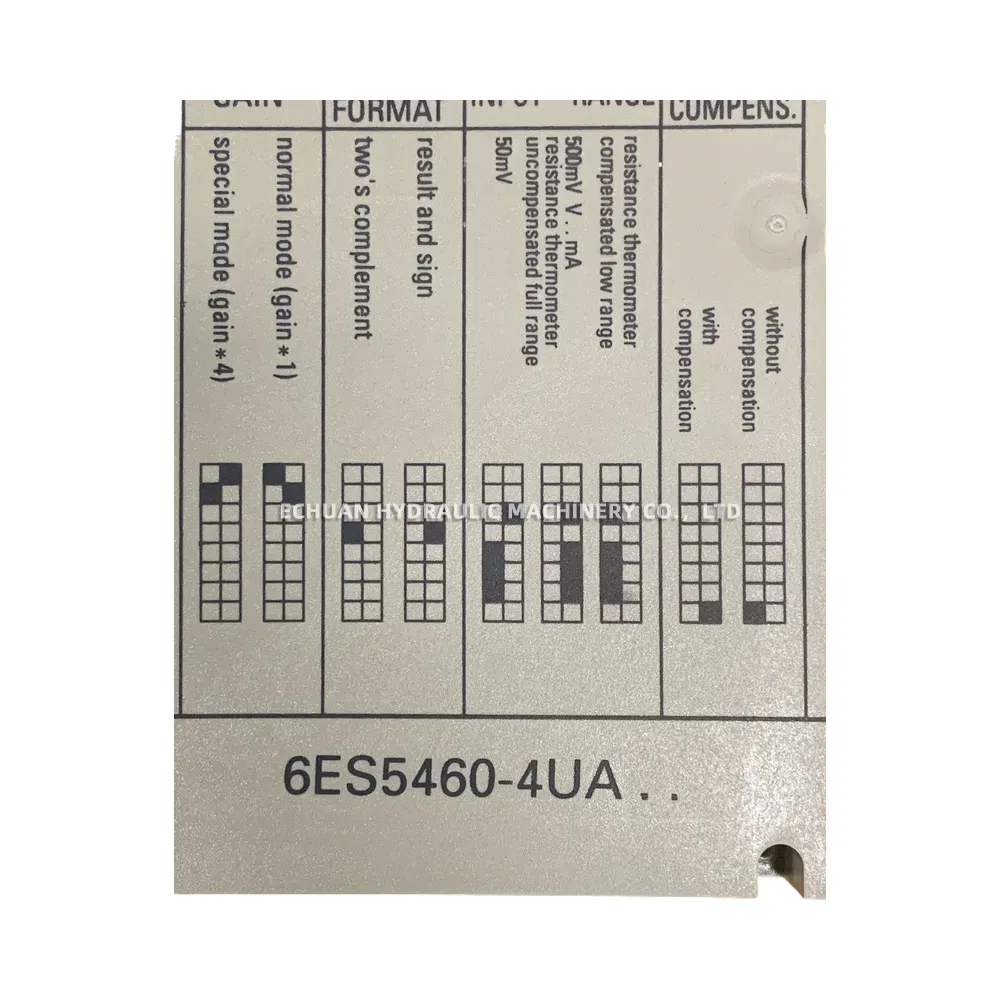

Users can easily configure critical operational parameters such as line frequency (50Hz or 60Hz), scanning modes (cyclic or single), and data formats (result and sign, or two’s complement). Additional advanced features include selectable gain modes (normal x1 or special x4), voltage compensation, and broken wire detection for enhanced system diagnostics and safety. Approved with CE and UL/CSA certifications, the 6ES5460-4UA13 ensures robust, industrial-grade performance in demanding environments.
Technical Specifications:
- Brand: Siemens
- Product Series: SIMATIC S5
- Model Number: 6ES5460-4UA13
- Number of Channels: 8 Channels total (Submodule 1: Ch. 0…3, Submodule 2: Ch. 4…7)
- Input Signal Ranges: Resistance thermometer (compensated low range), 50mV, 500mV, V/mA, uncompensated full range
- Gain Settings: Normal mode (Gain x 1), Special mode (Gain x 4)
- Data Formats: Result and sign, Two’s complement
- Voltage Compensation: Configurable (with or without compensation)

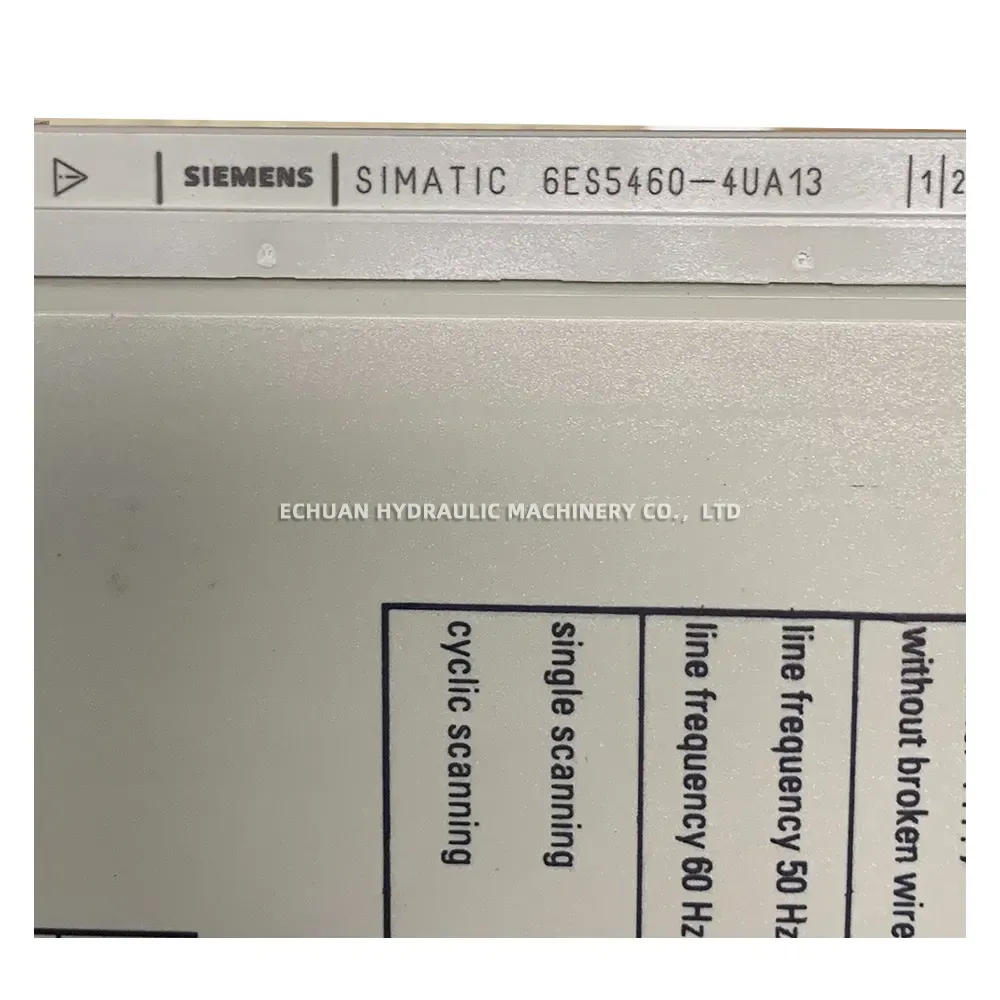

- Line Frequency: Selectable 50 Hz or 60 Hz
- Scanning Modes: Cyclic scanning, Single scanning
- Diagnostics: Broken wire detection (configurable for channels 0…3)

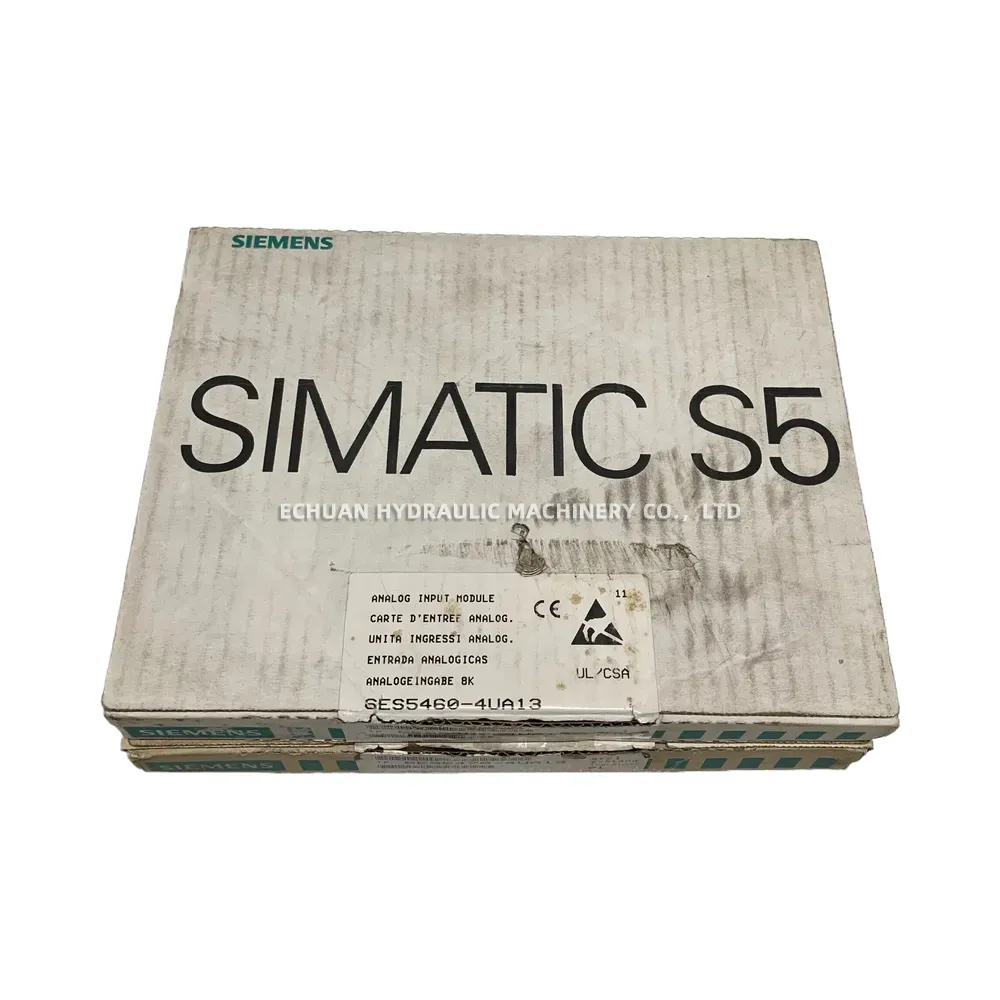

- Certifications: CE, UL/CSA
Siemens 6ES5460-4UA13 Analog Input Module
Optimize your industrial automation with the Siemens 6ES5460-4UA13 SIMATIC S5 Analog Input Module. Featuring 8 configurable channels, versatile input ranges (mV, V/mA, RTD), and advanced diagnostics like broken wire detection, this module delivers precise and reliable data acquisition for demanding PLC applications.
