Product Description
Siemens 6ES7 155-6AA01-0BN0
The Siemens 6ES7 155-6AA01-0BN0 is a SIMATIC ET 200SP PROFINET Interface Module, specifically the IM 155-6PN/2 Basic model. It serves as the head station for the highly flexible and compact ET 200SP distributed I/O system. This module facilitates seamless communication between the central controller (PLC) and the connected I/O modules over a PROFINET network. Featuring an integrated 2-port switch, it allows for simple line topology wiring, reducing cabling effort and costs. Designed for standard automation tasks, this basic interface module supports up to 12 I/O modules, making it a cost-effective and efficient solution for various industrial applications.

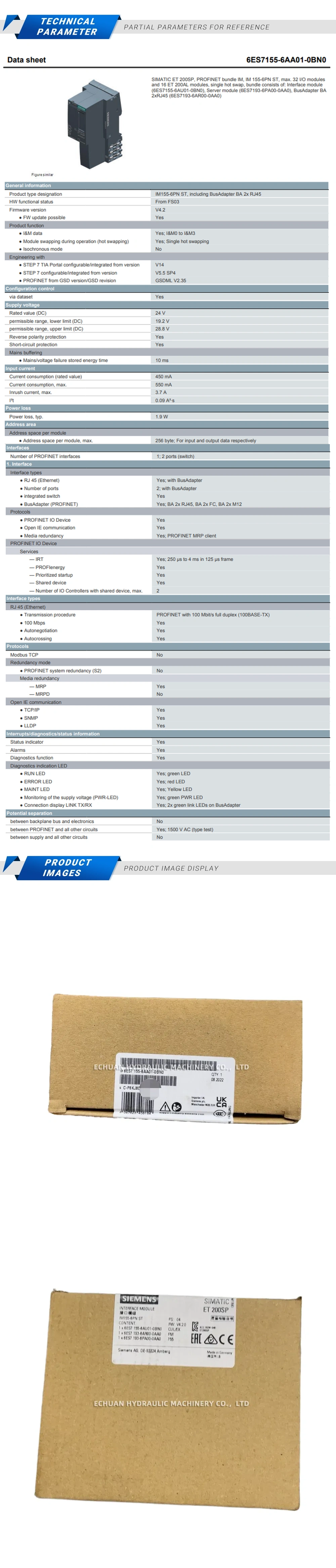

Technical Specifications:
- Model: SIMATIC ET 200SP, Interface module IM 155-6PN/2 Basic
- Supply Voltage: 24 V DC
- Interface: 2x RJ45 for PROFINET IO (integrated 2-port switch)
- Max. number of connectable I/O modules: 12
- Transmission rate: 100 Mbit/s
- Dimensions (W x H x D): 30 mm x 117 mm x 74 mm
- Degree of Protection: IP20

Siemens 6ES7 155-6AA01-0BN0
Siemens 6ES7 155-6AA01-0BN0 SIMATIC ET 200SP PROFINET interface module IM 155-6PN/2 Basic. Connects up to 12 I/O modules to a PLC system via PROFINET with an integrated 2-port switch.
