Product Description

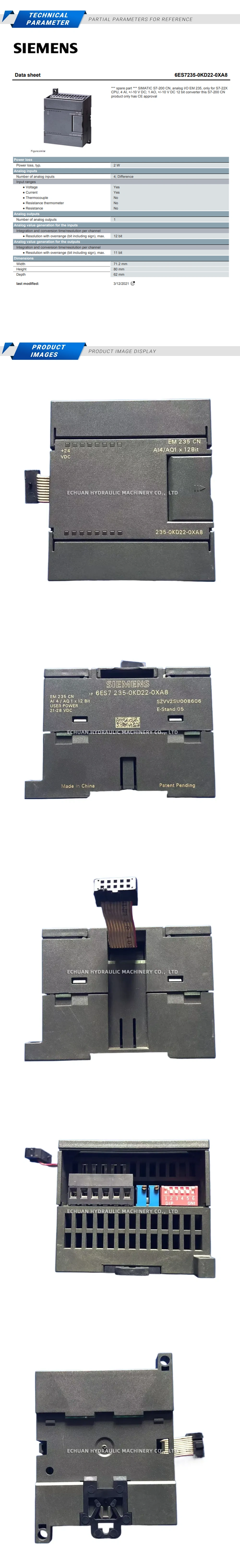

Siemens 6ES7 235-0KD22-0XA8
The Siemens 6ES7 235-0KD22-0XA8 is a versatile analog combination module from the SIMATIC S7-200 series. This compact module is engineered to expand the functionality of S7-200 PLCs by providing both analog input and output capabilities in a single unit. It features four high-resolution 12-bit analog inputs and one 12-bit analog output, making it an ideal and space-saving solution for applications that require precise measurement and control of analog signals like pressure, temperature, or flow. It integrates seamlessly with the S7-200 system and is powered directly by the CPU, ensuring easy installation and reliable performance in various industrial automation environments.
Technical Specifications:
- Product Type: SIMATIC S7-200, Analog I/O EM 235
- Number of Analog Inputs: 4
- Number of Analog Outputs: 1
- Resolution for I/O: 12 bits
- Input Voltage Ranges: 0 to 10 V, 0 to 5 V, +/-5 V, +/-2.5 V
- Output Ranges: +/-10 V (Voltage), 0 to 20 mA (Current)
- Supply Voltage: 24 V DC from the S7-200 CPU backplane bus
Siemens 6ES7 235-0KD22-0XA8
Buy the Siemens 6ES7235-0KD22-0XA8, an EM 235 analog combination module for SIMATIC S7-200 PLCs. This module provides 4 analog inputs and 1 analog output for precise process control.
