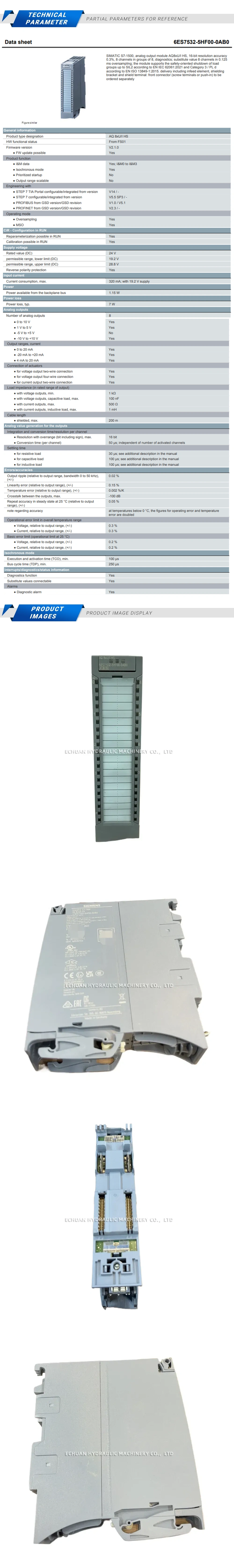

Product Description
Siemens 6ES7 532-5HF00-0AB0
The Siemens 6ES7 532-5HF00-0AB0 is a high-speed analog output module designed for the advanced SIMATIC S7-1500 PLC system. It provides eight highly flexible channels, each configurable for either voltage or current output, making it suitable for a wide variety of actuators and control elements. With a high resolution of 16 bits and an extremely fast conversion time, this module is engineered for demanding applications that require precise and rapid analog control, such as motion control and high-speed processes. Integrated diagnostic functions, including wire-break and short-circuit detection, enhance system reliability and simplify maintenance.
Technical Specifications:
- Product Type: SIMATIC S7-1500 Analog Output Module AQ 8xU/I HS
- Number of analog outputs: 8
- Output ranges (voltage): ±10 V, 1 to 5 V, 0 to 10 V
- Output ranges (current): 0 to 20 mA, 4 to 20 mA, ±20 mA
- Resolution (incl. sign): 16 bit
- Cycle time (all channels): 125 µs
- Diagnostics function: Yes (wire break, short circuit, overflow/underflow)
- Dimensions (W x H x D): 35 mm x 147 mm x 129 mm
Siemens 6ES7 532-5HF00-0AB0
Siemens 6ES7 532-5HF00-0AB0 SIMATIC S7-1500 high-speed analog output module. Features 8 channels for voltage/current output, 16-bit resolution, and advanced diagnostics for precise and fast control applications.
