Product Description

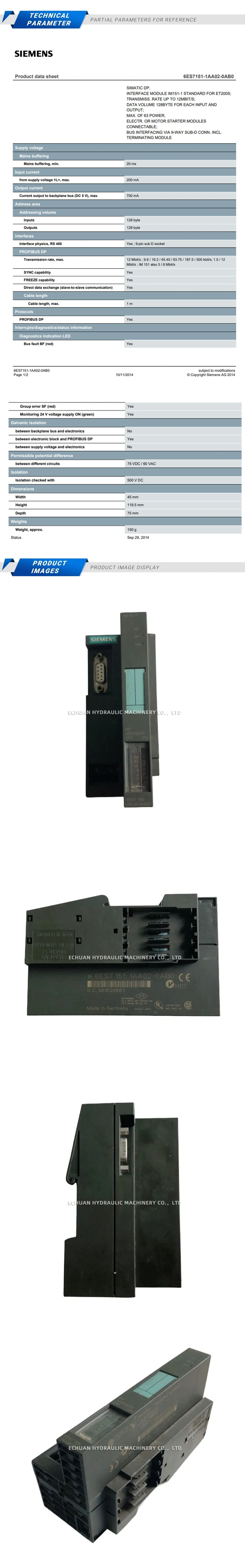

SIEMENS 6ES7 151-1AA02-0AB0
The SIEMENS 6ES7 151-1AA02-0AB0 is an IM 151-1 Standard interface module designed for the SIMATIC ET 200S distributed I/O system. This module serves as the crucial link between the ET 200S I/O modules and a higher-level PROFIBUS DP master. It facilitates seamless data exchange at transmission rates up to 12 Mbit/s. The IM 151-1 Standard can manage up to 63 I/O modules, including power modules, making it a versatile and scalable solution for a wide range of industrial automation applications. Its compact design and robust construction ensure reliable performance in demanding industrial environments.
Technical Specifications:
- Model: SIMATIC DP, Interface module IM 151-1 Standard
- Supply Voltage: 24 V DC
- Interface: PROFIBUS DP slave
- Transmission Rate: Max. 12 Mbit/s
- Max. Number of I/O Modules: Up to 63 modules
- Address Area: Up to 244 bytes for inputs and 244 bytes for outputs
- Degree of Protection: IP20
SIEMENS 6ES7151-1AA02-0AB0
SIEMENS 6ES7 151-1AA02-0AB0 SIMATIC ET 200S IM 151-1 Standard interface module. Connects ET 200S I/O to a PROFIBUS DP network, supporting up to 63 modules and 12 Mbit/s data rates.
