Product Description

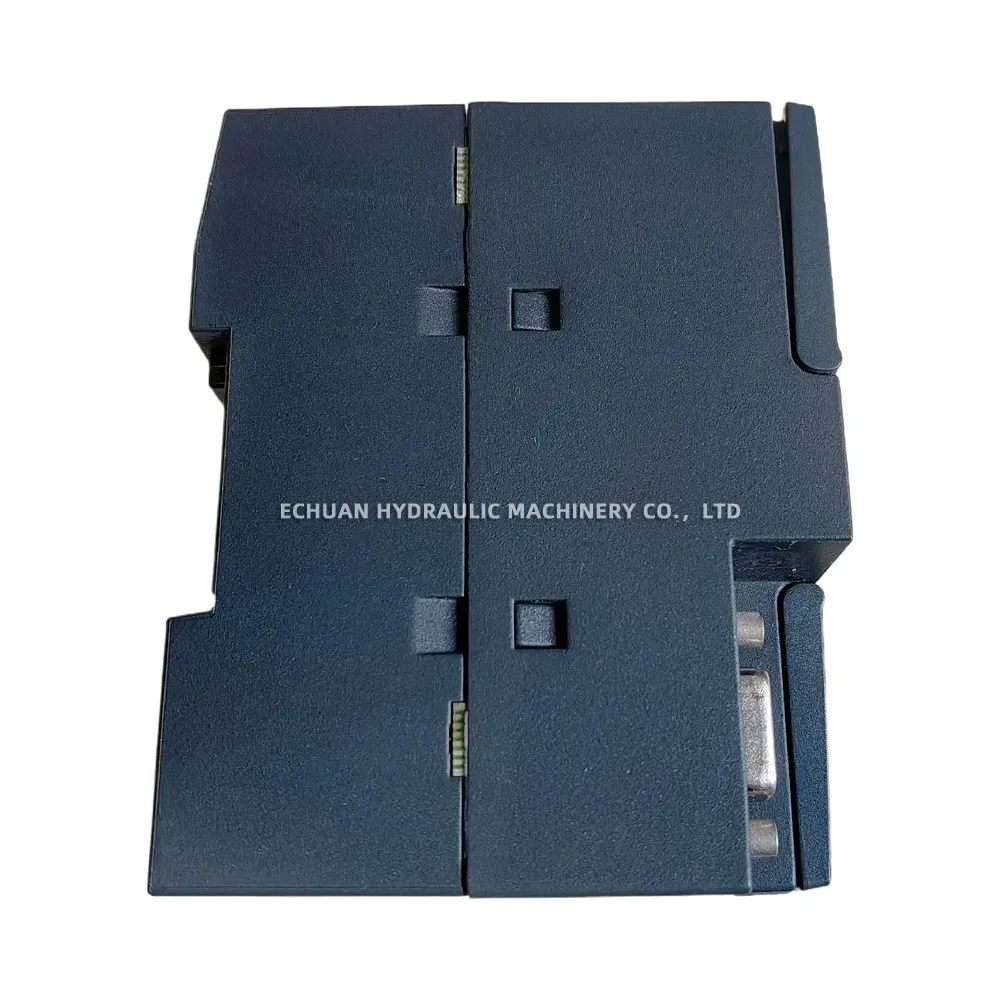

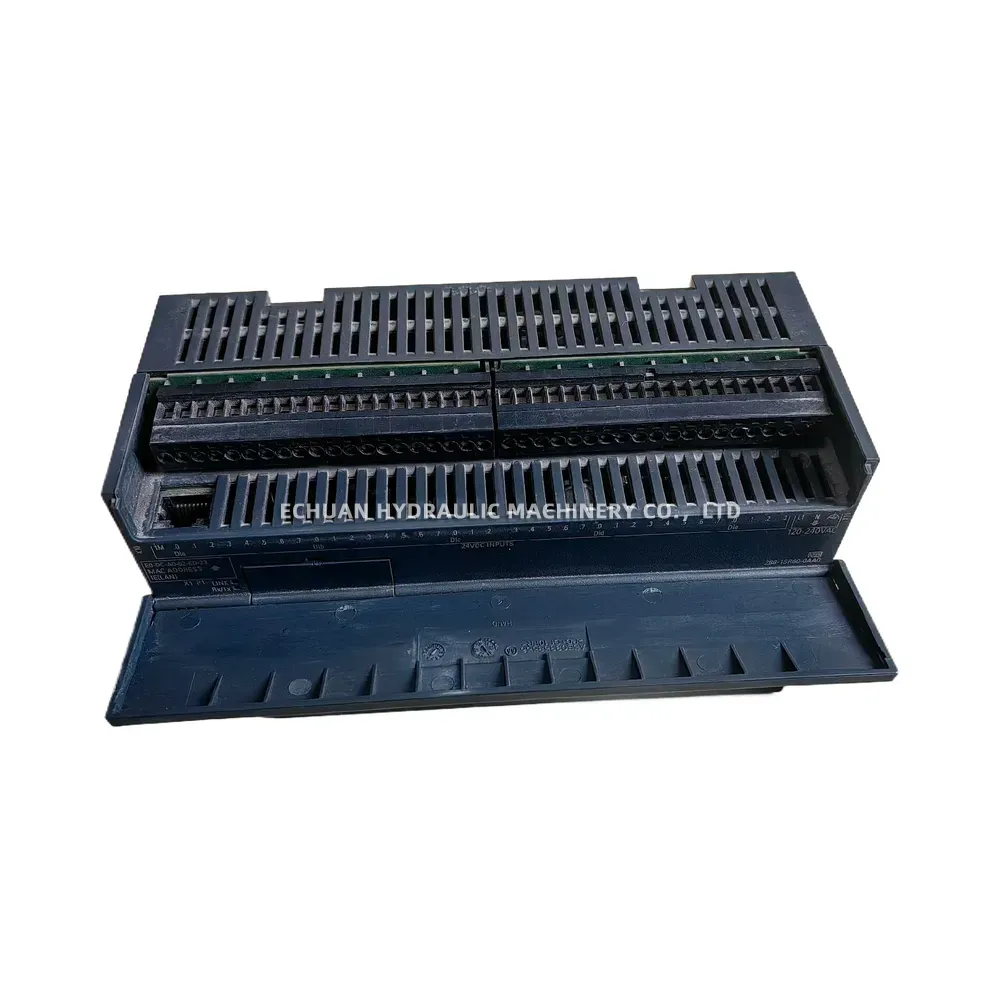

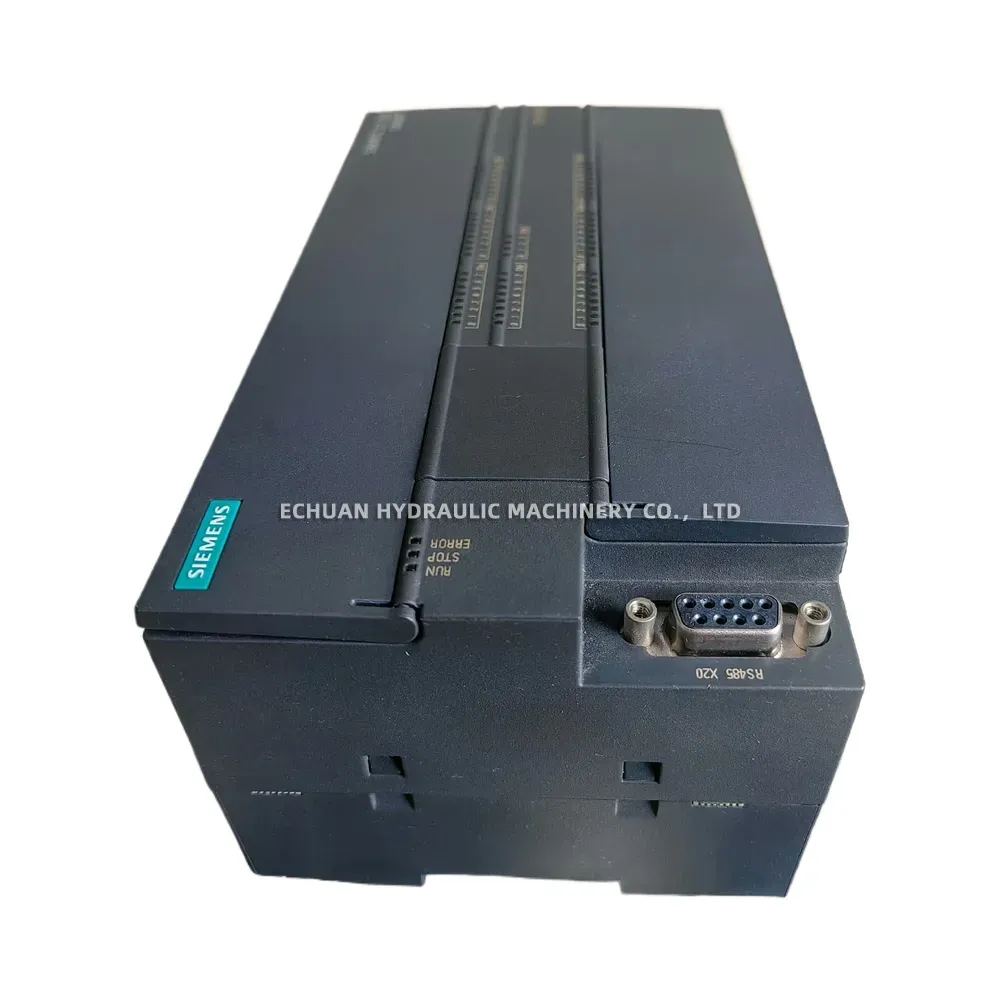

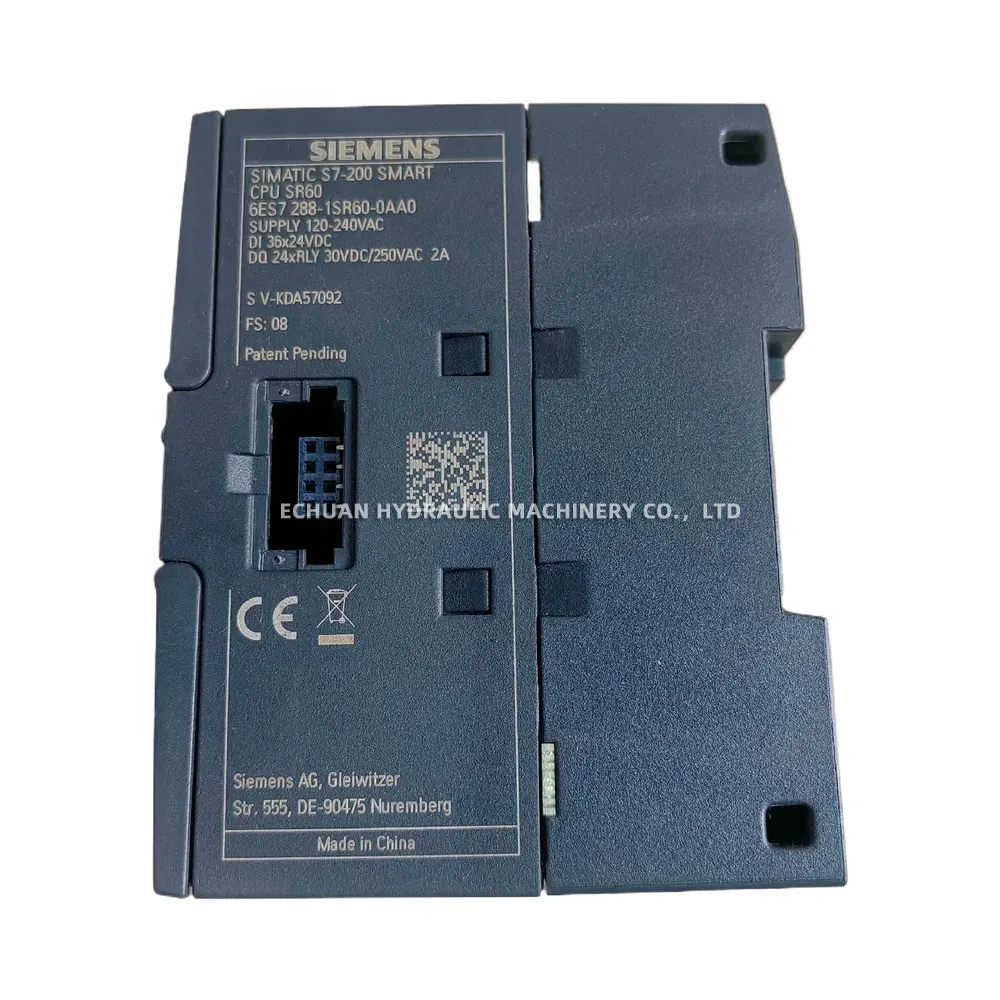

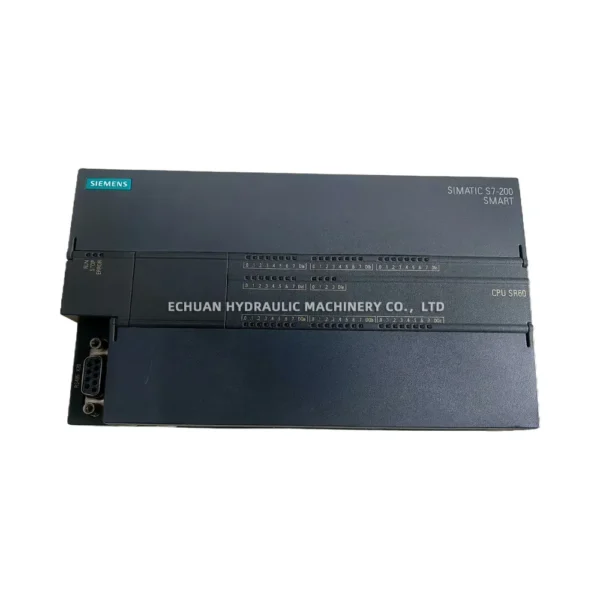

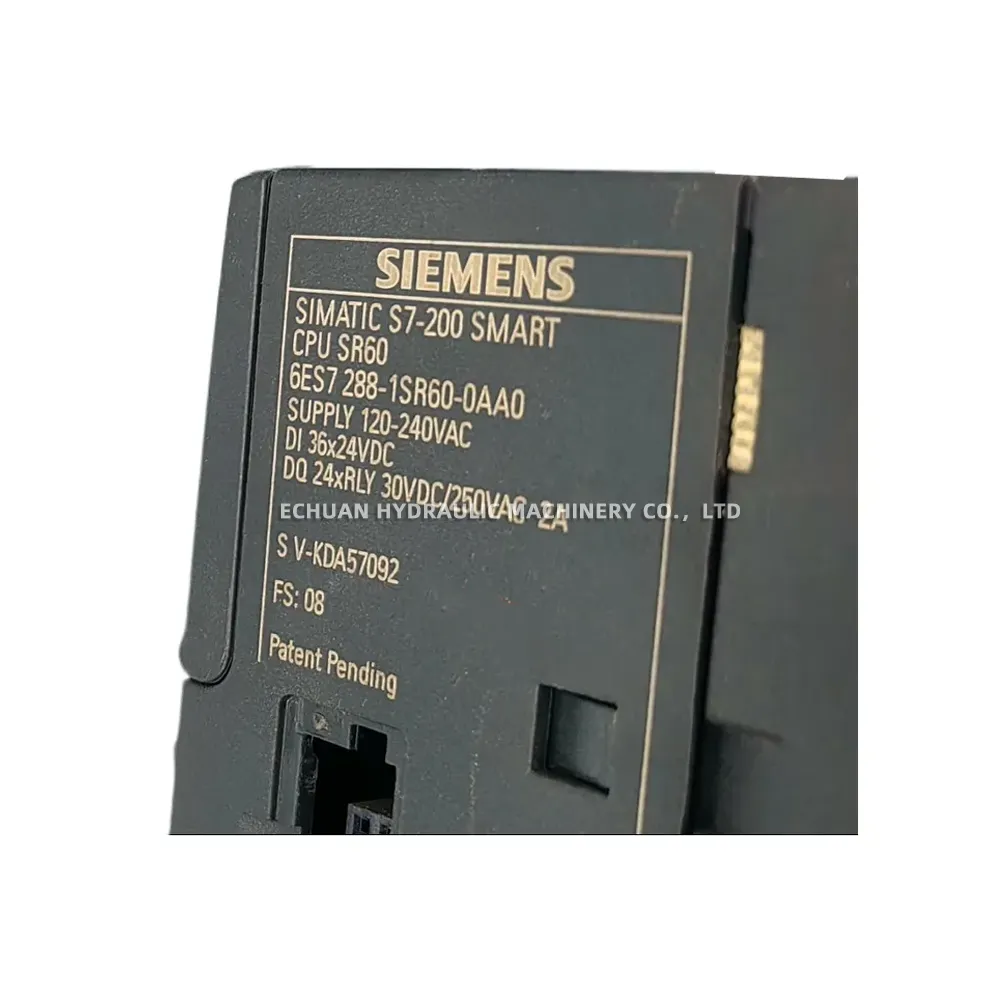

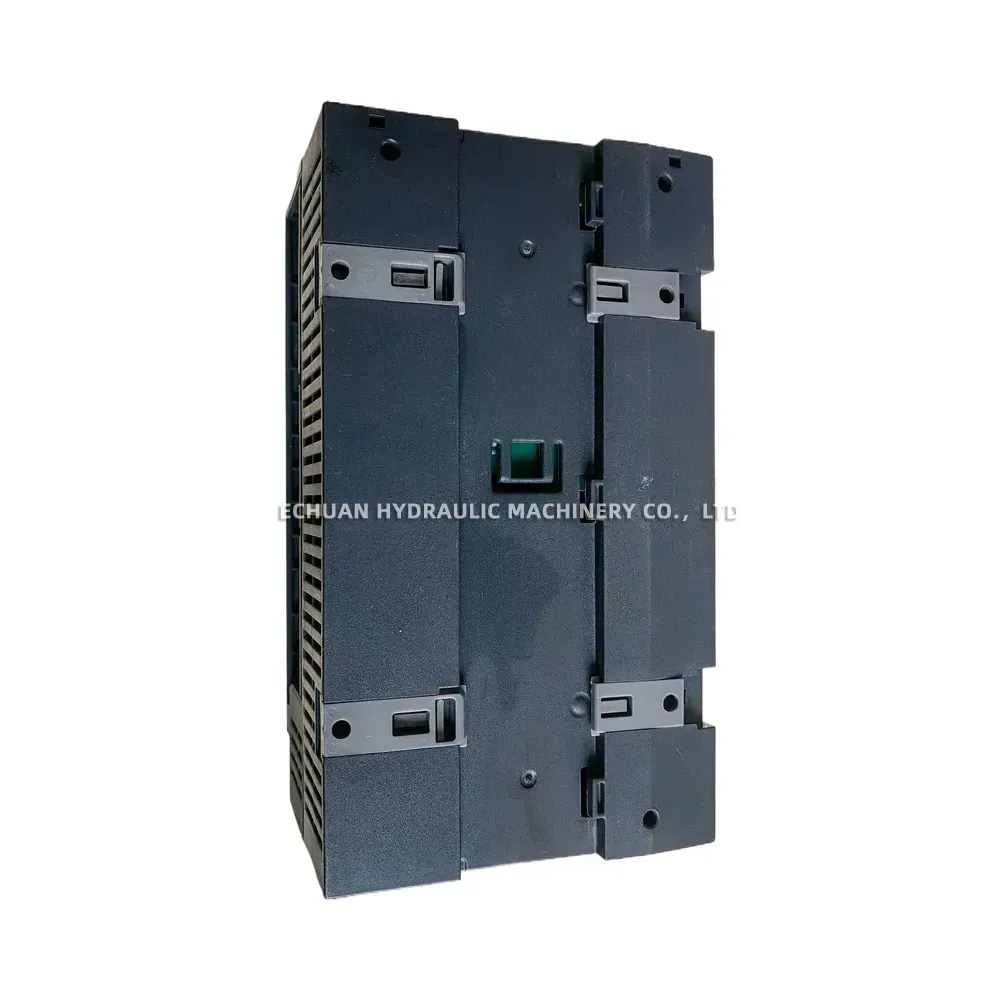

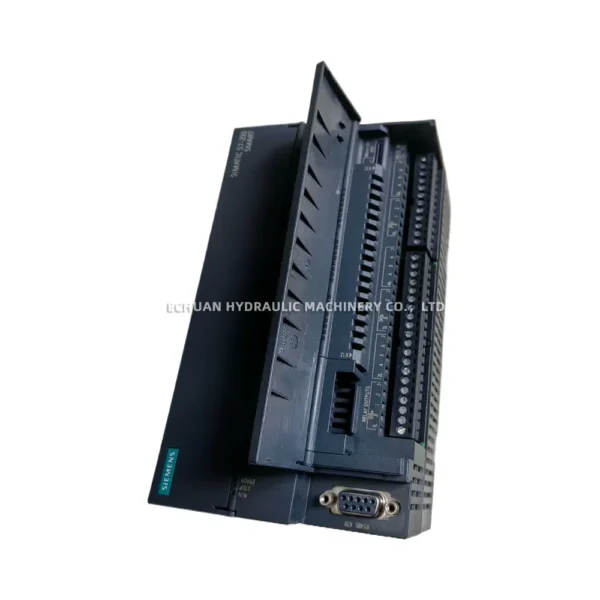

Siemens 6ES7288-1SR60-0AA0

The Siemens 6ES7288-1SR60-0AA0 is a SIMATIC S7-200 SMART CPU SR60, a compact and cost-effective controller designed for a variety of automation applications. This standard CPU version features an AC/DC/relay configuration, accepting a wide AC power supply range. It comes equipped with a substantial number of onboard inputs and outputs: 36 digital inputs (24V DC) and 24 relay digital outputs (2A). With 50 KB of program and data memory, it provides a solid foundation for small to medium-scale automation projects, offering expandability and robust performance characteristic of the Siemens SIMATIC family.

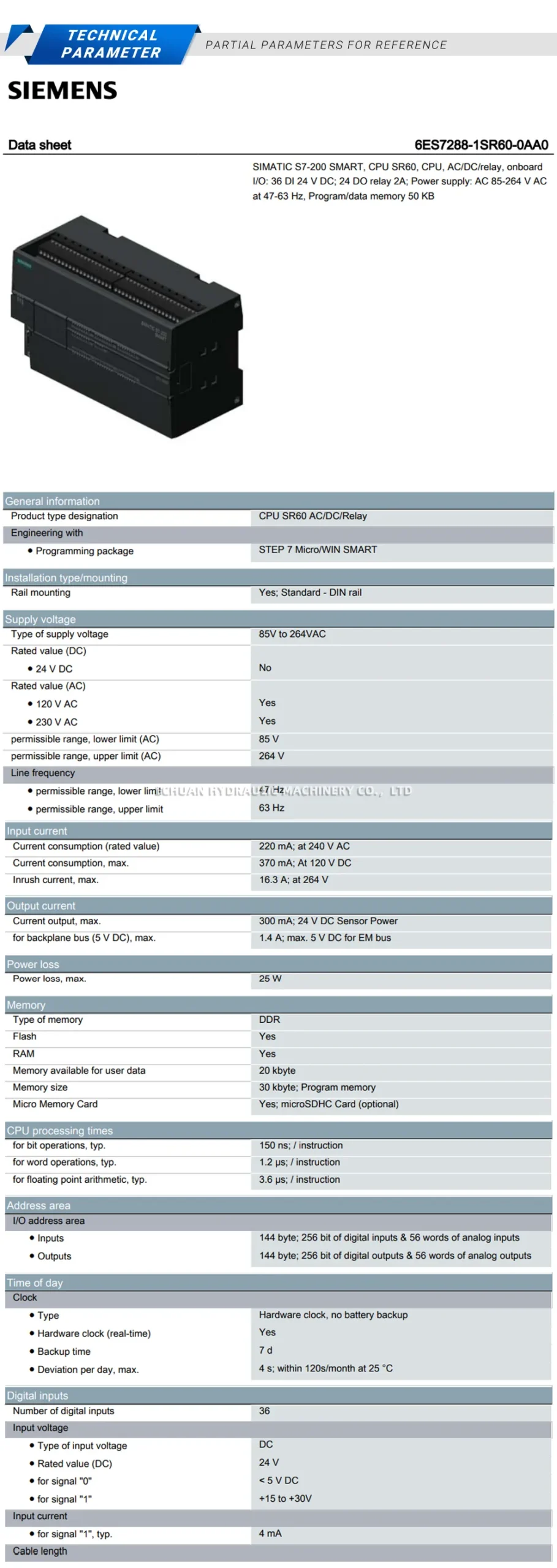

Technical Specifications:

Product Type Designation: CPU SR60, Standard CPU
Product Family: SIMATIC S7-200 SMART
Supply Voltage: 85 … 264 V AC
Line Frequency: 47 … 63 Hz
Input Current (from supply L1, max.): 0.4 A at 120 V AC; 0.2 A at 240 V AC
Inrush Current (max.): 20 A; at 264 V
Power Loss (typical): 16 W
Program/Data Memory: 50 kbyte
Number of Digital Inputs: 36 (24 V DC, sink/source)
Number of Digital Outputs: 24 (Relay outputs)
Switching Capacity of Relay Outputs: 2 A (resistive load)
Integrated Interfaces: 1x RS485, 1x Ethernet (for programming, HMI, CPU-CPU communication)
Number of Expandable I/O Modules (max.): 6
Programming Software: STEP 7 Micro/WIN SMART
Dimensions (W x H x D): 190 mm x 100 mm x 81 mm
Weight (approx.): 560 g
Ambient Temperature (Operation): 0 °C to 55 °C (horizontal installation); 0 °C to 45 °C (vertical installation)
