Product Description

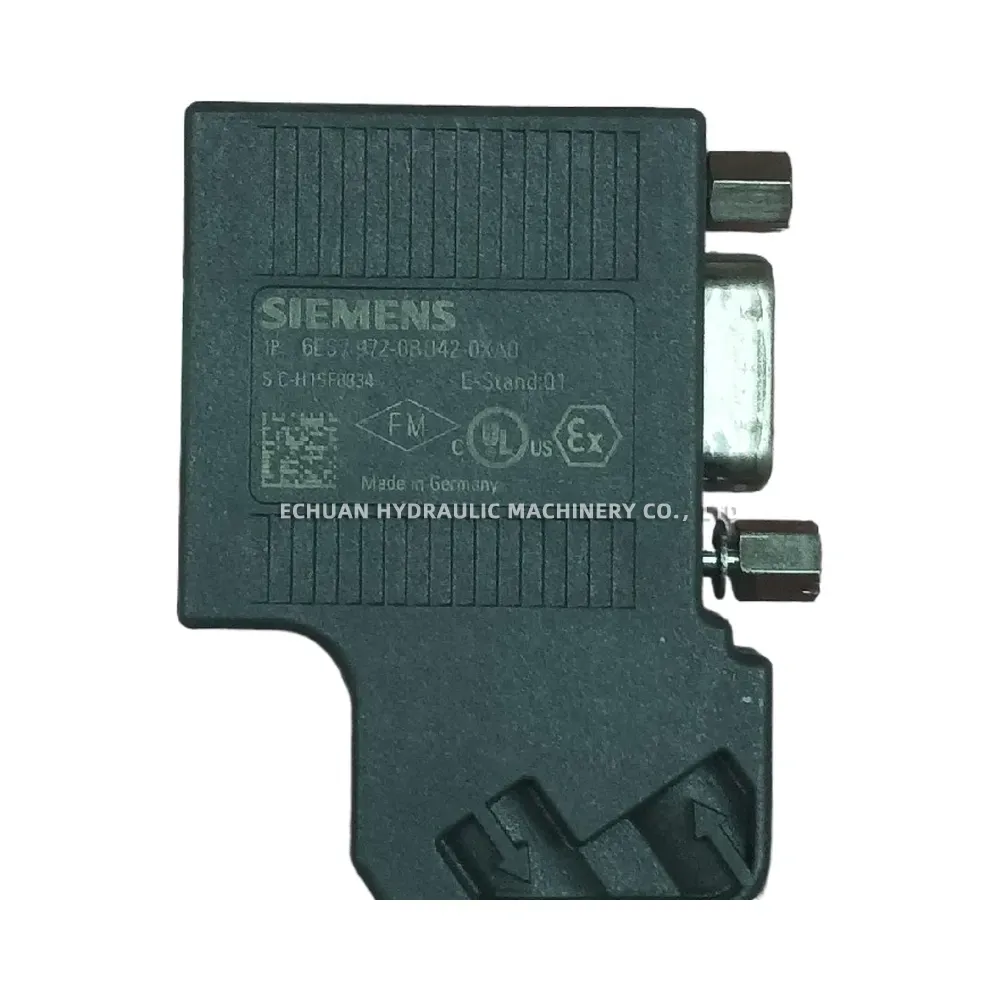

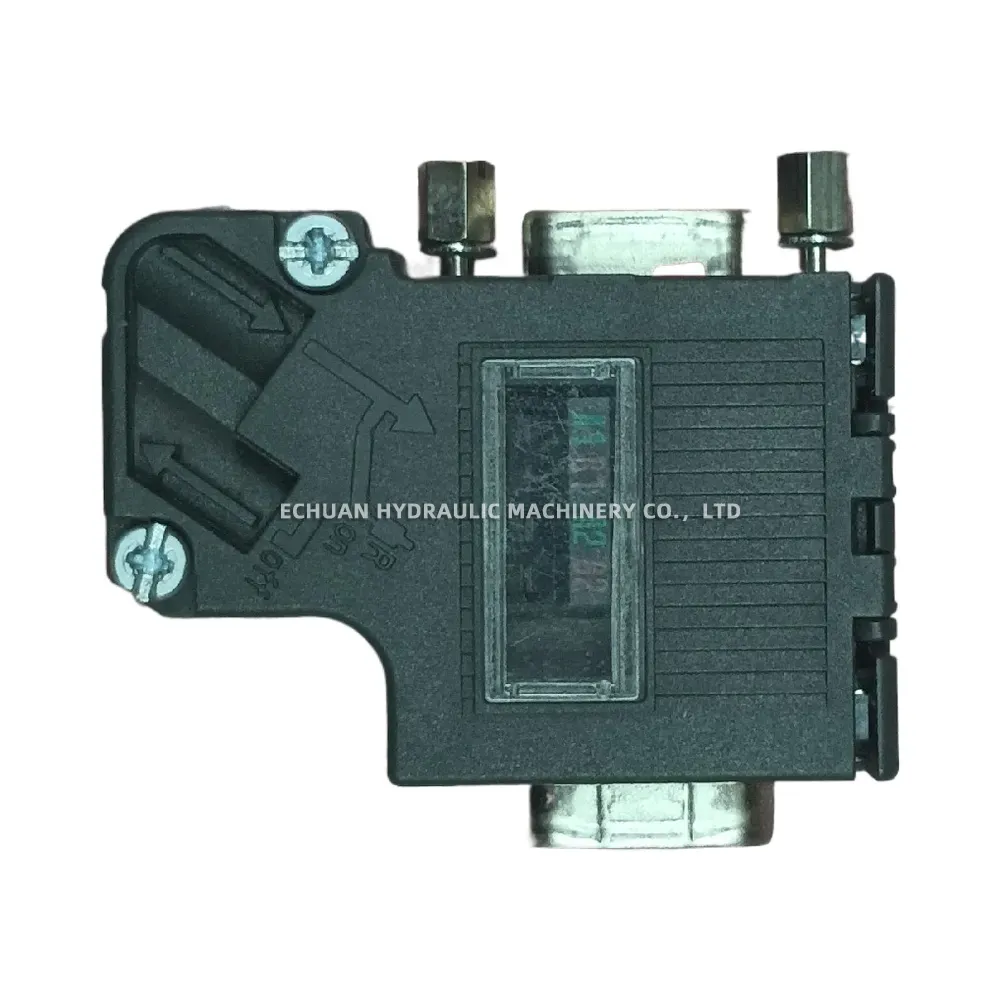

Siemens 6ES7972-0BB42-0XA0
The Siemens 6ES7972-0BB42-0XA0 is a high-quality SIMATIC DP bus connector designed for reliable connections within PROFIBUS networks. Featuring a 90-degree cable outlet, it is ideal for installations where space is limited. This connector utilizes Siemens’ FastConnect technology, which allows for quick and error-free on-site assembly using an insulation-displacement method. It includes an integrated, switchable terminating resistor, eliminating the need for a separate terminating component at the end of the bus segment. Additionally, it is equipped with a PG (Programming Device) socket, enabling easy connection for diagnostics, configuration, or programming without disrupting the network.

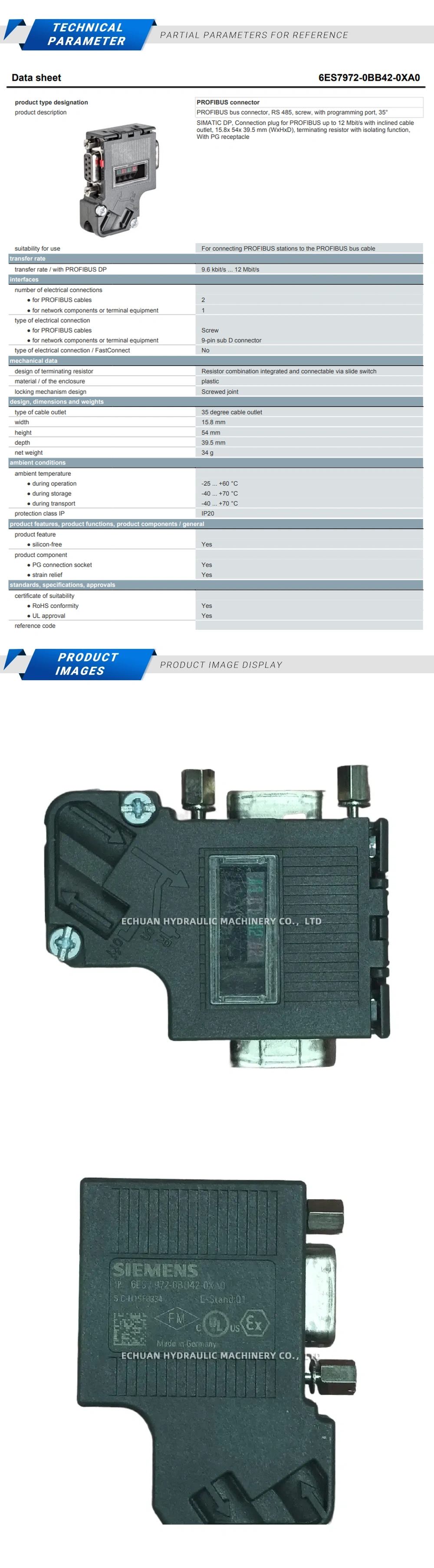

Technical Specifications:
- Product Type: SIMATIC DP, RS485 Bus Connector
- Transfer Rate: Supports PROFIBUS rates from 9.6 kbit/s to 12 Mbit/s
- Angle of Cable Outlet: 90 degrees
- Connection Method: FastConnect insulation-displacement for bus cable; 9-pin Sub-D socket for PG interface
- Features: Integrated and switchable terminating resistor, additional PG socket
Siemens 6ES7972-0BB42-0XA0
Siemens 6ES7972-0BB42-0XA0 SIMATIC DP PROFIBUS connector with a 90-degree cable outlet, integrated PG socket, and FastConnect technology for reliable network connections up to 12 Mbit/s.
| Brand | SIEMENS |
|---|---|
| Model | 6ES7972-0BB42-0XA0 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/siemens-6es7972-0bb42-0xa0 |
