Product Description

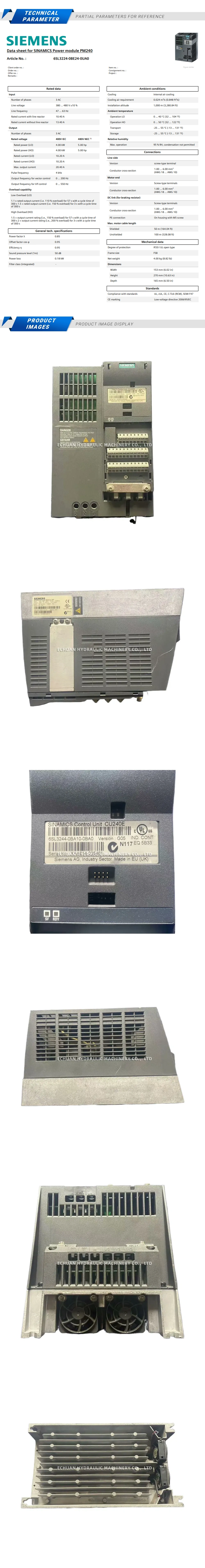

SIEMENS 6SL3224-0BE24-0UA0
The SIEMENS 6SL3224-0BE24-0UA0 is a SINAMICS G120 Power Module PM240, designed for a wide range of industrial drive applications. As a core component of the modular SINAMICS G120 drive system, this power module efficiently converts the 3-phase line voltage into a variable frequency and voltage output to precisely control the speed and torque of AC motors. It features an integrated Class A EMC filter to reduce electromagnetic interference and a built-in brake chopper, allowing for dynamic braking and energy regeneration in applications with high inertia. Its compact FSA frame size and IP20 protection rating make it suitable for cabinet mounting. This module must be combined with a compatible SINAMICS Control Unit to form a complete and functional frequency inverter.
Technical Specifications:
- Model: SINAMICS G120 Power Module PM240
- Input Voltage: 3-Phase 380-480 V AC (+10% / -10%)
- Line Frequency: 47-63 Hz
- Output Power (High Overload – HO): 4.0 kW / 5.0 HP
- Output Power (Low Overload – LO): 4.0 kW / 5.0 HP
- Features: Integrated Class A EMC Filter, Integrated Brake Chopper
- Frame Size: FSA
- Degree of Protection: IP20
SIEMENS 6SL3224-0BE24-0UA0
Discover the Siemens SINAMICS G120 Power Module PM240, model 6SL3224-0BE24-0UA0. This 4.0 kW, 3-phase 380-480V AC frequency inverter includes an integrated Class A filter and brake chopper, providing a robust and efficient solution for industrial motor control.
