Product Description
Siemens 7MF1567-3CD00-6AA1
The Siemens 7MF1567-3CD00-6AA1 is a SITRANS P210 series pressure transmitter designed for precise and reliable measurement of gauge pressure. It is engineered for general industrial applications, suitable for monitoring the pressure of liquids, gases, and vapors. This model features a robust stainless steel housing and a durable ceramic diaphragm, ensuring high resistance to aggressive media and mechanical stress. With its compact design and standardized connections, the SITRANS P210 is easy to install and integrate into existing systems, providing a dependable solution for pressure monitoring and control.
Technical Specifications:
- Product Series: SITRANS P210
- Measuring Range: 0 to 10 bar (Gauge Pressure)
- Output Signal: 4 to 20 mA, 2-wire system
- Process Connection: G1/2″ male thread (per EN 837-1)
- Electrical Connection: M12 connector, 4-pin
- Seal Material: Viton (FKM)
- Non-linearity: 0.25% of span (Typical)
- Housing Material: Stainless Steel

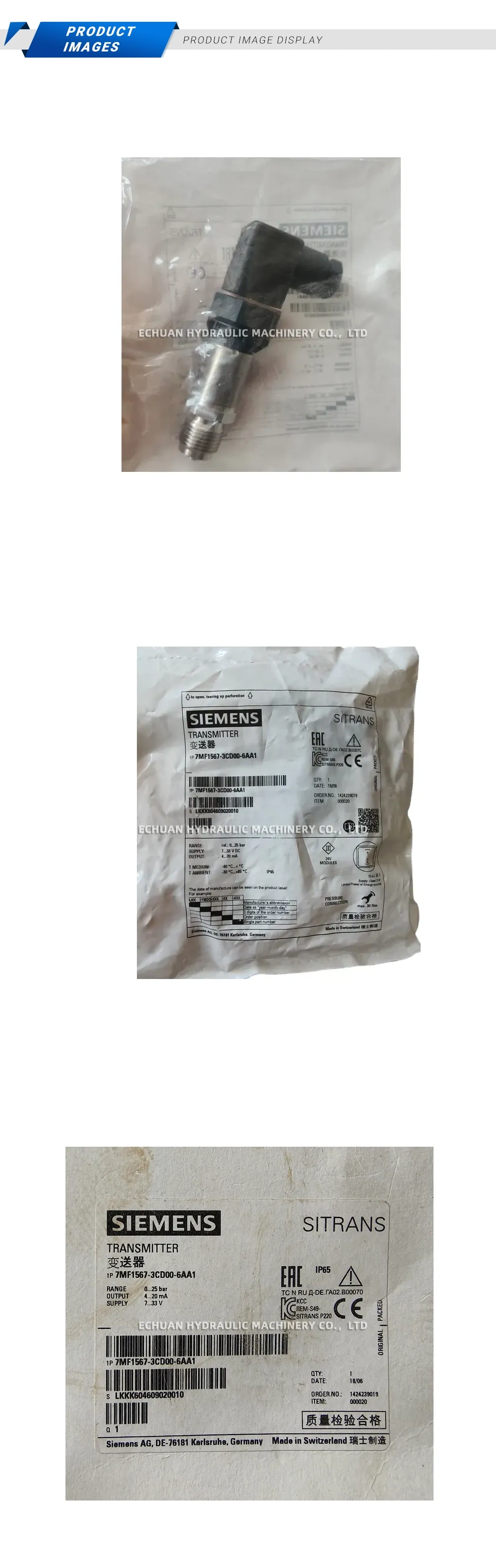

Siemens 7MF1567-3CD00-6AA1
Siemens SITRANS P210 pressure transmitter, model 7MF1567-3CD00-6AA1, for reliable gauge pressure measurement from 0 to 10 bar with a 4-20 mA output, G1/2″ process connection, and M12 electrical connector.
