Product Description

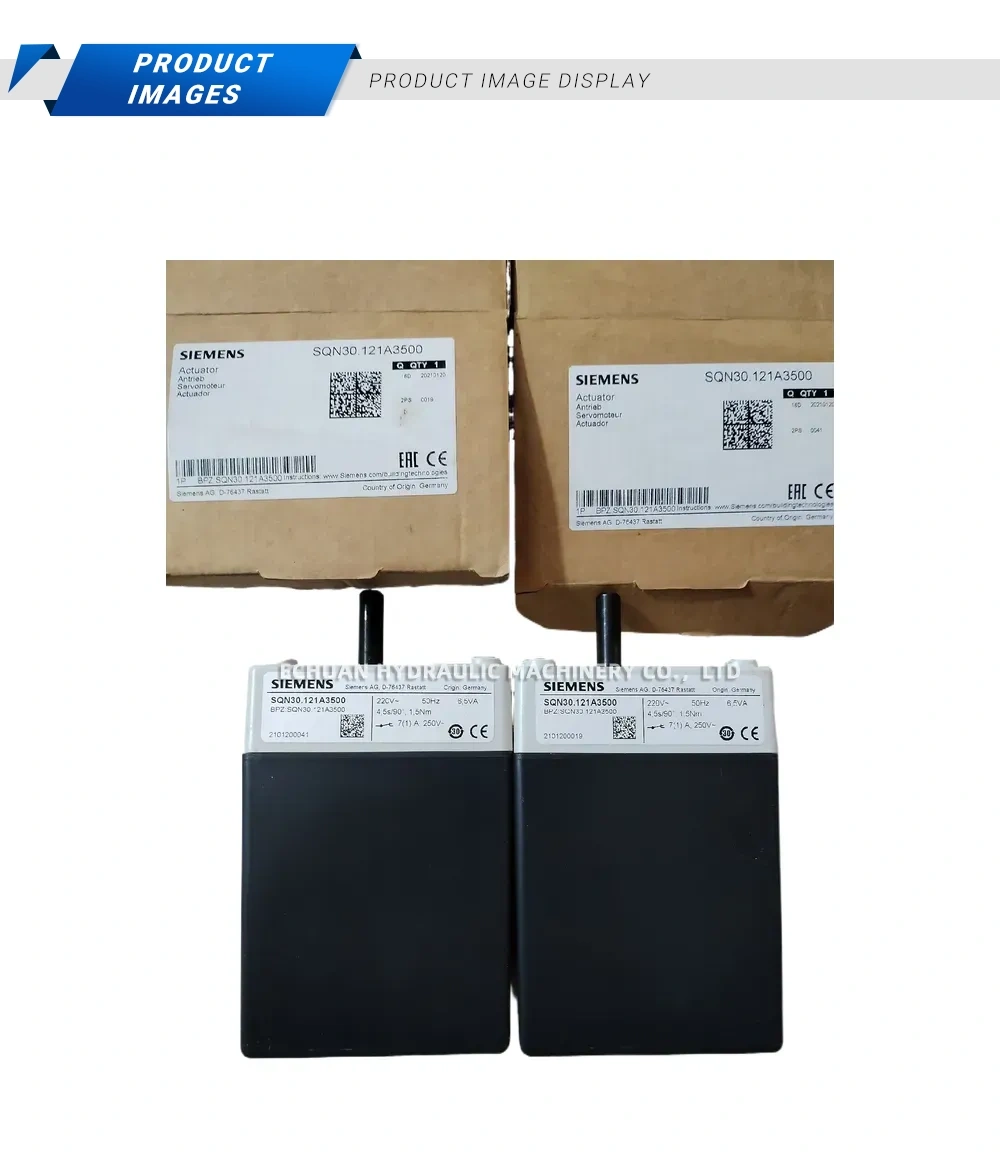

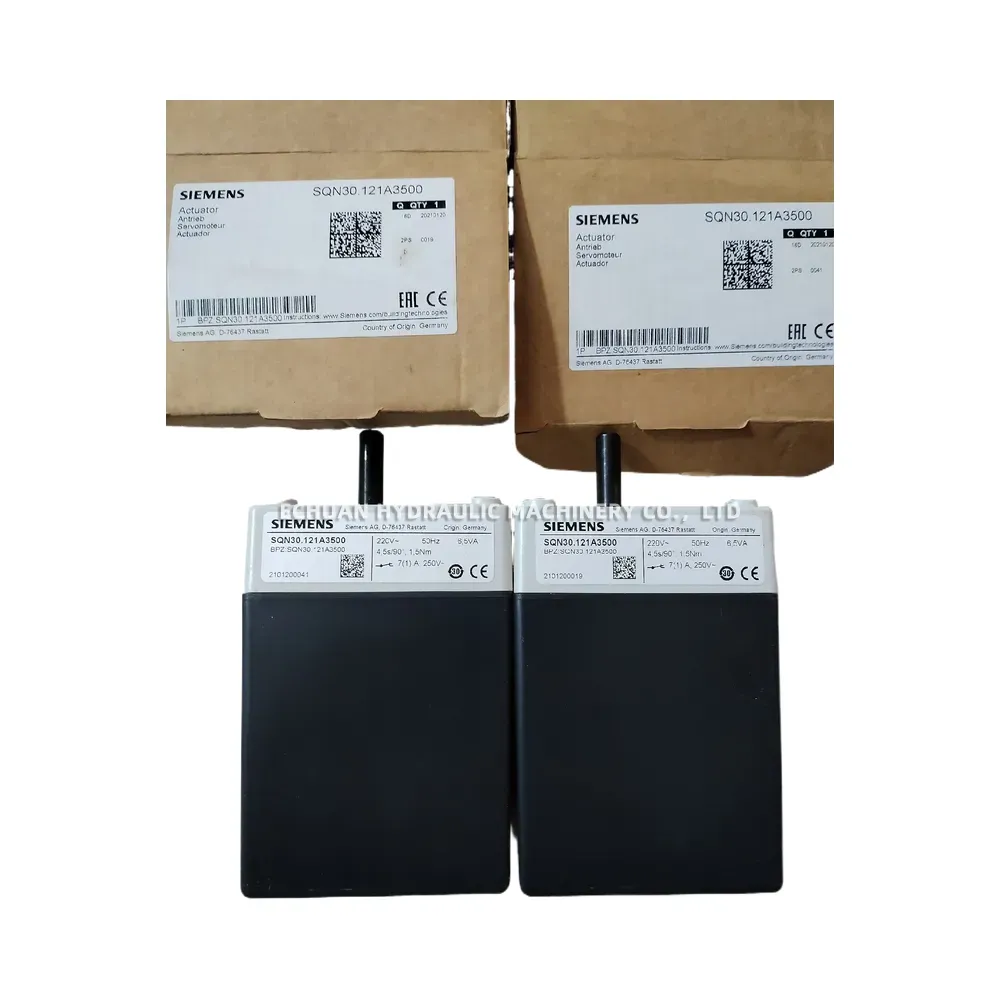

Siemens SQN30.121A3500 Actuator
The Siemens SQN30.121A3500 is a high-performance, reversing actuator designed for the precise control of air and fuel dampers on small to medium-sized oil or gas burners. Engineered in Germany for reliability and durability, it plays a critical role in optimizing the combustion process by ensuring the correct air-fuel ratio. This actuator is a key component in burner management systems, delivering safe, efficient, and consistent operation for a wide range of heating and industrial applications.
Technical Specifications:
- Model: SQN30.121A3500
- Power Supply: 220V~, 50Hz
- Power Consumption: Approx. 9.5VA
- Running Time: 4.5 seconds for 90° rotation
- Torque: 1.5 Nm
- Switch Rating: 7(1) A, 250V~
- Country of Origin: Germany

Siemens SQN30.121A3500 Actuator
Shop the genuine Siemens SQN30.121A3500 actuator for burner air damper control. This 220V, 1.5Nm actuator features a fast 4.5s/90° running time for precise and efficient combustion management in oil and gas systems. German-engineered for maximum reliability.
