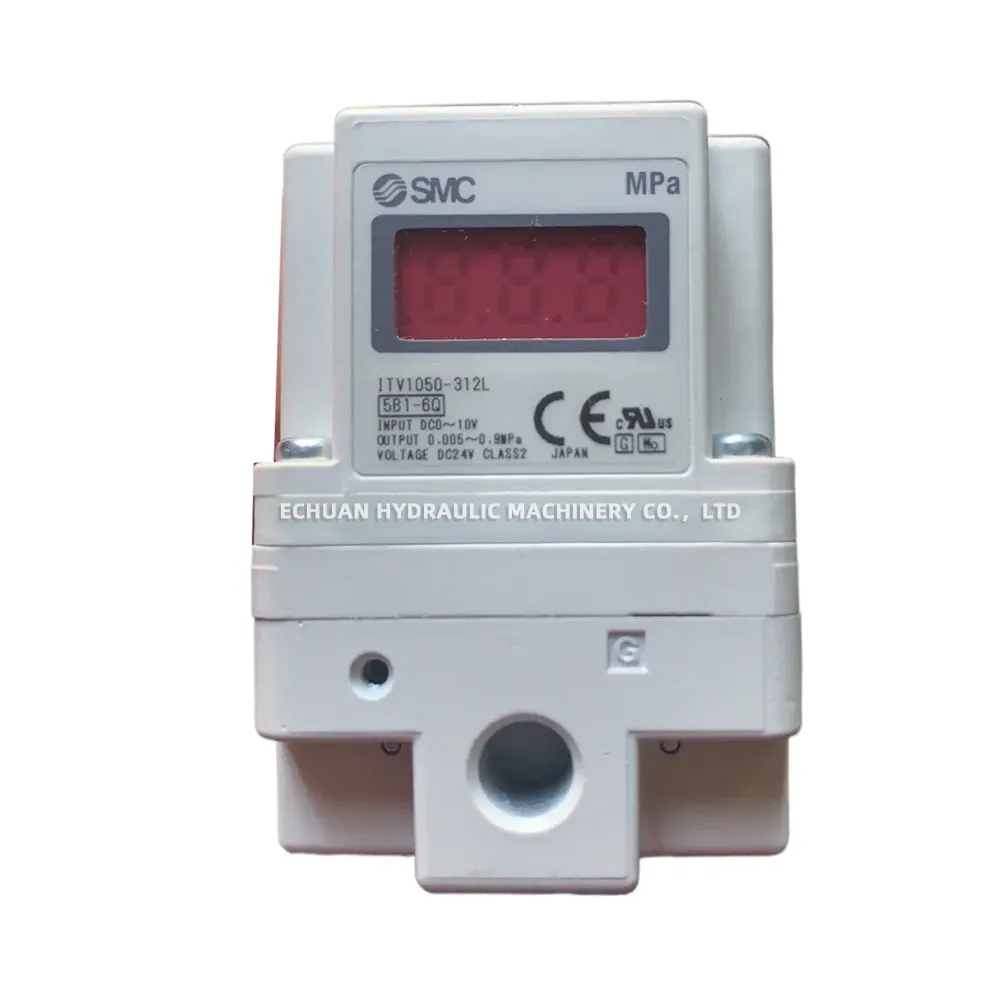

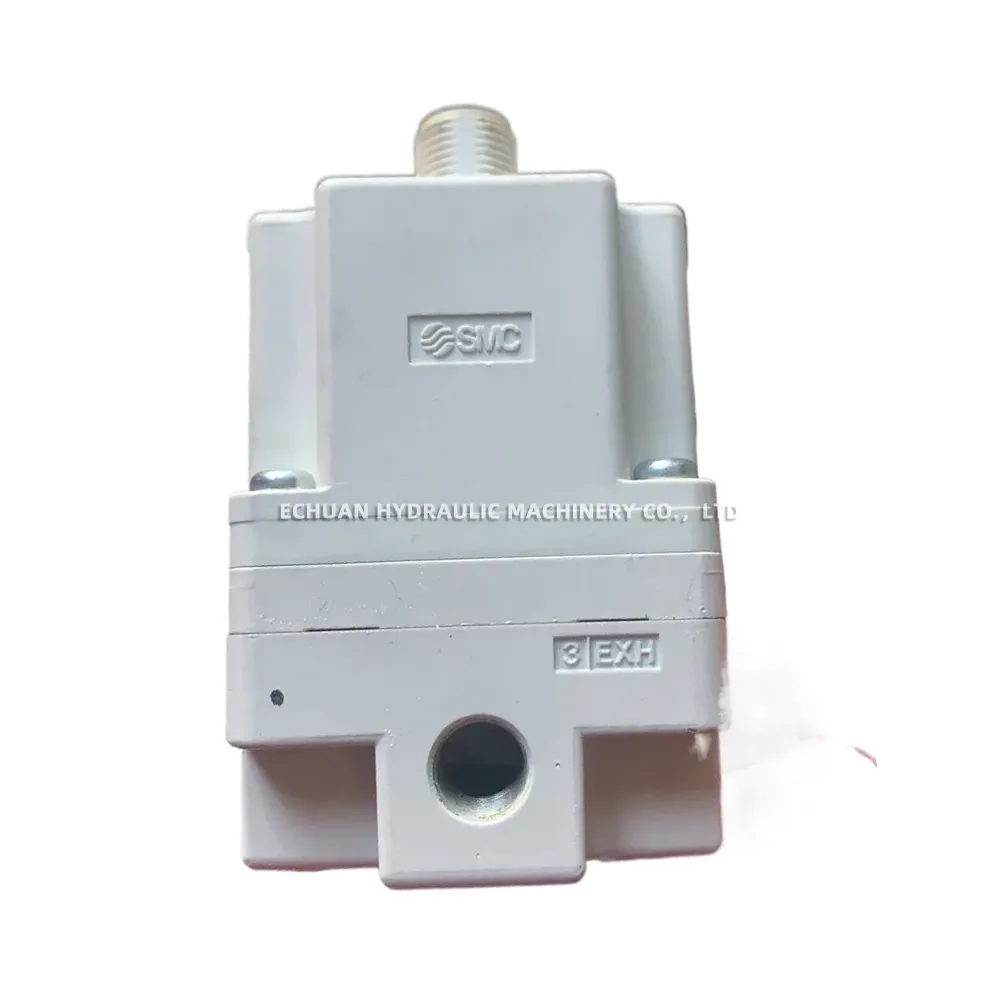

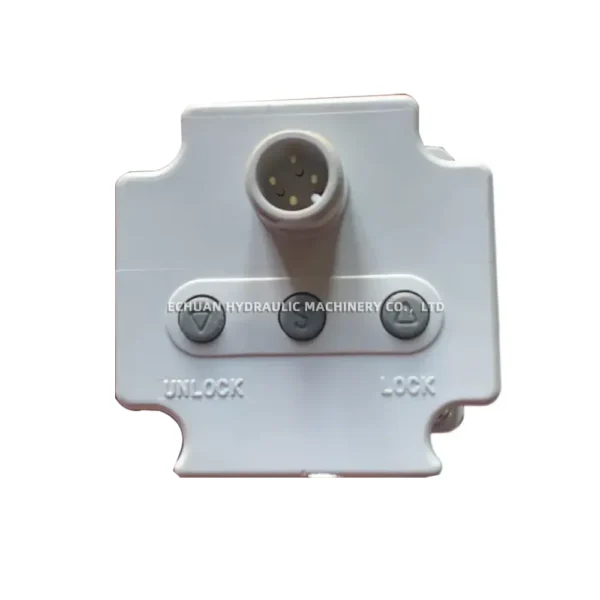

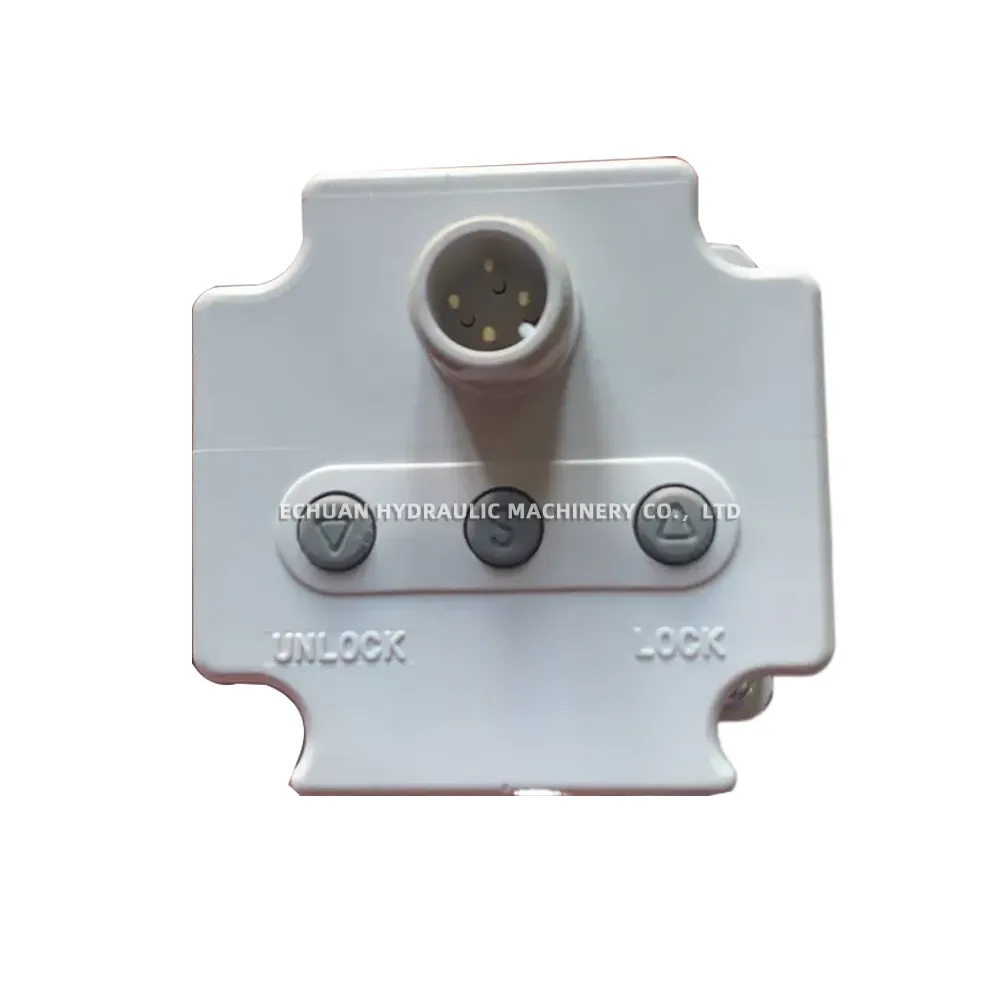

SMC ITV1050-312L Electro-Pneumatic Regulator
The SMC ITV1050-312L is a precision electro-pneumatic regulator designed to control air pressure proportionally to an electrical input signal. Part of the ITV1000 series, this regulator offers excellent responsiveness, stability, and stepless control of pressure. It accepts a 4 to 20 mA DC input signal for precise adjustments within its specified pressure range. This model features Rc 1/4 porting and comes equipped with a mounting bracket and pressure gauge for easy installation and monitoring. Ideal for applications requiring accurate and repeatable pressure control in automation systems.

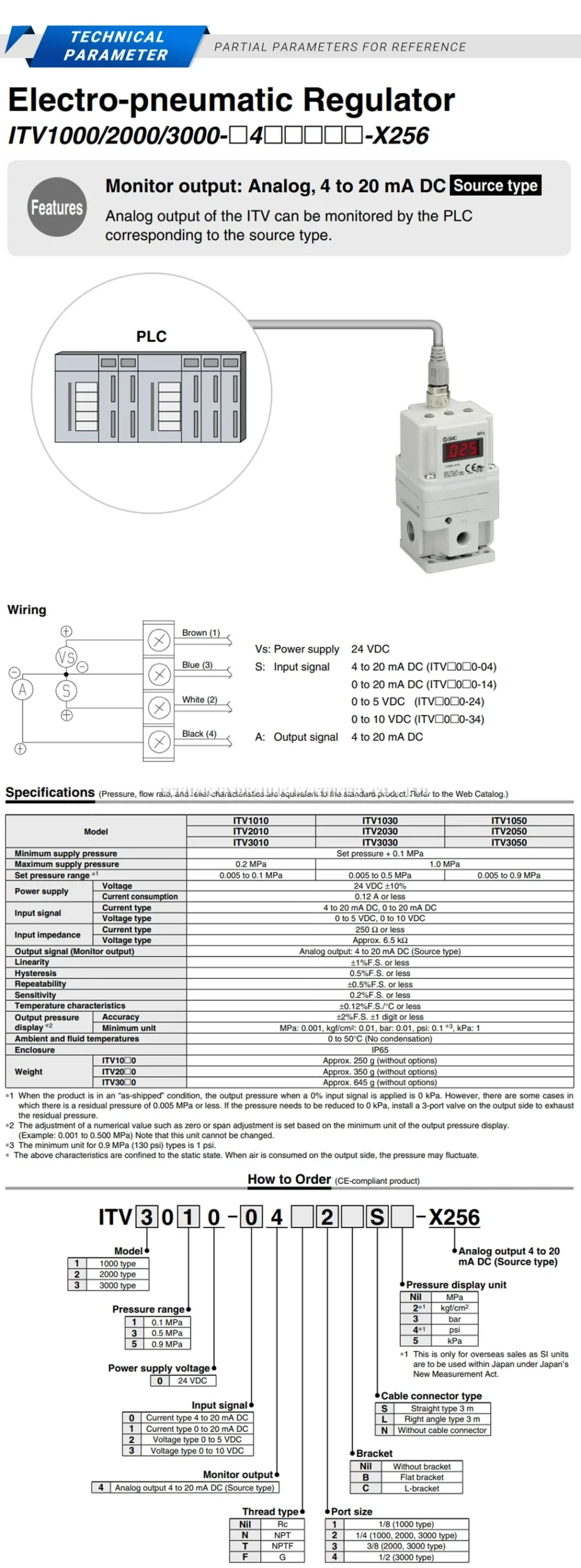

Technical Specifications:
- Series: ITV1000
- Type: Electro-Pneumatic Regulator
- Control Method: Proportional
- Set Pressure Range: 0.005 to 0.5 MPa
- Input Signal: 4 to 20 mA DC
- Supply Voltage: 24 VDC ±10%
- Port Size: Rc 1/4
- Monitor Output: None
- Cable/Connector: Lead wire (300 mm)
- Options: With Mounting Bracket and Pressure Gauge
- Enclosure Rating: IP65 equivalent
- Fluid: Air
- Ambient and Fluid Temperature: -5 to 50°C (No freezing)
- Linearity: ±1% F.S. or less
- Hysteresis: 0.5% F.S. or less
- Repeatability: ±0.5% F.S. or less
