Product Description

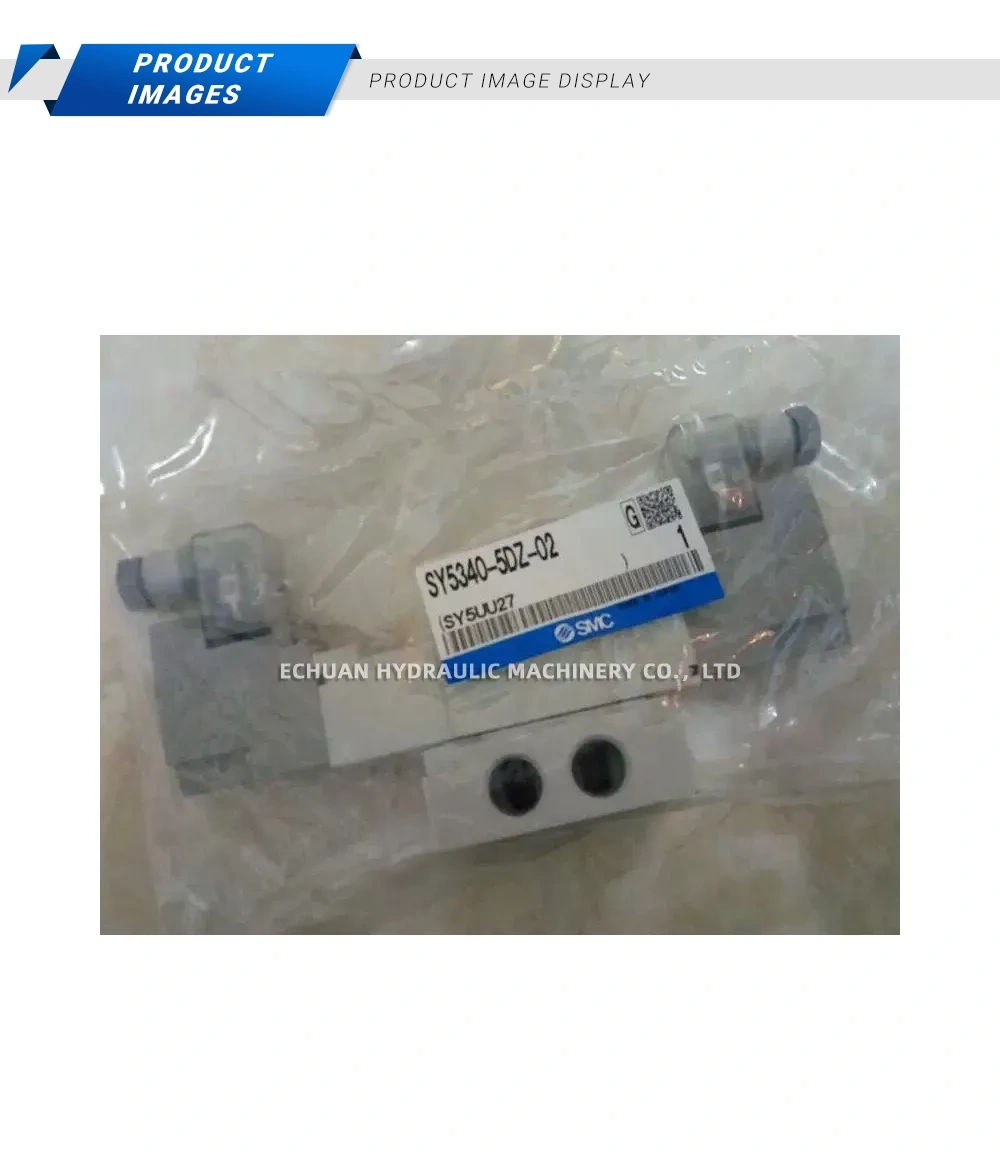

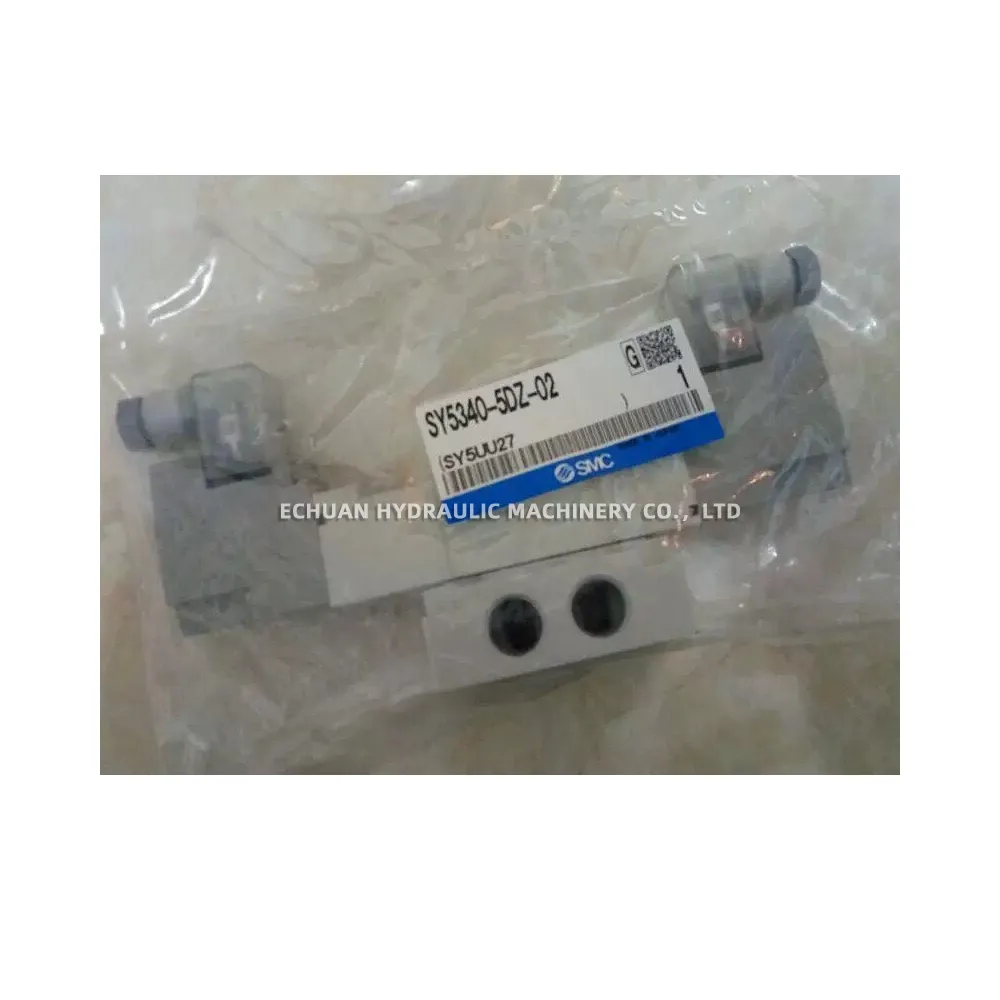

SMC SY5340-5DZ-02 Solenoid Valve
The SMC SY5340-5DZ-02 is a high-performance 5-port, 3-position solenoid valve from the renowned SY5000 series. Engineered for reliability and efficiency, this double solenoid valve provides precise control over pneumatic cylinders and actuators in a wide range of industrial automation applications. Its compact design saves space, while the low power consumption reduces operational costs. This model features a 24V DC coil with an integrated indicator light and surge suppressor for enhanced safety and easy diagnostics. The DIN terminal connection ensures a secure and straightforward electrical installation, making it an ideal choice for demanding pneumatic systems.
Technical Specifications:
- Valve Type: 5-Port, 3-Position, Closed Center
- Actuation: Double Solenoid
- Rated Voltage: 24V DC
- Port Size: 1/4″
- Electrical Entry: DIN Terminal with Connector
- Operating Pressure Range: 0.1 to 0.7 MPa
- Fluid: Air / Inert Gas
- Features: Indicator Light and Surge Voltage Suppressor
SMC SY5340-5DZ-02 Solenoid Valve
Order the SMC SY5340-5DZ-02, a reliable 5-port, 3-position double solenoid pneumatic valve. Features 24V DC operation, 1/4″ ports, and a DIN connector from the SY5000 series for industrial automation.
