Product Description
SOLA SDN 20-24-100C DIN Rail Power Supply

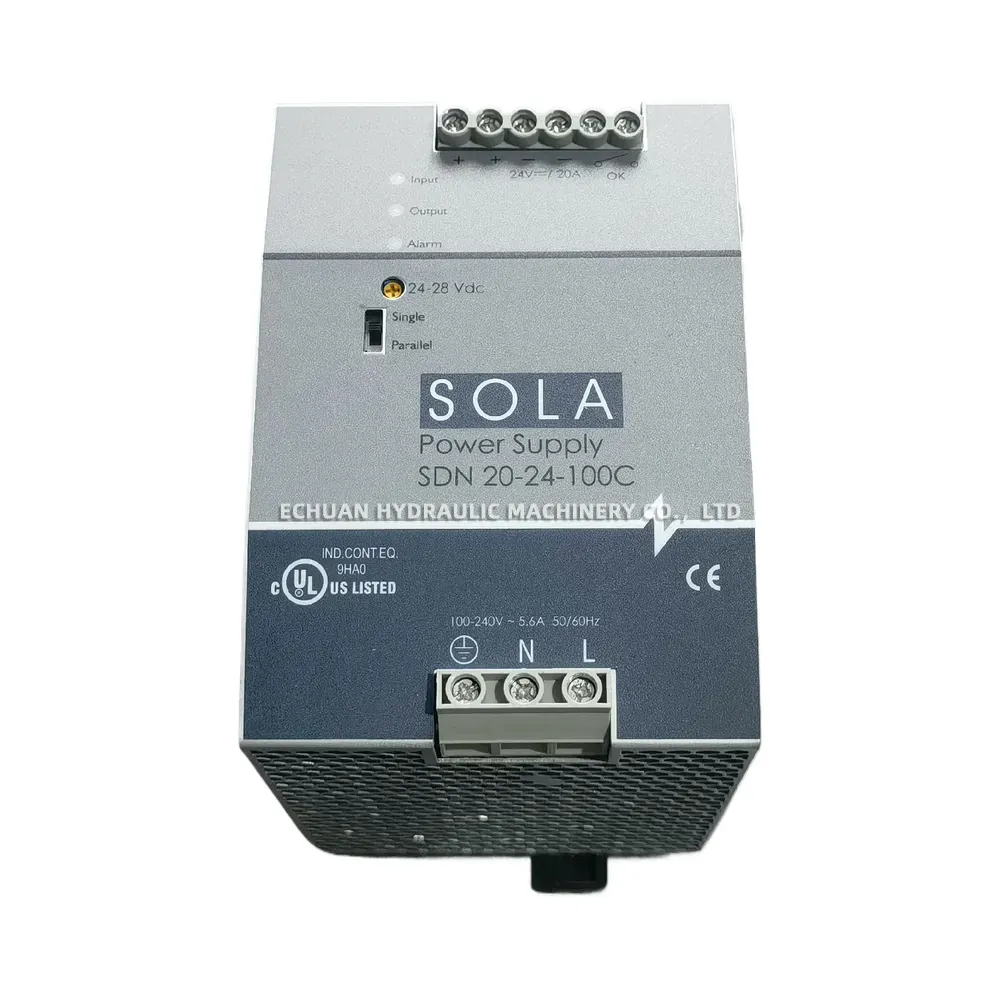

The SOLA SDN 20-24-100C by SolaHD (Emerson) is a premium industrial DIN rail power supply engineered to deliver reliable and efficient power for critical automation and control equipment. This robust unit provides a stable 24V DC output with a heavy-duty 20A capacity, supporting a wide universal input voltage range of 100-240V AC. Designed for maximum versatility, it includes a front-accessible potentiometer for voltage adjustment (24-28 Vdc) and a Single/Parallel operation switch to easily scale your power system. Built-in LED indicators provide instant visual diagnostics for Input, Output, and Alarm statuses, alongside an integrated OK contact relay. Built to withstand harsh industrial environments, the SDN 20-24-100C operates safely in extreme ambient temperatures ranging from -25°C to +60°C and carries comprehensive safety approvals including cULus, CE, RoHS, and Class I, Division 2 ratings for hazardous locations.
Technical Specifications:
- Brand: SOLA (SolaHD / Emerson)
- Model: SDN 20-24-100C
- Input Voltage: 100-240V AC ~ 5.6A, 50/60Hz
- Output Voltage: 24V DC (Adjustable via potentiometer: 24-28 Vdc)
- Output Current: 20A
- Operation Modes: Switchable between Single and Parallel operation

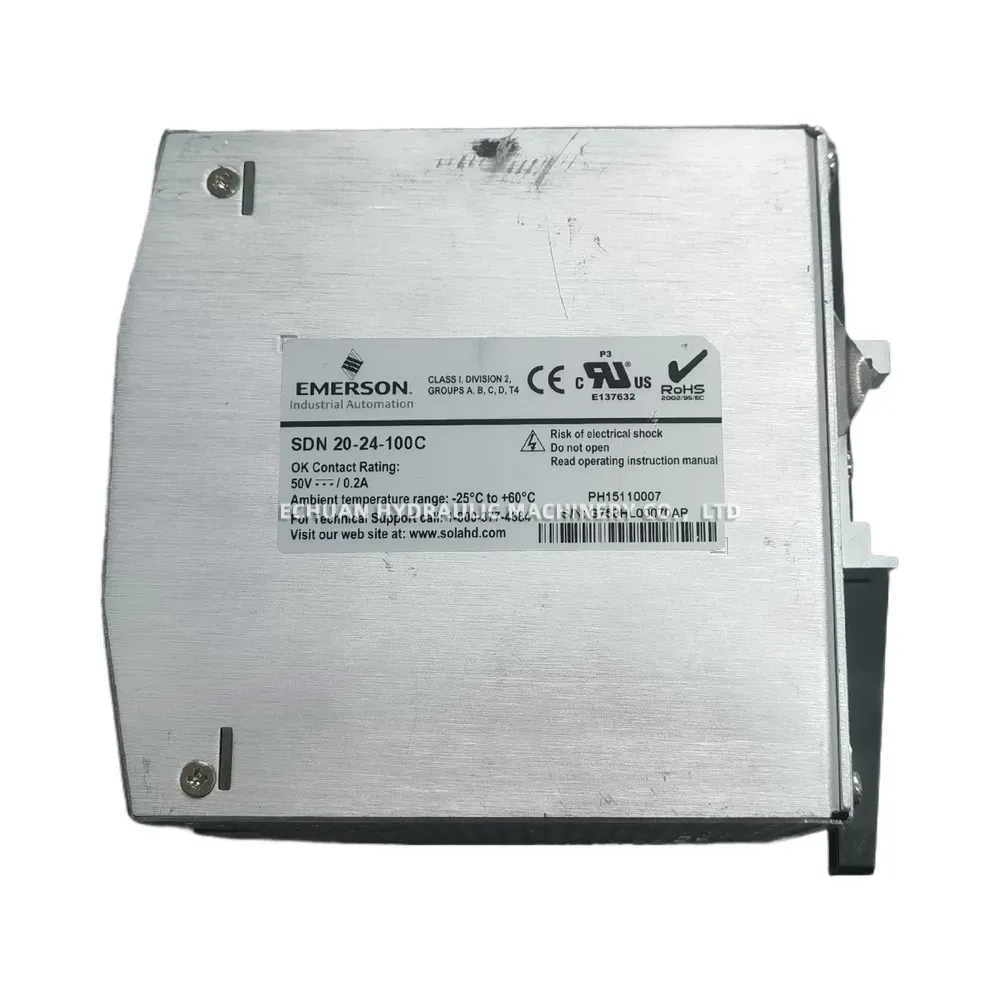

- Indicators & Alarms: Input, Output, and Alarm Status LEDs; OK Contact Rating: 50V DC / 0.2A
- Ambient Temperature Range: -25°C to +60°C

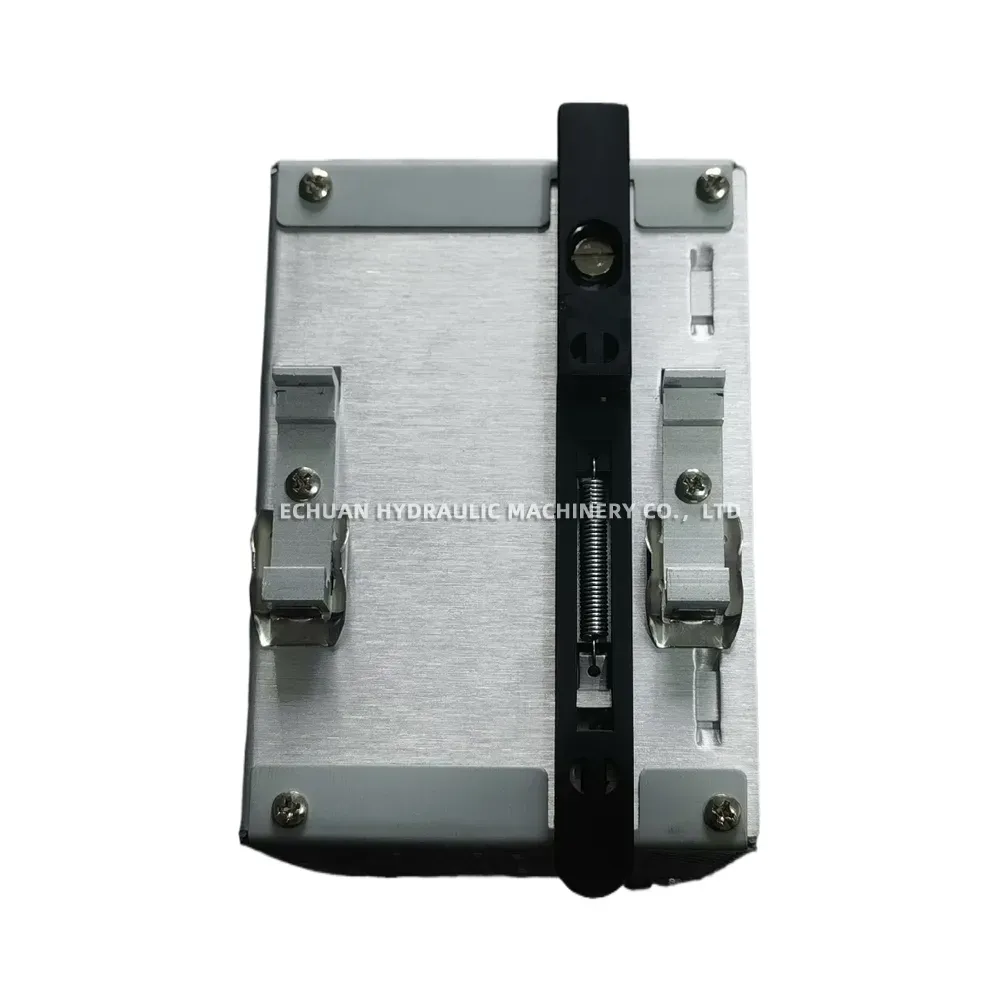

- Mounting: DIN Rail
- Certifications & Approvals: cULus LISTED (IND. CONT. EQ.), cRUus, CE, RoHS
- Hazardous Location Rating: CLASS I, DIVISION 2, GROUPS A, B, C, D, T4
SOLA SDN 20-24-100C DIN Rail Power Supply
Power your industrial automation systems with the SOLA SDN 20-24-100C DIN Rail Power Supply. Delivering a reliable 24V DC, 20A output from a 100-240V AC input, this heavy-duty SolaHD unit features adjustable voltage, single/parallel operation modes, and Class I Div 2 certification for safe, consistent performance in demanding environments.
| Brand | SOLA |
|---|---|
| Model | SDN 20-24-100C |
| Part No. | 843720837148 |
| Category | Electrical |
