Product Description

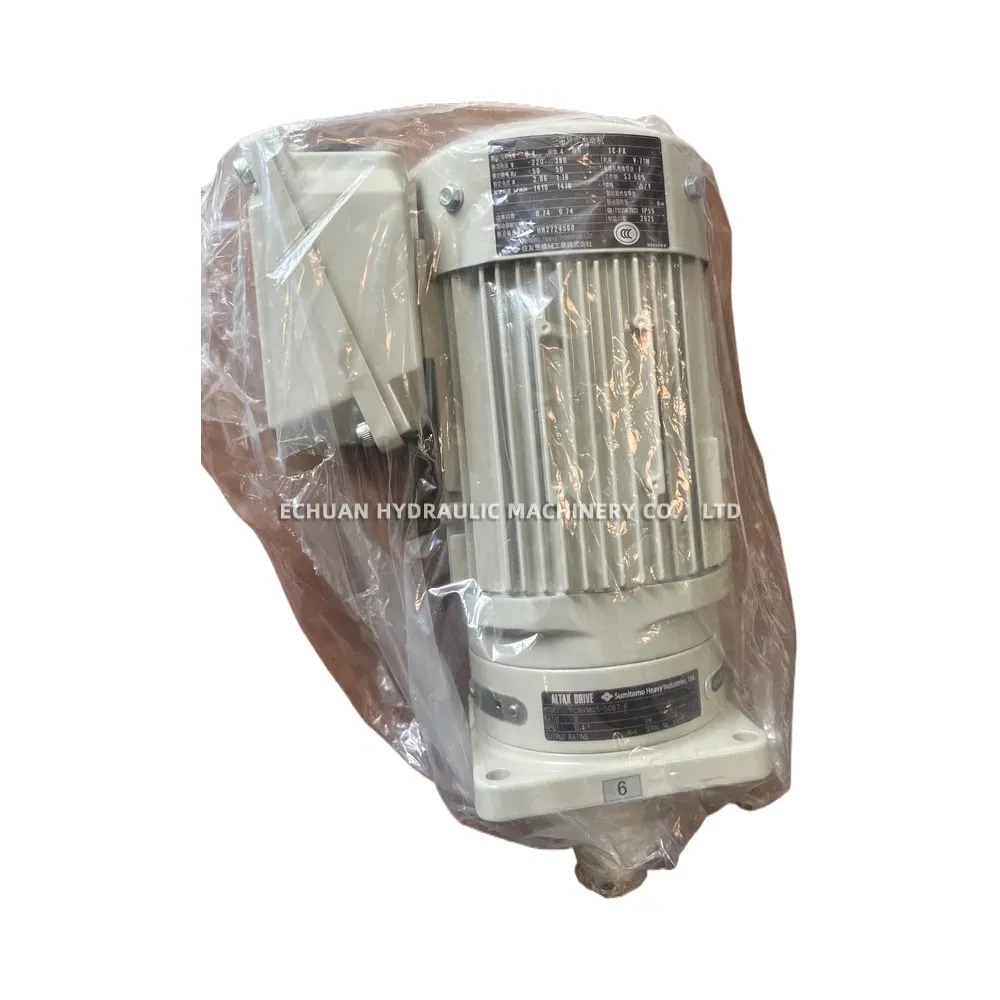

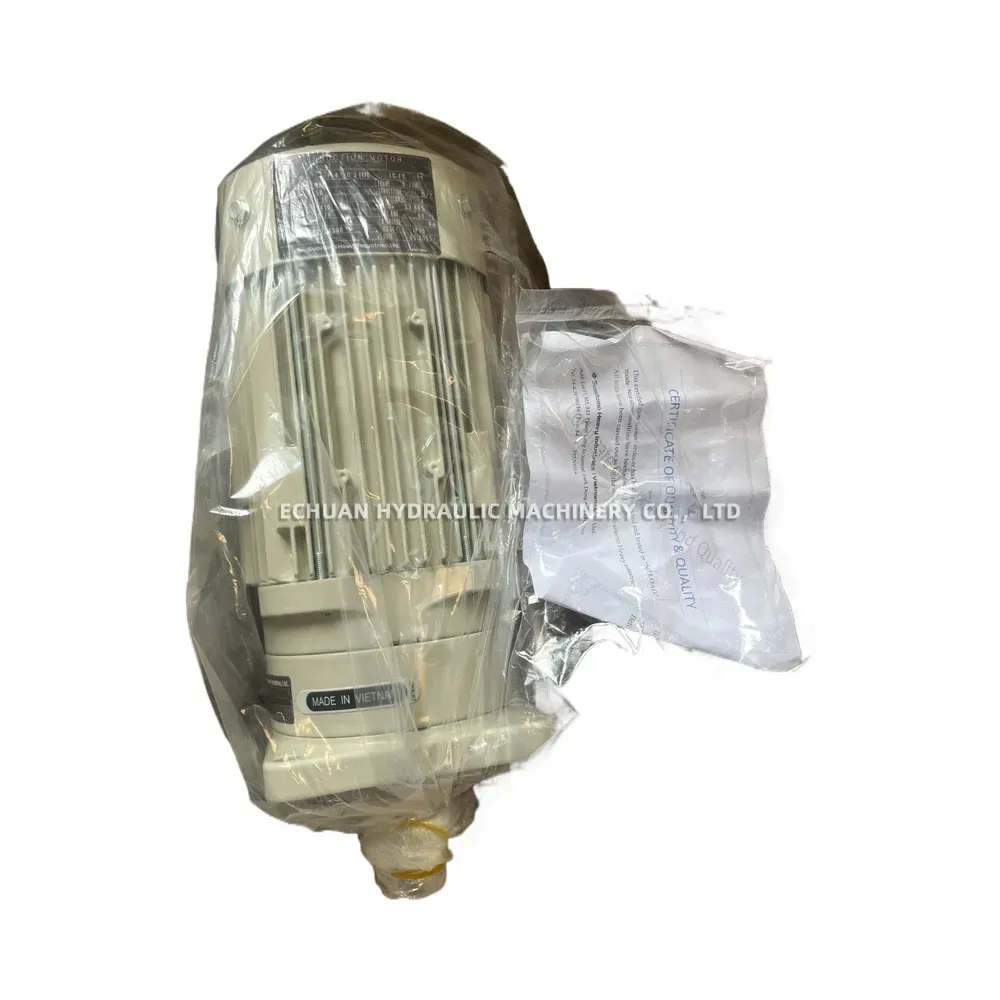

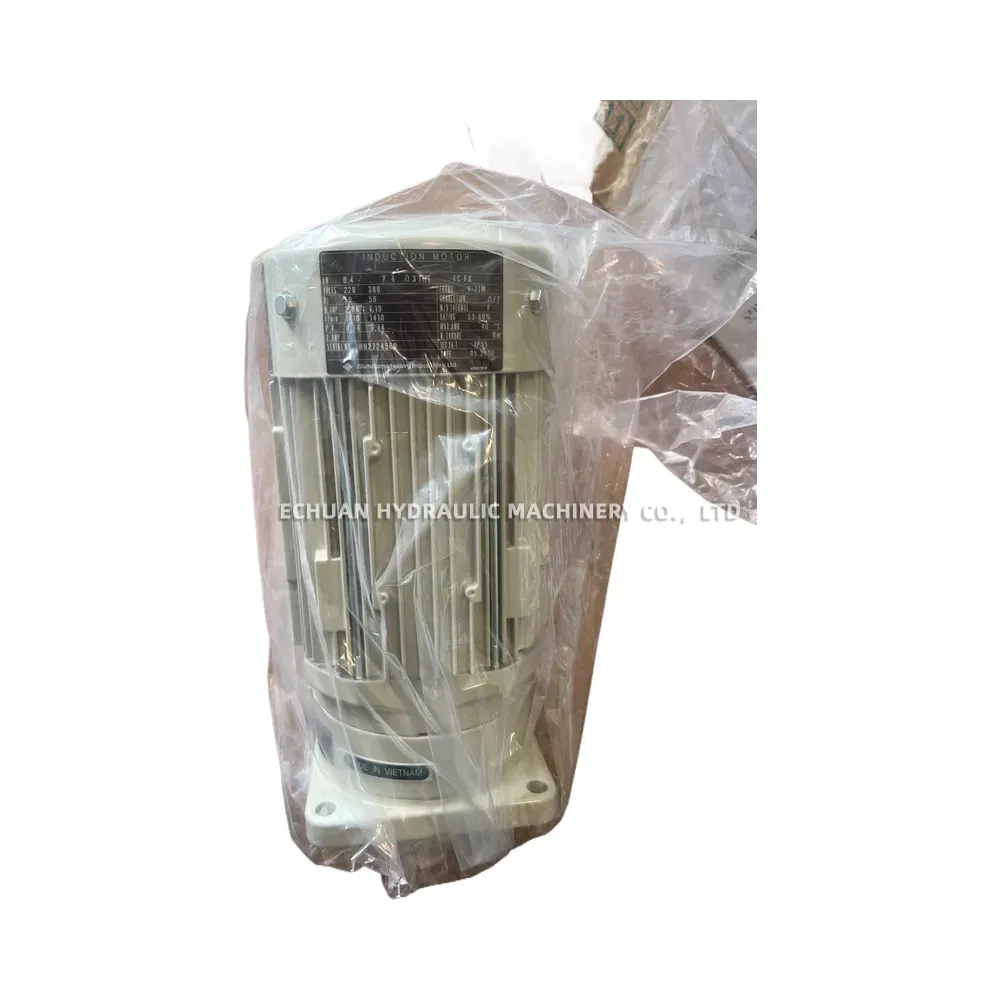

Sumitomo TC-FX Induction Motor
The Sumitomo TC-FX Induction Motor is a highly reliable, 3-phase industrial motor engineered by Sumitomo Heavy Industries. Featuring a 0.4kW power output and a 4-pole design, this motor delivers consistent and efficient performance at 1410 RPM. Built with a rugged V-71M frame and IP55 protection, it is highly resistant to dust and water ingress, making it ideal for demanding industrial environments. With an insulation class F and an S3-60% duty rating, the TC-FX model ensures optimal thermal management, safety, and longevity for intermittent periodic duty applications.

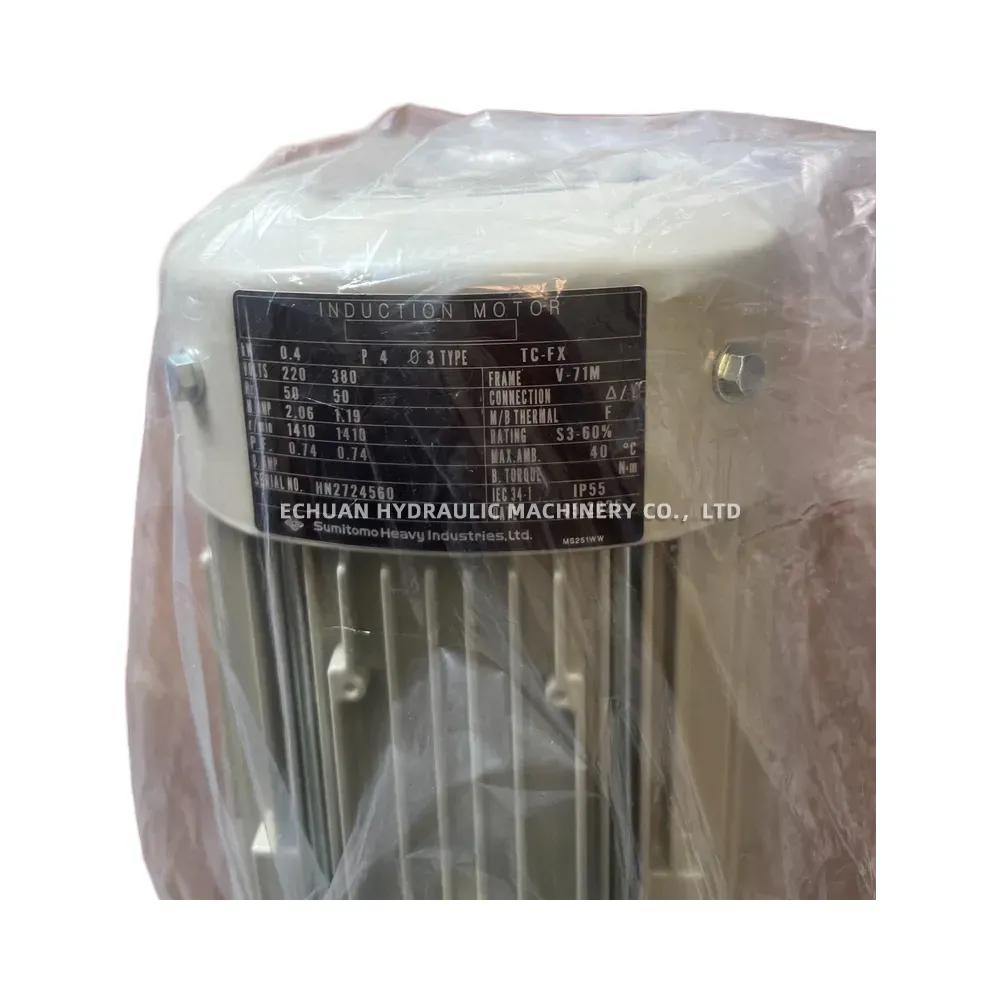

Technical Specifications:
- Brand: Sumitomo Heavy Industries, Ltd.
- Model: TC-FX
- Frame Size: V-71M
- Rated Output: 0.4 kW
- Phase / Poles: 3 Phase / 4 Poles
- Voltage: 220/380V
- Frequency: 50 Hz
- Rated Current: 2.06 / 1.19 A
- Speed: 1410 RPM
- Power Factor (P.F.): 0.74
- Connection: Delta/Star (Δ/Y)
- Insulation Class (Thermal): F
- Duty Rating: S3-60%
- Protection Class: IP55
- Max Ambient Temperature: 40°C
- Standard: IEC 34-1
Sumitomo TC-FX Induction Motor
Shop the Sumitomo TC-FX Induction Motor online. This 0.4kW, 3-phase, 4-pole industrial motor features a durable V-71M frame, IP55 protection, and operates reliably at 1410 RPM (220/380V). Perfect for heavy-duty intermittent applications requiring S3-60% rating.
