Product Description

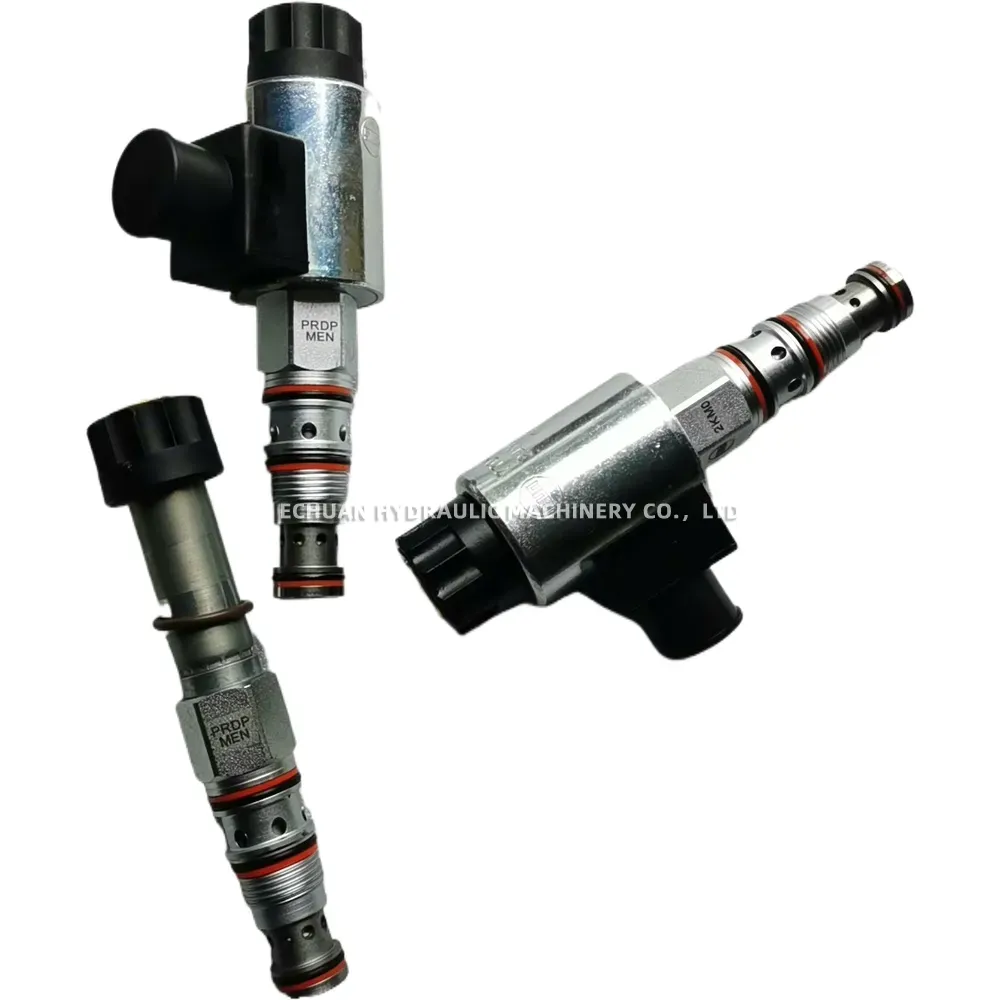

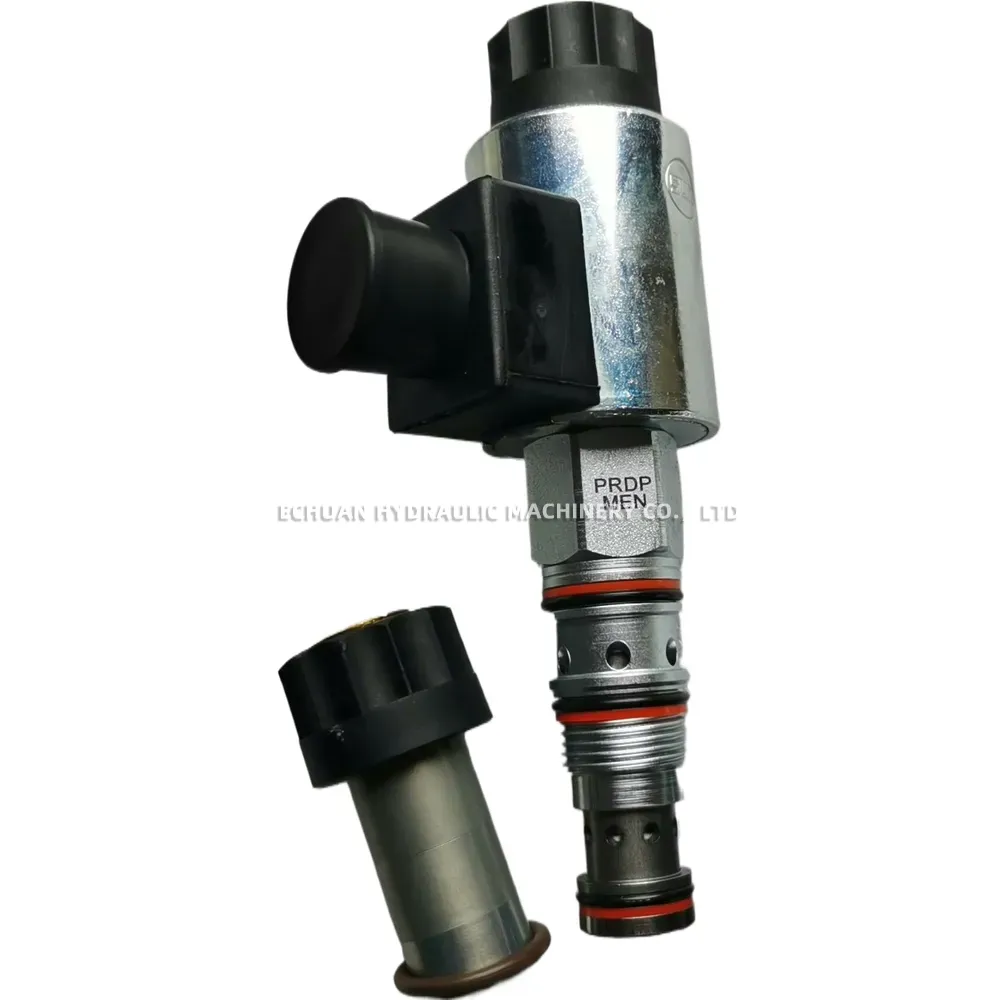

SUN PRDP-MEN Pilot-Operated, Pressure Reducing/Relieving Valve
The SUN PRDP-MEN is a screw-in, cartridge-style, pilot-operated, spool-type pressure reducing/relieving valve. Its primary function is to reduce a high primary pressure at the inlet (port 2) to a consistently lower, regulated pressure at port 1. This valve incorporates a full-flow relief function, diverting flow from port 1 to the tank (port 3) when the pressure at port 1 exceeds the valve setting. It is designed for use in hydraulic systems requiring precise pressure control and protection against overpressure conditions in the reduced pressure line.
Technical Specifications:
- Cavity: T-11A
- Series: 1
- Capacity (Pilot Flow): 5 gpm (20 L/min)
- Maximum Operating Pressure: 5000 psi (350 bar)
- Adjustment Range: 150 – 4000 psi (10,5 – 280 bar)
- Maximum Recommended Load Pressure at Port 1: 4650 psi (325 bar)
- Control Pilot Flow: 10 – 15 in³/min (160 – 250 cc/min)
- Response Time – Typical: 10 ms
- Adjustment Mechanism: Screw Adjustment (MEN designation)
- Valve Hex Size: 7/8 in. (22,2 mm)
- Valve Installation Torque: 30 – 35 lbf ft (41 – 47 Nm)
- Seal Material: Buna-N (Standard)
- Material: Steel operating components, exposed parts plated for corrosion protection.
SUN PRDP-MEN
Model:SUN PRDP-MEN
| Brand | SUN |
|---|---|
| Model | PRDP-MEN |
| Part No. | SUN PRDP-MEN |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/sun-prdp-men |
