Product Description

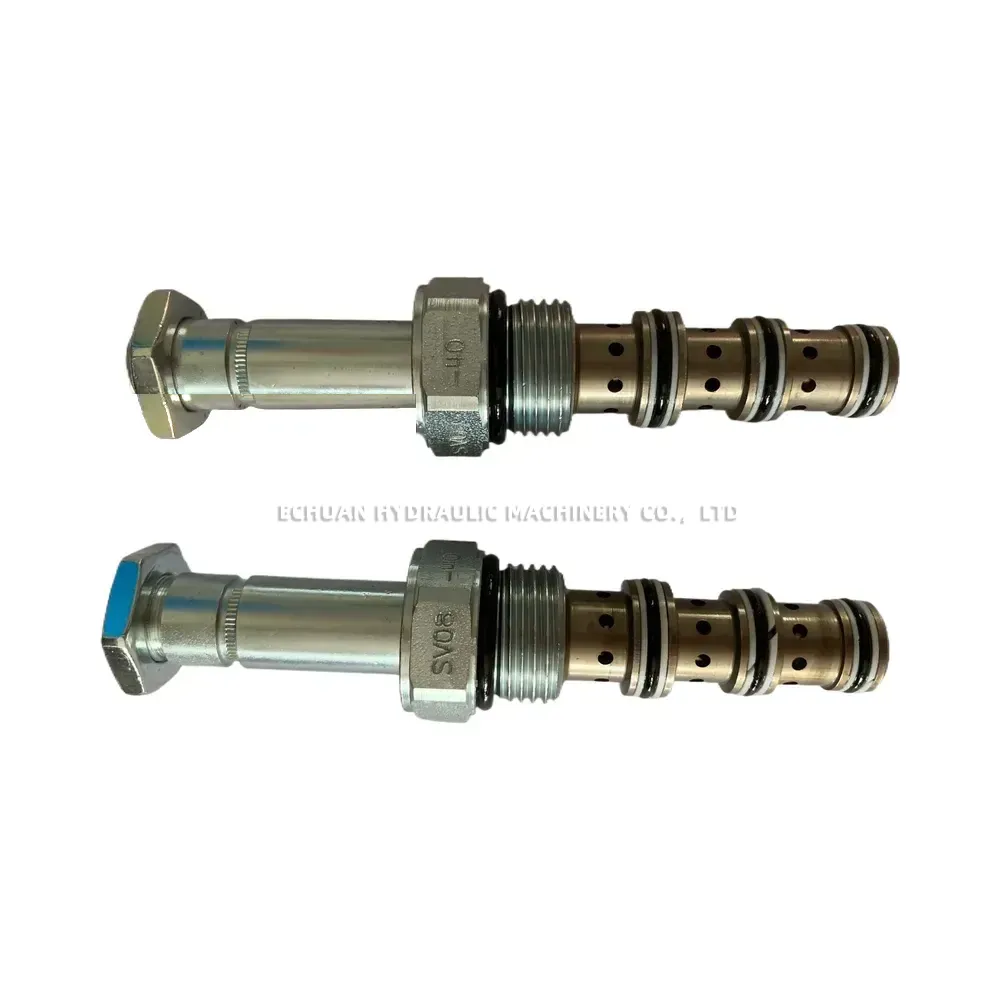

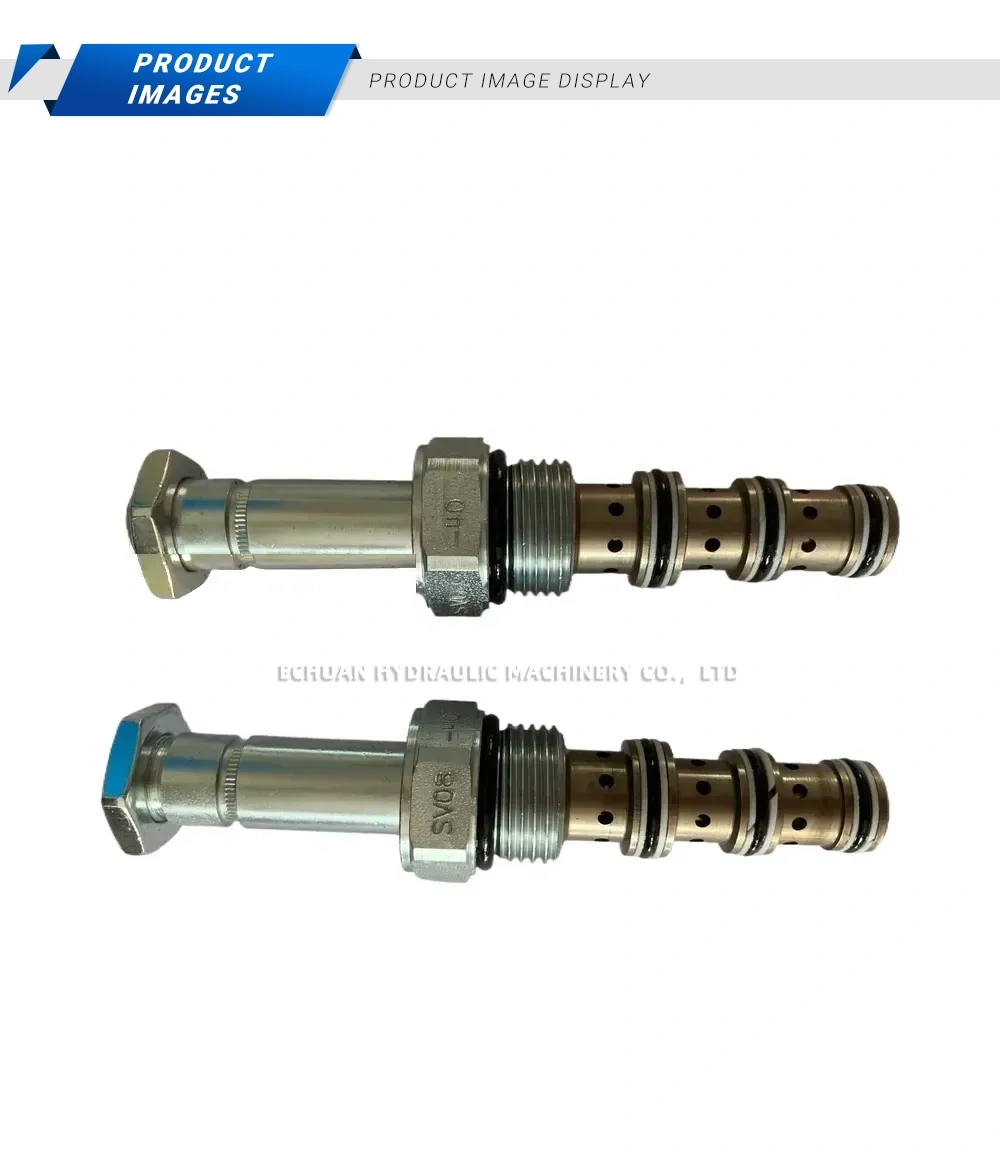

SV08-410 Hydraulic Solenoid Valve Cartridge
The SV08-410 is a high-performance, 4-way, 2-position, direct-acting, spool-type hydraulic solenoid valve cartridge. Designed for seamless integration into hydraulic manifolds, this threaded cartridge valve delivers reliable directional control for fluid power systems. It features a robust solenoid actuator assembly with a hexagonal mounting nut and a precision-machined threaded body for secure installation. The internal spool section is equipped with multiple flow orifices and premium elastomeric O-ring seals to prevent internal leakage and ensure efficient fluid routing. Specifically engineered to fit standard Size 08 (4-way) valve cavities, the SV08-410 is an ideal, space-saving solution for compact hydraulic circuits requiring dependable, continuous-duty switching under high-pressure conditions.
Technical Specifications:
- Valve Type: 4-Way, 2-Position, Spool-Type Directional Control Valve
- Cavity Compatibility: Standard Industry Size 08 (VC08-4)
- Maximum Operating Pressure: 3000 PSI (207 bar)
- Nominal Flow Rate: Up to 3 GPM (11.4 L/min)
- Seal Material: Elastomeric O-rings (Buna-N standard) with backup rings
SV08 Hydraulic Solenoid Valve Cartridge
Optimize your fluid power systems with the SV08-410 Hydraulic Solenoid Valve Cartridge. This compact, 4-way, 2-position threaded cartridge valve easily installs into standard Size 08 cavities, offering reliable directional flow control, leak-resistant O-ring seals, and seamless manifold integration for demanding hydraulic applications up to 3000 PSI.
