Product Description

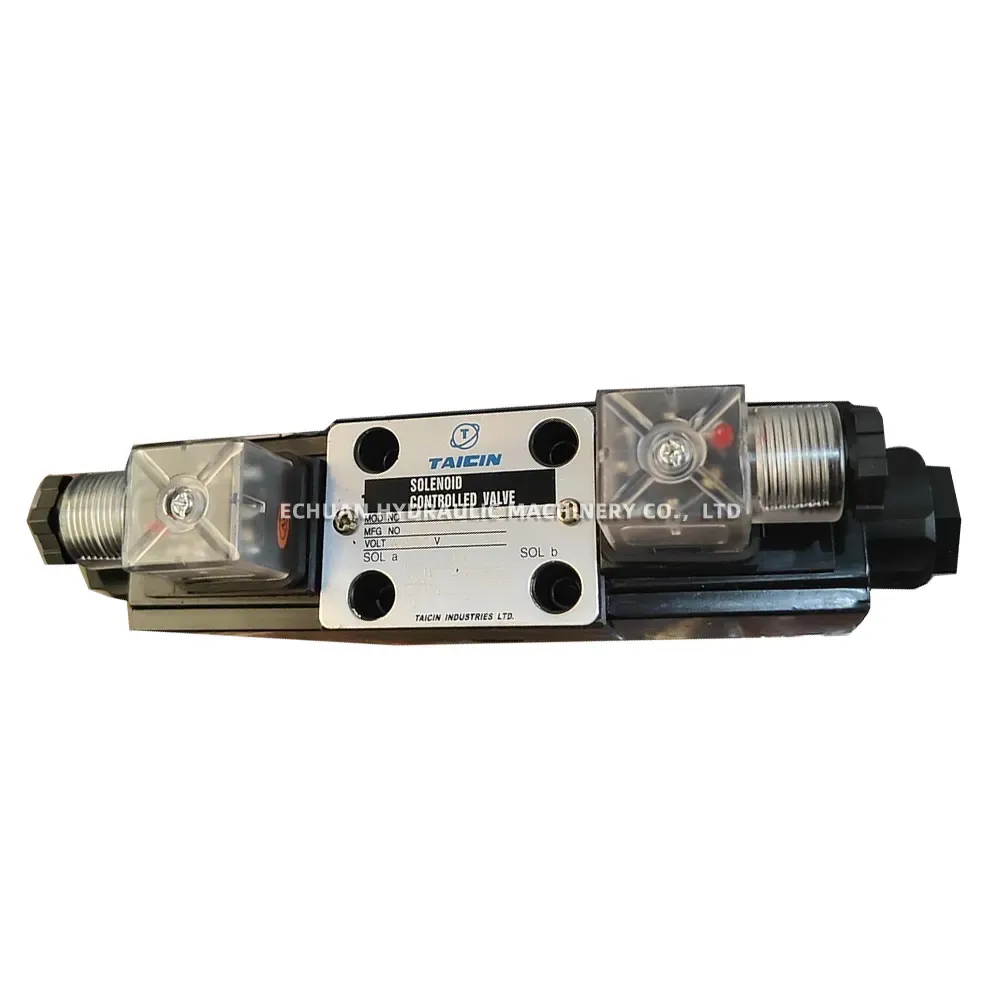

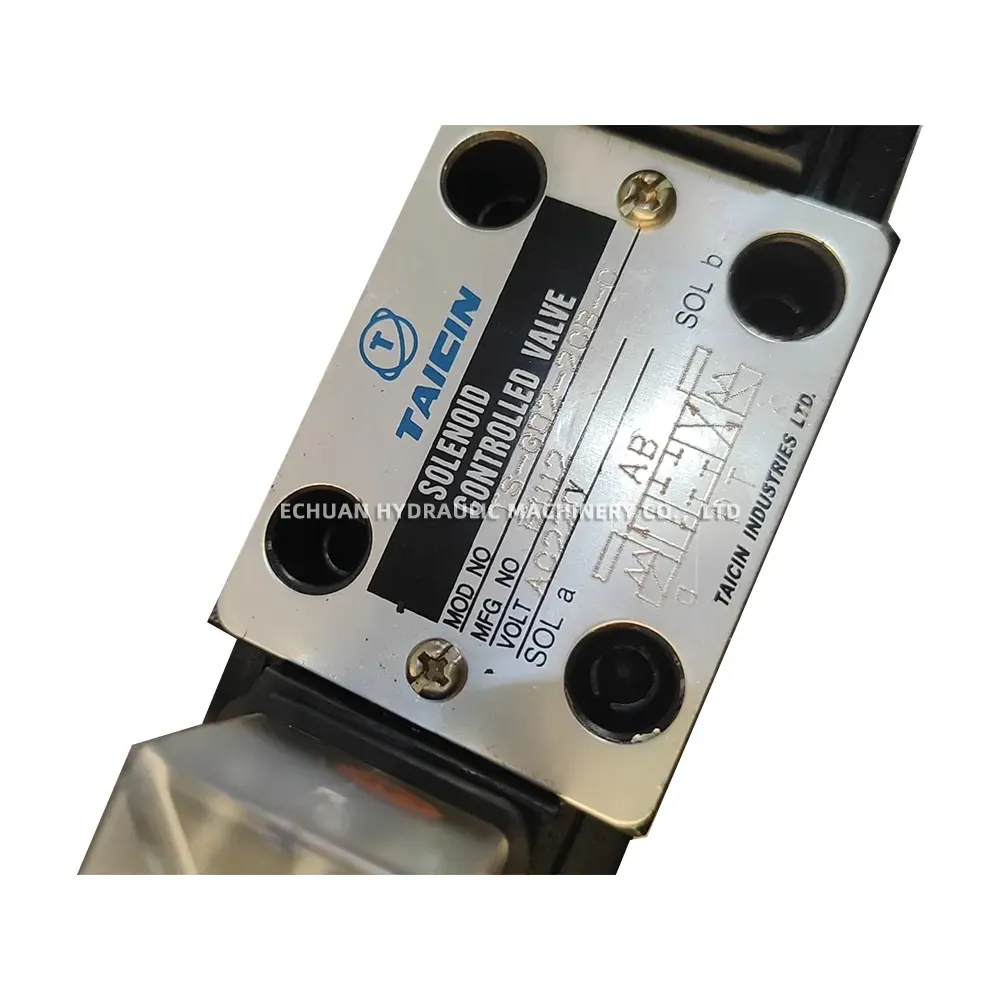

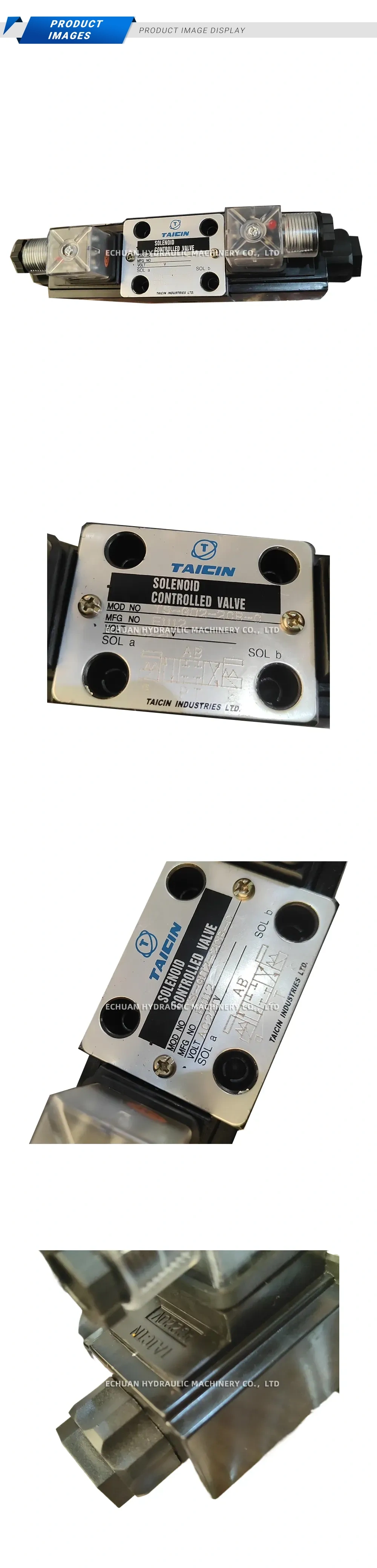

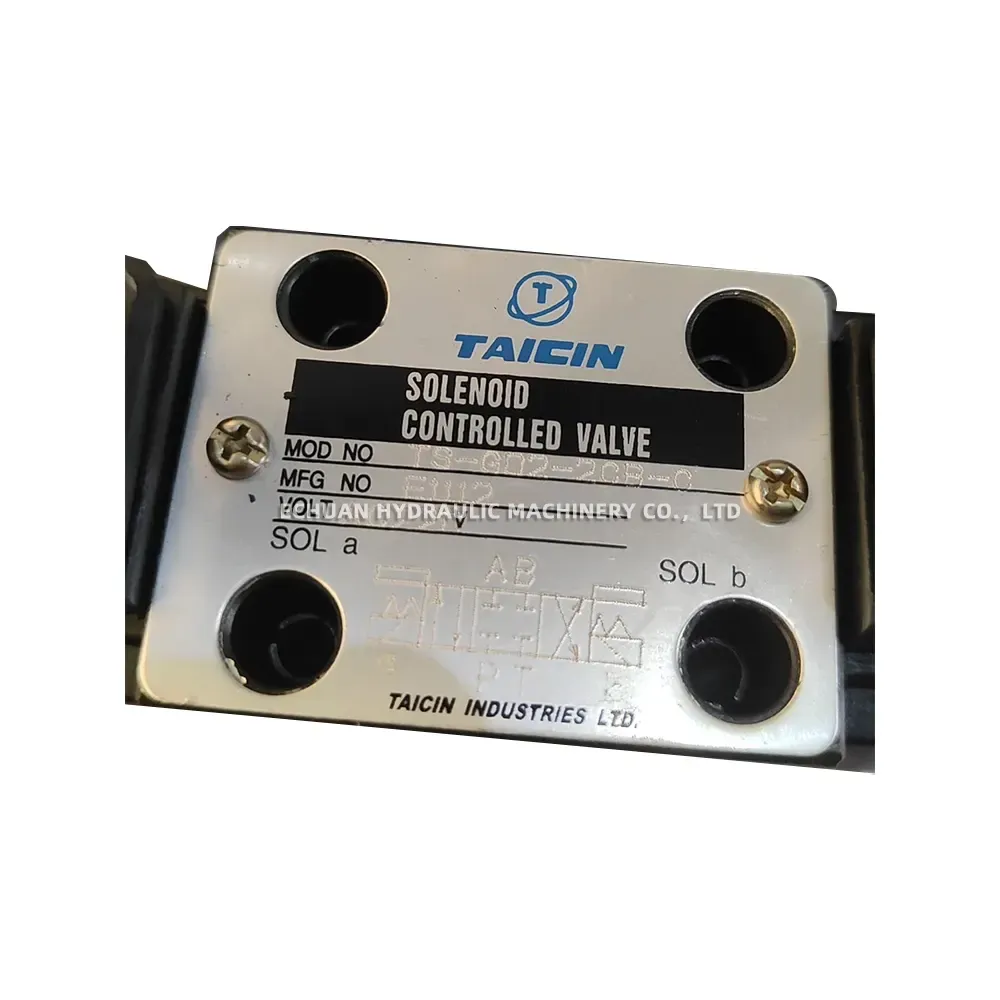

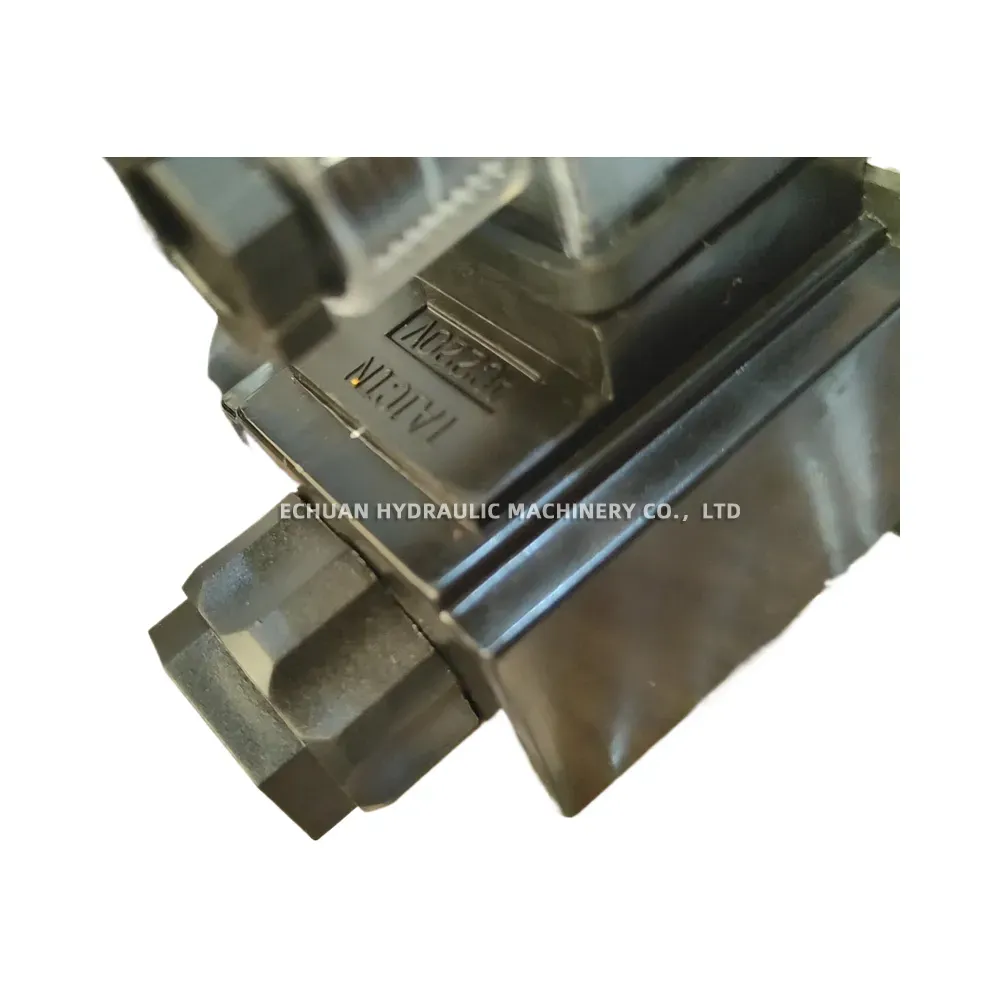

TAICIN TS-GD2-2CB-C Solenoid Controlled Valve
The TAICIN TS-GD2-2CB-C is a high-performance hydraulic solenoid directional control valve engineered for reliable fluid power management in industrial applications. This subplate-mounted valve features a double-solenoid design (SOL a and SOL b) with a 3-position, closed-center (O-type) spool configuration, which is functionally equivalent to the industry-standard Yuken 3C2 center. Designed to operate on an AC 220V power supply, it seamlessly manages directional flow between four main ports (A, B, P, and T). The closed-center spool ensures excellent pressure-holding capabilities, making it ideal for hydraulic systems requiring precise one-in-one-out stroke control and secure pause (cylinder locking) functions during operation.
Technical Specifications:
- Brand: TAICIN
- Model: TS-GD2-2CB-C
- Valve Type: Hydraulic Solenoid Directional Valve
- Actuation: Double-Solenoid Operated (SOL a and SOL b)
- Spool Configuration: 3-Position, Closed-Center (O-type / Yuken 3C2 equivalent)
- Coil Rated Voltage: AC 220V
- Mounting Type: Subplate-Mounted
- Port Configuration: 4 Main Ports (A, B, P, T)
- Key Function: Directional control with stroke and pressure-holding (pause) capabilities
TAICIN TS-GD2-2CB-C Solenoid Controlled Valve (Hydraulic Solenoid Directional Valve)
Shop the TAICIN TS-GD2-2CB-C Hydraulic Solenoid Directional Valve. Featuring an AC 220V double-solenoid design, 3-position closed-center (O-type) spool, and 4-port subplate mounting, this valve delivers precise directional fluid control and reliable pressure-holding for industrial hydraulic systems.
| Brand | TAICIN |
|---|---|
| Model | TS-GD2-2CB-C |
| Part No. | 801434748280 |
| Category | Hydraulic valves |
| Link | https://www.echuan-hydraulic.com/product/taicin-ts-gd2-2cb-c-solenoid-controlled-valve-hydraulic-solenoid-directional-valve |
