Product Description
TAIYO PWC Power Controller
The TAIYO PWC Power Controller is a highly reliable industrial power control unit manufactured by Taiyo Electric Mfg. Co., Ltd. Designed for precision automation and control systems, this controller features a comprehensive front panel equipped with a 7-segment display, a reset button, and a 4-position DIP switch (SW1-SW4) for easy configuration and system monitoring. It supports extensive I/O capabilities through robust terminal blocks, accommodating analog inputs, current inputs, and multiple digital outputs. Engineered for durability, it operates on an AC110V power source and is ideal for integration into complex legacy machinery and control panels. Please note that megger testing and dielectric strength testing are strictly prohibited on this device to prevent internal component damage.
Technical Specifications:
- Brand: TAIYO
- Model: PWC

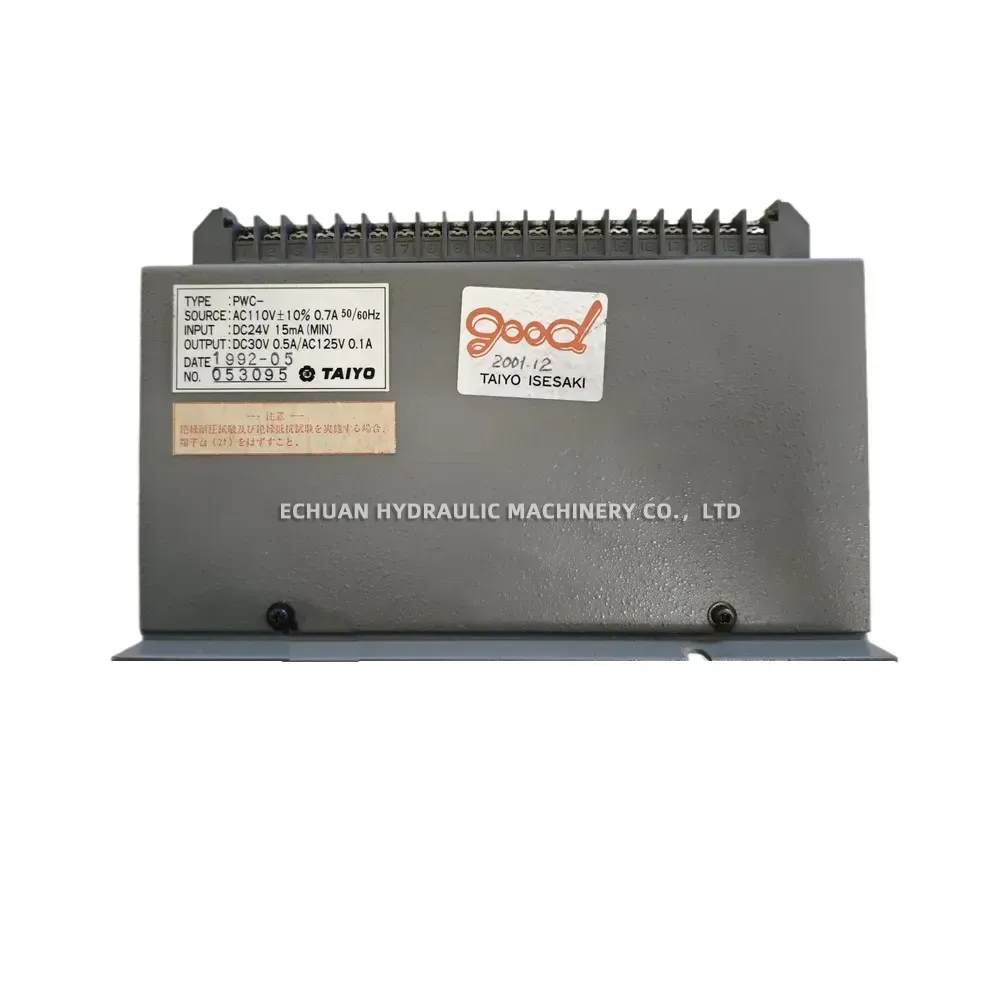

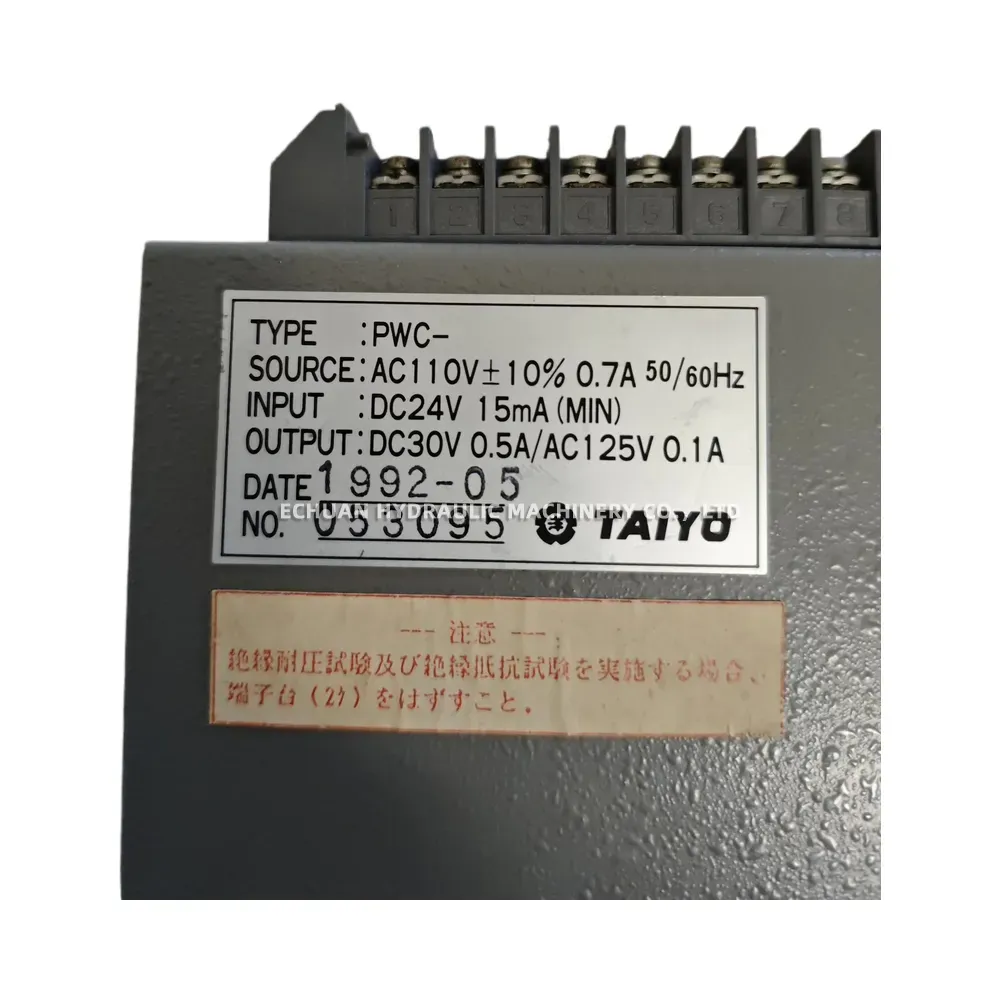

- Rated Power Source: AC110V ±10%, 0.7A, 50/60Hz
- Input: DC24V, 15mA (MIN)
- Output: DC30V 0.5A / AC125V 0.1A

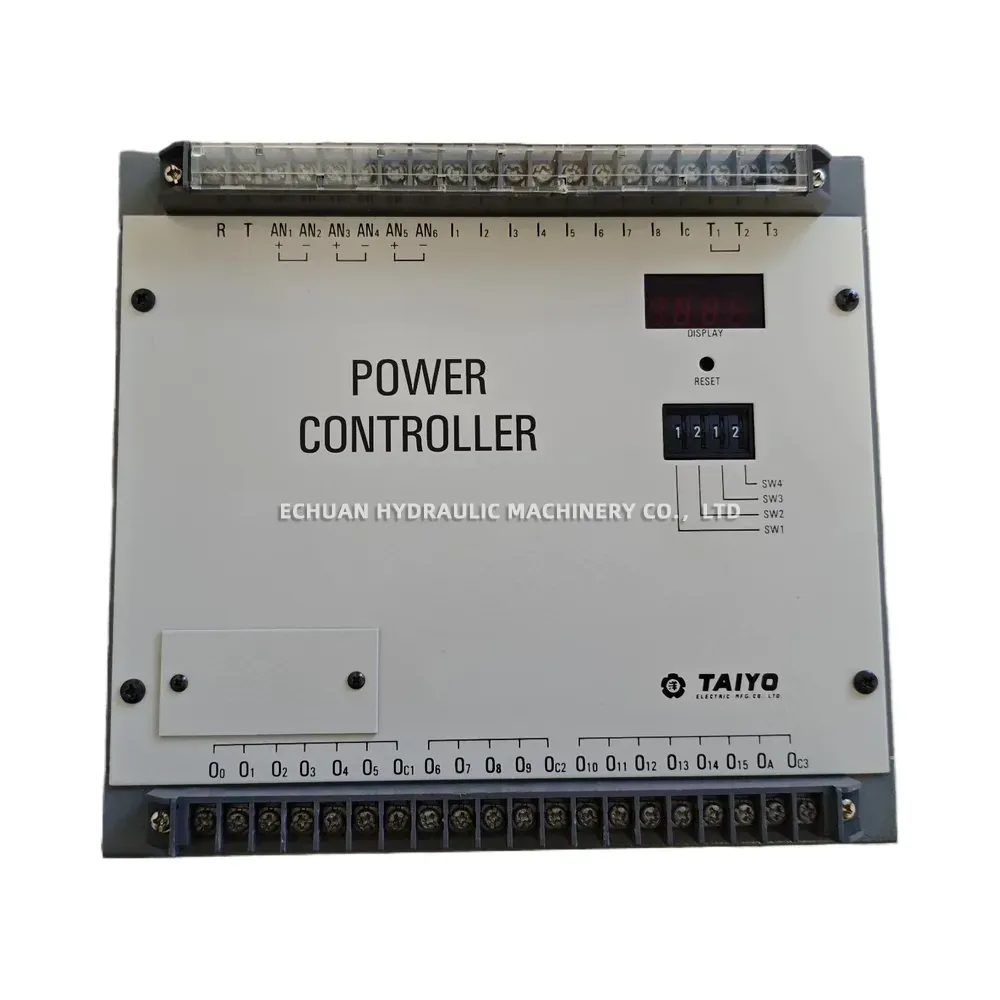

- Display & Controls: Front panel 7-segment display, reset button, and 4-position DIP switches (SW1-SW4)
- Power Terminals: Main power (R, T)
- Input Terminals: Analog inputs (AN1-AN6), Current inputs (I1-I8, Ic)
- Output Terminals: Output terminals (T1-T3), Digital outputs (O0-O15 with commons Oc1-Oc3)

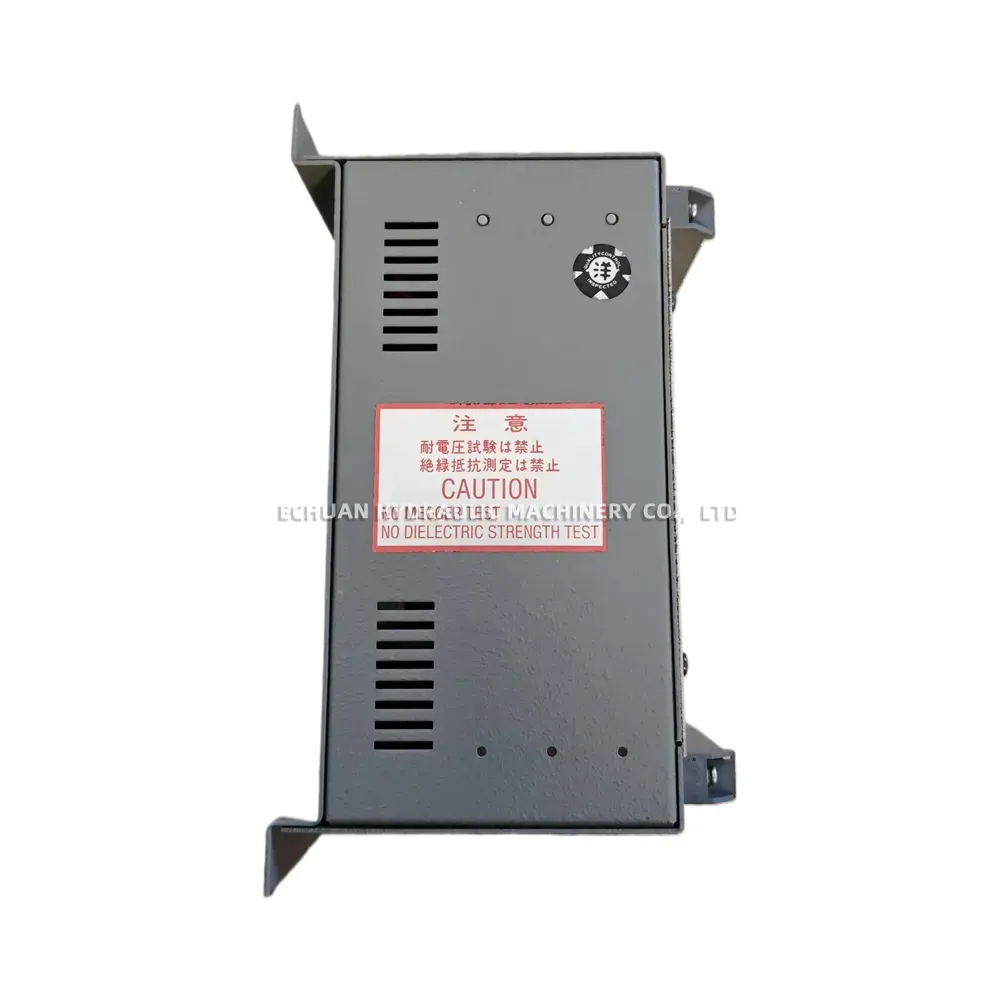

- Safety Cautions: NO MEGGER TEST, NO DIELECTRIC STRENGTH TEST (Disconnect terminal block 2J if testing is performed on surrounding circuits)
TAIYO PWC Power Controller
Maintain and repair your industrial automation systems with the TAIYO PWC Power Controller. Operating on AC110V, this robust legacy controller features extensive I/O terminal block support, a built-in 7-segment display, and reliable DC24V input / DC30V/AC125V output capabilities. Perfect for replacing worn components in Taiyo-equipped machinery.
| Brand | TAIYO |
|---|---|
| Model | PWC |
| Part No. | 996613644611 |
| Category | Electrical |
