Product Description

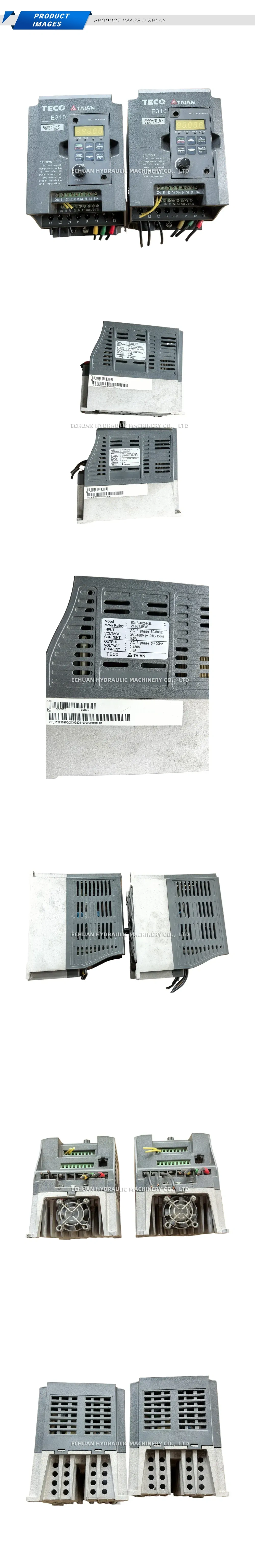

TECO E318-402-H3L
The TECO E318-402-H3L is a compact and economical AC drive from the E310 series, designed for reliable and efficient control of 3-phase AC induction motors. This Variable Frequency Drive (VFD) is engineered for general-purpose applications, offering both V/F and sensorless vector control modes for optimal performance. Its user-friendly design includes a simple keypad, built-in PLC functionality, and integrated RS-485 Modbus communication, making it a versatile solution for systems requiring precise speed control, such as pumps, fans, and conveyors. The compact footprint allows for easy integration into control panels, including DIN rail mounting capabilities.
Technical Specifications:
- Power Rating: 2 HP (1.5 kW)
- Input Voltage: 3-Phase, 380-480V AC (+10% / -15%), 50/60Hz
- Output Current: 4.2 Amps
- Control Mode: V/F Control, Sensorless Vector Control
- Communication: Built-in RS-485 (Modbus RTU)
- Enclosure Rating: IP20
TECO E318-402-H3L
Buy the TECO E318-402-H3L, a compact 2 HP, 460V AC Variable Frequency Drive (VFD). Features sensorless vector control and built-in Modbus for efficient motor speed control in industrial applications.
