Product Description

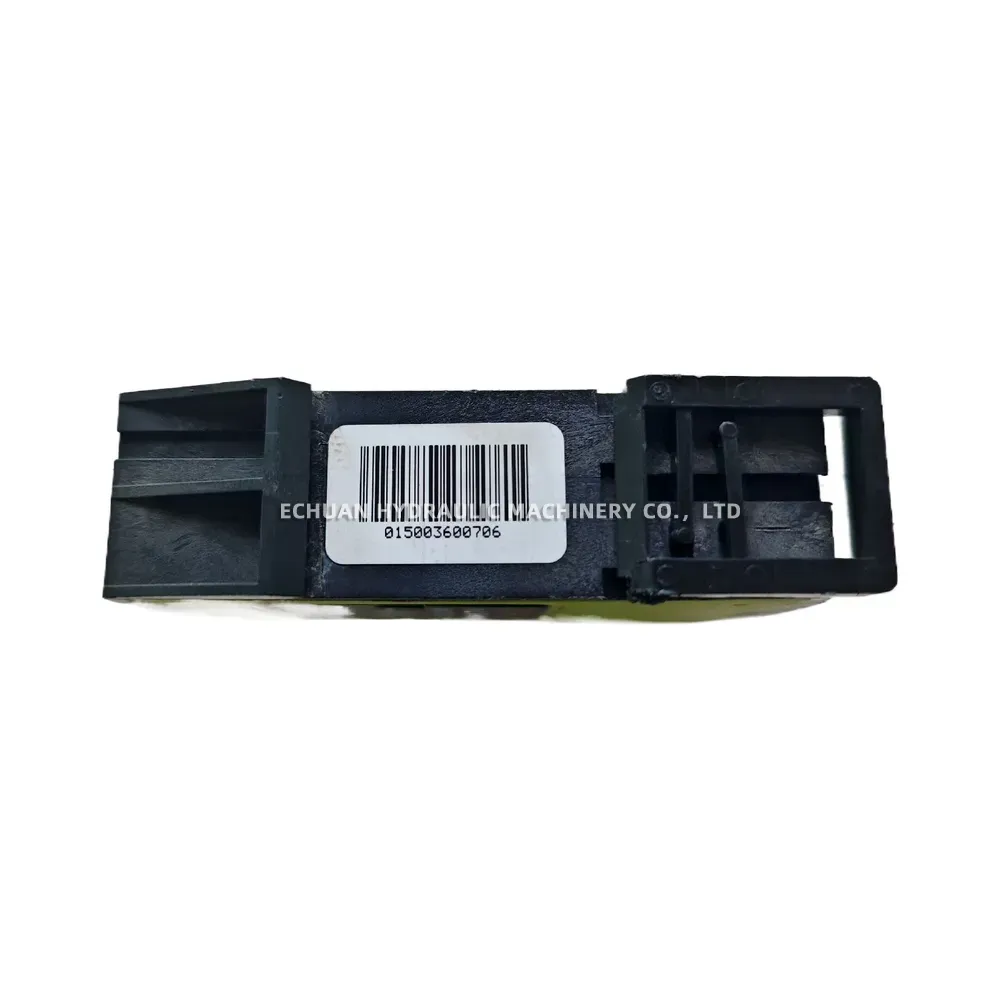

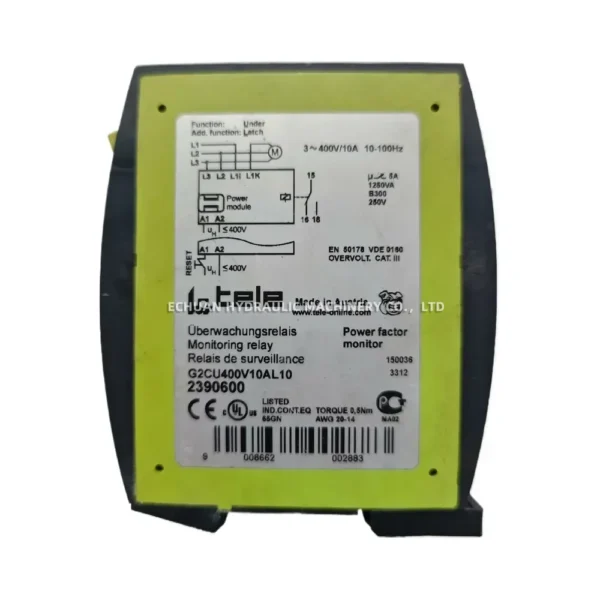

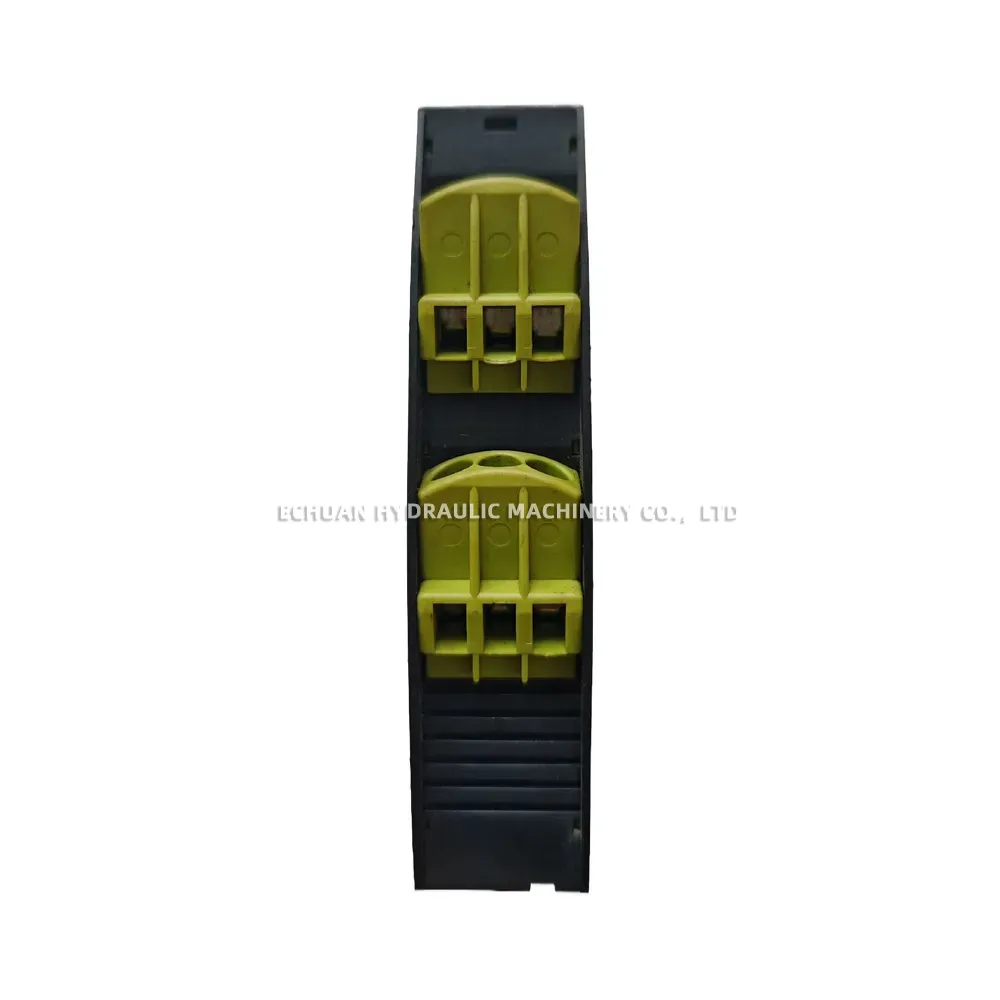

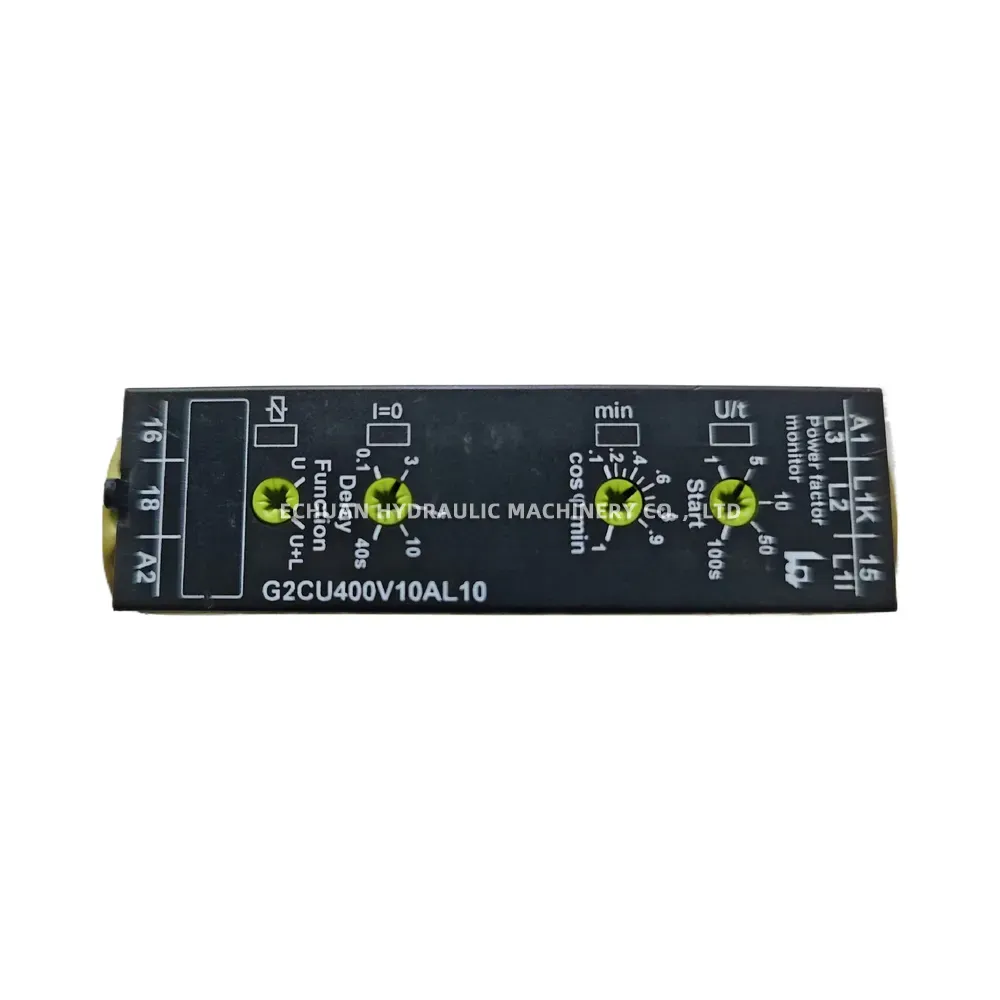

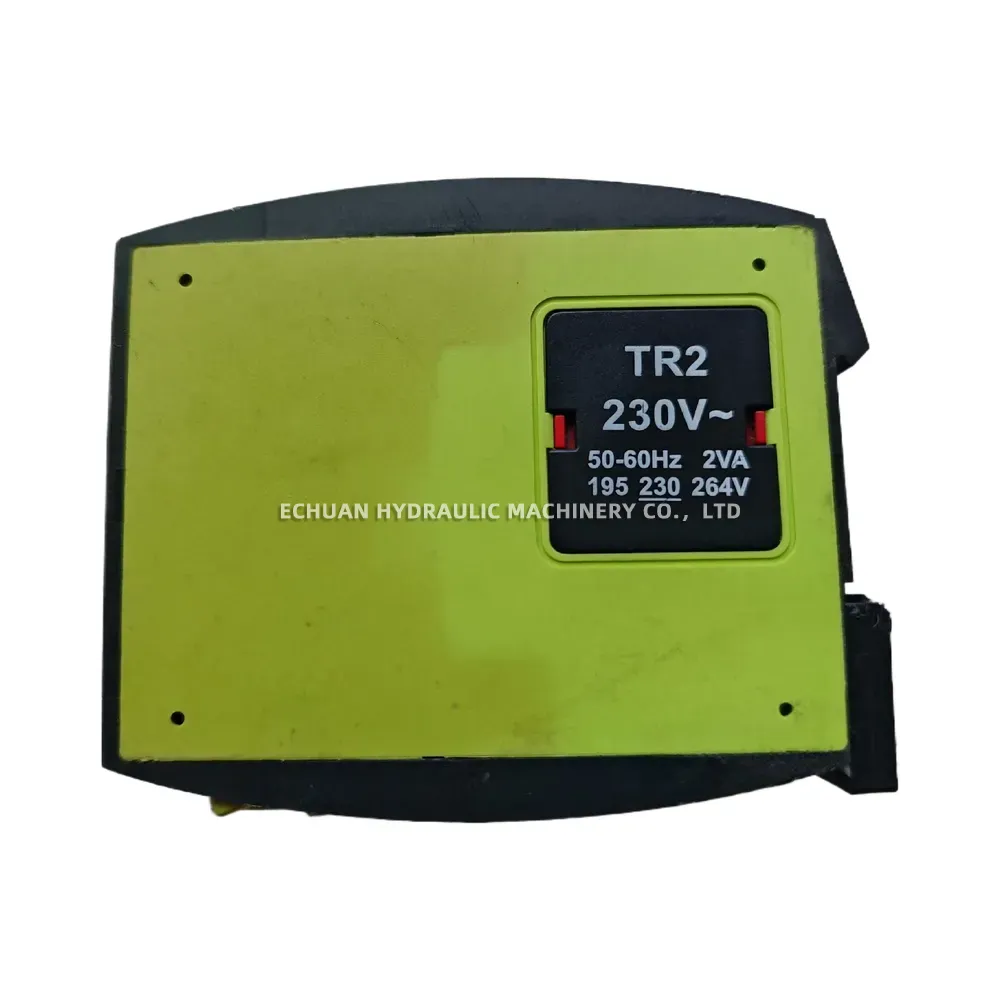

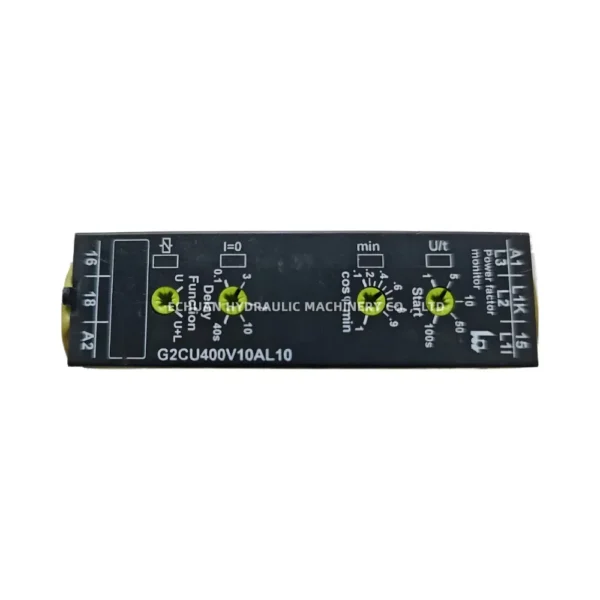

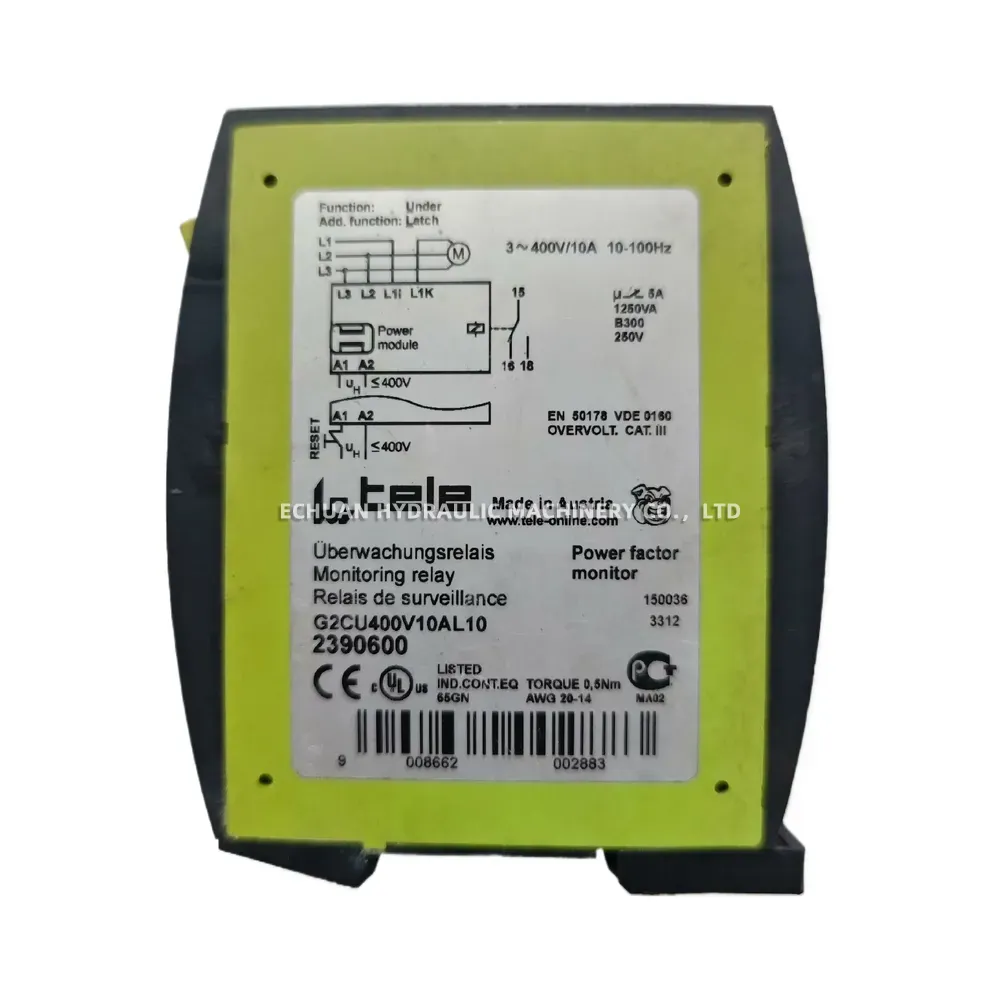

Tele G2CU400V10AL10 2390600 Current Monitoring Relay
The Tele G2CU400V10AL10 (Part No. 2390600) is a versatile current monitoring relay designed for single-phase AC and DC applications. It accurately measures True RMS (TRMS) current, providing reliable monitoring for overcurrent and undercurrent conditions. This compact device features selectable current ranges, adjustable time delays for start-up and tripping, and clear LED status indication, making it suitable for a wide array of industrial control and protection tasks. Its DIN rail mountable design ensures easy integration into control panels.
Technical Specifications:
- Type: Current Monitoring Relay
- Model: G2CU400V10AL10
- Part Number: 2390600
- Monitored Variable: Single-phase AC/DC Current (TRMS)
- Supply Voltage (Us / A1-A2): 24 – 240V AC/DC
- Measuring Principle: TRMS (AC+DC)
- Measuring Ranges (Selectable): 0.1-1A, 0.3-3A, 1-10A AC/DC
- Monitoring Function: Overcurrent and Undercurrent
- Output: 1 Changeover contact (SPDT)
- Switching Capacity (AC): 1250VA (5A / 250V AC1)
- Switching Capacity (DC): 120W (5A / 24V DC1)
- Start-up Delay (tS): Adjustable, 0.1s – 30s
- Tripping Delay (tV): Adjustable, 0.1s – 30s
- Indicators: Green LED (Supply Voltage), Yellow LED (Relay State), Red LED (Fault/Trip)
- Housing: 1-module, DIN rail mounting (17.5mm width)
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -40°C to +70°C
- Protection Degree (Housing): IP40
- Protection Degree (Terminals): IP20
- Standards: IEC/EN 60255-1, IEC/EN 60947-5-1
Tele G2CU400V10AL10 2390600
Model:Tele G2CU400V10AL10 2390600
| Brand | Tele |
|---|---|
| Model | G2CU400V10AL10 2390600 |
| Part No. | Tele G2CU400V10AL10 2390600 |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/tele-g2cu400v10al10-2390600 |
