Product Description

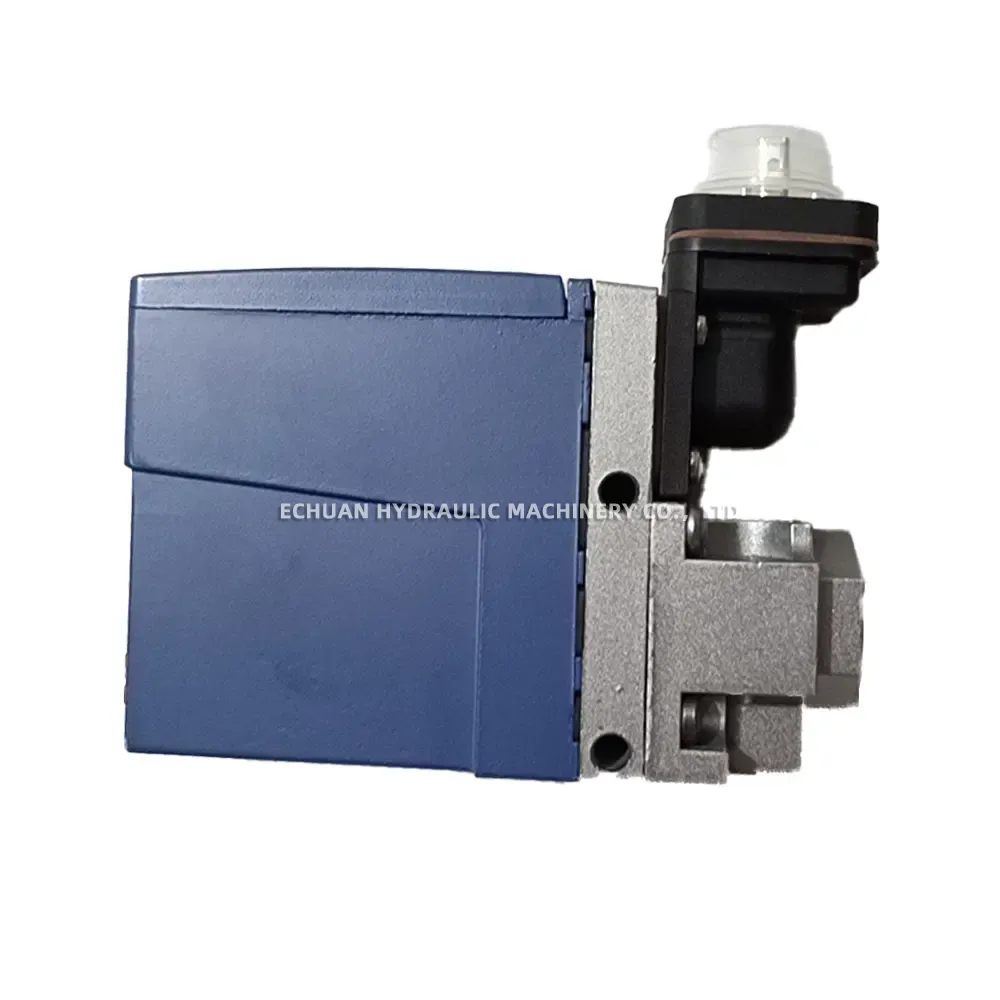

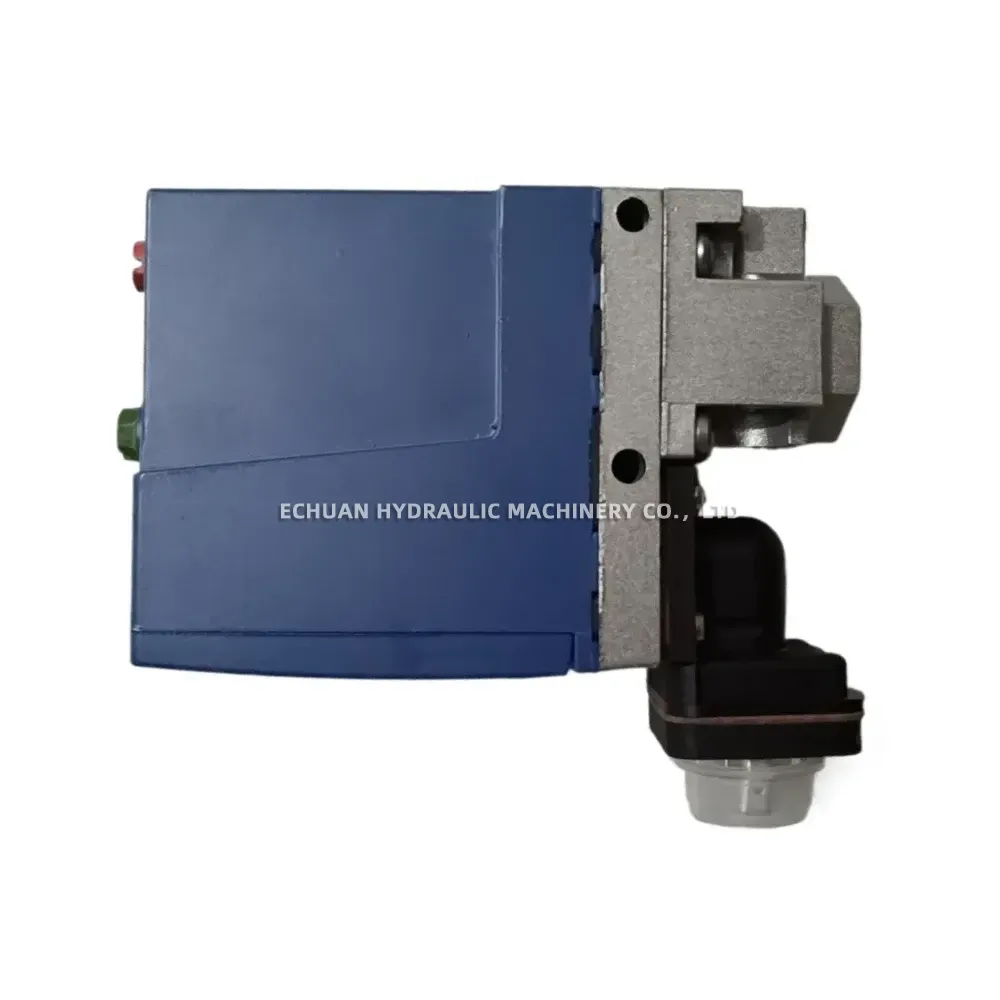

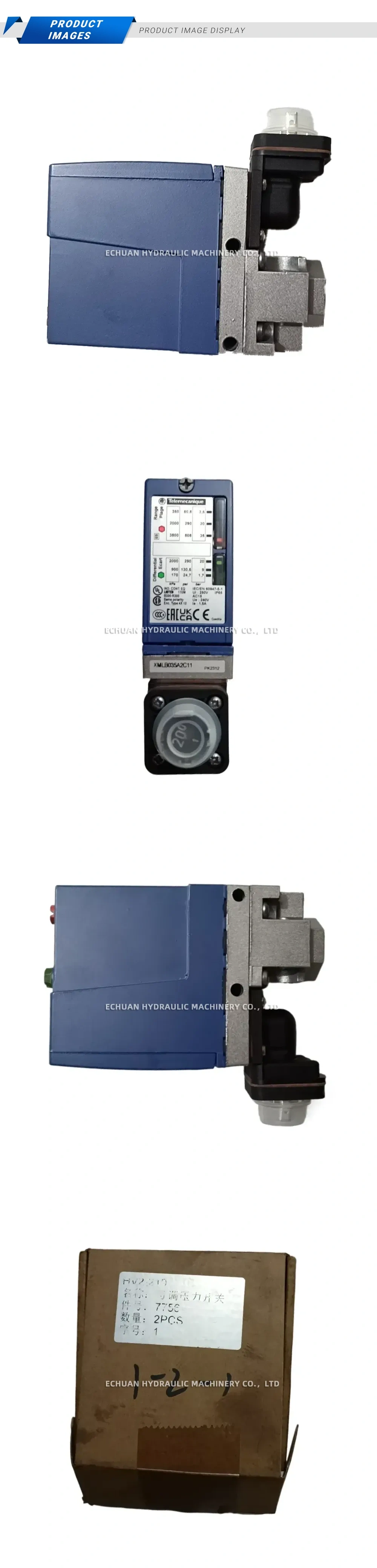

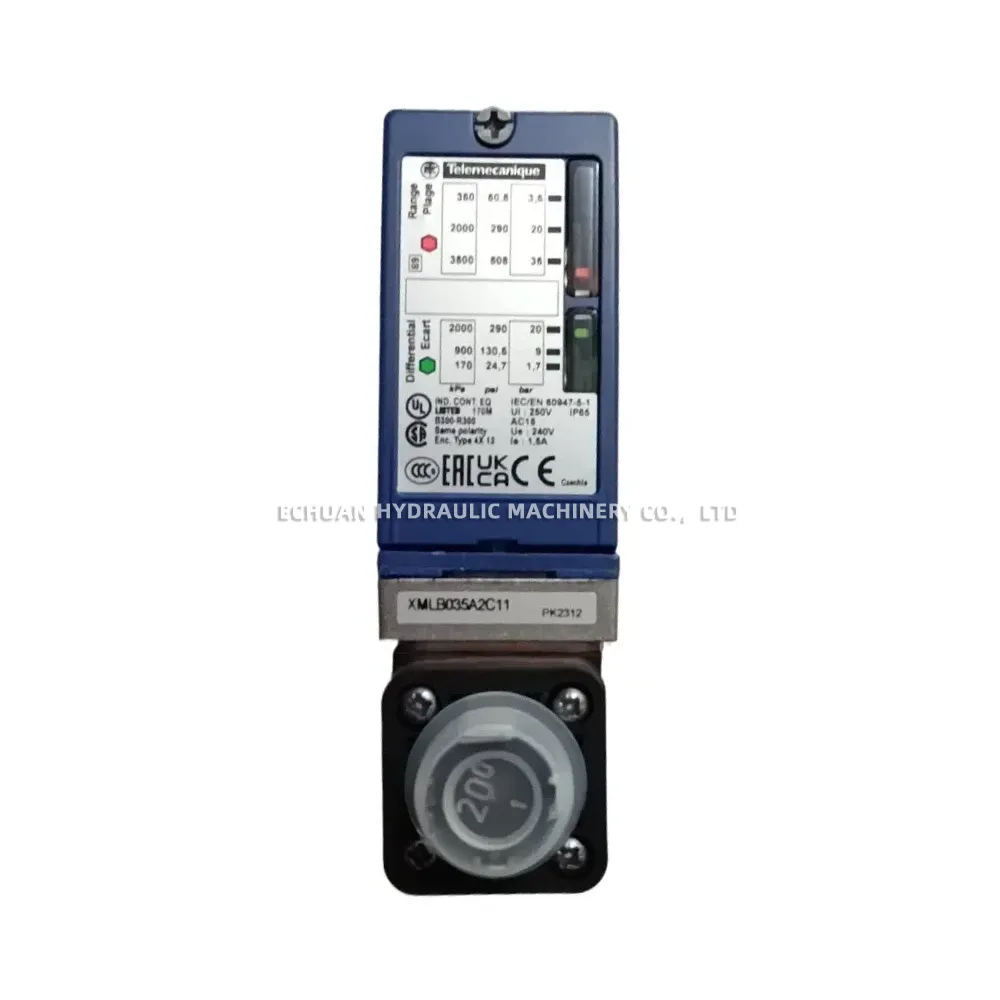

Telemecanique XMLB035A2C11 Pressure Switch
The Telemecanique OsiSense XMLB035A2C11 is an electromechanical pressure switch designed for reliable pressure control in hydraulic and pneumatic systems. It features an adjustable differential for regulating between two thresholds, making it ideal for applications involving air, fresh water, and hydraulic oils. Built with a durable zinc alloy body and a nitrile diaphragm, this switch ensures long-lasting performance in demanding industrial environments. Its robust IP65 and NEMA 4X/12 rated enclosure provides excellent protection against dust and water ingress, ensuring dependable operation.
Technical Specifications:
- Model: XMLB035A2C11
- Pressure Setting Range: 2.4 to 35 bar (35 to 508 psi)
- Adjustable Differential Range: 1.7 to 20 bar (24.7 to 290 psi)
- Fluid Connection Type: G 1/4 (female) conforming to ISO 228
- Electrical Connection: Screw-clamp terminals, 1 entry tapped for Pg 13.5 cable gland
- Contacts Type: 1 C/O (SPDT), snap action
- Electrical Rating (AC-15): 1.5 A at 240 V
- IP Protection Rating: IP65 conforming to EN/IEC 60529
- Enclosure Type: NEMA 4X, 12
- Standards: EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14
Telemecanique XMLB035A2C11 Pressure Switch
Order the Telemecanique XMLB035A2C11, a robust electromechanical pressure switch with an adjustable range up to 35 bar (508 psi). Features a G 1/4 fluid connection, IP65 rating, and SPDT snap action contacts for reliable industrial pressure control.
| Brand | Telemecanique |
|---|---|
| Model | XMLB035A2C11 |
| Part No. | 953909328707 |
| Category | Hydraulic parts |
