Product Description

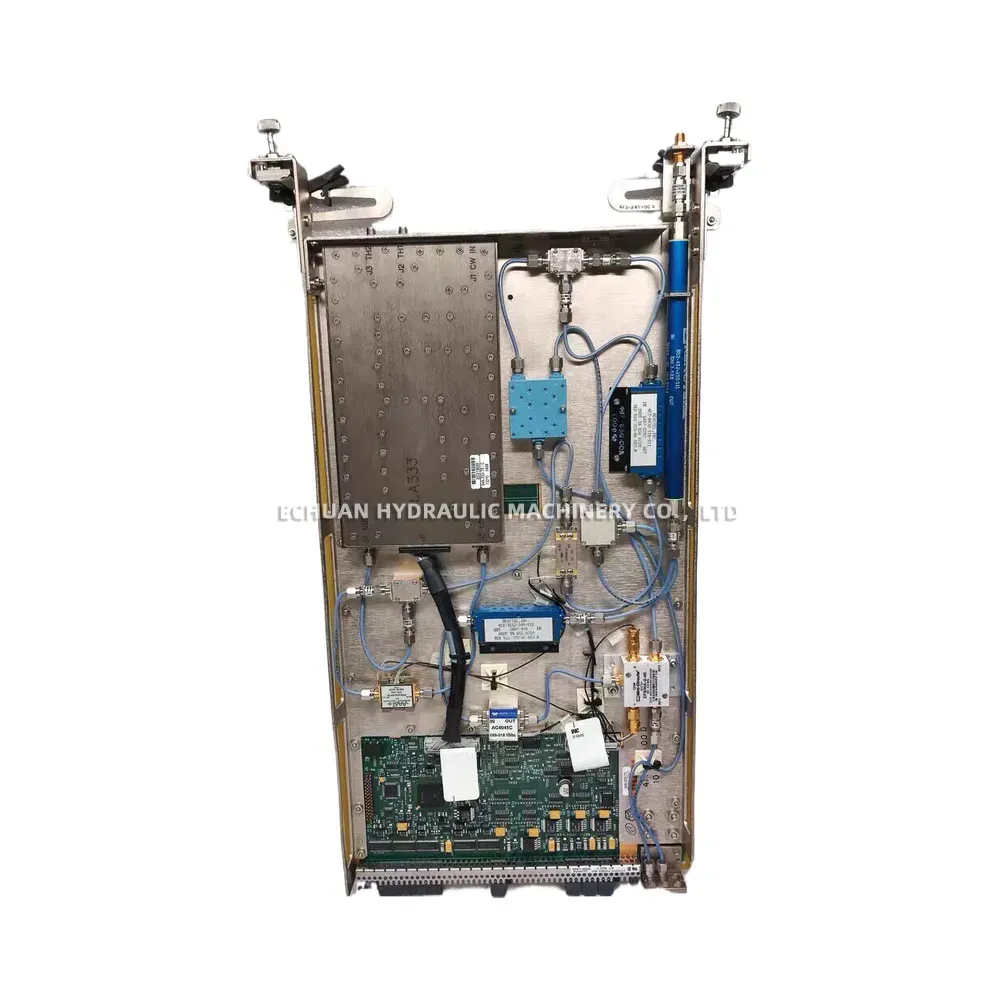

Teradyne 956-025-7B Microwave Final Converter Module
The Teradyne 956-025-7B is a high-performance Microwave Final Converter Module designed specifically for modulated source applications in advanced RF and microwave testing systems. Engineered for precision and reliability, this robust module supports a wide dual-frequency range, delivering 60-8700 MHz for modulated outputs and 50-6000 MHz for continuous wave (CW) outputs and inputs. It features clearly designated interface ports, including J1 and J2 for outputs, J3 for CW input, and J4 for a dedicated 450 MHz modulated input. Manufactured in the USA and equipped with the high-quality MX205 REVB internal PCB, this Teradyne converter module is an essential component for ensuring accurate signal modulation and conversion in professional industrial environments.
Technical Specifications:
- Brand: Teradyne
- Model: 956-025-7B
- Modulated Output Frequency Range: 60-8700 MHz
- CW Output & Input Frequency Range: 50-6000 MHz
- Modulated Input Frequency: 450 MHz

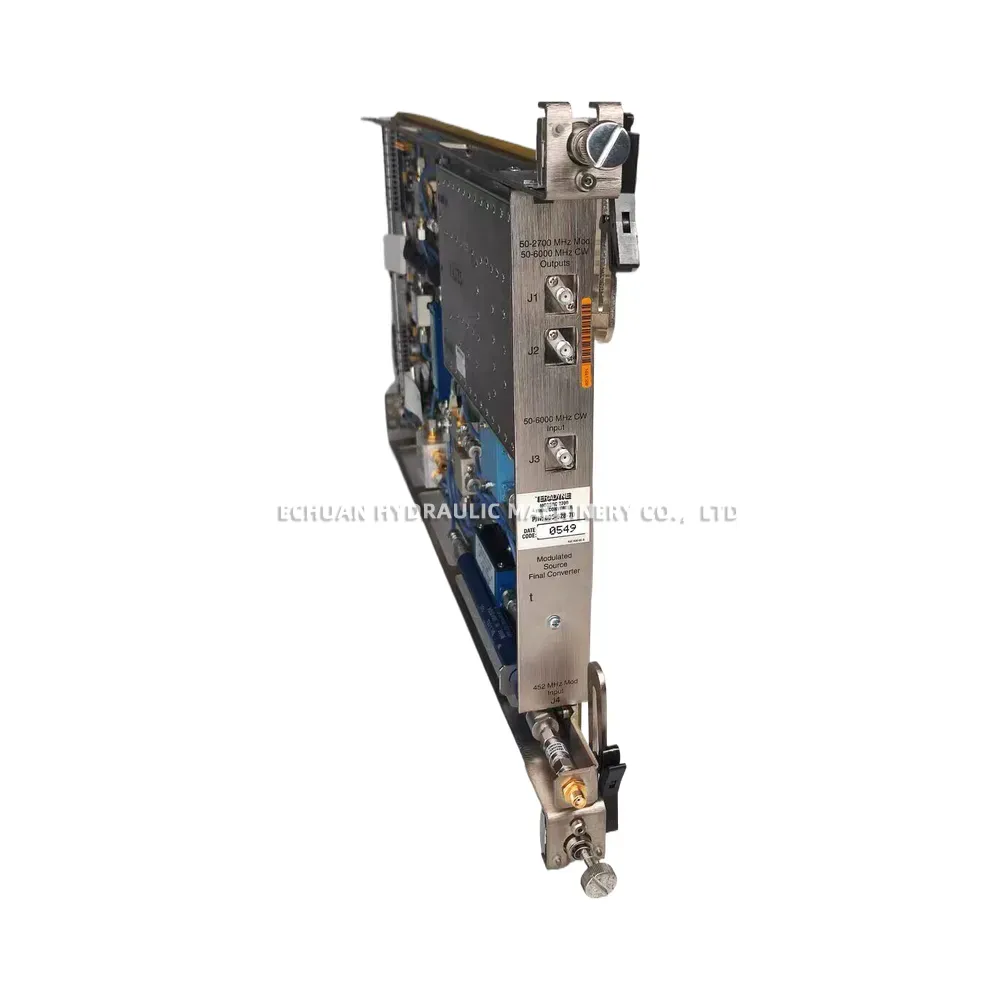

- Interface Ports: J1 & J2 (Outputs), J3 (CW Input), J4 (Mod Input)

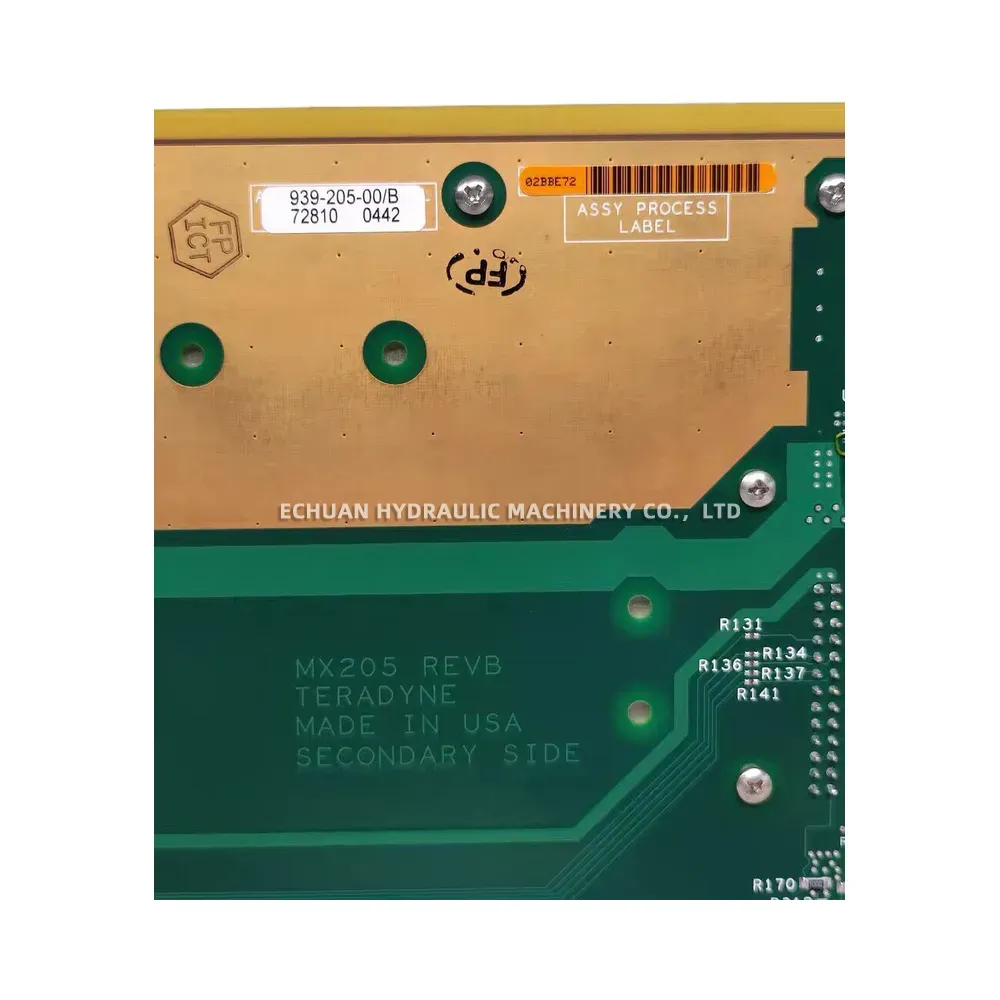

- Internal PCB Model: MX205 REVB
- Country of Origin: Made in USA
Teradyne 956-025-7B Microwave Final Converter Module
Optimize your RF testing capabilities with the Teradyne 956-025-7B Microwave Final Converter Module. This genuine USA-made component features 60-8700 MHz modulated and 50-6000 MHz CW frequency ranges, providing highly accurate signal conversion and reliability for professional microwave testing systems.
| Brand | Teradyne |
|---|---|
| Model | 956-025-7B |
| Part No. | 1009609001919 |
| Category | Electrical |
