Product Description
TERASAKI 93.0.962 Extended Alarm Panel
The TERASAKI 93.0.962 Extended Alarm Panel is a highly reliable, panel-mounted marine alarm monitoring system engineered to ensure optimal safety and operational awareness on board. Equipped with a clear monochrome LCD display and a heavy-duty membrane keypad, this unit provides instant visibility and control over critical vessel systems. The intuitive interface features dedicated indicator keys for essential functions such as ECR CALL, M/E SHUT DOWN, M/E SLOW DOWN, FIRE ALARM, and DEADMAN, along with standard acknowledgment and system control buttons. Built for the demanding marine environment, the 93.0.962 model offers versatile connectivity, including a 12-way plug-in terminal block supporting 24Vdc and RS485, four RJ45 network ports, a DB9 I/O-BUS, and USB Type-B interfaces, making it an ideal choice for Wheel House and Engine Control Room (ECR) installations.
Technical Specifications:
- Brand: TERASAKI
- Model/Part Number: 93.0.962 (Revisions CAH / C2AH)
- Display Type: Monochrome LCD

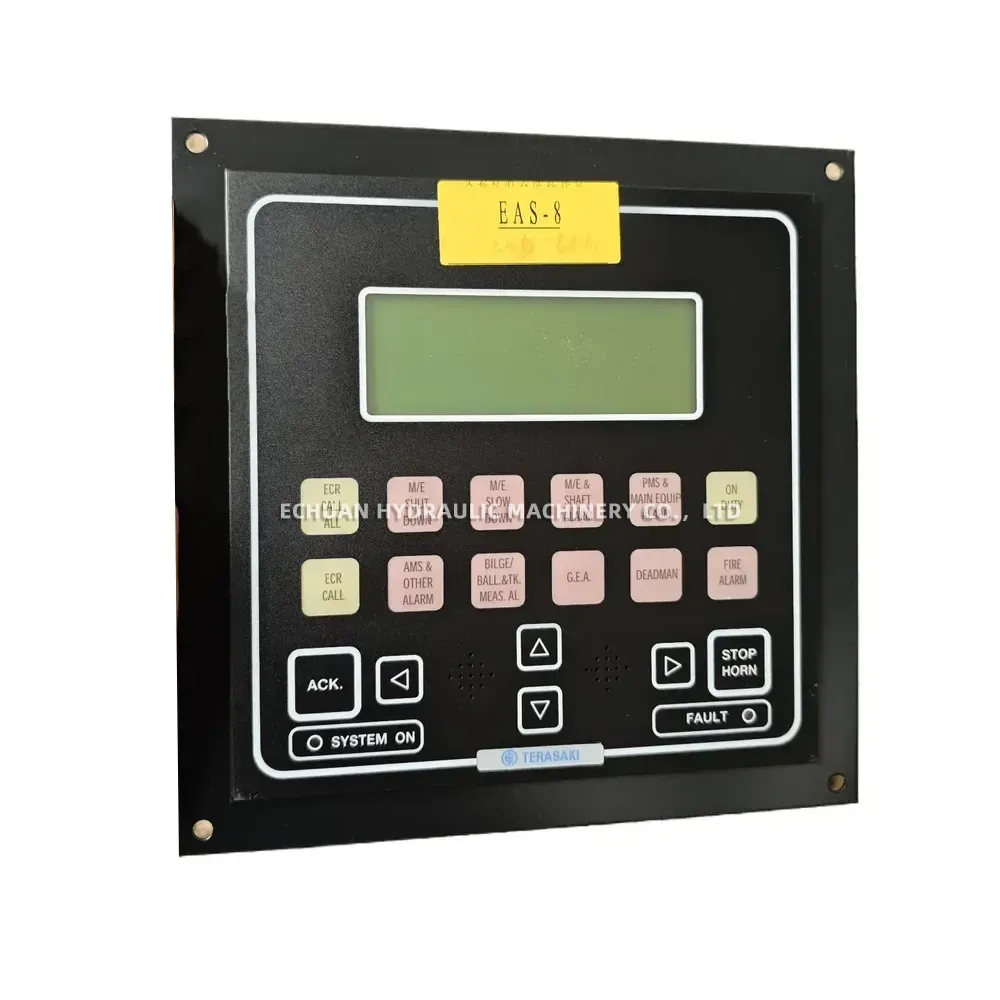

- Control Interface: Membrane keypad with dedicated marine indicator keys, function keys (ACK., SYSTEM ON, STOP HORN, FAULT), and 4 cursor keys
- Power Supply: 24Vdc

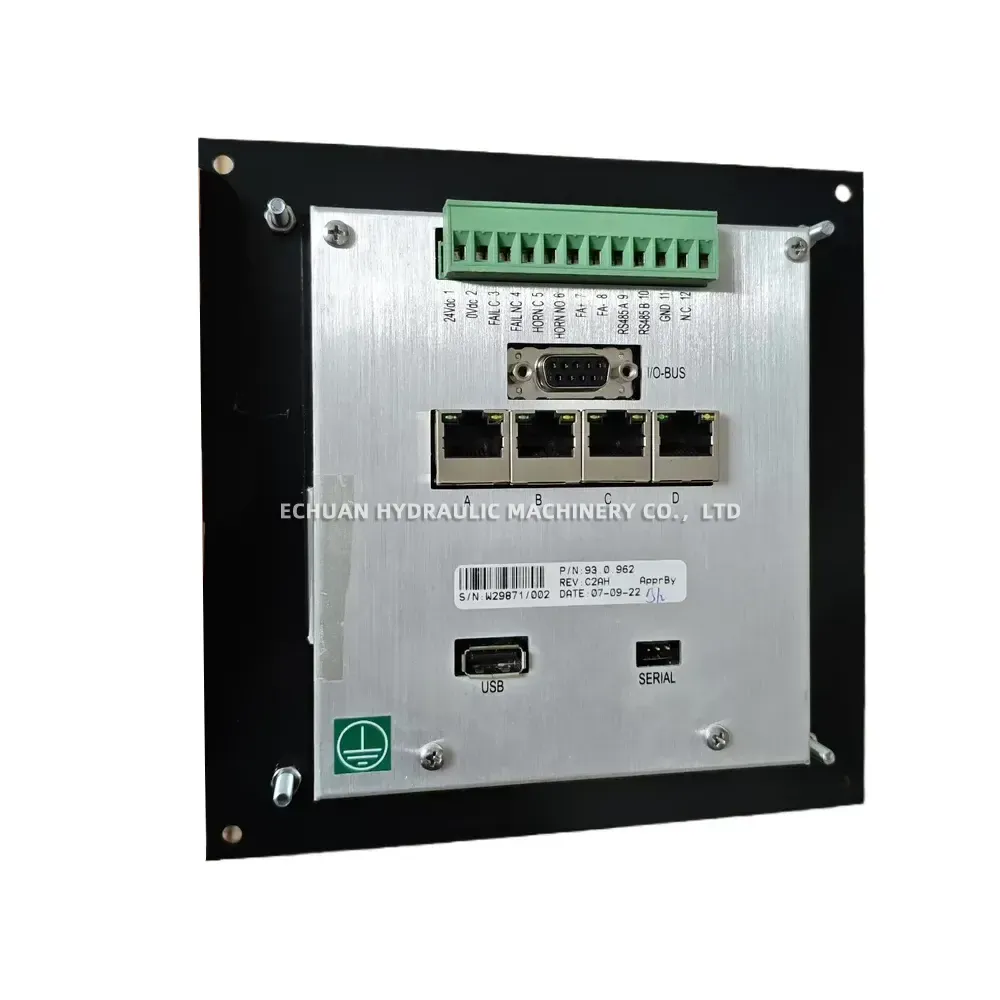

- Terminal Connections: 12-way plug-in terminal block (24Vdc, 0Vdc, FAIL C., FAIL NC., HORN C., HORN N/O, FA+, FA-, RS485 A, RS485 B, GND, N.C.)

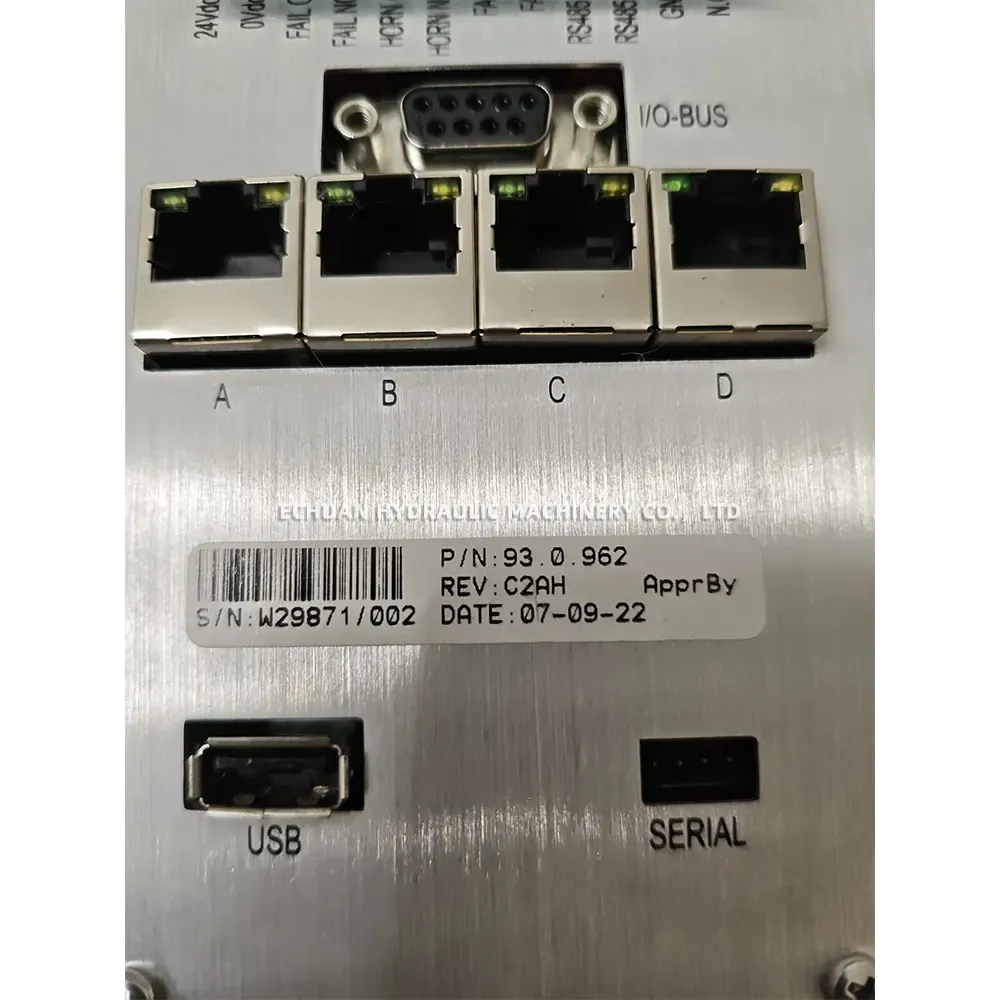

- Communication Ports: 1x DB9 I/O-BUS, 4x RJ45 network ports (A-D), 1x USB Type-B, 1x SERIAL port
- Mounting Type: Panel-mount

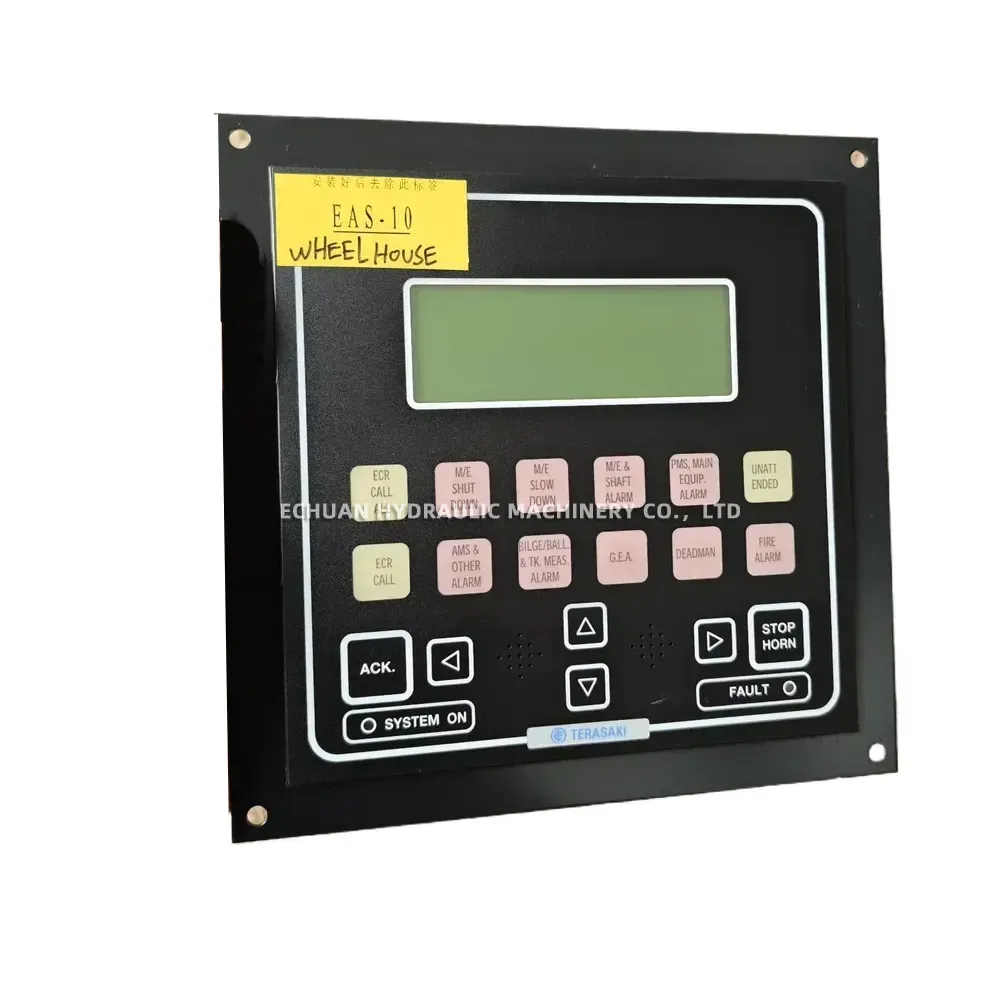

- Application Tags: EAS-8, EAS-10 (Wheel House)

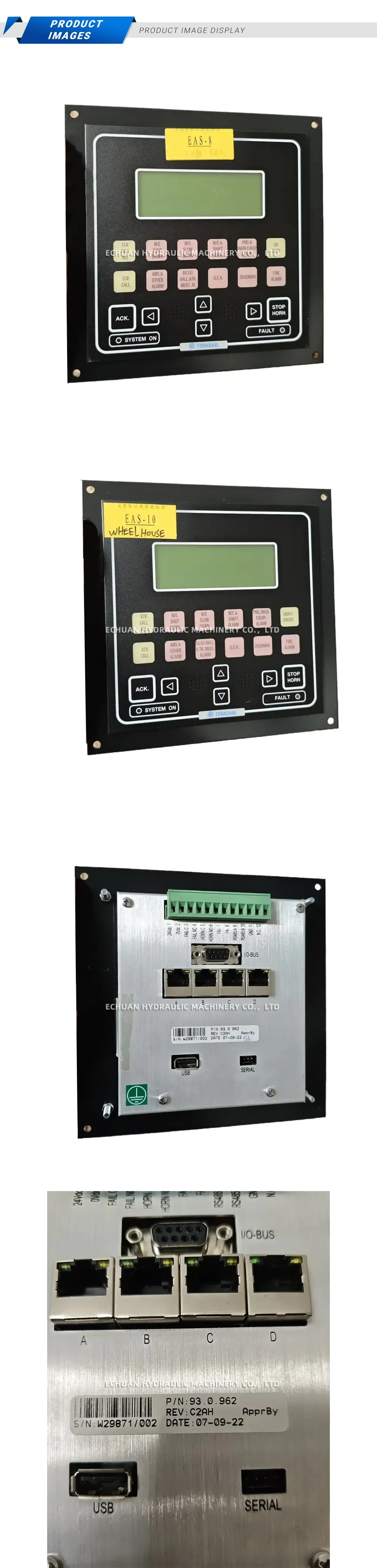

TERASAKI 93.0.962 Extended Alarm Panel (Marine Alarm Monitoring Panel)
Upgrade your vessel’s safety with the TERASAKI 93.0.962 Extended Alarm Panel. This robust, panel-mount marine monitoring system features a monochrome LCD, a comprehensive membrane keypad for critical vessel alarms, and extensive connectivity including RJ45, RS485, and USB ports. Ideal for Wheel House installations requiring reliable 24Vdc operation.
| Brand | TERASAKI |
|---|---|
| Model | 93.0.962 |
| Part No. | 939846005399 |
| Category | Electrical |
