Product Description
THINICON GM6641-00 Genset Controller

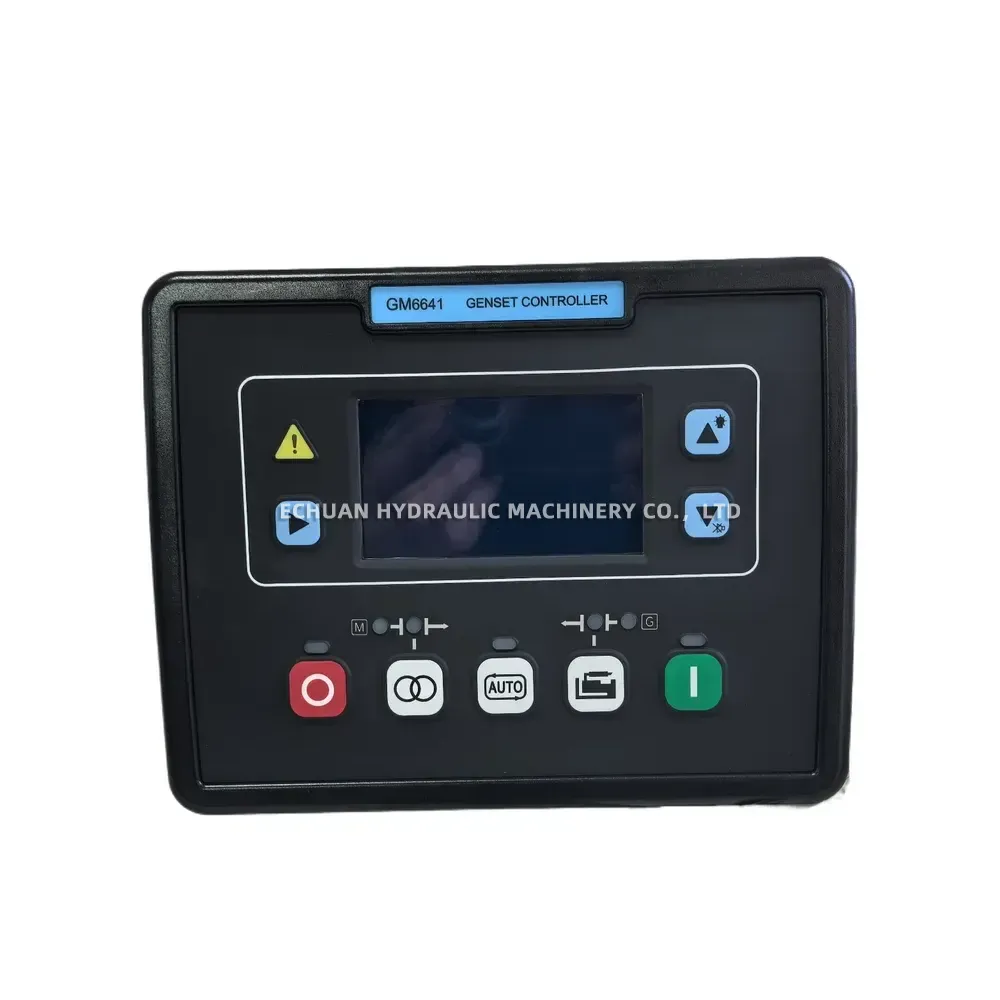

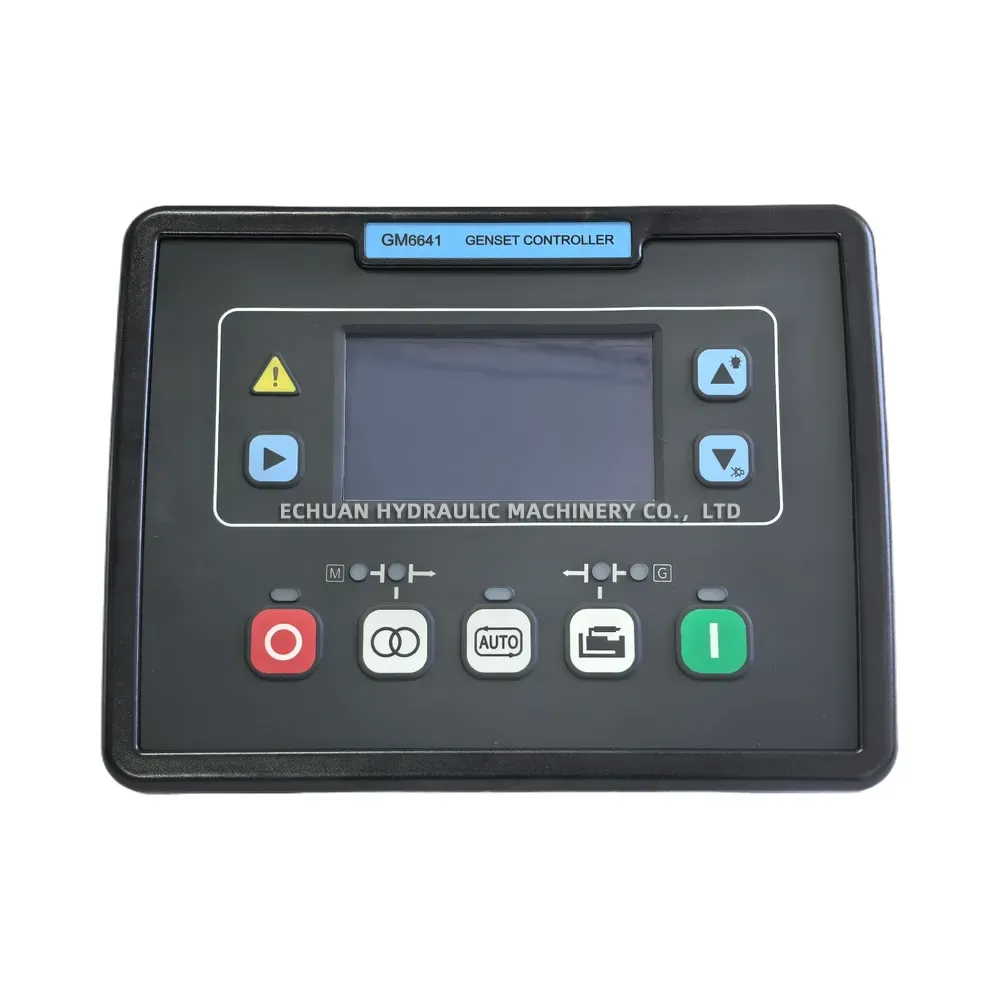

The THINICON GM6641-00 is a highly reliable digital genset controller engineered for comprehensive generator management and monitoring. It features a clear, easy-to-read LCD display alongside intuitive control buttons—including Stop, Manual, Auto, and Start—ensuring seamless on-site operation. Built for modern industrial versatility, this controller is equipped with multiple communication interfaces such as CAN, RS485, RS232, and USB, facilitating effortless system integration and remote monitoring. With a robust maximum measurement voltage of 600V AC and a current capacity of 5A AC, it provides precise, real-time power tracking. The unit also includes dedicated terminal blocks for mains volts, current sensing, configurable inputs/outputs, and MPU sensor connections, making it an ideal and secure choice for advanced generator control systems.
Technical Specifications:
- Brand: THINICON
- Model: GM6641-00 (Part No: 212001, Version: A)
- Maximum Measurement Voltage (Umess.max): 600V AC
- Maximum Measurement Current (Imess.max): 5A AC
- Auxiliary Power Supply (Uaux): 12/24V DC
- Auxiliary Current (Iaux): 0.35A / 0.18A
- Communication Interfaces: CAN, RS485, RS232, USB
- Display & Controls: Digital LCD display with Stop, Manual, Auto, and Start buttons

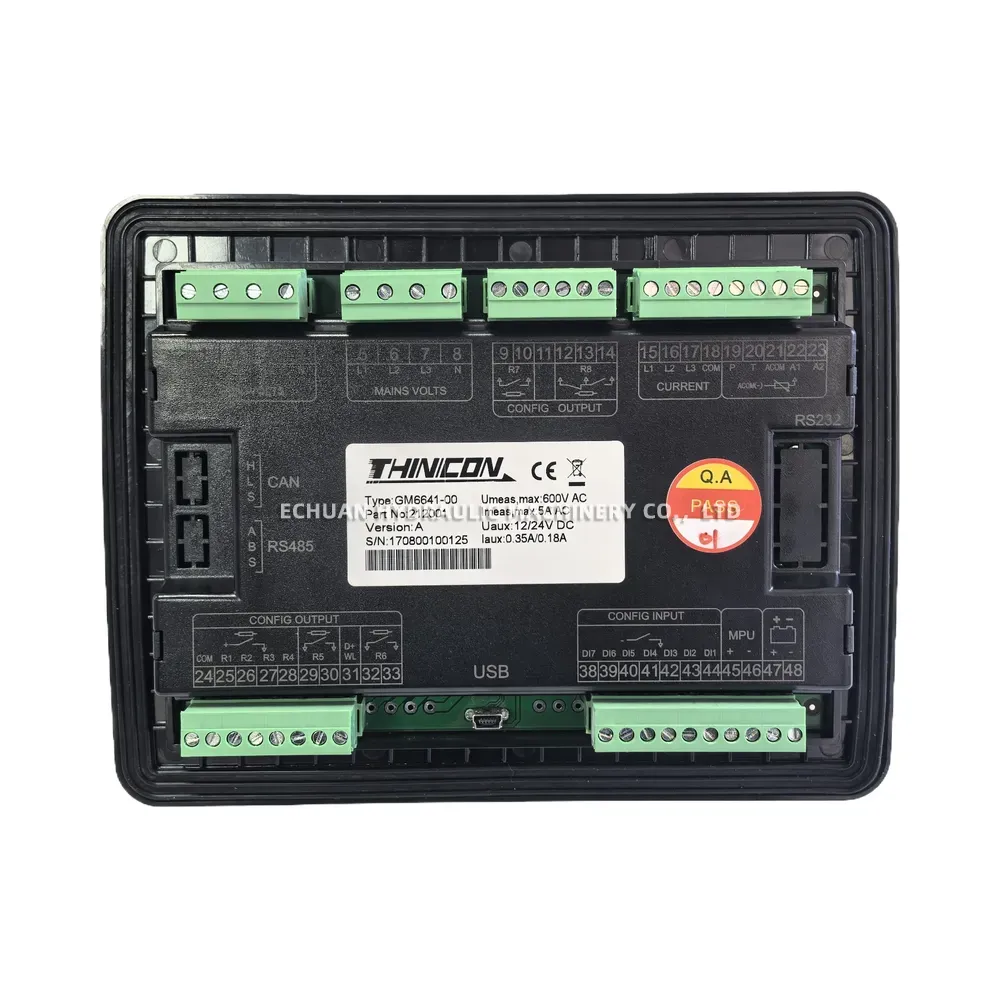

- Terminal Connections: Mains volts, current sensing, configuration I/O, and MPU sensor
- Certifications: CE Type, Q.A PASS
THINICON GM6641-00 Genset Controller
Optimize your power management with the THINICON GM6641-00 Genset Controller. Featuring a digital LCD display, versatile CAN/RS485/RS232/USB communication ports, and robust 600V AC / 5A AC measurement capabilities, this 12/24V DC controller delivers precise, automated monitoring and reliable performance for industrial generator sets.
