Product Description

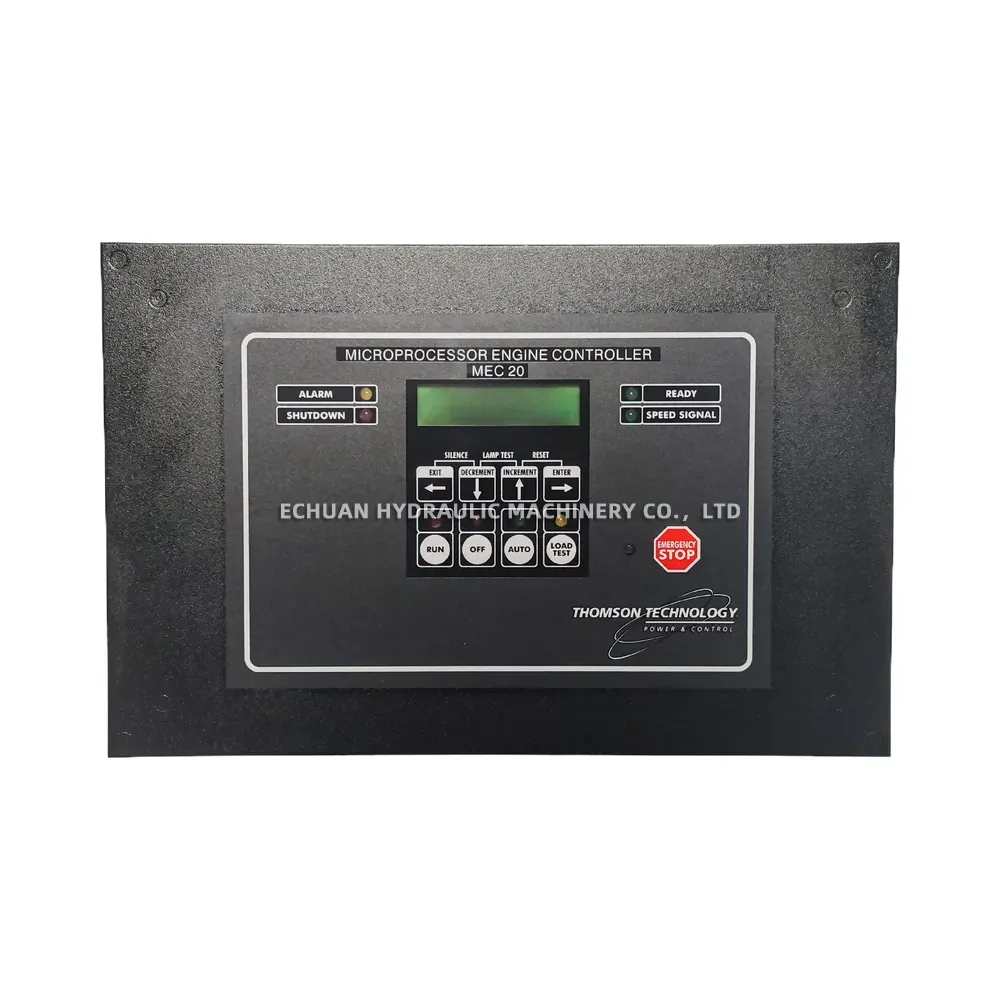

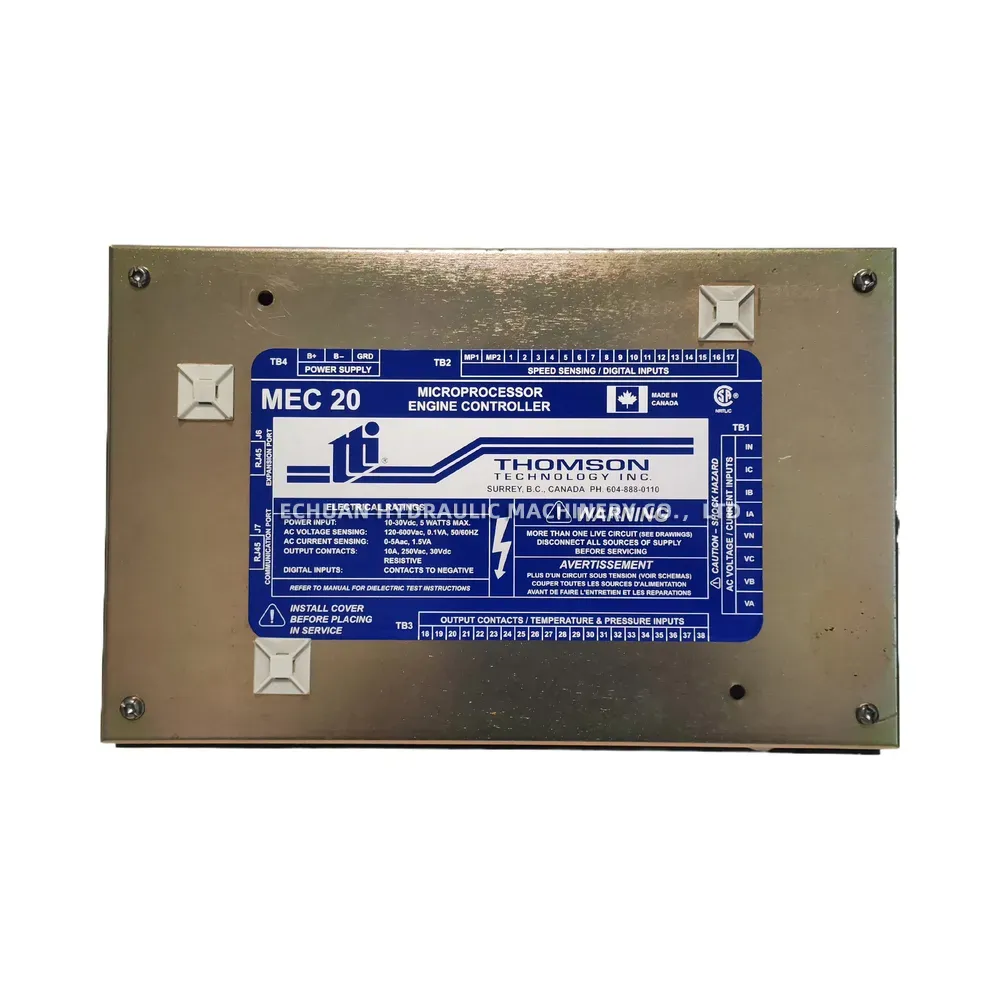

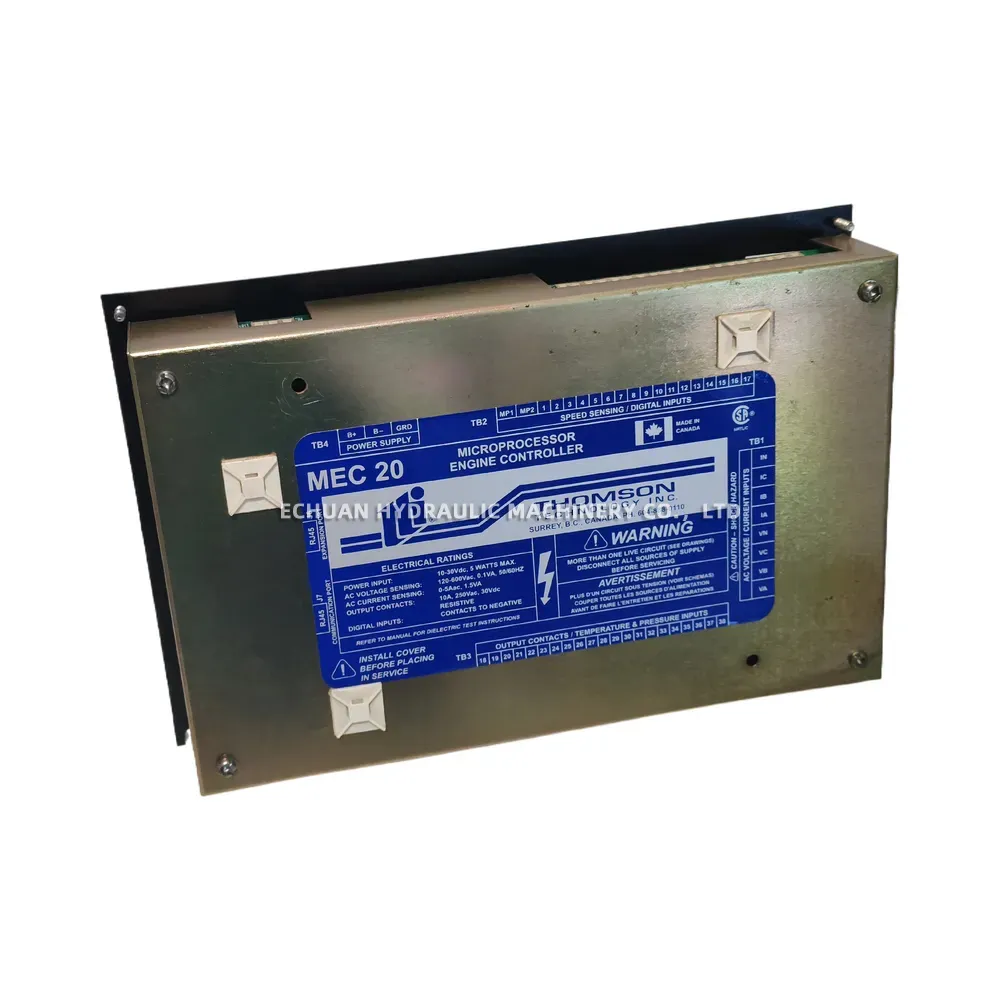

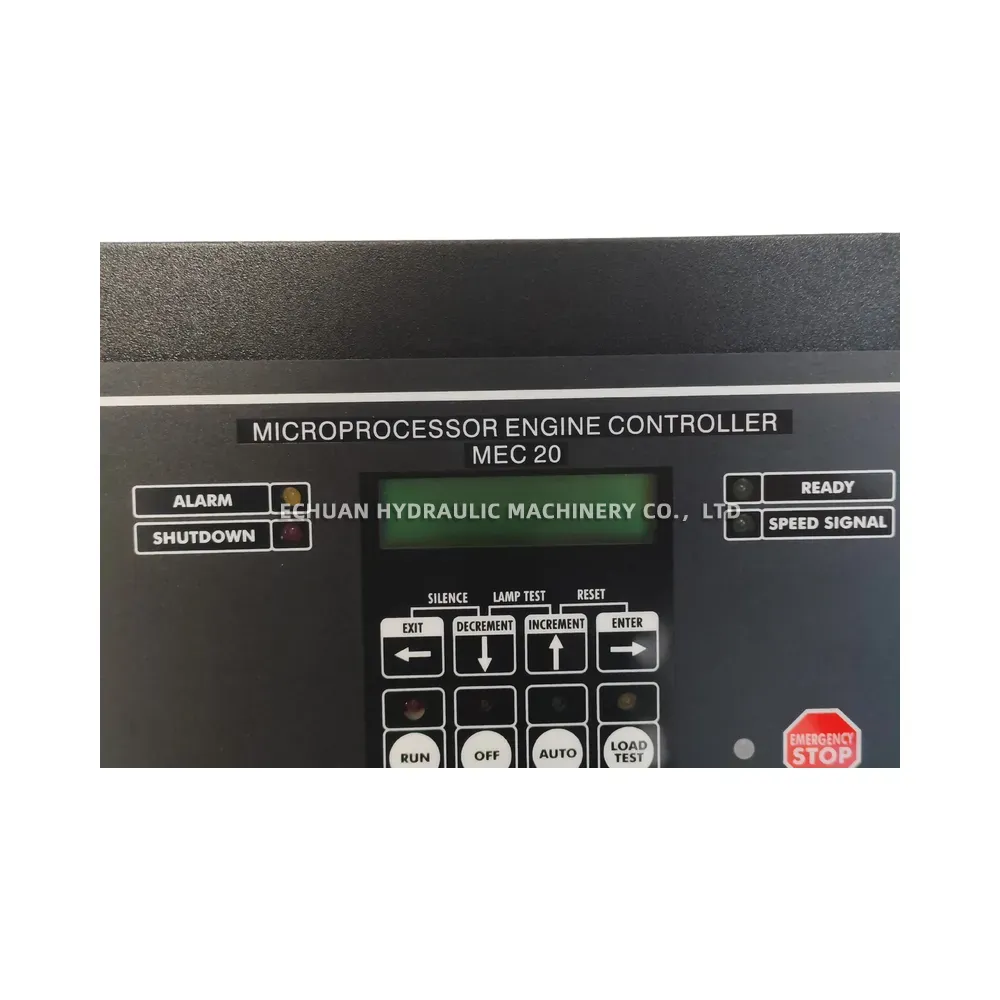

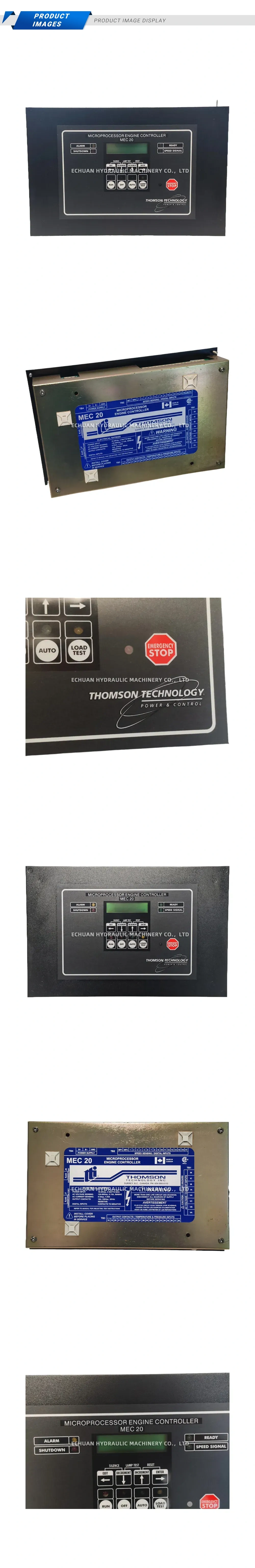

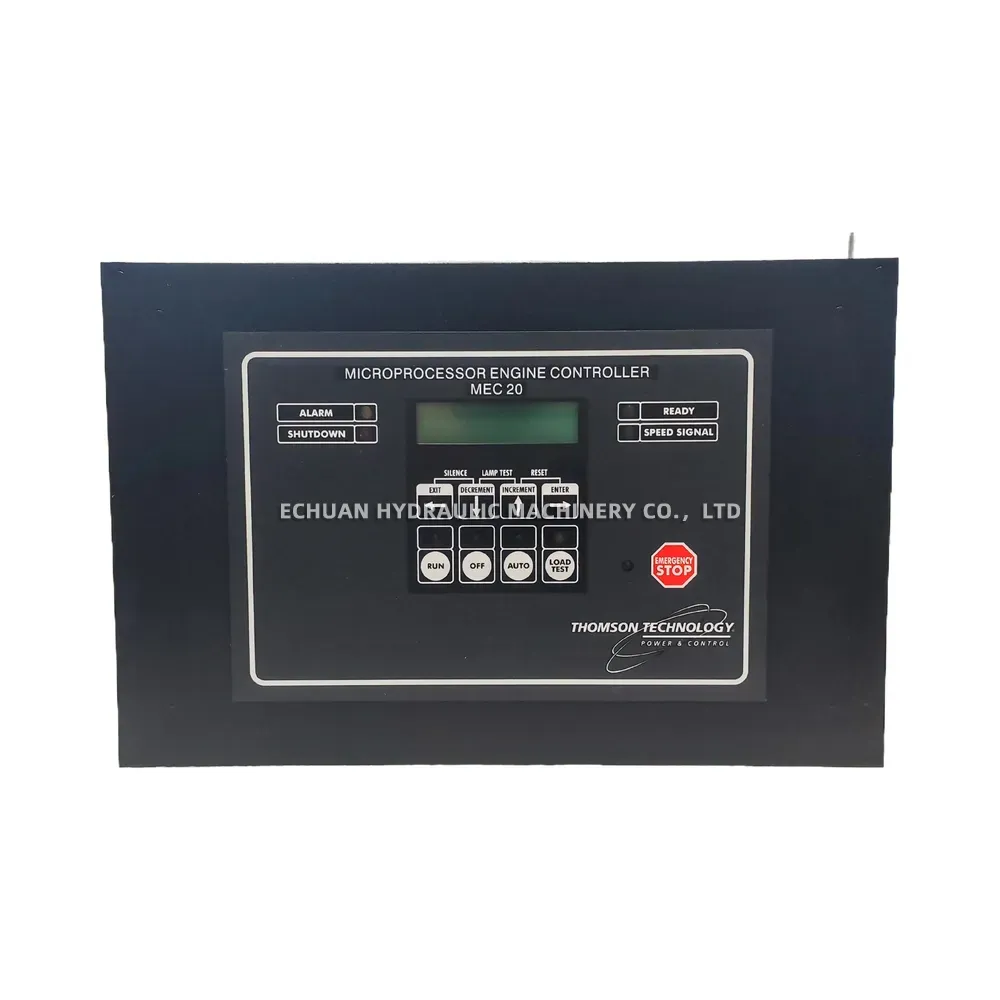

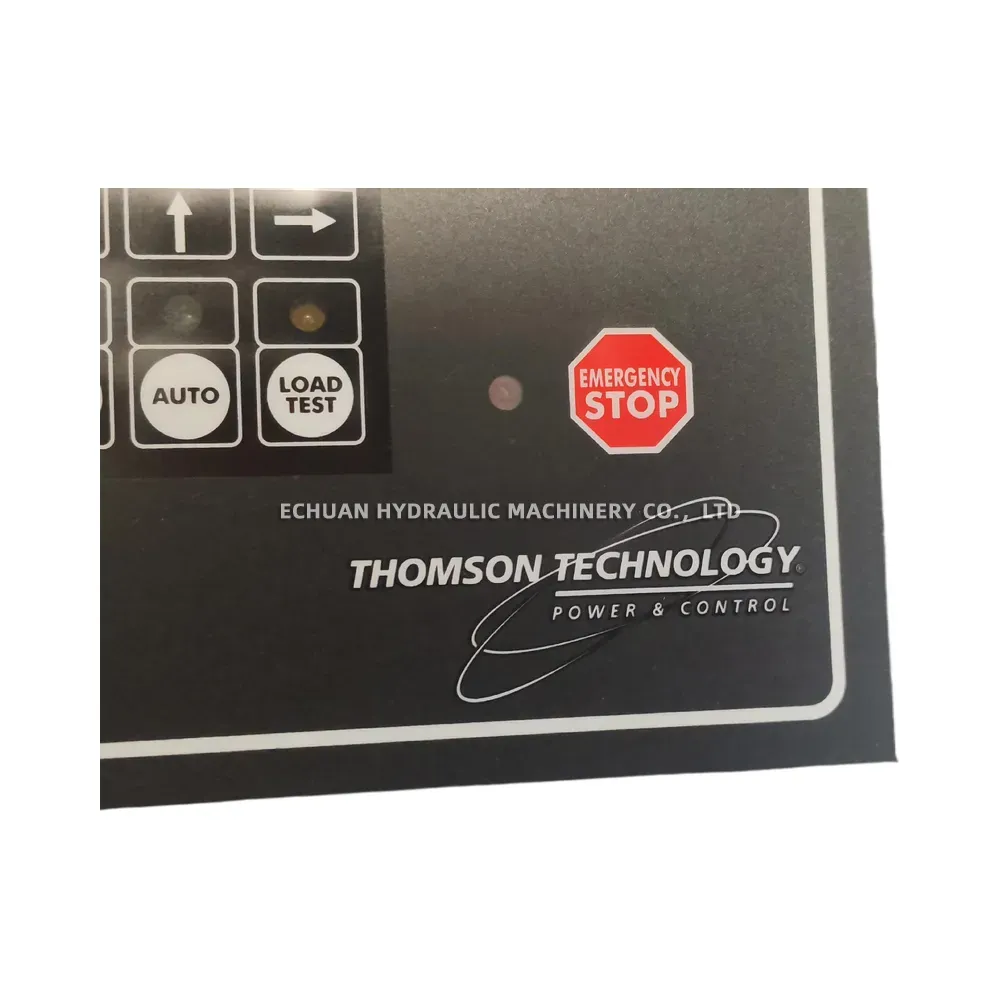

Thomson Technology MEC 20 Microprocessor Engine Controller
The Thomson Technology MEC 20 is a highly reliable, microprocessor-based engine controller engineered for advanced power generation and control applications. Manufactured in Canada, this robust controller features a user-friendly digital display and an intuitive keypad interface equipped with Run, Off, Auto, and Load Test functions. It provides clear operational visibility through dedicated status indicators for Alarm, Shutdown, Ready, and Speed Signal. Equipped with versatile terminal blocks for speed sensing, digital inputs, output contacts, and temperature/pressure monitoring, the MEC 20 ensures seamless integration and precise management of your industrial engine and generator systems.
Technical Specifications:
- Brand: Thomson Technology
- Model: MEC 20
- Power Input: 10-30Vdc, 5 Watts Max.
- AC Voltage Sensing: 120-600Vac, 0.1VA, 50/60Hz
- AC Current Sensing: 0-5Aac, 1.5VA
- Output Contacts: 10A, 250Vac, 30Vdc Resistive
- Digital Inputs: Contacts to Negative
- Interface Features: Digital display, Run/Off/Auto/Load Test keypad, Alarm/Shutdown indicators
- Country of Origin: Made in Canada
Thomson Technology MEC 20 Microprocessor Engine Controller
Optimize your generator and engine automation with the Thomson Technology MEC 20 Microprocessor Engine Controller. This Canadian-made unit features an intuitive digital display, comprehensive AC/DC sensing capabilities, and robust alarm/shutdown indicators for reliable, industrial-grade power system management.
| Brand | Thomson Technology |
|---|---|
| Model | MEC 20 |
| Part No. | 846805009450 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/thomson-technology-mec-20-microprocessor-engine-controller |
