Product Description

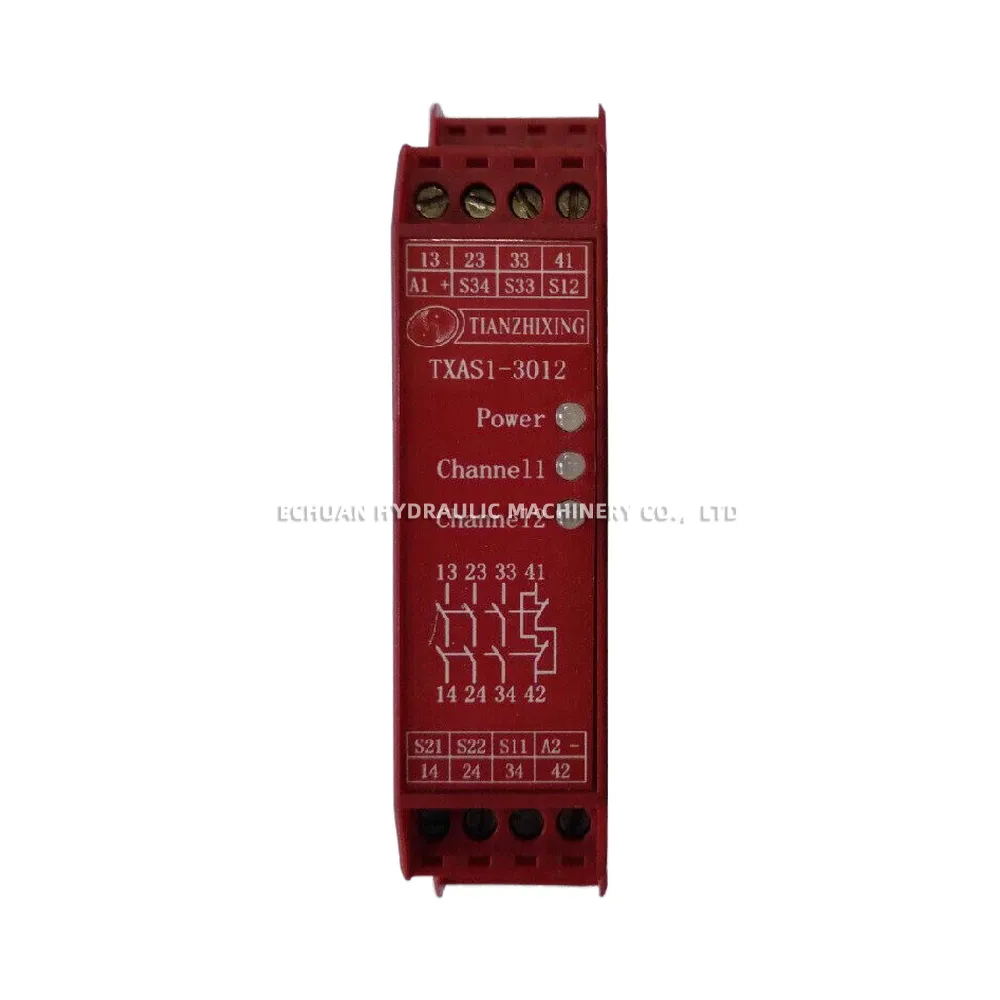

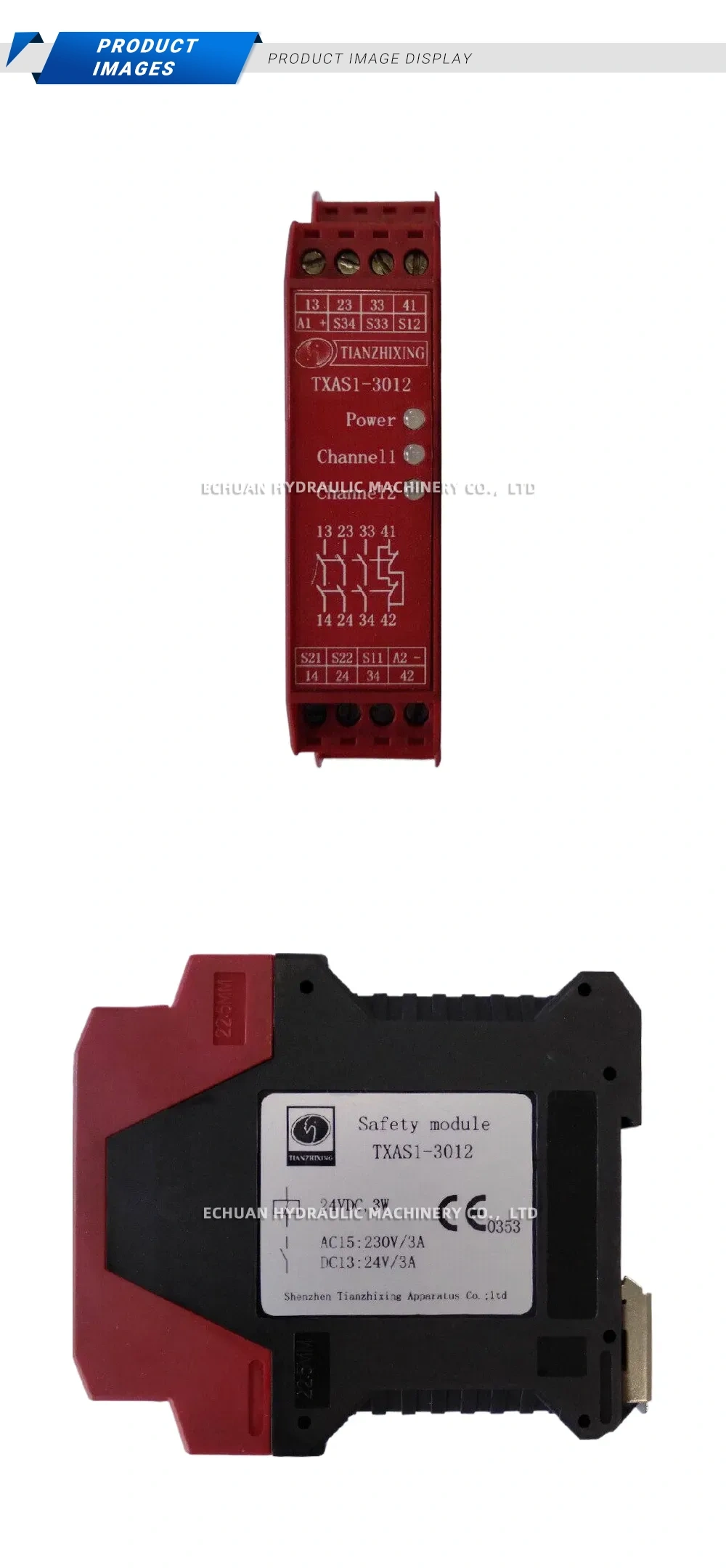

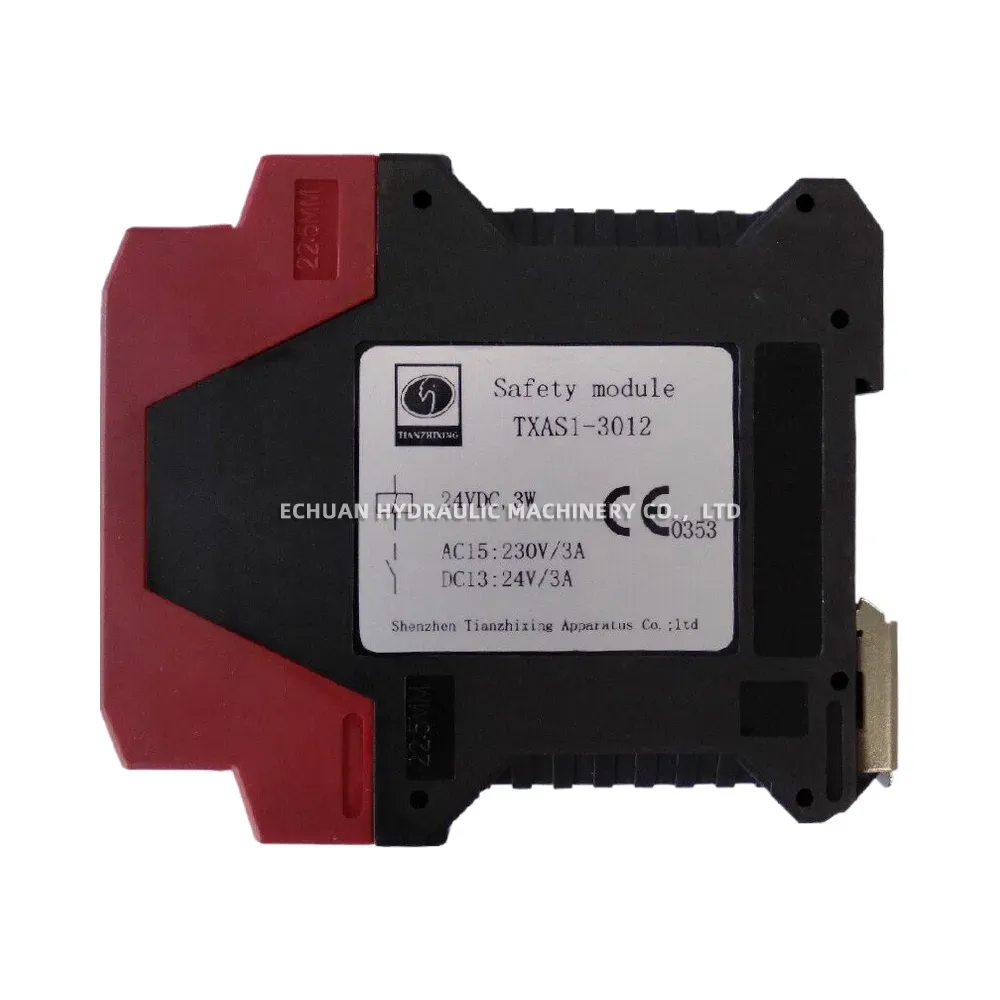

TIANZHIXING TXAS1-3012 Safety Module
The TIANZHIXING TXAS1-3012 is a highly reliable industrial safety relay module designed to ensure operational safety in demanding automation environments. Manufactured by Shenzhen Tianzhixing Apparatus Co., Ltd., this compact 22.5mm DIN rail mountable module features dual-channel monitoring with dedicated LED indicators for Power, Channel 1, and Channel 2. It operates on a 24VDC (3W) power supply and is equipped with comprehensive input terminals (S11, S12, S21, S22, S33, S34) and multiple safety output terminals (13/14, 23/24, 33/34, 41/42). With CE certification (0353) and robust load ratings of AC15: 230V/3A and DC13: 24V/3A, the TXAS1-3012 provides dependable machine guarding, light curtain monitoring, and emergency stop circuitry protection.
Technical Specifications:
- Brand: TIANZHIXING
- Model: TXAS1-3012
- Power Supply: 24VDC, 3W
- Load Rating: AC15: 230V/3A | DC13: 24V/3A
- Monitoring: Dual Channel (Channel 1, Channel 2) with LED indicators
- Output Terminals: 13/14, 23/24, 33/34, 41/42
- Input Terminals: S11, S12, S21, S22, S33, S34
- Mounting: 22.5mm width, DIN Rail Mountable
- Certification: CE 0353
TIANZHIXING TXAS1-3012 Safety Module
Shop the TIANZHIXING TXAS1-3012 Safety Module online. This 24VDC industrial safety relay features dual-channel monitoring, AC15/DC13 rated outputs, and a space-saving 22.5mm DIN rail design. CE certified for reliable machine guarding and emergency stop applications.
