Product Description

Toshiba YMM1557#A FPGA Circuit Board

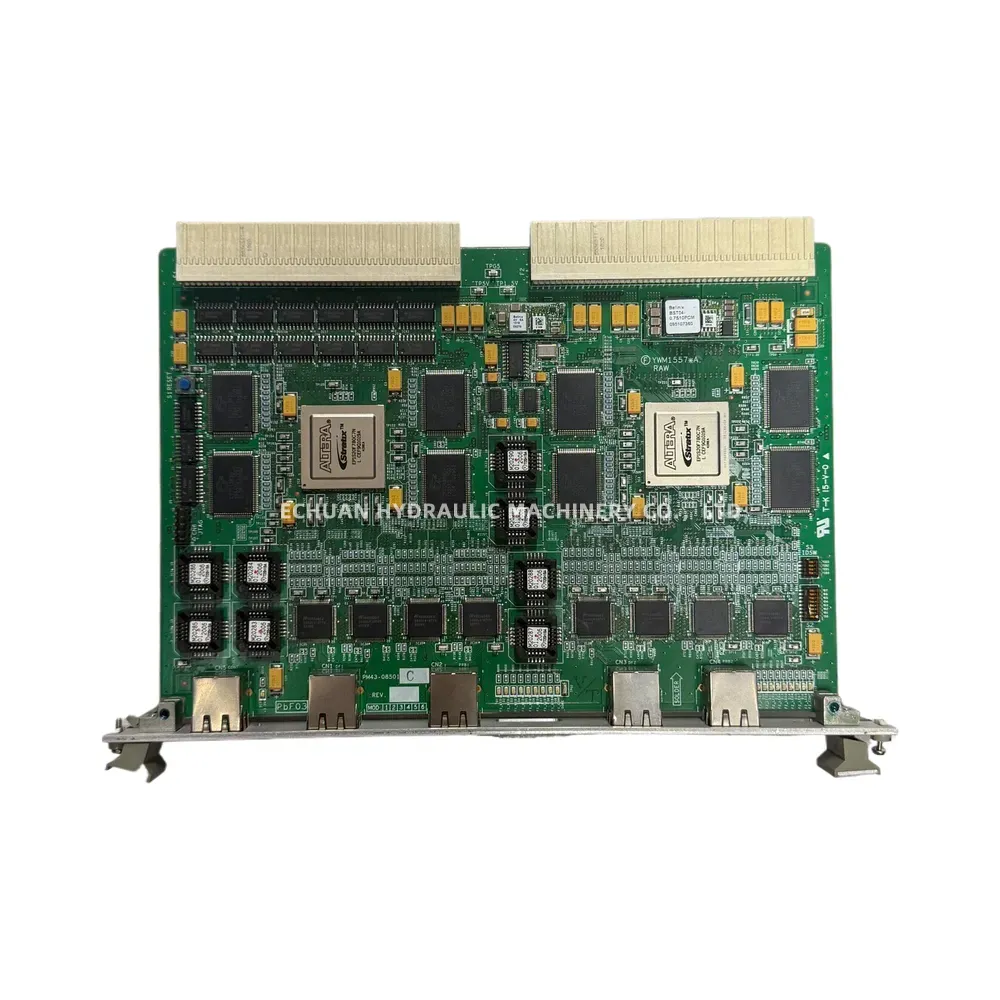

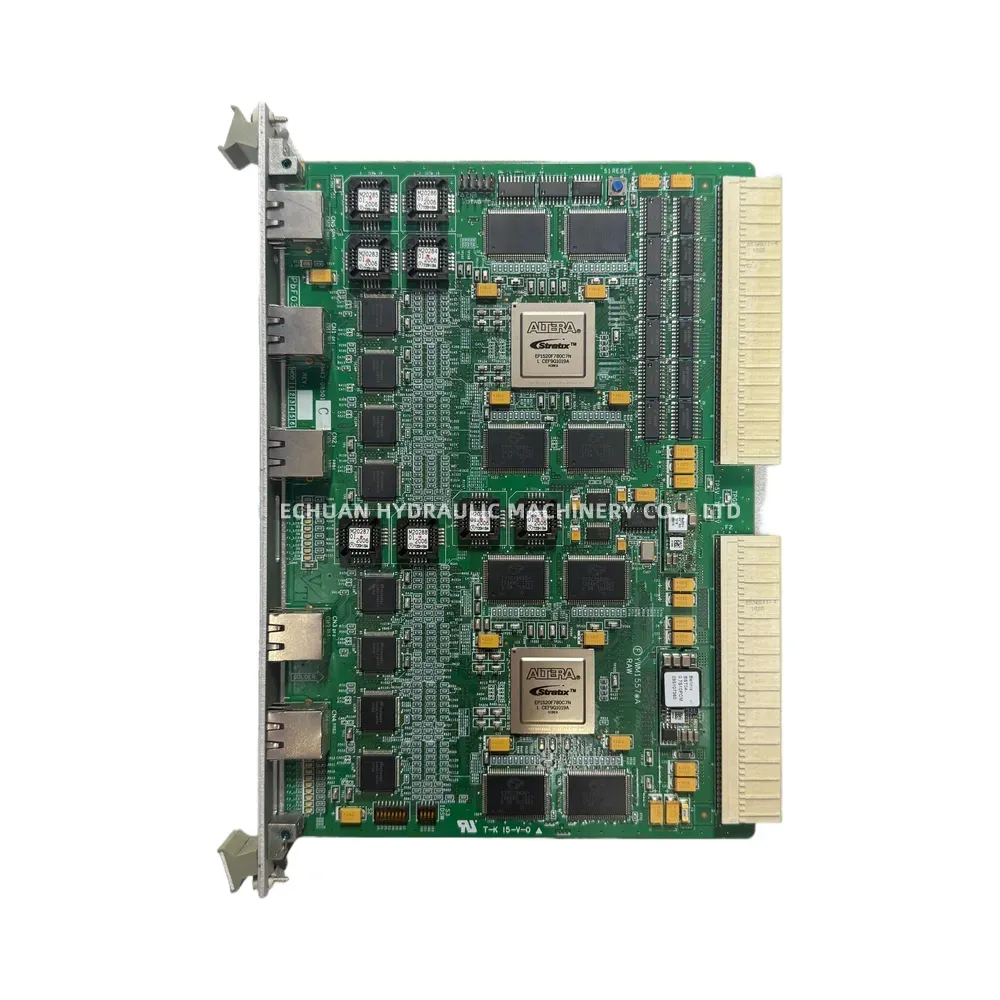

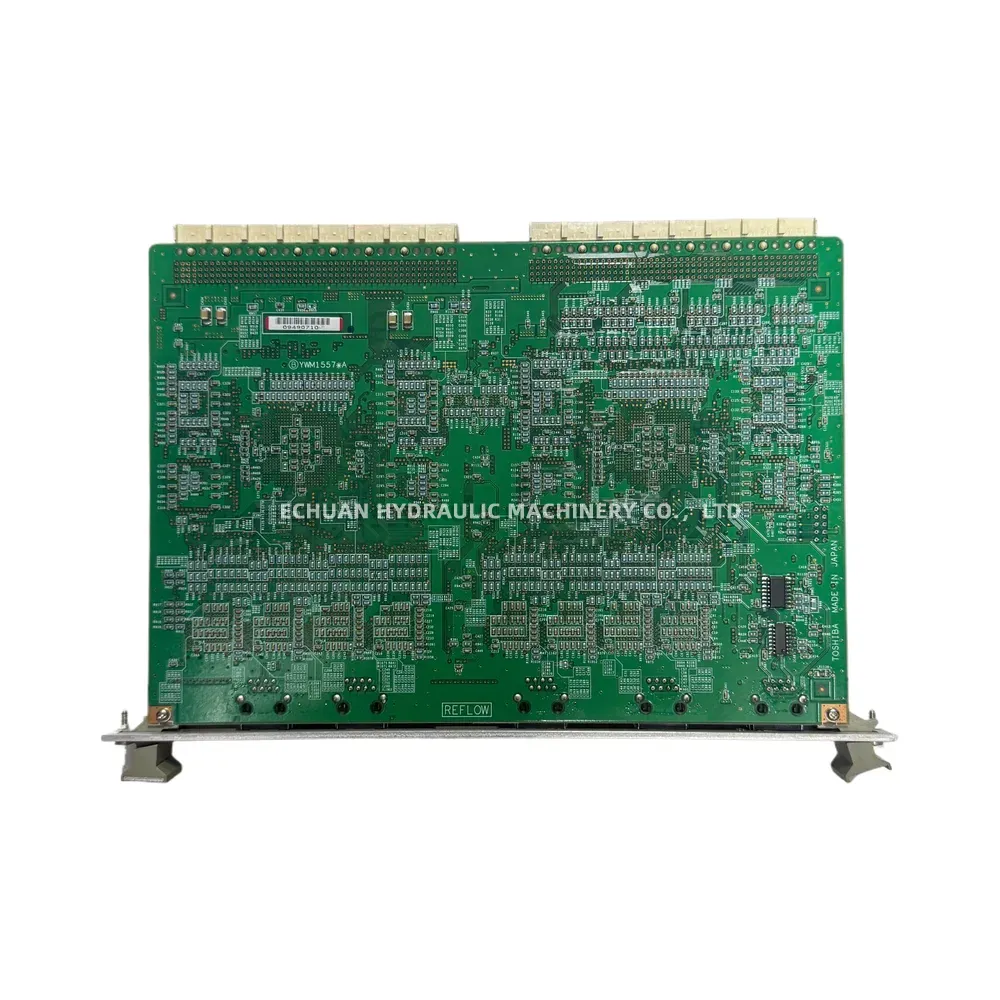

The Toshiba YMM1557#A is a high-performance industrial FPGA circuit board engineered for advanced data processing, telecommunications, and networking applications. Manufactured in Japan to exacting standards, this robust board is powered by an Altera Stratix EP1S20F780C7N FPGA chip and utilizes high-speed Cypress CY7C1383D-133AXC SRAM for reliable, low-latency operations. Designed for versatile industrial communication, it comes fully equipped with dual SFP cages (PR81, PR82) for fiber optic transceiver integration, alongside multiple RJ45 ports (D71, D72, COM1) for standard Ethernet and serial interfacing. Featuring premium T-K 15-V-0 PCB construction and onboard diagnostic LEDs (F1, F2), the YMM1557#A ensures dependable performance in demanding industrial automation environments.

Technical Specifications:

  • Brand / Manufacturer: Toshiba (Made in Japan)
  • Model Number: YMM1557#A (PCB Markings: YMM1557#A / T-K 15-V-0)

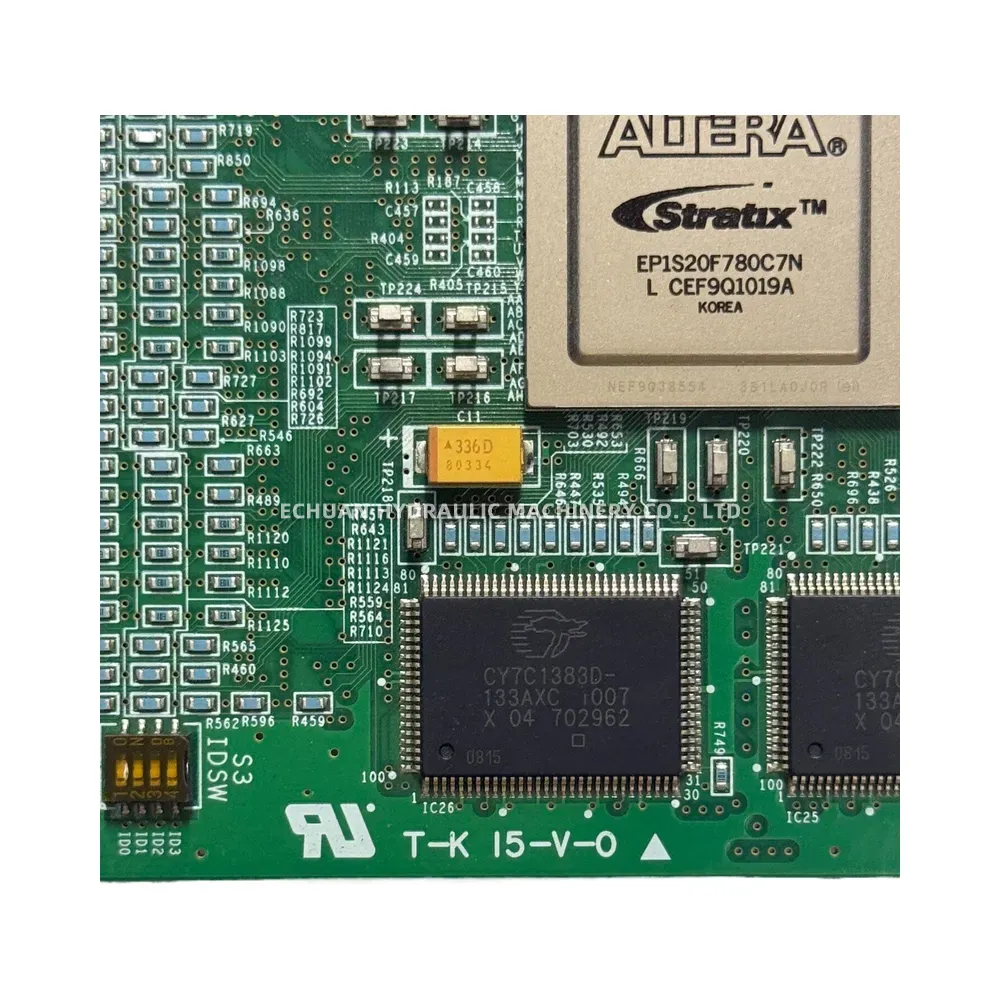

  • FPGA Chip: Altera Stratix EP1S20F780C7N
  • Onboard Memory: Cypress CY7C1383D-133AXC SRAM
  • Network Interfaces: 2x SFP Cages (PR81, PR82), 3x RJ45 Ports (D71, D72, COM1)
  • Additional Features: F1 & F2 Diagnostic LEDs, Reflow Soldering Standard

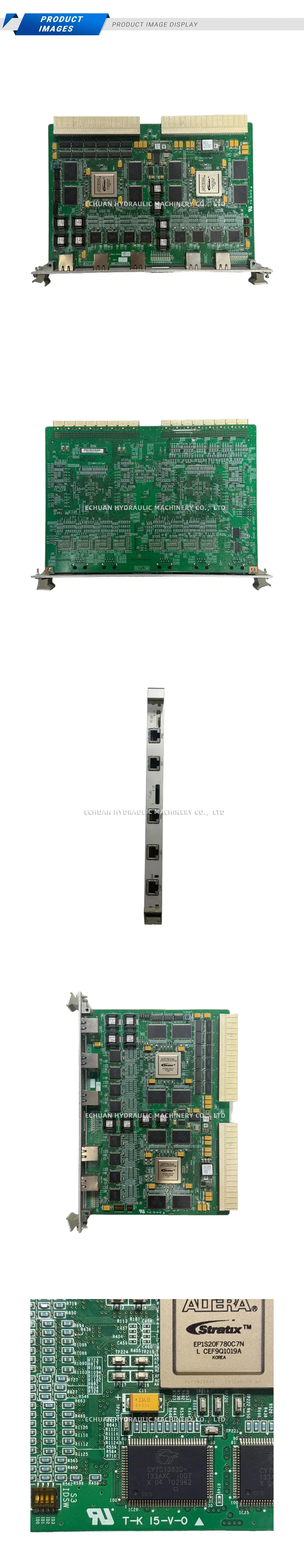

Toshiba YMM1557#A FPGA Circuit Board Description

Toshiba YMM1557#A FPGA Circuit Board

Genuine Toshiba YMM1557#A Industrial FPGA Circuit Board featuring an Altera Stratix EP1S20F780C7N processor, Cypress SRAM, dual SFP cages, and triple RJ45 ports. High-quality, Japanese-made replacement part optimized for industrial networking and telecom equipment.
