Product Description

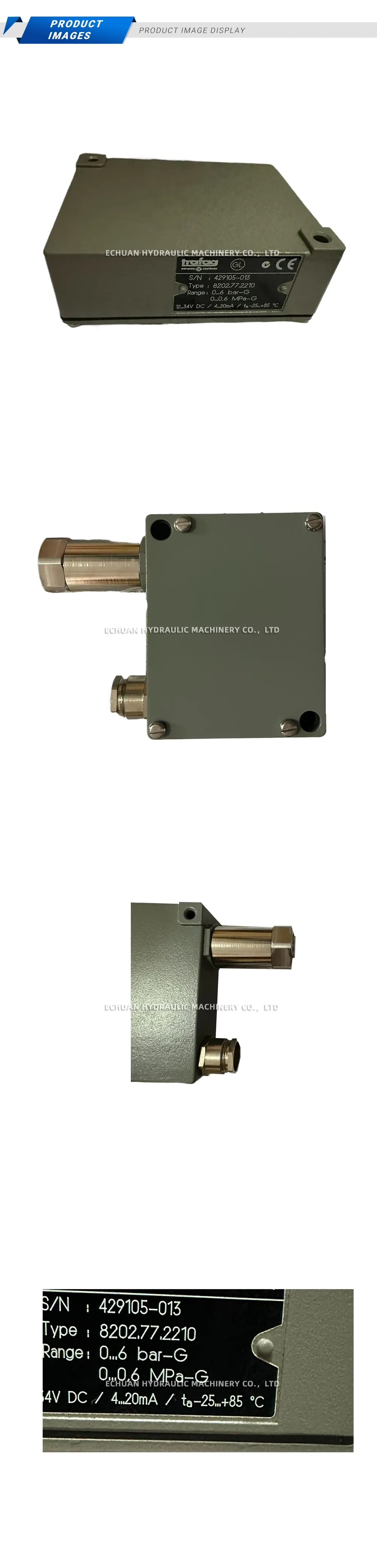

Trafag 8202.77.2210
The Trafag 8202.77.2210 is a robust and reliable mechanical pressure switch designed for monitoring and controlling pressure in demanding industrial environments. Featuring a bellows-based measuring system, it provides high vibration resistance and precise switch point accuracy. Its rugged, seawater-resistant die-cast aluminum housing ensures durability and long-term stability, making it ideal for applications in shipbuilding, engine manufacturing, process technology, and railway systems. The switch point is easily adjustable, offering flexibility for various control tasks.
Technical Specifications:
- Model: 8202.77.2210
- Type: Mechanical Pressure Switch
- Measuring Principle: Bellows
- Setting Range: -0.9 … 2 bar
- Process Connection: G1/4″ Female
- Electrical Connection: DIN EN 175301-803-A Connector (DIN Form A)
- Housing Material: Seawater resistant die-cast aluminium
- Protection Rating: IP65
Trafag 8202.77.2210
High-quality Trafag 8202.77.2210 mechanical pressure switch with an adjustable range of -0.9 to 2 bar. Features a rugged aluminum housing and G1/4″ connection, ideal for industrial monitoring and control.
