Product Description

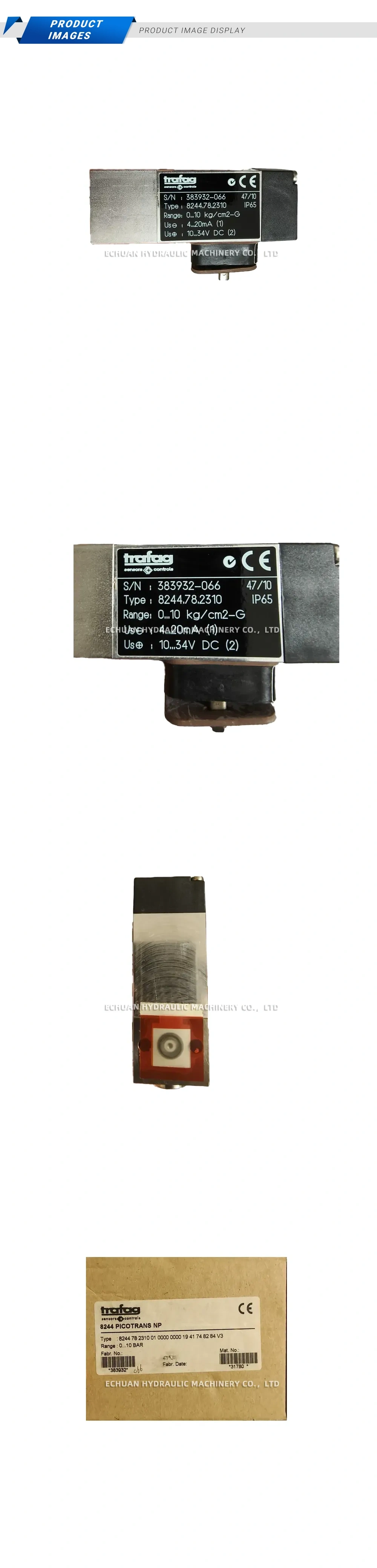

Trafag 8244.78.2310
The Trafag 8244.78.2310 is a robust pressure transmitter from the NAH 8244 series, engineered for demanding industrial applications. It features a welded, thin-film-on-steel sensor cell that provides excellent long-term stability and resistance to high overpressure conditions. This design eliminates the need for soft sealing materials, making it suitable for a wide range of media. Its compact and rugged construction ensures reliable performance in harsh environments such as machine building, hydraulics, process technology, and water treatment systems.
Technical Specifications:
- Model Series: NAH 8244
- Measuring Range: 0 … 10 bar
- Output Signal: 4 … 20 mA (2-wire)
- Accuracy @ 25°C: ≤ ±0.5 % FS typ.
- Process Connection: G1/4″ male
- Electrical Connection: Industrial plug DIN EN 175301-803 Form A
- Sensing Technology: Thin-film-on-steel
- Protection Rating: IP65
Trafag 8244.78.2310
Trafag 8244.78.2310 industrial pressure transmitter with a 0-10 bar range, 4-20mA output, and G1/4″ connection. A robust and reliable sensor for hydraulics and machine building.
